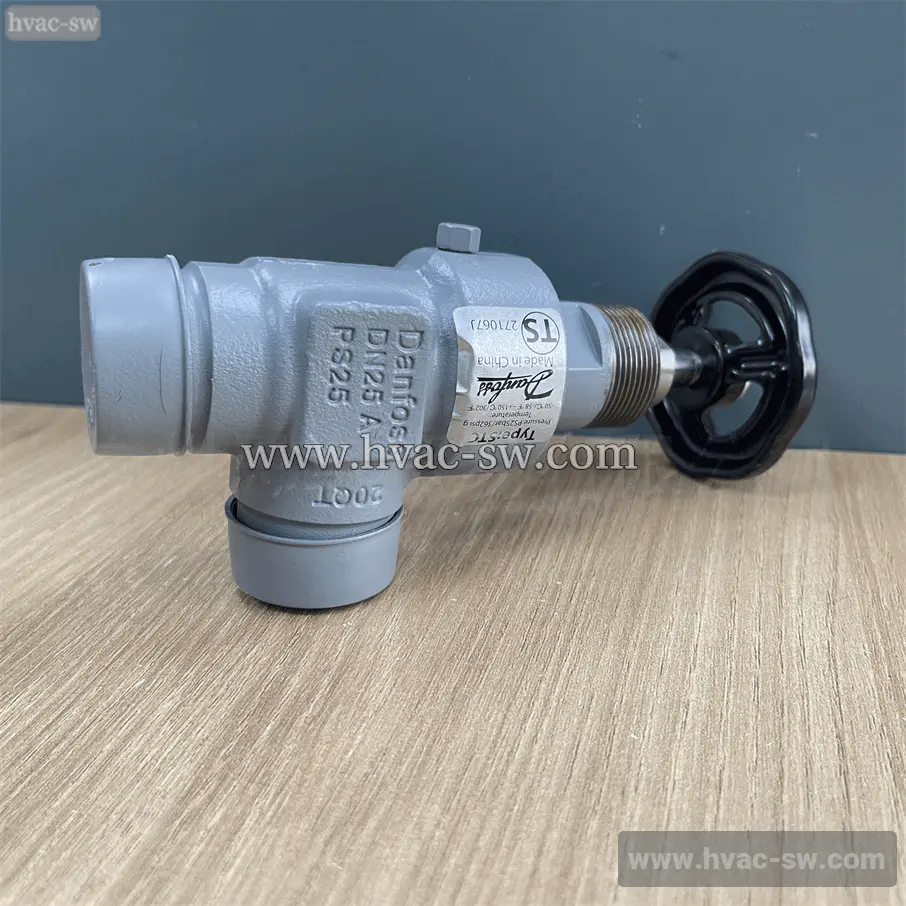

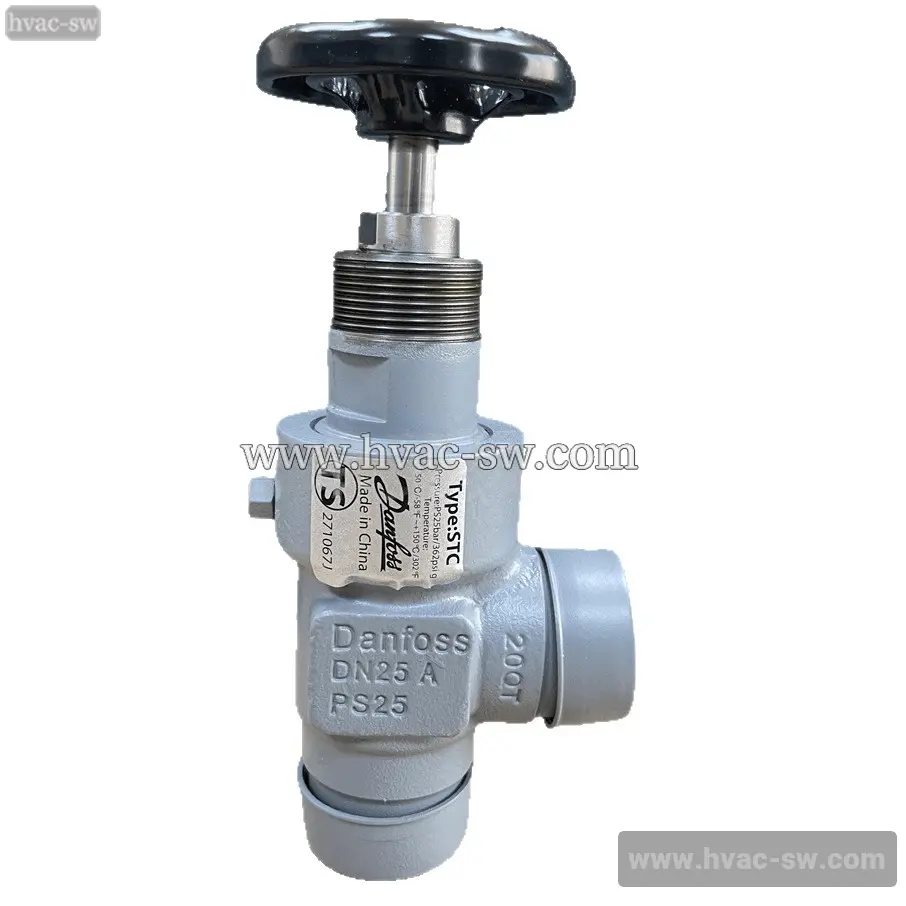

Danfoss STC25M 148B4671 Handwheel Operated Globe Valve
The Danfoss STC25 M 148B4671 is a handwheel operated globe valve designed for precise flow control in heating and HVAC applications. It offers reliable shut-off and regulation of water, brine, or glycol mixtures, featuring a durable construction suitable for various industrial and commercial systems.
Need help confirming this part?
Send us the part number, equipment model, nameplate information or a product photo. We can check available sourcing options, pricing and lead time.
Product Overview
| Attribute | Value |
|---|---|
| Gross weight | 1.25 Kilogram |
| Net weight | 1.15 Kilogram |
| Volume | 1.921 Liter |
| EAN | 5702428883658 |
| Type | STC 25 M |
| Product group | Shut-off and regulating valves |
| Product Name Description | Shut-off valve |
| China RoHS compliance | Out of scope |
| Colour Paint | Gray |
| Connection standard | ASME B 36.10M SCHEDULE 80 |
| Contains batteries | No |
| Direction | Angleway |
| Equipment | Handwheel |
| EU RoHS compliance | Out of scope |
| Inlet connection size [in] | 1 in |
| Inlet connection size [mm] | 25 mm |
| Inlet connection type | Butt weld |
| Max. Working Pressure [bar] | 25 bar |
| Max. Working Pressure [psig] | 365 psig |
| Outlet connection size [in] | 1 in |
| Outlet connection size [mm] | 25 mm |
| Outlet connection type | Butt weld |
| Packing format | Single pack |
| Product description | Stop valve |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R134aR22R404AR717R507A |
| Serviceable | STC spare parts |
| Temperature range [°C] [max] | 150 °C |
| Temperature range [°C] [min] | -50 °C |
| Temperature range [°F] [max] | 302 °F |
| Temperature range [°F] [min] | -58 °F |
