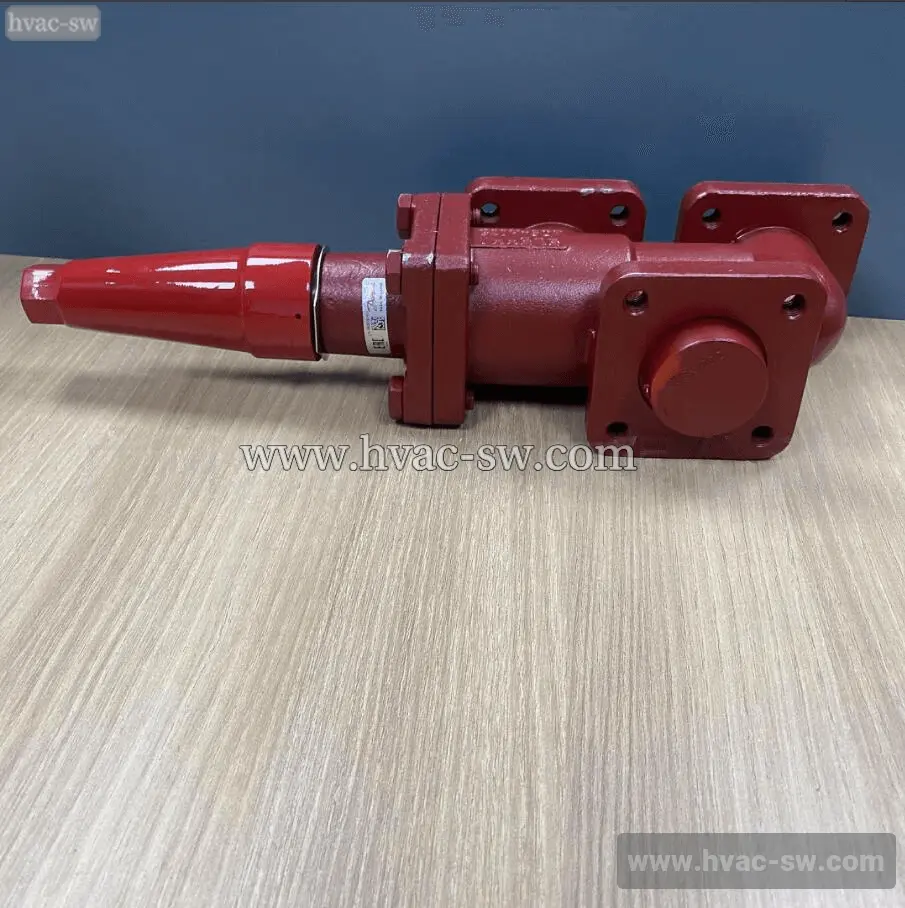

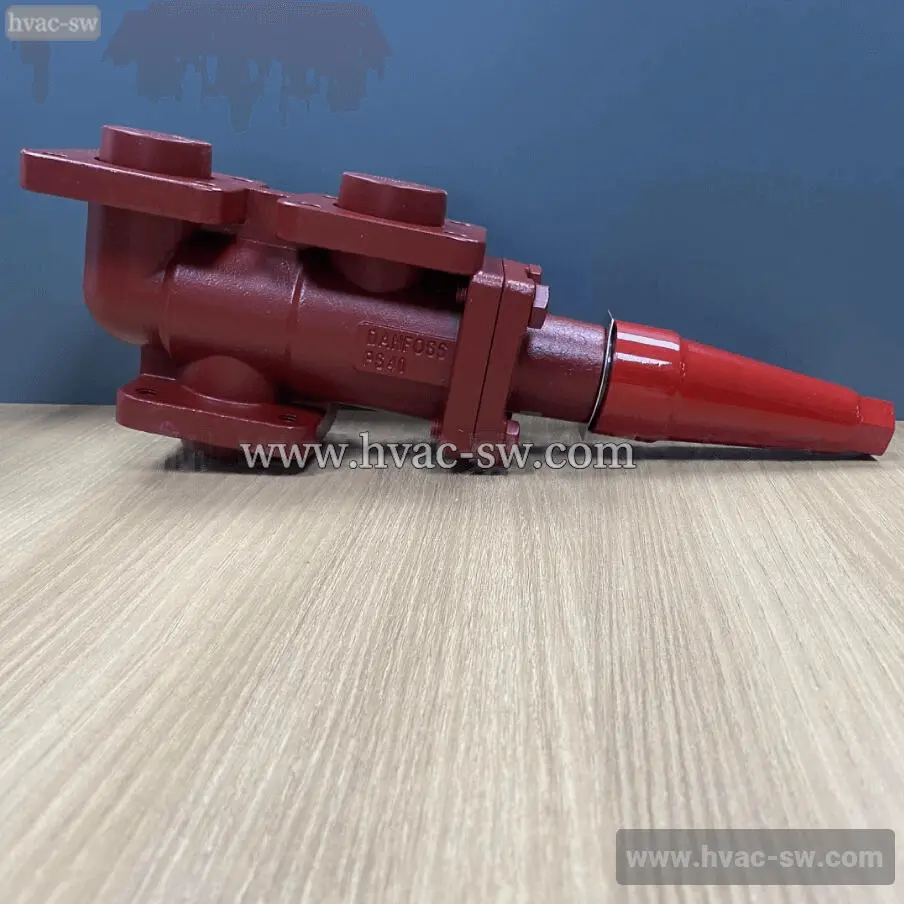

Danfoss 148F3010 DSV2 Safety Valve Seat
Danfoss 148F3010 DSV2 Safety Valve Seat. Confirm medium, working pressure, temperature and end connections before ordering.
- Brand
- Danfoss
- Product type
- Valve Seat
- Model number
- DSV 2
- Part number
- 148F3010
Request pricing & availability
Share your quantity and delivery destination. We’ll confirm the configuration, availability and lead time in your quotation.
Need help identifying a part?
Include a nameplate photo or datasheet with your inquiry so we can check the exact reference.
At a glance
Product overview
Danfoss 148F3010 DSV2 Safety Valve Seat is listed as a valve seat for sourcing and identification. Exact technical ratings and manufacturer identity must be checked against the nameplate and official documentation before ordering.
For selection, compare medium, working pressure, temperature and end connections with the installed equipment. A similar model code does not establish interchangeability.
Key features
- Catalog classification: Valve Seat
- Identification reference: DSV 2
- Exact configuration and ratings must be confirmed before selection.
Technical reference
Technical specifications
| Volume | 10.275 Liter |
|---|---|
| CE mark | Yes |
| Approval | CE EAC UA |
| Direction | Threeway |
| Equipment | Cap |
| Net weight | 5.9 Kilogram |
| Colour Paint | Reddish brown |
| Gross weight | 11.956 Kilogram |
| Product Type | DSV 2 |

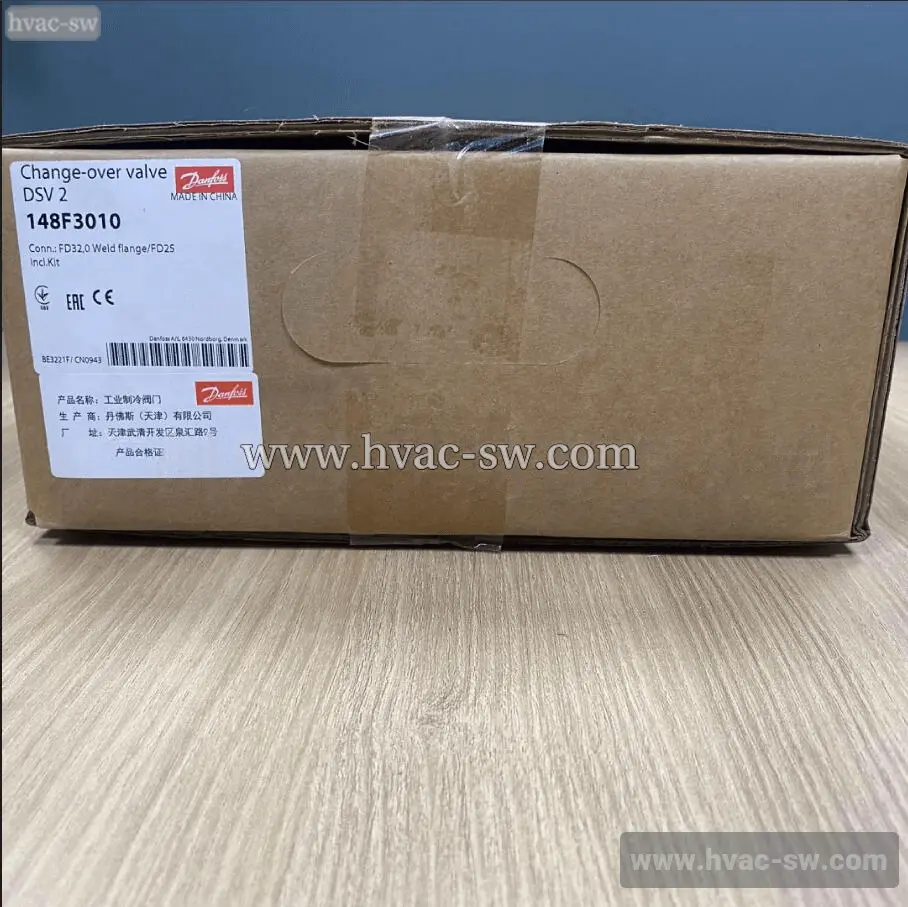

| Product name | Change-over valve |
| Refrigerants | R1234yf R1234ze(E) R125 R134a R152a R170 R22 R227ea R236fa R245fa R290 R32 R401A R402A R404A R407A R407B R407C R407F R407H R409A R410A R413A R417A R421A R422A R422B R422D R438A R442A R444B R447A R447B R448A R449A R449B R450A R452A R452B R454A R454B R454C R455A R463A R502 R507A R512A R513A R513B R515A R515B R516A R600 R600a R717 R744 |
| Parts included | Incl.Kit |
| Kv value [m³/h] | 30.000 m³/h |
| Manufacturer code | 148F3010 |
| Cv value [gal/min] | 34.800 gal/min |
| Connection standard | EN 10220 ISO 228-1 |
| Product description | Double stop valve |

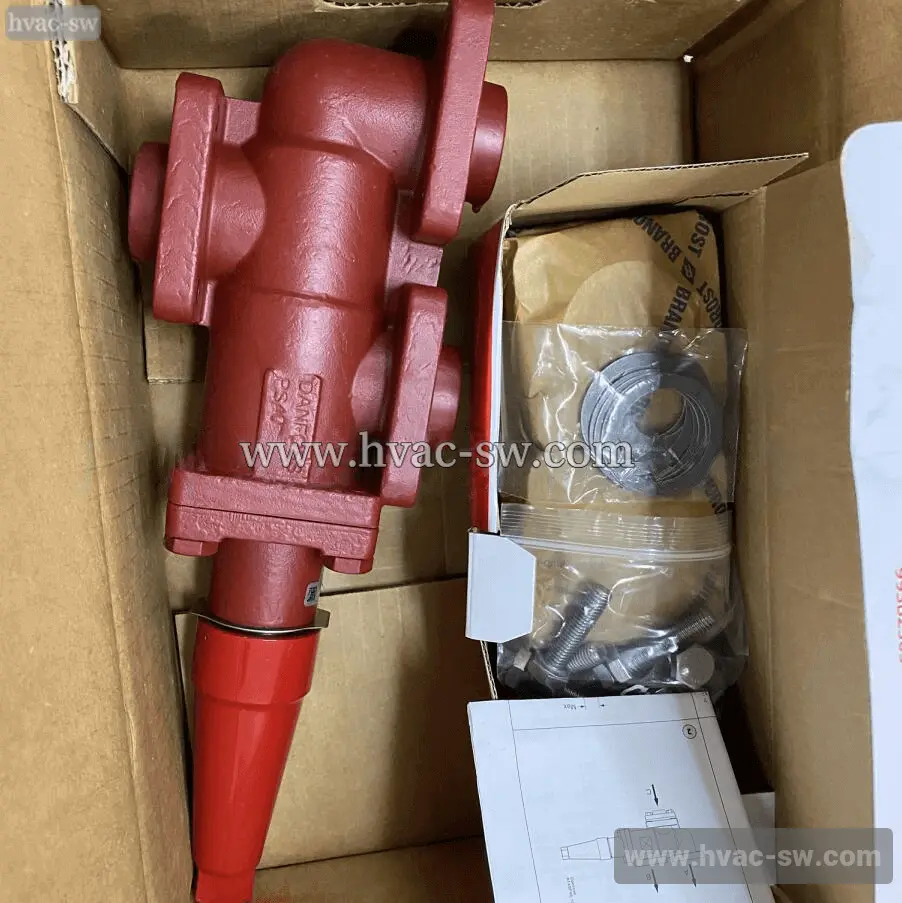

| Material Description | DSV2 FD32/FD5, DUAL STOPVALVE+KIT |
| Inlet connection type | Weld flange |
| Outlet connection type | G |
| Outlet Internal/External | Internal |

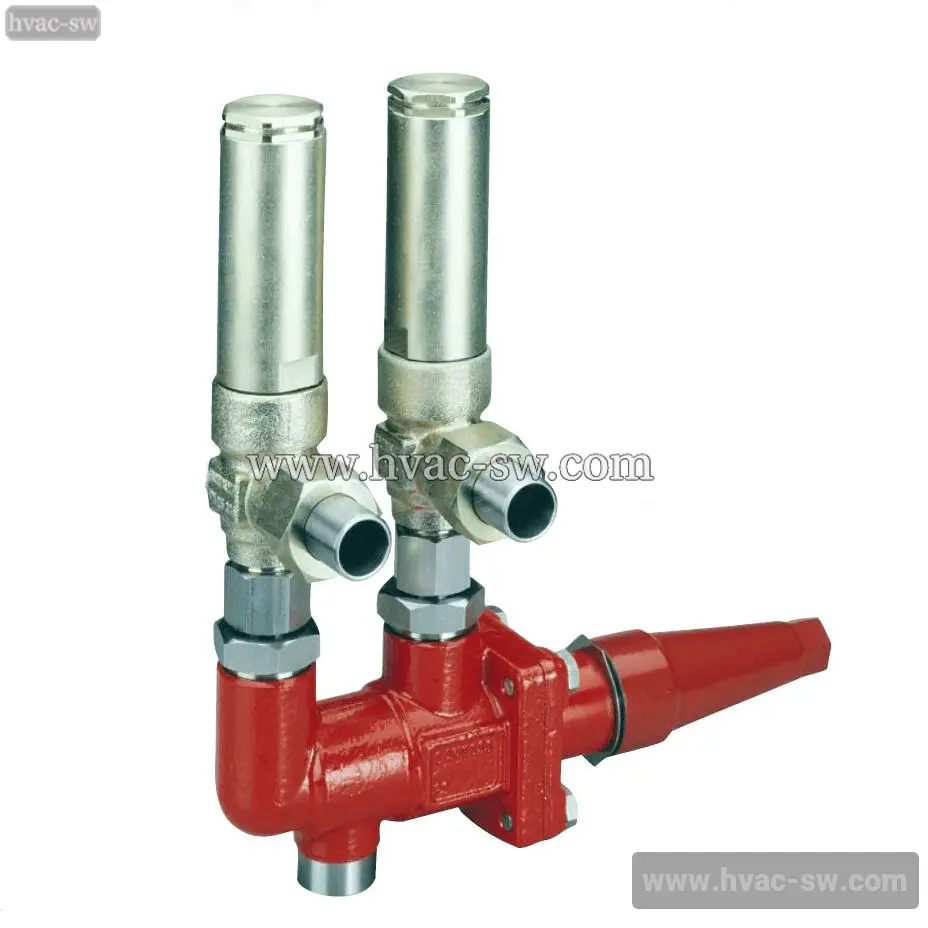

| Safety valve combination | 2 x SFV 20 |
| Inlet connection size [in] | 1 1/4 in |
| Inlet connection size [mm] | 32.00 mm |
| Outlet connection comments | Thread flange |
| Max. Working Pressure [bar] | 40.0 bar |
| Outlet connection size [in] | 1 |
| Safety valve connection std | EN 10220 |
| Max. Working Pressure [psig] | 580 psig |
| Safety valve conn. size [in] | 1 in |
| Safety valve conn. size [mm] | 25 mm |
| Safety valve connection type | Weld flange |
| Temperature range [°C] [max] | 100 °C |
| Temperature range [°C] [min] | -50 °C |
| Temperature range [°F] [max] | 212 °F |
| Temperature range [°F] [min] | -58 °F |
Check the exact variant and operating limits against the applicable manufacturer documentation.
Selection context
Applications
- Fluid-control system maintenance; confirm the exact configuration before use.
- Replacement-part evaluation against the original equipment documentation.
Confirm compatibility with your equipment and operating conditions before selecting a replacement.
Before you order
Ordering information
- Model
- DSV 2
- Quantity
- Specify the required quantity in the inquiry.
- Lead time
- To be confirmed for the selected configuration and destination.
- Product reference
- Danfoss DSV 2 148F3010
- Price and availability
- Subject to quotation; confirm before placing an order.
- Configuration to confirm
- Medium, working pressure, temperature and end connections
- Manufacturer part number
- 148F3010
Identify the part
Send the complete model, part number and any required suffix or configuration.
Share your requirements
Include quantity, destination, target delivery date and required documents.
Confirm the quotation
Review availability, condition, origin, lead time and commercial terms before ordering.
Product questions
Frequently asked questions
How should I identify Danfoss DSV 2 148F3010?
Use the reference Danfoss DSV 2 148F3010 together with a clear nameplate photo and the complete equipment model. Confirm any suffixes before ordering.
Which specifications should be checked before ordering?
Check medium, working pressure, temperature and end connections. No model-specific numerical ratings have been independently confirmed from official documentation for this listing.
Can a similar model be used as a replacement?
Do not select a replacement by a similar name alone. Compare the full code, interfaces, operating limits and equipment requirements with the manufacturer documentation.
What information is needed for a quotation?
Provide Danfoss DSV 2 148F3010, quantity, destination and required delivery date. Include photos or an existing datasheet if the configuration is uncertain.
Are price, stock and lead time confirmed on this page?
No. Request a current quotation for the exact configuration. Availability, lead time and applicable warranty terms must be agreed before ordering.
