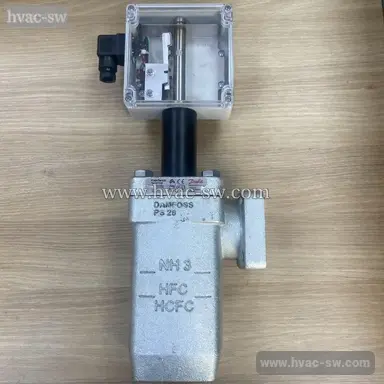

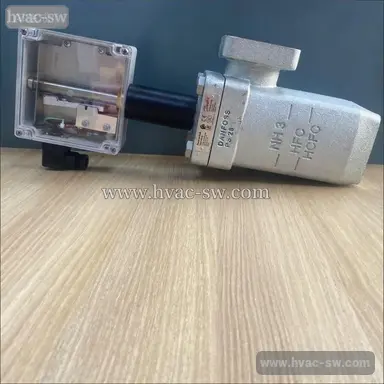

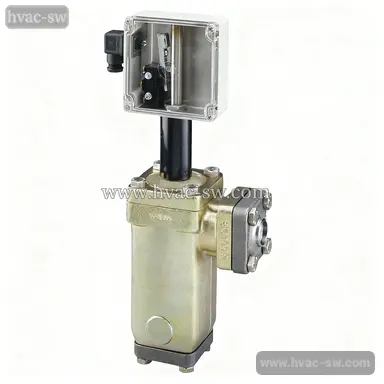

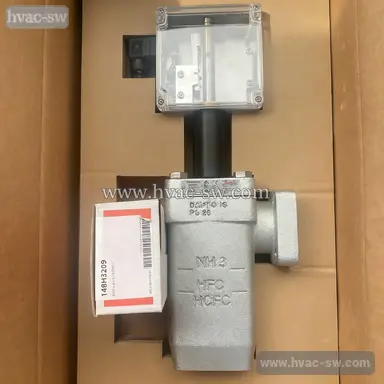

Danfoss 148H3194 AKS38 Float Level Switch
Danfoss AKS38 148H3194 is a float level switch designed for reliable liquid level detection and pump control. Utilizing a magnetic float principle, it ensures high repeat accuracy and long service life. Its compact design allows for easy installation and is suitable for various liquids, making it ideal for water treatment, tanks, and reservoirs.
Need help confirming this part?
Send us the part number, equipment model, nameplate information or a product photo. We can check available sourcing options, pricing and lead time.
Product Overview
| Attribute | Value |
|---|---|
| Gross weight | 11.256 Kilogram |
| Net weight | 8 Kilogram |
| Volume | 20.979 Liter |
| EAN | 5702428242226 |
| Type | AKS 38 |
| Product group | Switches and thermostats |
| Product Name Description | Liquid level switch |
| Approval | CMIMEACLLC CDC TYSK |
| China RoHS compliance | Out of scope |
| Connection size [mm] | 25 mm |
| Connection standard | EN 10220 |
| Connection type | Butt weld |
| Contains batteries | No |
| Electrical connection size | Pg 11 |
| Electrical connection standard | DIN 43650 |
| Enclosure rating IP | IP65 |
| EU RoHS compliance | Out of scope |
| Fluid Group | 12 |
| Max. Working Pressure [bar] | 28 bar |
| Max. Working Pressure [psig] | 406 psig |
| Packing format | Single pack |
| PED category | I |
| Product accessories | Liq. level switch accessories |
| Product description | Float Switch |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrigerants | R134aR22R401AR402AR404AR407AR407BR407CR407FR409AR410AR421AR502R717R507A |
| Serviceable | Liq. level switch spare parts |
| Temperature range [°C] [max] | 65 °C |
| Temperature range [°C] [min] | -50 °C |
| Temperature range [°F] [max] | 149 °F |
| Temperature range [°F] [min] | -58 °F |
