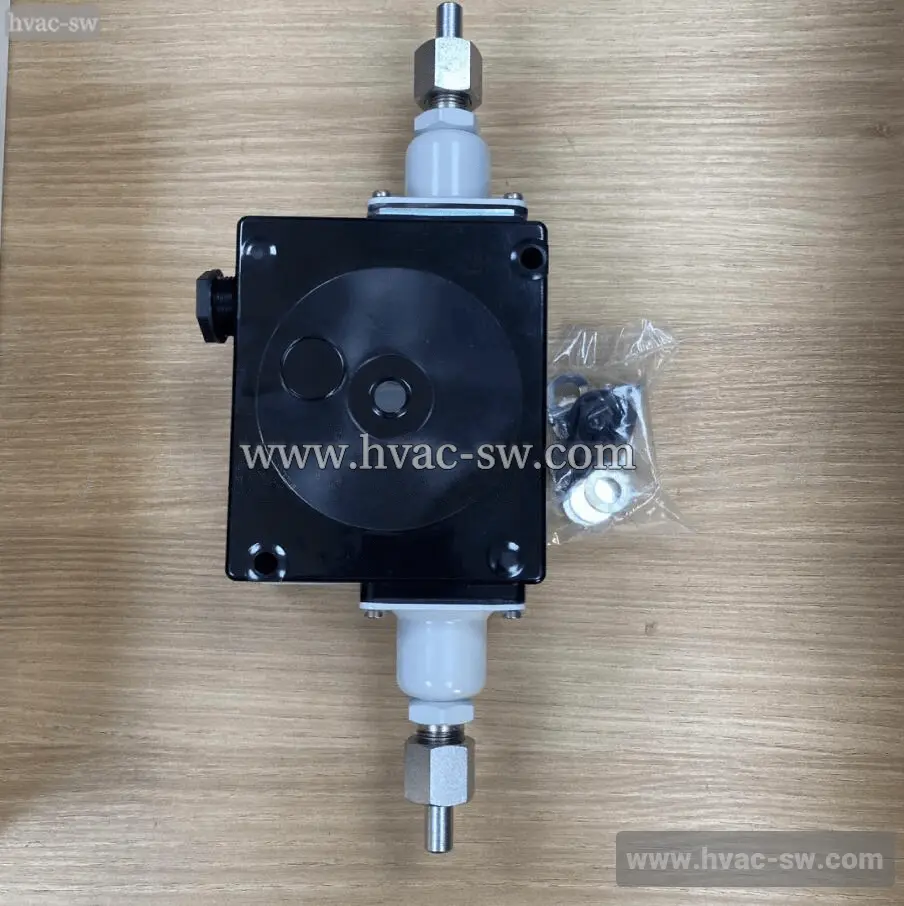

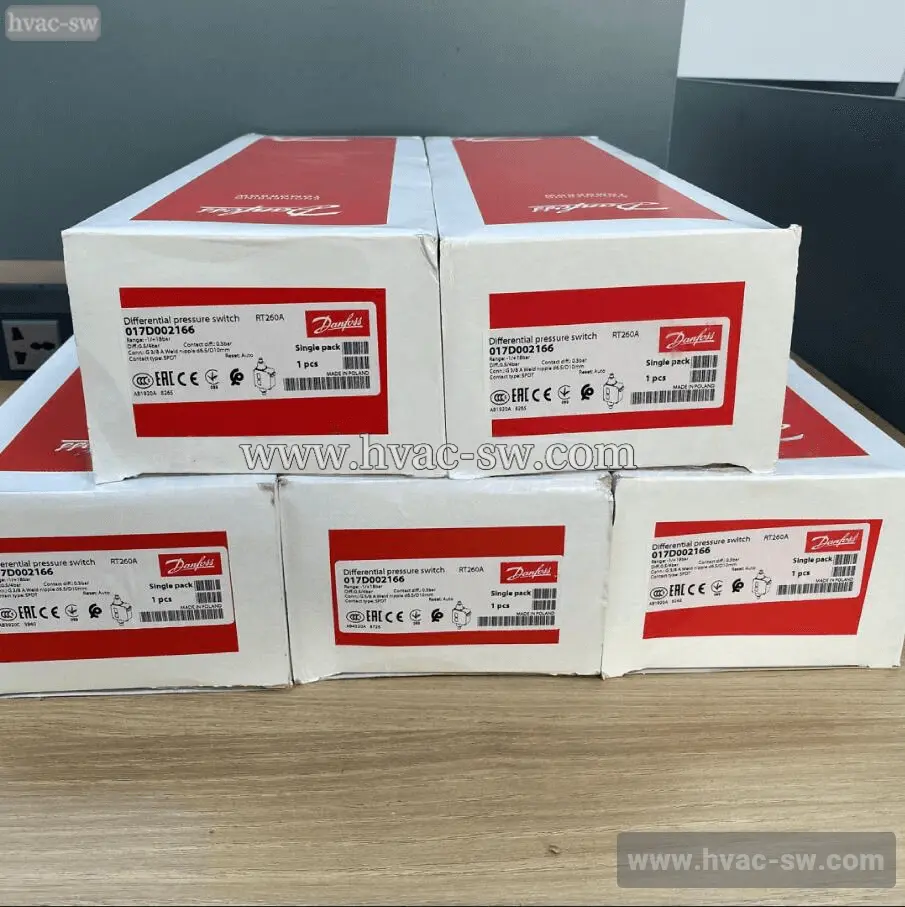

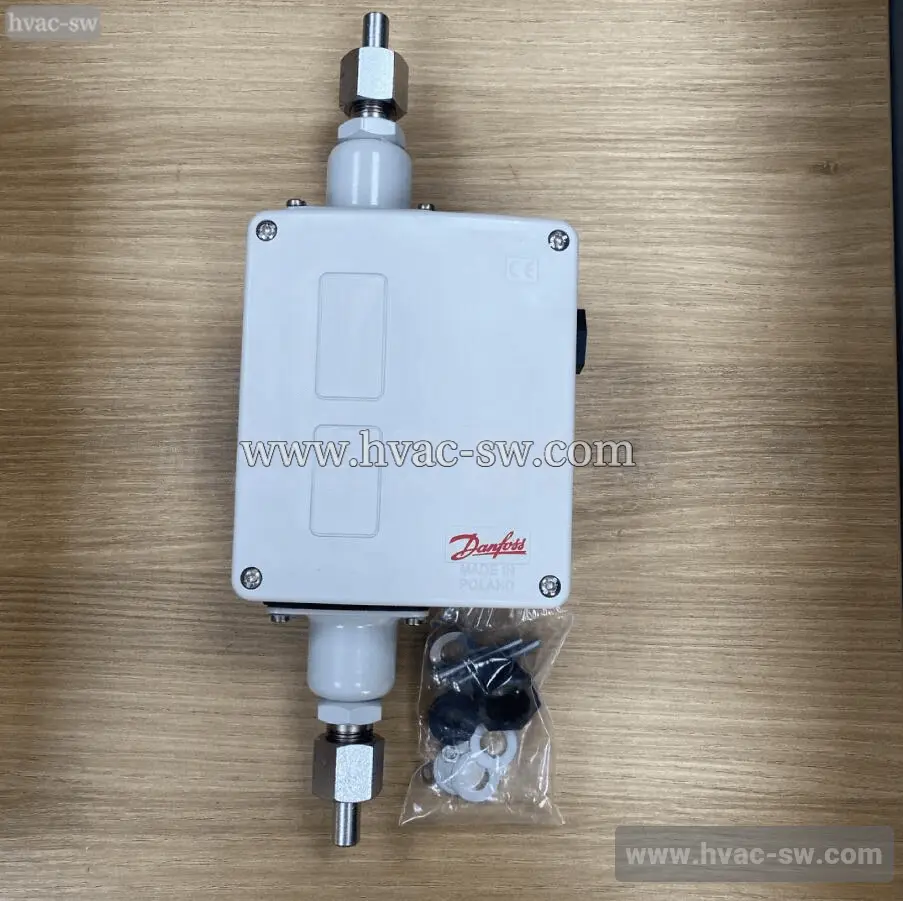

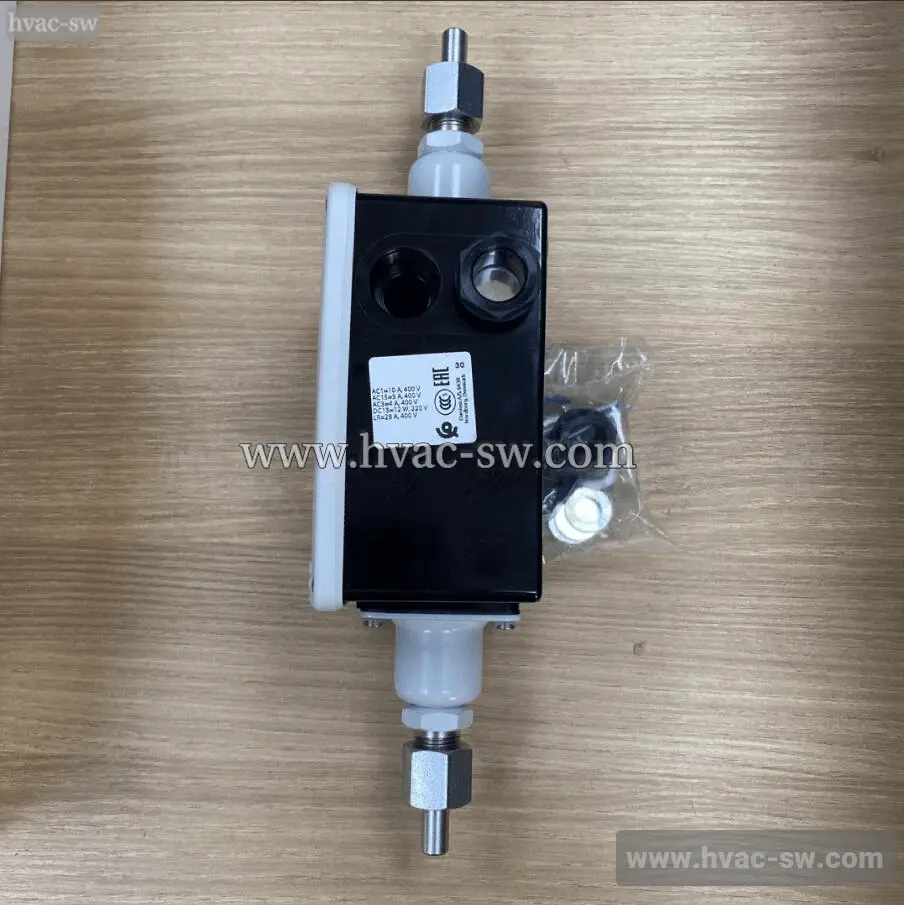

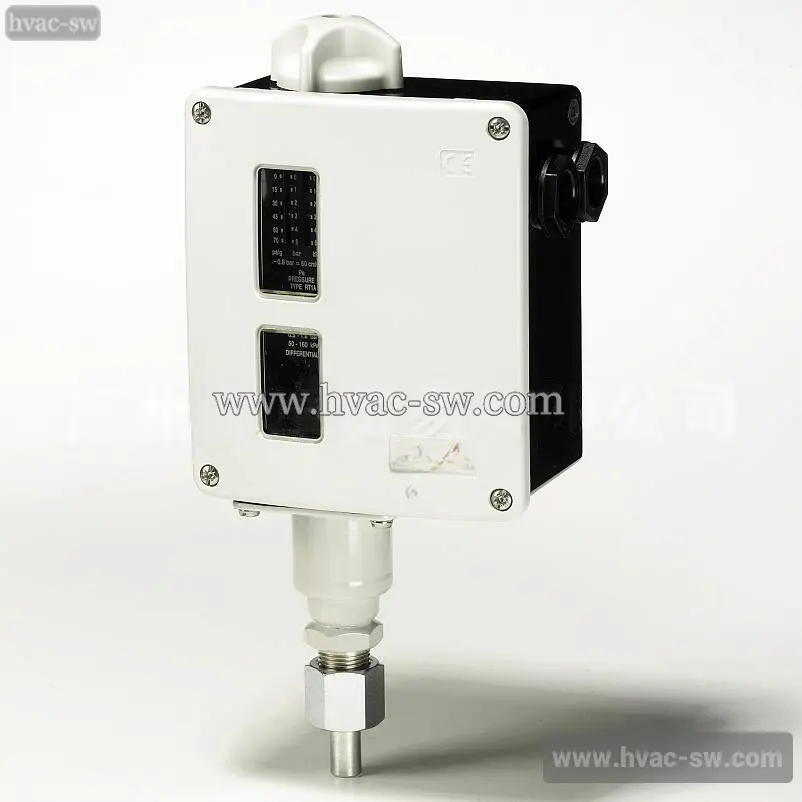

Danfoss RT260A 017D002166 Differential Pressure Switch
Danfoss
Description
The Danfoss RT260A 017D002166 is a reliable differential pressure switch designed for HVAC and industrial applications. It monitors and controls air and liquid pressure, ensuring system safety and efficiency. This compact and adjustable switch offers precise actuation and high durability, performing well in demanding environments.
Product Details
| Attribute | Value |
|---|---|
| Gross weight | 1.27 Kilogram |
| Net weight | 1.02 Kilogram |
| Volume | 4.715 Liter |
| EAN | 5702428042840 |
| Type | RT260A |
| Product group | Switches and thermostats |
| Product Name Description | Differential pressure switch |
| Ambient temperature range [°C] [max] | 70 °C |
| Ambient temperature range [°C] [min] | -50 °C |
| Ambient temperature range [°F] [max] | 158 °F |
| Ambient temperature range [°F] [min] | -58 °F |
| Approval | CCCCECMIMEACKRLLC CDC EURO-TYSKLVDRINARMRSRoHSRoHS ChinaTYSK |
| CE evaluated | Yes |
| China RoHS compliance | Yes |
| Contact differential [bar] | 0.3 bar |
| Contact function | SPDT |
| Contact rating | AC15=3 A, 400 VAC1=10 A, 400 VAC3=4 A, 400 VDC13=12 W, 220 VLR=28 A, 400 V |
| Contains batteries | No |
| Diff.press.setting range [bar] [max] | 4 bar |
| Diff.press.setting range [bar] [min] | 0.5 bar |
| Diff.press.setting range [MPa] [max] | 0.4 MPa |
| Diff.press.setting range [MPa] [min] | 0.05 MPa |
| Diff.press.setting range [psi] [max] | 58 psi |
| Diff.press.setting range [psi] [min] | 7.3 psi |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical conn. Male/Female | Female |
| Electrical connection | Screwed cable entry |
| Electrical connection size | 2xPg 13.5 |
| Electrical connection standard | DIN 40430 |
| Electrical spec. standard | EN 60947-4/-5 |
| EN 60947 electrical properties | Insulation: 400VPollution degree: 3Rated impulse voltage: 4 kVShort circuit prot, fuse: 10A |
| EN 60947 wiring properties | Flex, ferrules: 0.2-1.5 mm2Flex, no ferrules: 0.2-2.5 mm2Solid/stranded: 0.2-2.5 mm2 |
| Enclosure rating IP | IP66 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| In scope of WEEE | Yes |
| Max. test pressure [bar] Pe | 25 bar |
| Max. test pressure [psig] | 362 psig |
| Max. Working Pressure [bar] | 22 bar |
| Max. Working Pressure [psig] | 319 psig |
| Operat. range LP side [bar] Pe [max] | 18 bar |
| Operat. range LP side [bar] Pe [min] | -1 bar |
| Operat. range LP side [psig]Pe [max] | 261 psig |
| Operat. range LP side [psig]Pe [min] | -15 psig |
| Other RoHS documentation | Saudi Arabia RoHS |
| Packing format | Multi pack |
| Pressure connection notes | Weld nipple d6.5/D10mm |
| Pressure connection size | 3/8 |
| Pressure connection standard | ISO 228-1 |
| Pressure connection type | G |
| Pressure Male/Female | Male |
| Pressure range [bar] Pe [max] | 18 bar |
| Pressure range [bar] Pe [min] | -1 bar |
| Product accessories | Generic accessoriesSwitches accessories |
| Product description | Diff. Pressure Switch |
| Quantity per packing format | 9 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R11R12R123R124R134aR22R404AR407AR407CR407FR407HR422BR422DR438AR507CR717 |
| Relay release time [s] | 0 s |
| Reset function | Auto |
| SCIP dossier no. | f62fe422-beda-433a-a602-740419c82c06 |
| SCIP dossier product name | RT Presso_Diff.Presso |
| Serviceable | Contact systems |
| UL approved refrigerants | R11R12R123R124R134aR22R404AR407AR407CR407FR407HR422BR422DR438AR507C |
