name

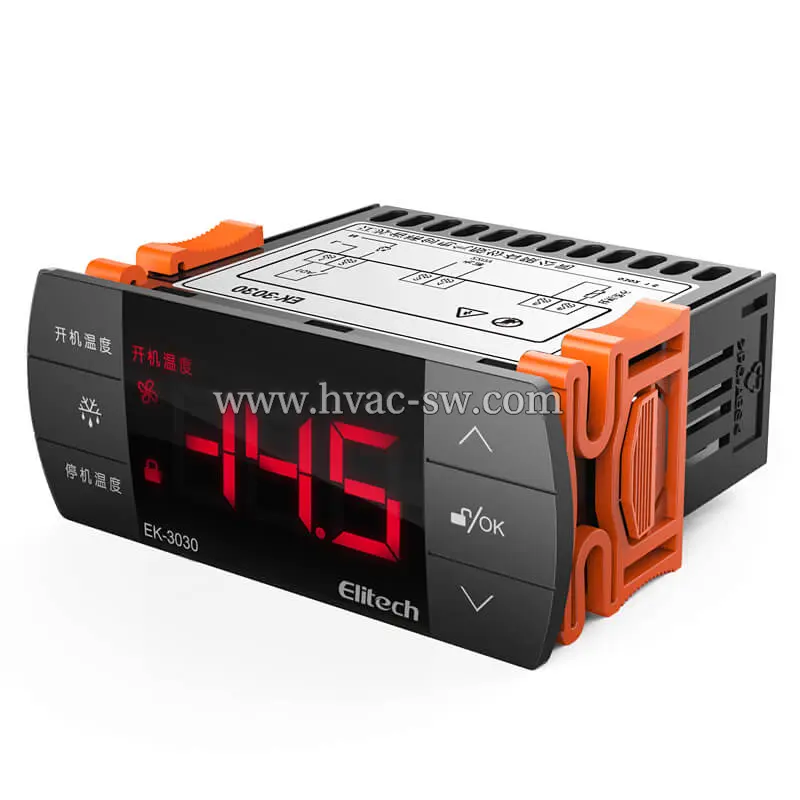

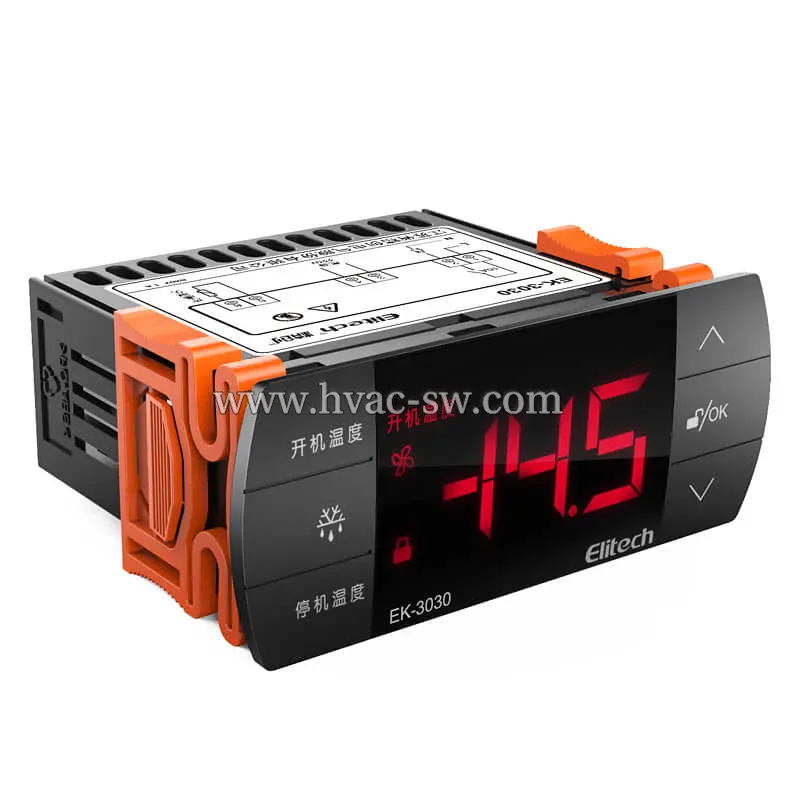

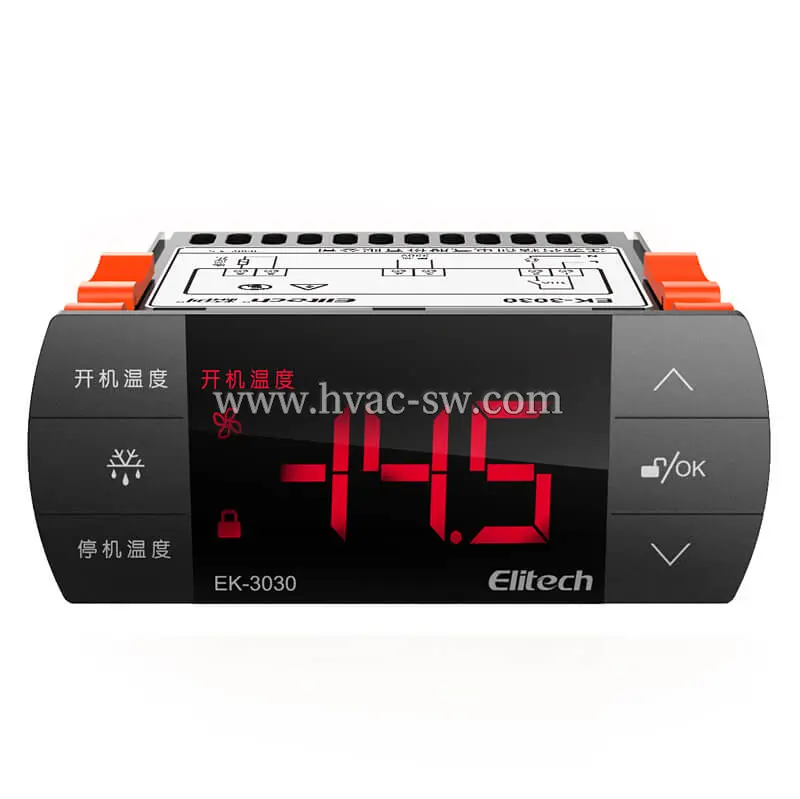

Elitech Universal Controller EK-3030
Elitech
Description
EK-3030 Universal Controller: Programmable control unit for light commercial refrigeration and HVAC systems. Features flexible I/O configuration, robust communication protocols, and reliable performance for efficient system monitoring and seamless integration in diverse commercial applications.
Product Details
| Product Parameter | Classic Model STC-9200 | Touch Model EK-3030 |
|---|---|---|
| Mounting Dimensions | 71×29 (mm) | 71×29 (mm) |
| Overall Dimensions | 77×34.5×65.5 (mm) | 78.5×34.5×82 (mm) |
| Temperature Measuring Range | -50℃ ~ 50℃ | -40℃ ~ 99℃ |
| Temperature Control Range | -50℃ ~ 50℃ | -40℃ ~ 85℃ |
| Operating Voltage | 220VAC±10%, 50/60Hz | 220VAC±10%, 50/60Hz |
| Resolution | 1℃ | 1℃ |
| Cooling | Yes | Yes |
| Defrost | Yes | Yes |
| Fan Control | Yes | Yes |
| Sensor | 1×NTC, standard 2m cable | 1×NTC, standard 2m cable |
| Temperature Calibration | Yes | Yes |
| Operation Type | Button Operation | Touch Operation |
| Digital Display | Standard Digital Tube | High-Brightness Digital Tube |
