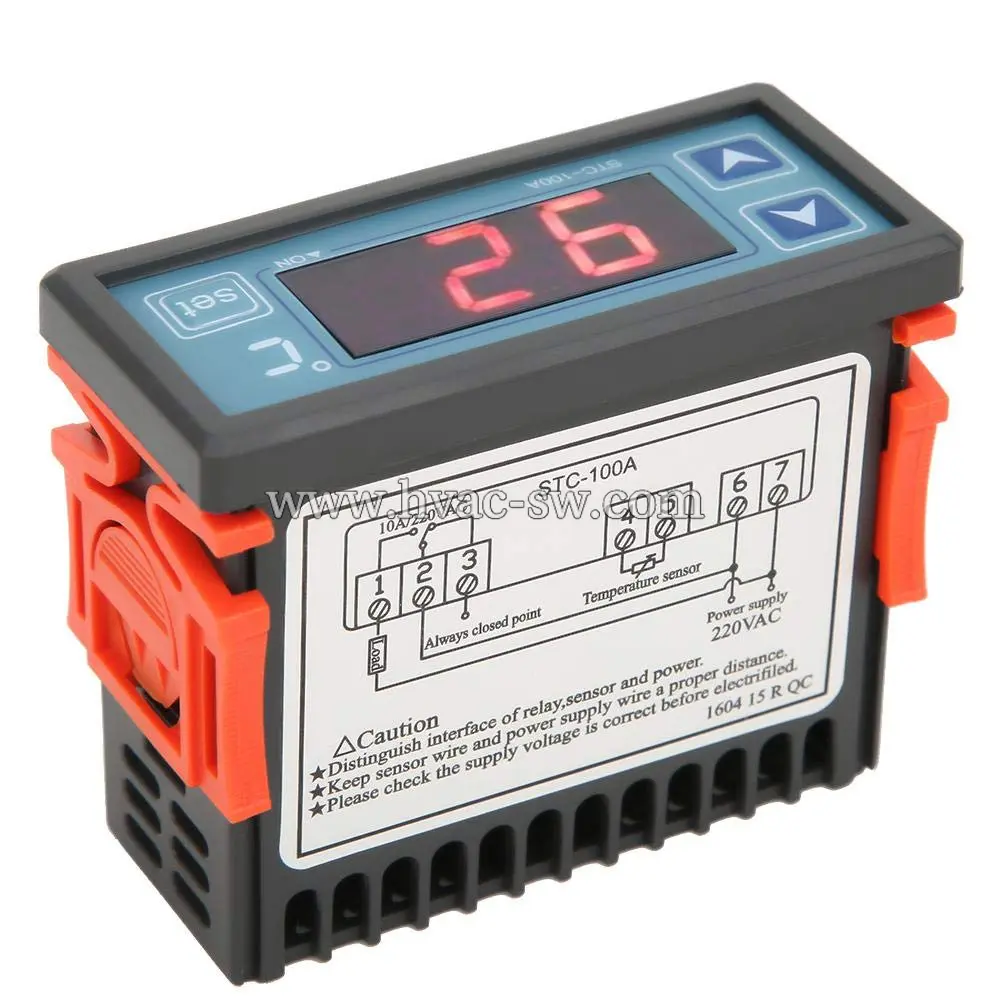

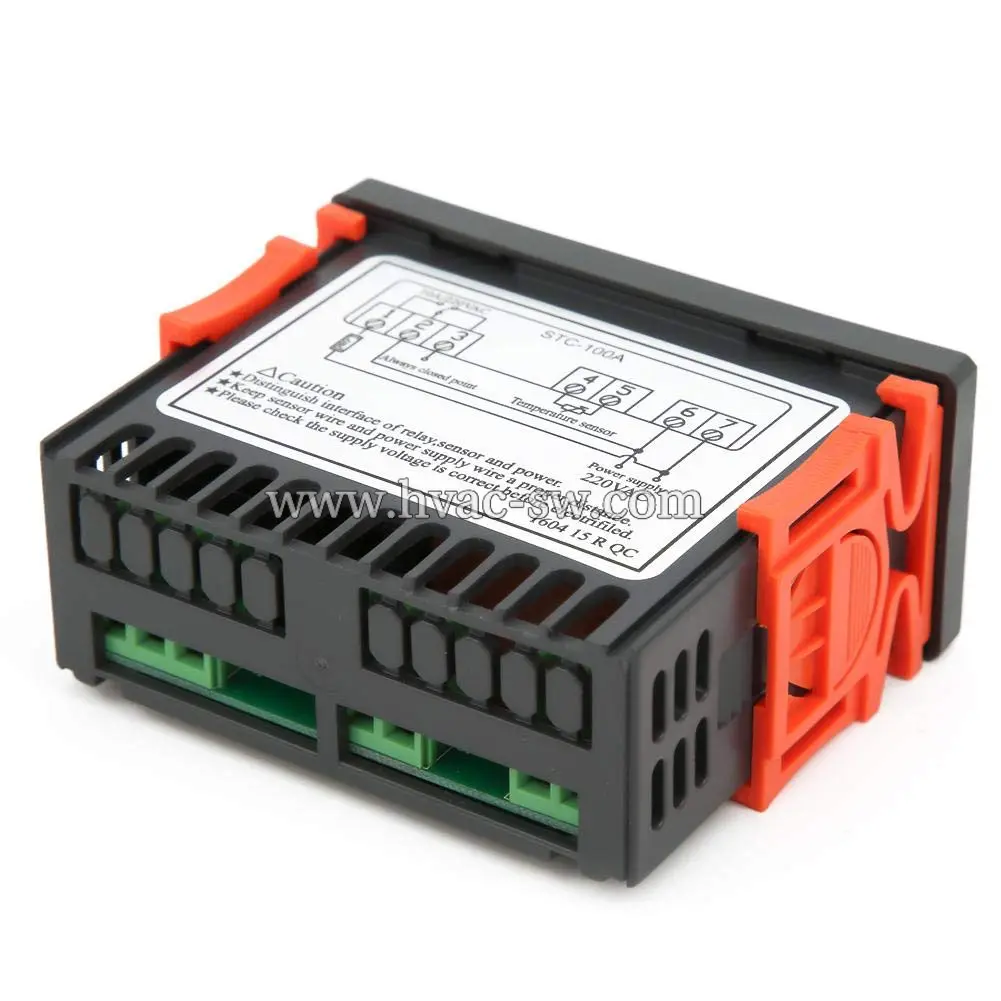

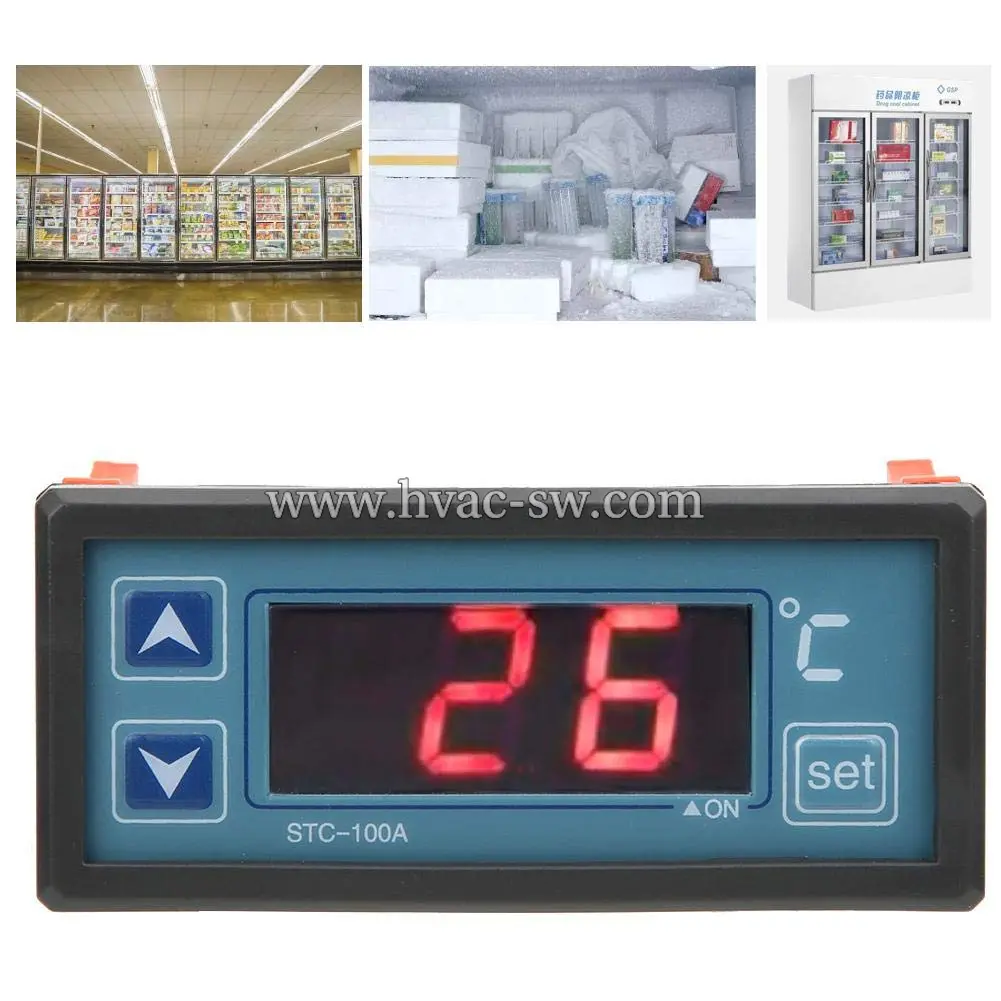

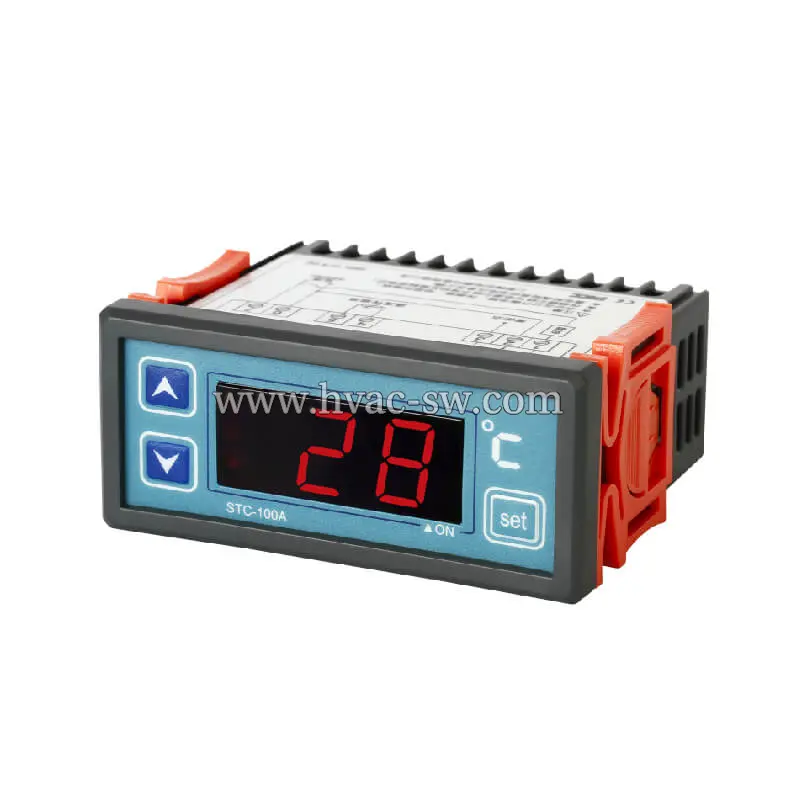

Elitech STC-100A Digital Temperature Controller, Cooling & Heating Thermostat, 220V 10A, NTC Sensor

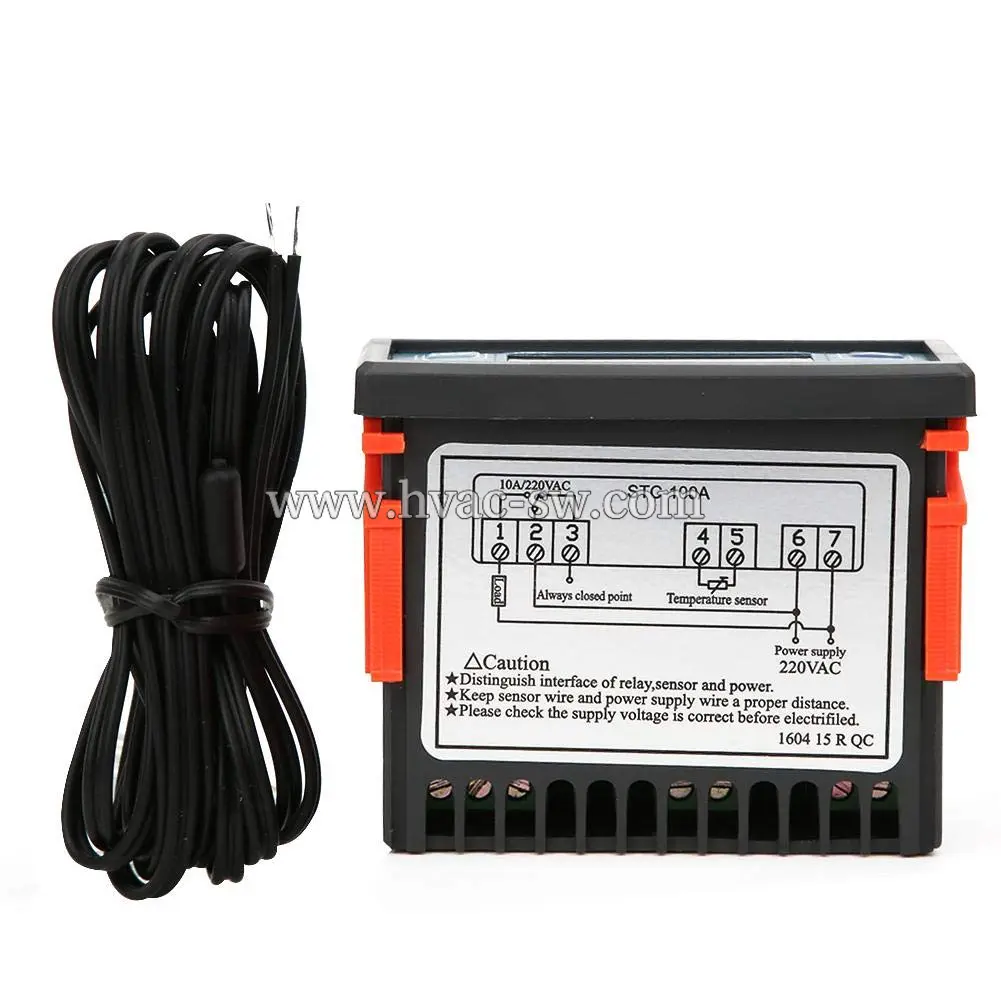

The Elitech STC-100A is a cost-effective digital temperature controller supporting both cooling and heating modes. It comes with a single NTC sensor (2m cable) and a 10A/220VAC relay output to drive compressors or heaters directly. Temperature range -40°C to +99°C with 1°C resolution and ±1°C accuracy. Features include compressor delay protection, temperature calibration, sensor fault alarm, and IP54 front panel for dust/water resistance. Compact size (77×34.5×62mm) for easy panel mounting. CE/EMC certified for commercial refrigeration.
Need help confirming this part?
Send us the part number, equipment model, nameplate information or a product photo. We can check available sourcing options, pricing and lead time.
Product Overview
Cooling/Heating Mode Switch: Easily switch between refrigeration and heating modes for multi-scenario use.
Precision Temperature Control: Adjustable setpoint with differential temperature control to prevent frequent compressor cycling.
Output Delay Protection: Protects compressors and loads from inrush current on power-up.
Probe Fault Alarm: Instant alert for sensor failures to avoid temperature runaway.
Power-Off Memory: Automatically restores settings after power outage, no reconfiguration needed.
Temperature Calibration: On-site calibration for accurate temperature measurement in any environment.
Specification:
Condition: New
Item Type: Temperature Controller
Model: -100A
Material: ABS
Mounting hole size: approx. 71 x 29 mm
Operating ambient temperature: 0℃-60℃
Relative humidity: Not more than 85% (no condensation)
Supply voltage: 220 VAC ± 10%, 50/60 Hz
Power Consumption : Less than 3 W
Temperature measurement range: -50°C -99°C
Resolution: 1°C
Accuracy: ± 1°C
Contact capacity of the output relay: 10A / 220VAC
Package List:
1 x Temperature Controller
1 x user manual
1 x Cable
| Universal Single-Sensor Temperature Controller Specifications | |
|---|---|
| Installation Dimensions | 71*29 mm (L×W) |
| Overall Dimensions | 77*34.5*62 mm (L×W×D) |
| Operating Voltage | 220VAC-240VAC, 50Hz - 60Hz |
| Operating Temperature | -10°C ~ 60°C |
| Temperature Measurement Range | -40°C ~ 90°C |
| Measurement Accuracy | ±1°C |
| Display Resolution | 1°C |
| Sensor Type | NTC Sensor |
