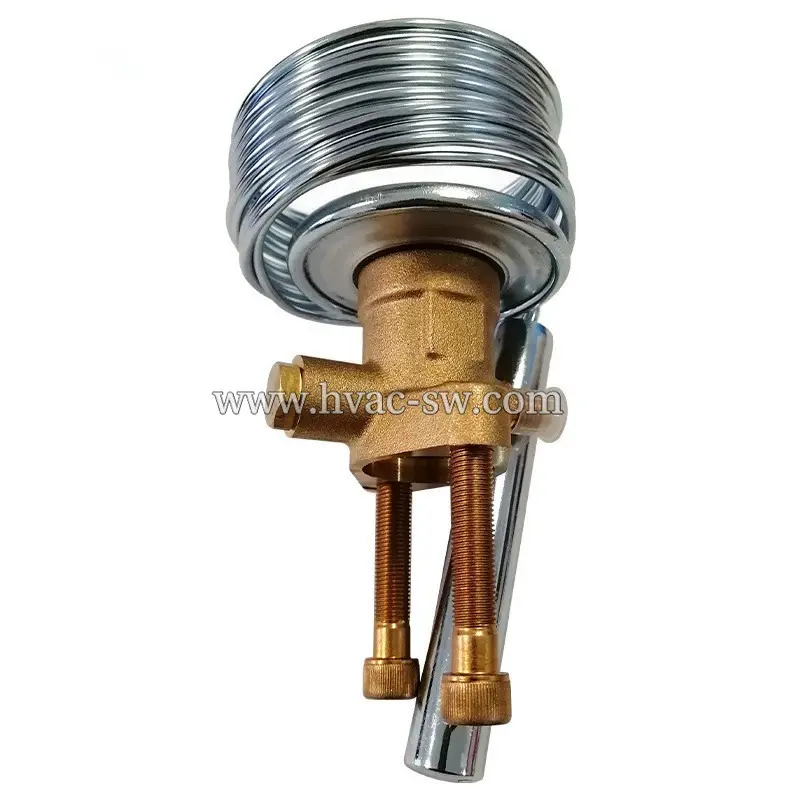

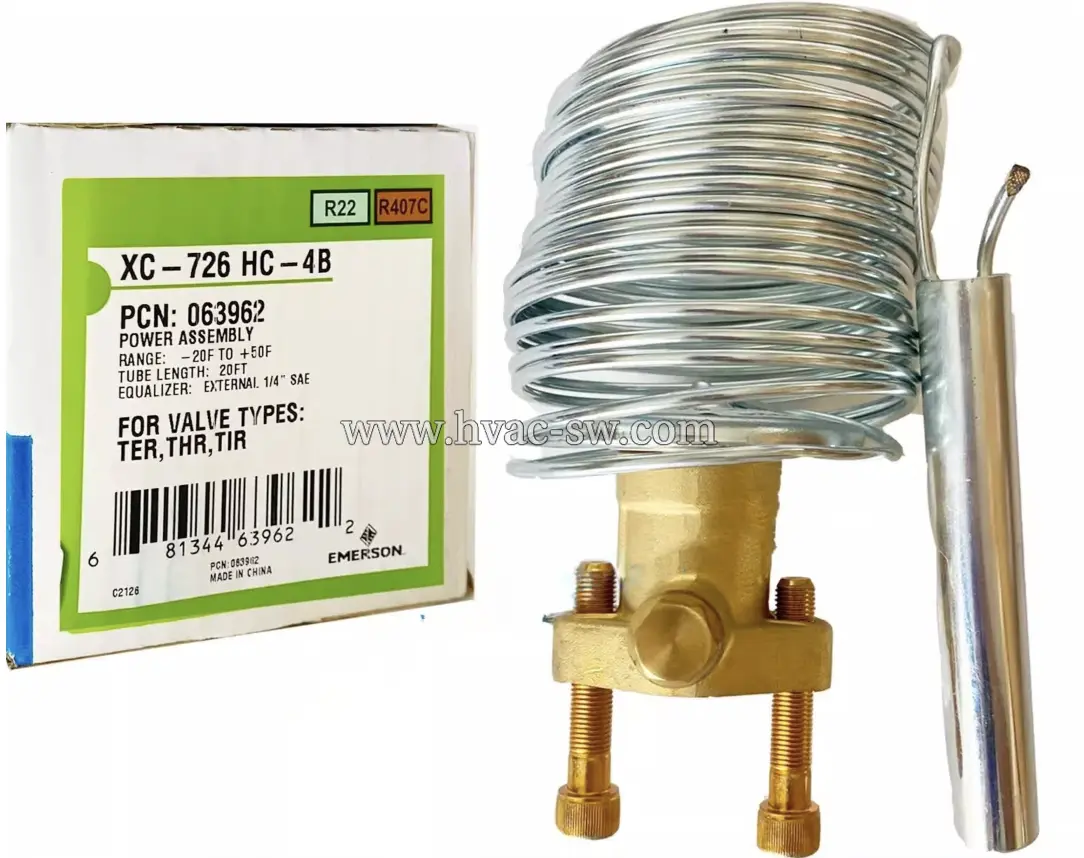

Emerson 063962 XC-726HC-4B Power Element, 4m Capillary, R22/R407C, for T/ZZ Series TXV
The Emerson XC-726HC-4B (PCN: 063962) is a power element/thermobalance designed for T-series (TCLE/TJRE/TER) and ZZ-series (ZZCE) take-apart thermostatic expansion valves. It features a 4-meter capillary tube and is charged for R22/R407C refrigerants, optimized for medium-temperature HVAC&R applications (-29℃ to +10℃). This UL/CE-certified component precisely senses evaporator outlet temperature, regulates superheat, and ensures stable valve operation under varying load conditions (25%–100%). With a maximum working pressure of 31 bar, it serves as a direct, interchangeable replacement for Emerson TXV power heads, ideal for commercial AC, chillers, and medium-temp cold storage systems.
Need help confirming this part?
Send us the part number, equipment model, nameplate information or a product photo. We can check available sourcing options, pricing and lead time.
Product Overview
Emerson XC-726HC-4B (063962) Power Element for T/ZZ Series Thermostatic Expansion Valves
Key Features & Benefits
Refrigerant Compatibility: Exclusively charged for R22 and R407C, making it ideal for air conditioning, chillers, and medium-temp cold storage systems.
Medium-Temp Operation: Designed for -29℃ to +10℃ (-20°F to +50°F) evaporating temperatures, delivering stable superheat control under partial loads (down to 25%).
4m Capillary Tube: Equipped with a 4-meter (13ft) capillary for flexible installation in various system layouts.
Modular Interchangeability: Directly replaceable with other XC-726 series power elements in T/ZZ series TXVs, reducing inventory and service costs.
Reliable Construction: Laser-welded stainless steel power head resists corrosion; large diaphragm ensures smooth, consistent valve control.
Certified Quality: UL and CE certified; maximum allowable working pressure (PS) of 31 bar for safe, durable operation.
Applications
Commercial air conditioning (rooftop units, split systems)
Water chillers (air-cooled/water-cooled)
Medium-temperature cold storage (0℃ to +10℃)
Industrial process cooling systems
Retrofit and maintenance of Emerson T/ZZ series TXVs
Compatibility
T-series: TCLE, TJRE, TER, THRE
ZZ-series: ZZCE (take-apart deep-freeze valves)
| Parameter | Specification |
|---|---|
| Brand | Emerson (ALCO) |
| Model Number | XC-726HC-4B |
| PCN (Part Control Number) | 063962 |
| Product Type | Power Element / Thermobalance (TXV Power Head) |
| Compatible Refrigerants | R22, R407C |
| Temperature Range | -29℃～+10℃ (-20°F～+50°F) |
| Capillary Tube Length | 4 meters (13 feet) |
| Max. Working Pressure (PS) | 31 bar (450 psig) |
| Certifications | UL, CE |
| Compatible Valve Series | T-series (TCLE/TJRE/TER), ZZ-series (ZZCE) |
| Application | Commercial AC, Chillers, Medium-Temp Cold Storage, HVAC&R Retrofits |
| Product Specification | Overall Dimensions (L*W*H) | Weight |
| XB-1019HCA-1B | 83*13*53mm | 3kg |
| XB-1019HZ-1B | 83*13*53mm | 3kg |
| XB-1019NC-1B | 83*13*53mm | 3kg |
| XB-1019MC-1B | 83*13*53mm | 3kg |
| XB-1019SC-1B | 83*13*53mm | 3kg |
| XB-1019HC-1B | 83*13*53mm | 3kg |
| XB-1019HW100-1B | 83*13*53mm | 3kg |
| XB-1019NW100-1B | 83*13*53mm | 3kg |
| XB-1019MW55-1B | 83*13*53mm | 3kg |
| XB-1019SZ-2B | 83*13*53mm | 3kg |
| XB-1019CL-2B | 83*13*53mm | 3kg |
| XB-1019HC-2B | 83*13*53mm | 3kg |
| XC-726HC-4B | 83*13*53mm | 3kg |
| XB-1019HW100-2B | 83*13*53mm | 3kg |
| XB-1019SZ-1B | 83*13*53mm | 3kg |
| XB-1019SW40-1B | 83*13*53mm | 3kg |
| XC-726HC-2B | 83*13*53mm | 3kg |
| XC-726HW100-2B | 83*13*53mm | 3kg |
