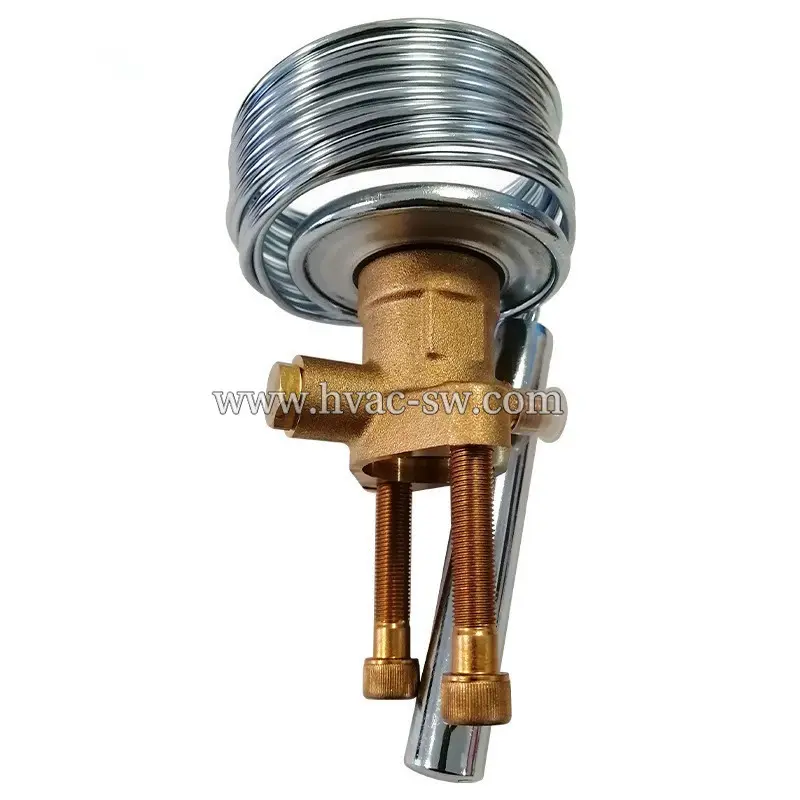

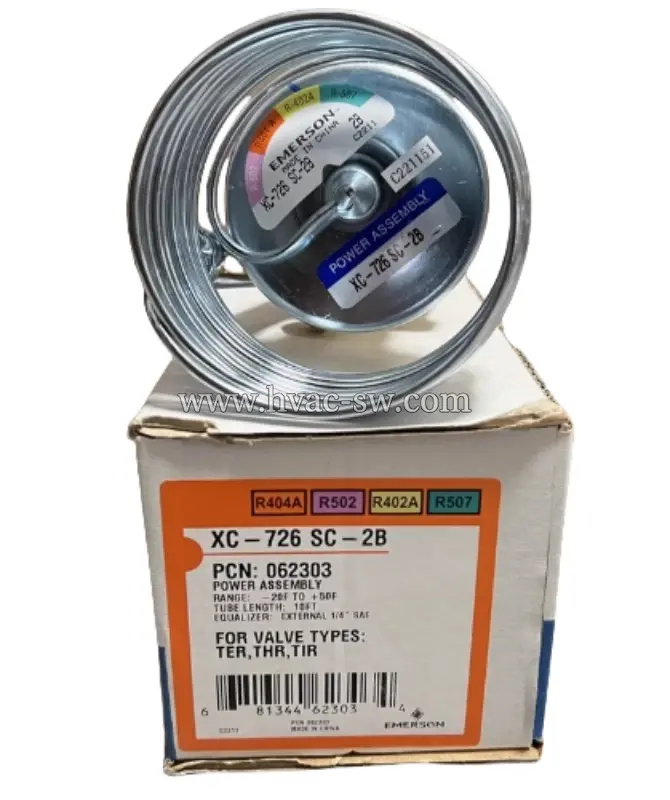

Emerson XC-726SC-2B 062303 Sensing Bulb
Emerson
Description
The Emerson XC-726SC-2B (SKU/PCN/PN: 062303) is a thermostatic expansion valve sensing bulb designed for precise refrigerant flow control. It ensures optimal superheat adjustment, enhancing system efficiency and performance in compatible refrigeration and air conditioning applications. Emerson XC-726SC-2B is engineered for durability and precision, making it an ideal choice for demanding HVAC environments.
Product Details
Emerson T-Series (TER / TIR / TMR) Selection Table
Step 1 – Select Cage from Capacity Table
| Cage Assembly | PCN | Valve | Nominal Capacity - Tons | |||||
|---|---|---|---|---|---|---|---|---|
| R12 | R22 | R502 | R134a | R404A | R407C | |||
| X9117B6B | 077896 | TER | 13 | 16 | 22 | 14 | 14 | 22 |
| X9117B7B | 078117 | TER | 15 | 19 | 26 | 16 | 16 | 26 |
| X9117B8B | 071155 | TER | 20 | 25 | 35 | 21 | 21 | 35 |
| X9117B9B | 029429 | TER | 25 | 31 | 45 | 27 | 27 | 45 |
| X9166B10B | 070738 | TIR | 35 | 45 | 55 | 37 | 37 | 55 |
| X9144B10B | 071238 | 35 | 45 | 55 | 37 | 37 | 55 | |
| X9144B13B | 021067 | TMR | 55 | 68 | 85 | 60 | 60 | 85 |
| X9144B14B | 065123 | TMR | 55 | 68 | 100 | 60 | -- | 100 |
Gaskets included on cage.
Gasket strip X13455-1 (PCN: 027579) replaces all older T-Series gasket kits.
Gasket strip X13455-1 (PCN: 027579) replaces all older T-Series gasket kits.
Step 2 – Select Body / Flange
| Valve Type | Style | Inlet | Outlet | Body Flange Part Number | PCN |
|---|---|---|---|---|---|
| TER | ANGLE | 7/8 ODF or 1-1/8 ODM | 7/8 ODF or 1-1/8 ODM | 9153 | 027919 |
| TER | STRAIGHT-THRU | 7/8 ODF or 1-1/8 ODM | 7/8 ODF or 1-1/8 ODM | 9152 | 027918 |
| TIR | ANGLE | 7/8 ODF or 1-1/8 ODM | 7/8 ODF or 1-1/8 ODM | 9151 | 027926 |
| TIR | STRAIGHT-THRU | 7/8 ODF or 1-1/8 ODM | 7/8 ODF or 1-1/8 ODM | 9150 | 028849 |
| TMR | ANGLE | 1-1/8 ODM | 1-1/8 ODM | 9149 | 028030 |
| TMR | STRAIGHT-THRU | 1-1/8 ODM | 1-1/8 ODM | 9149-1 | 065124 |
| STRAIGHT-THRU | 1-1/8 ODM | 1-1/8 ODM | 9148-1 | 065125 |
TER-TMR Flange includes extended length capscrews.
Step 3 – Select Power Assembly
| Power Assembly | PCN | Refrigerant | Equalizer Type | Cap Tube Length | Temp. Range | MOP (psi) |
|---|---|---|---|---|---|---|
| XC-726FC-2B | 052957 | R-12 | 1/4 SAE | 10 FT | -20 to +40 | NONE |
| XC-726FW55-2B | 035000 | R-12 | 1/4 SAE | 10 FT | -50 to +50 | 55 |
| XC-726HC-2B | 056421 | R-22 | 1/4 SAE | 10 FT | -20 to +50 | NONE |
| XC-726HW35-2B | 024511 | R-22 | 1/4 SAE | 10 FT | -50 to +30 | 35 |
| XC-726HW65-2B | 025011 | R-22 | 1/4 SAE | 10 FT | -50 to +30 | 65 |
| XC-726HCA-2B | 059333 | R-22 | 1/4 SAE | 10 FT | -20 to +50 | NONE |
| XC-726HZ-2B | 040569 | R-22 | 1/4 SAE | 10 FT | -50 to +10 | NONE |
| XC-726MC-2B | 057235 | R-134A | 1/4 SAE | 10 FT | -20 to +50 | NONE |
| XC-726MW55-2B | 057372 | R-134A | 1/4 SAE | 10 FT | -50 to +50 | 55 |
| XC-726MZ-2B | 063075 | R-134A | 1/4 SAE | 10 FT | -50 to +10 | NONE |
| XC-726RC-2B | 052958 | R-502 | 1/4 SAE | 10 FT | -20 to +50 | NONE |
| XC-726RW15-2B | 023351 | R-502 | 1/4 SAE | 10 FT | -50 to +20 | 15 |
| XC-726RW35-2B | 070866 | R-502 | 1/4 SAE | 10 FT | -50 to +50 | 35 |
| XC-726RW65-2B | 071421 | R-502 | 1/4 SAE | 10 FT | -50 to +25 | 65 |
| XC-726RZ-2B | 046692 | R-502 | 1/4 SAE | 10 FT | -50 to +10 | NONE |
| XC-726SC-2B | 062303 | R-404A | 1/4 SAE | 10 FT | -20 to +50 | NONE |
| XC-726SW40-2B | 063127 | R-404A | 1/4 SAE | 10 FT | -50 to +10 | 40 |
| XC-726SW65-2B | 061692 | R-404A | 1/4 SAE | 10 FT | -50 to +25 | 65 |
| XC-726SZ-2B | 063974 | R-404A | 1/4 SAE | 10 FT | -50 to +10 | NONE |
Capscrews included with Power Assembly
MOP = Maximum Operating Pressure Limit to prevent motor overload
MOP = Maximum Operating Pressure Limit to prevent motor overload
