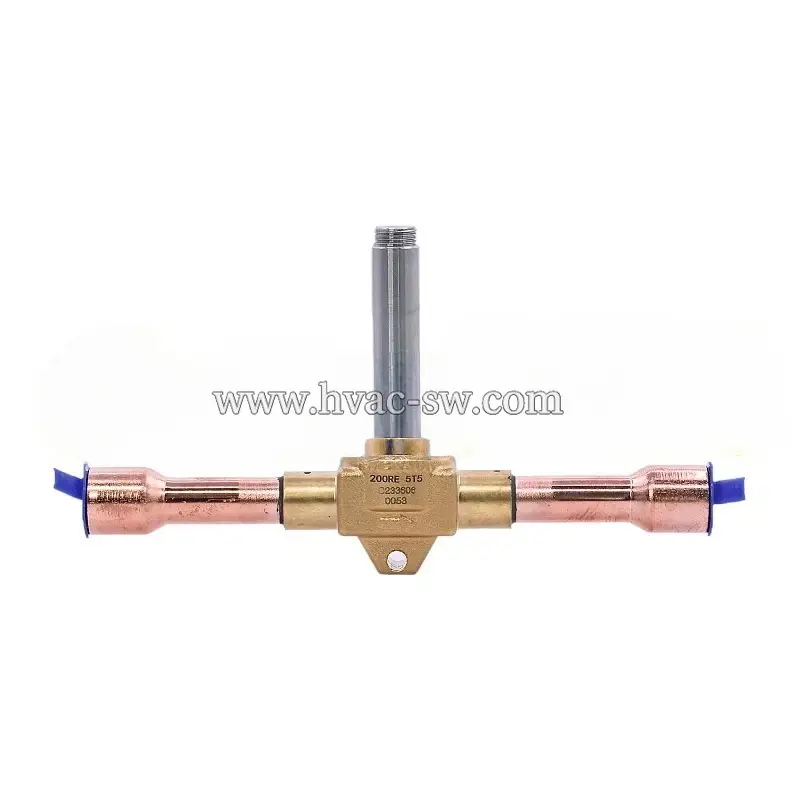

Emerson C233506 200RE5T5 Refrigeration Solenoid Valve 5/8" ODF Less Coil
Emerson 200RE 5T5 C233506 pilot-operated refrigeration solenoid valve, 5/8" ODF extended solder connection, normally closed, MWP 680 PSIG (46.9 bar). Forged brass body, PTFE seal, IP67 rated, compatible with R410A/R22/R407C. Controls refrigerant flow, prevents compressor liquid hammer, ideal for chillers, cold storage, commercial AC and heat pumps.
Need help confirming this part?
Send us the part number, equipment model, nameplate information or a product photo. We can check available sourcing options, pricing and lead time.
Product Overview
Emerson 200RE 5T5 C233506 Pilot-Operated Refrigeration Solenoid Valve
Key Features & Benefits
Pilot-Operated Design: Enables reliable valve opening with minimal pressure differential, ideal for large-flow refrigerant lines and high-pressure systems like R410A.
Robust Construction: Forged brass valve body with copper ODF extended solder ends, paired with PTFE O-ring seals for zero external leakage and long-term corrosion resistance.
High Pressure & Temperature Rating: Maximum working pressure of 680 PSIG (46.9 bar), with a fluid temperature range from -40℃ to +121℃, compatible with all common refrigerants.
IP67 Rated Protection: Superior dust and water resistance, suitable for harsh outdoor, industrial, and mobile refrigeration environments.
Service-Friendly Design: Removable valve body for easy maintenance, with universal coil compatibility across all 200RE series valve sizes, reducing inventory costs.
Fail-Safe Operation: Normally closed configuration ensures automatic shutoff during power loss, preventing compressor liquid hammer and refrigerant migration.
Application Scenarios
Commercial air conditioning and VRF systems
Water chillers and heat pump systems
Cold storage warehouses and freezers
Precision air conditioning and environmental test chambers
Mobile transport refrigeration units
Industrial refrigeration and process cooling systems
| Parameter | Specification |
|---|---|
| Brand | Emerson (Alco/Copeland) |
| Series | 200RE |
| Model Number | 200RE 5T5 |
| Part Number | C233506 |
| Product Type | Pilot-Operated Refrigeration Solenoid Valve (Body Only / Less Coil) |
| Function Type | 2-Way, Normally Closed (NC) |
| Connection Type | ODF Solder (Extended) |
| Connection Size | 5/8 in (15.88 mm) |
| Maximum Working Pressure (MWP) | 680 PSIG (46.9 bar) |
| Fluid Temperature Range | -40℃ ~ +121℃ (-40℉ ~ +250℉) |
| Ambient Temperature Range | -40℃ ~ +55℃ (-40℉ ~ +131℉) |
| Body Material | Forged Brass |
| End Material | Copper |
| Seal Material | PTFE O-Ring |
| Protection Class | IP67 |
| Compatible Refrigerants | R410A, R22, R407C, R134a, R404A/R507, etc. |
| Application | HVAC&R Systems, Chillers, Cold Storage, Commercial AC, Heat Pumps |
