Johnson Controls M9116/M9124/M9132-AGA-2 M9100 Series Damper Actuator
Genuine Johnson Controls M9100 series (M9116/M9124/M9132-AGA-2) 24V AC/DC damper actuators for HVAC systems. Available in 15Nm, 24Nm, 32Nm torque, spring return/non-spring return, manual override, position indicator, IP42 protection, CE/UL certified. Ideal for air valve control in AHU, building automation, ensuring precise airflow regulation and energy efficiency.
Need help confirming this part?
Send us the part number, equipment model, nameplate information or a product photo. We can check available sourcing options, pricing and lead time.
Product Overview
Key Features & Advantages
Versatile Torque Options: Three models cover 15Nm (M9116), 24Nm (M9124), and 32Nm (M9132) torque ratings, matching different damper sizes and load requirements for flexible system design.
Universal Power Compatibility: Operates on 24V AC/DC, 50/60Hz, eliminating the need for separate power supplies and ensuring compatibility with global HVAC control systems.
Flexible Control Modes: Supports on/off, floating, and analog control signals, enabling seamless integration with Johnson Controls Metasys and third-party building management systems (BMS).
Robust Mechanical Design: Features manual override for commissioning and emergency operation, visual position indicator for real-time status monitoring, and built-in end stops to prevent over-travel damage.
Durable Industrial Construction: IP42 protection rating ensures reliable operation in indoor HVAC environments, with resistance to vibration, temperature fluctuations, and dust. Complies with CE, UL, and cUL safety standards, guaranteeing long service life and operational safety.
Easy Installation: Direct-coupled mounting design fits standard damper shaft sizes, with universal mounting brackets for quick, tool-free installation and replacement in existing systems.

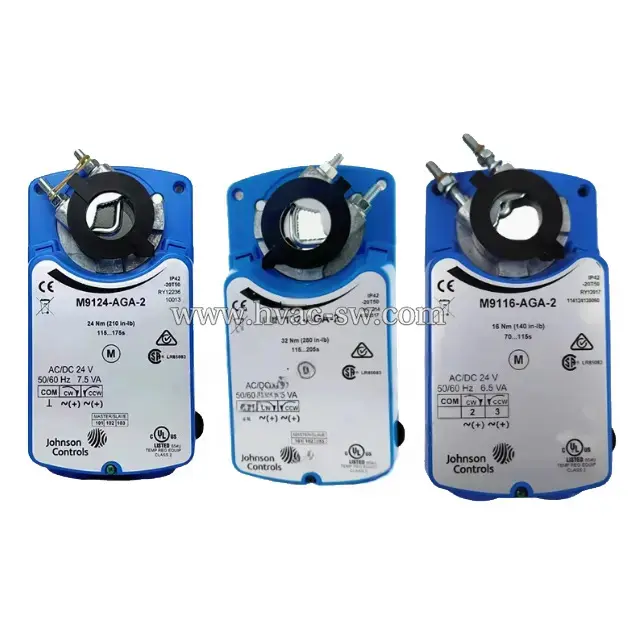

| Parameter | M9116-AGA-2 | M9124-AGA-2 | M9132-AGA-2 |
|---|---|---|---|
| Brand | Johnson Controls | Johnson Controls | Johnson Controls |
| Product Type | Electric Damper Actuator | Electric Damper Actuator | Electric Damper Actuator |
| Nominal Torque | 15 Nm (140 in-lb) | 24 Nm (210 in-lb) | 32 Nm (280 in-lb) |
| Power Supply | AC/DC 24V, 50/60Hz | AC/DC 24V, 50/60Hz | AC/DC 24V, 50/60Hz |
| Power Consumption | 6.5 VA | 7.5 VA | 8.5 VA |
| Running Time (90°) | 70~115s | 115~175s | 115~205s |
| Control Type | On/Off, Floating, Analog | On/Off, Floating, Analog | On/Off, Floating, Analog |
| Manual Override | Yes | Yes | Yes |
| Position Indicator | Yes | Yes | Yes |
| Protection Class | IP42 | IP42 | IP42 |
| Operating Temperature | -30°C ~ +60°C (-22°F ~ 140°F) | -30°C ~ +60°C (-22°F ~ 140°F) | -30°C ~ +60°C (-22°F ~ 140°F) |
| Certifications | CE, UL, cUL | CE, UL, cUL | CE, UL, cUL |
| Application | HVAC, AHU, Building Automation | HVAC, AHU, Building Automation | HVAC, AHU, Building Automation |
| Condition | New Genuine OEM Part | New Genuine OEM Part | New Genuine OEM Part |
