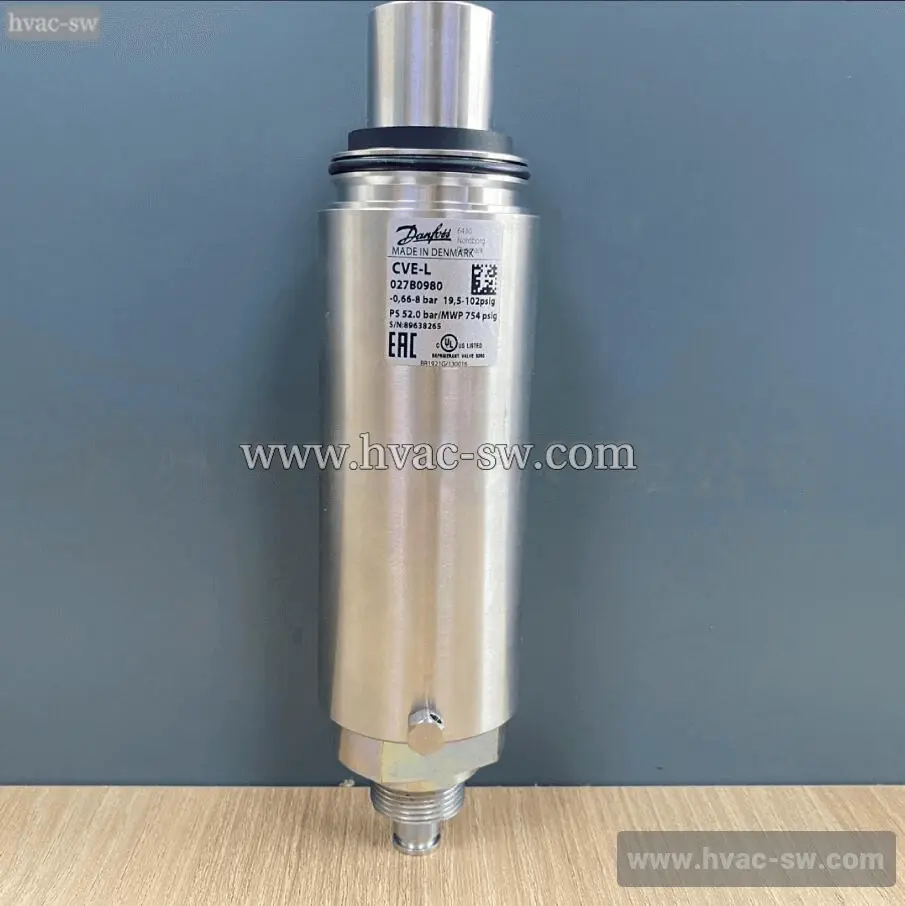

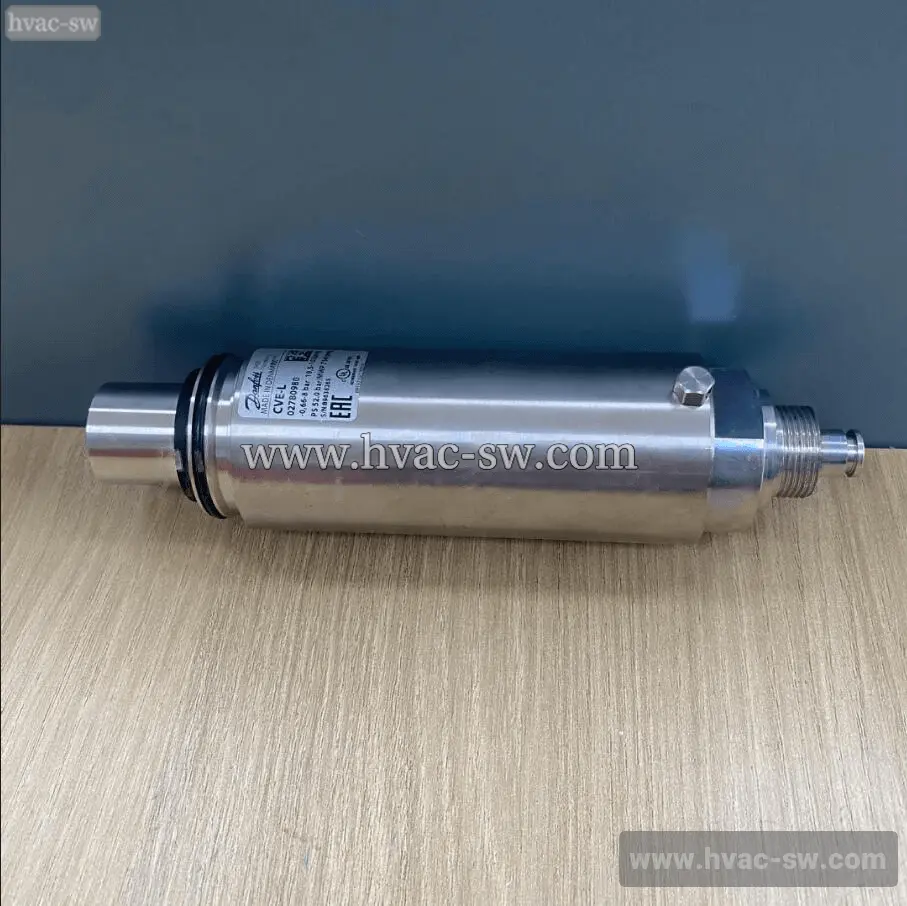

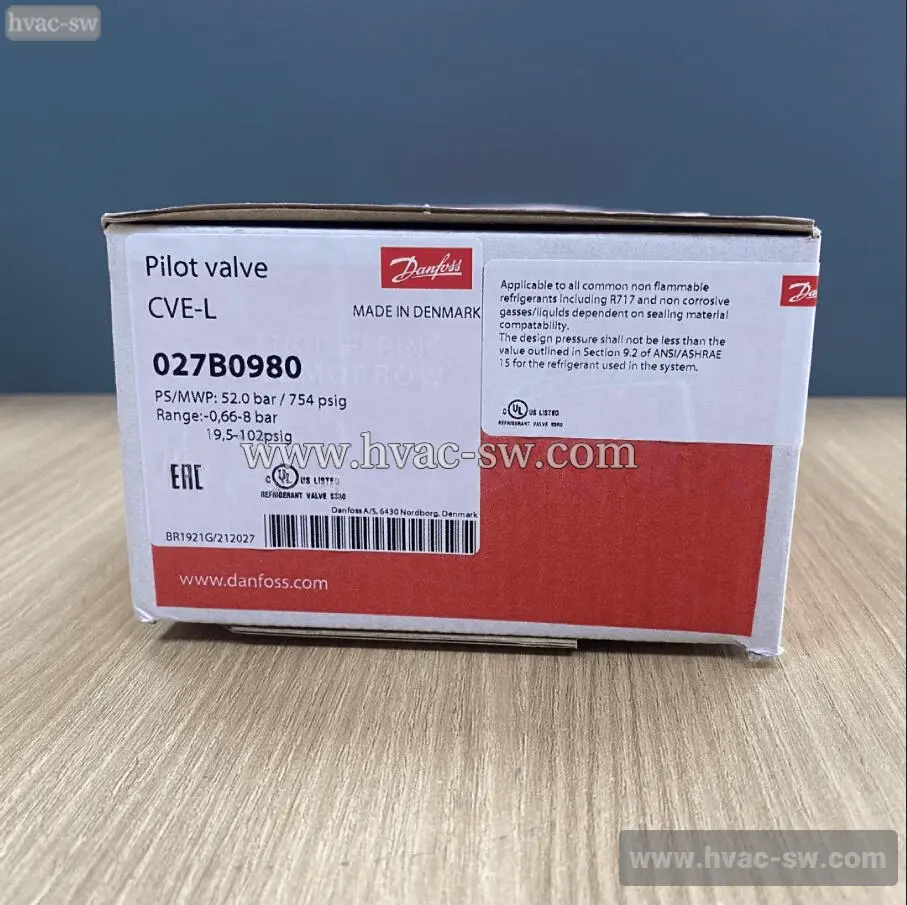

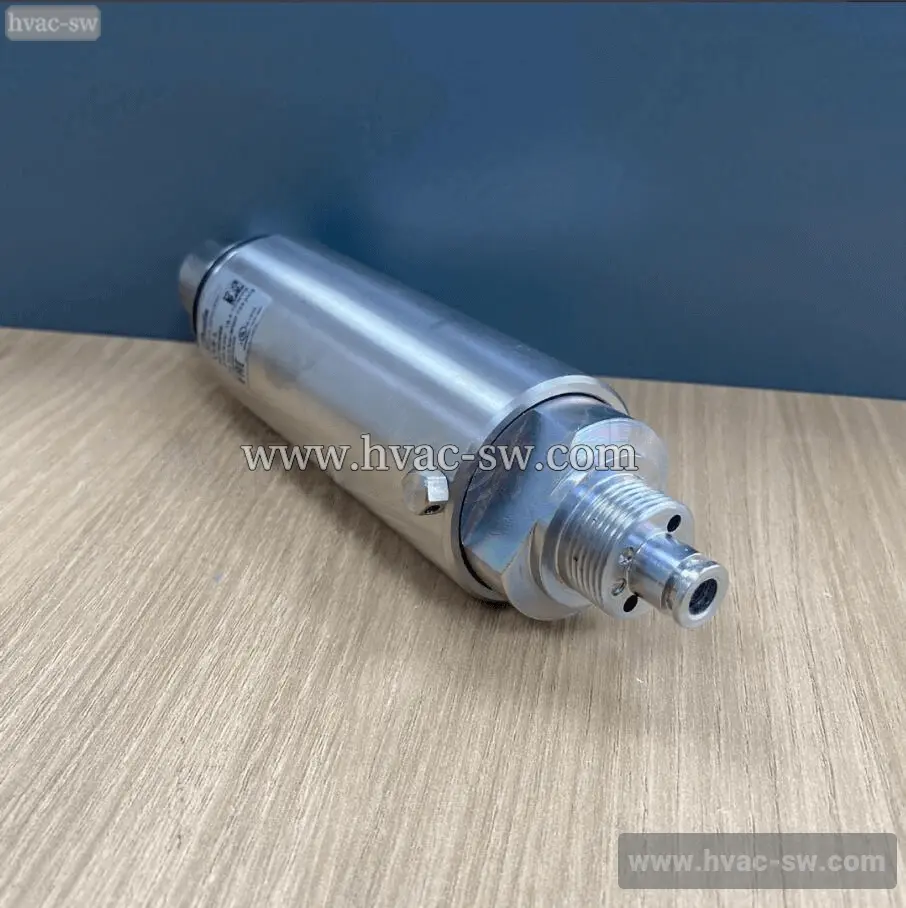

Danfoss 027B0980 Pressure Pilot Valve CVE-L
The Danfoss CVE-L 027B0980 is a pressure pilot valve designed for precise control in refrigeration, air conditioning, and industrial hydraulic systems. It ensures accurate pressure regulation, contributing to system stability, energy efficiency, and operational safety. This robust valve is known for its reliable performance and durability in demanding applications.
Need help confirming this part?
Send us the part number, equipment model, nameplate information or a product photo. We can check available sourcing options, pricing and lead time.
Product Overview
| Attribute | Value |
|---|---|
| Gross weight | 1.908 Kilogram |
| Net weight | 1.74 Kilogram |
| Volume | 2.97 Liter |
| EAN | 5715162163597 |
| Type | CVE-L |
| Product group | Press. and temp. regul. valves |
| Product Name Description | Pilot valve |
| Actuator system | ICAD 1200A |
| Approval | EACUL |
| Brand | ICV Flexline |
| China RoHS compliance | Out of scope |
| Contains batteries | No |
| Cv value [gal/min] | 0.46 gal/min |
| EU RoHS compliance | Out of scope |
| Fluid Group | 1 |
| Kv value [m³/h] | 0.4 m³/h |
| Max. Working Pressure [bar] | 52 bar |
| Max. Working Pressure [psig] | 754 psig |
| Packing format | Multi pack |
| Parts included | Gasket |
| Parts Program name | CVHICSICFPM |
| PED category | Art. 3, par. 3 |
| Pressure range [bar] Pe [max] | 8 bar |
| Pressure range [bar] Pe [min] | -0.66 bar |
| Pressure range [psig] Pe [max] | 116 psig |
| Pressure range [psig] Pe [min] | -9.6 psig |
| Product accessories | No |
| Product description | Constant-pressure pilot valve |
| Quantity per packing format | 6 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R134aR22R401AR402AR404AR407AR407BR407CR407FR409AR410AR421AR502R717R744R507AR1234yfR1234ze(E)R125R227eaR236faR245faR32R407HR417AR422AR422BR422DR438AR442AR444BR447AR447BR448AR449AR449BR450AR452AR452BR454AR454BR454CR455AR463AR513AR513BR515AR515BR516A |
| Regulation range | 19.5inHg - 116psig |
| Serviceable | Pilot valve spare parts |
| Surface coating | Stainless steel |
| Temperature range [°C] [max] | 120 °C |
| Temperature range [°C] [min] | -60 °C |
| Temperature range [°F] [max] | 248 °F |
| Temperature range [°F] [min] | -76 °F |
| UL approval file name | REFRIGERANT VALVE 53R0 |
| UL evaluated | Yes |
| Valve version | Low pressure |
