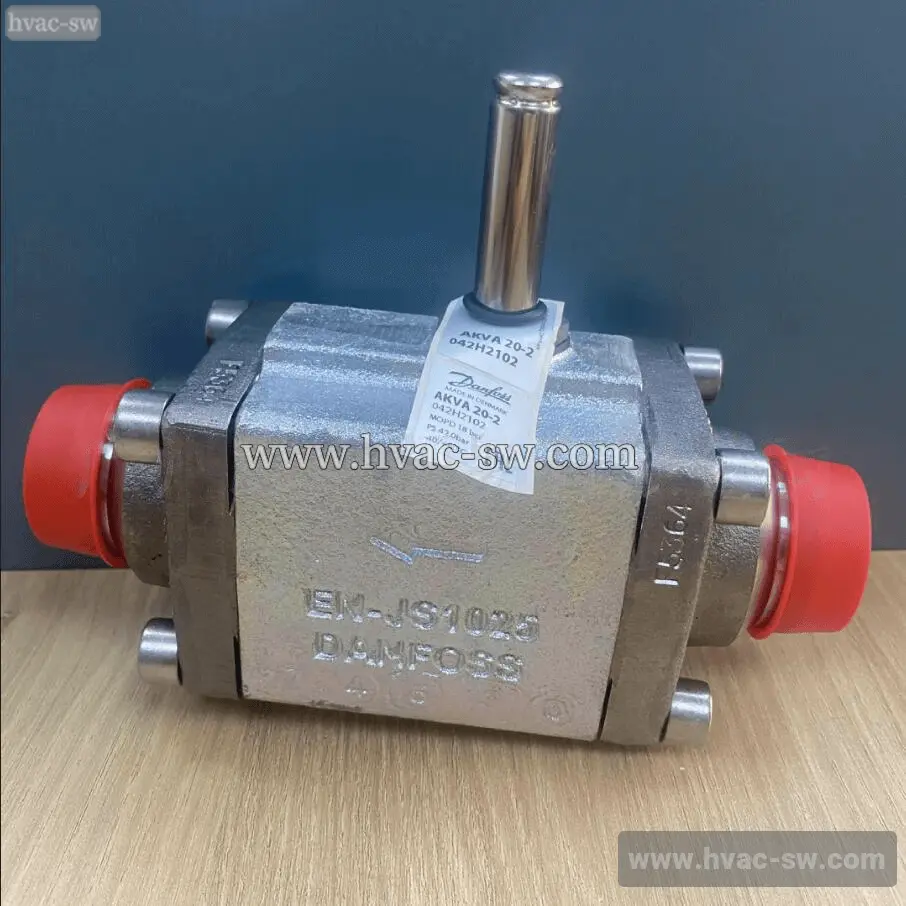

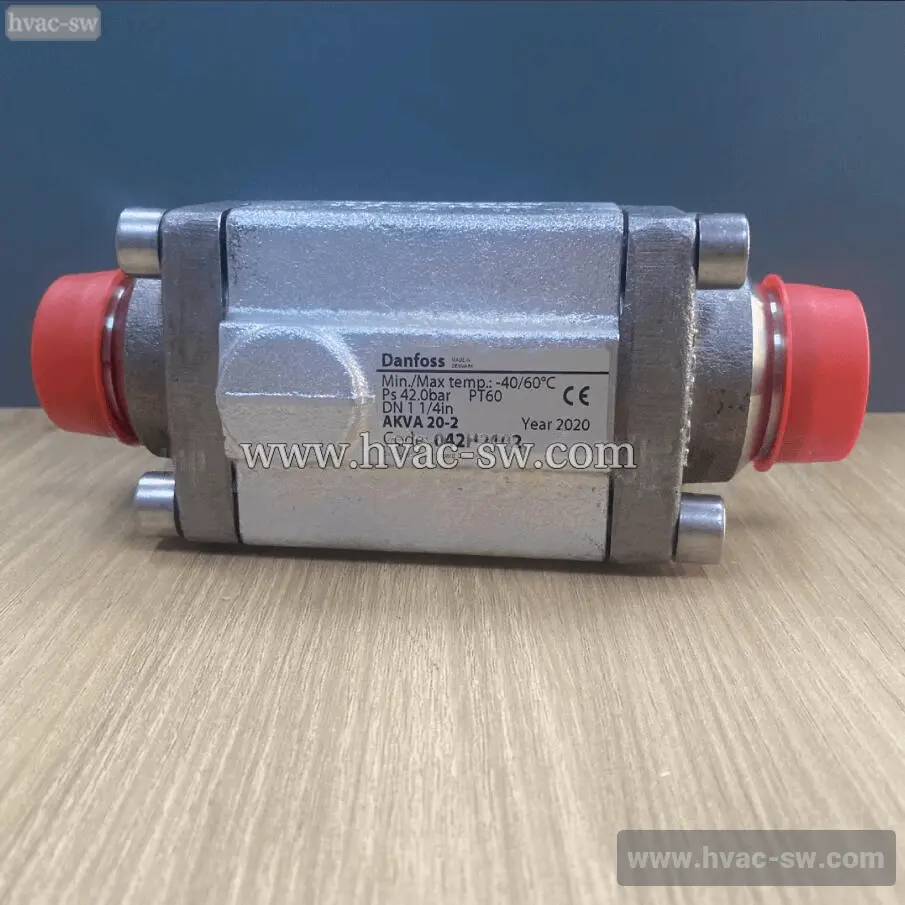

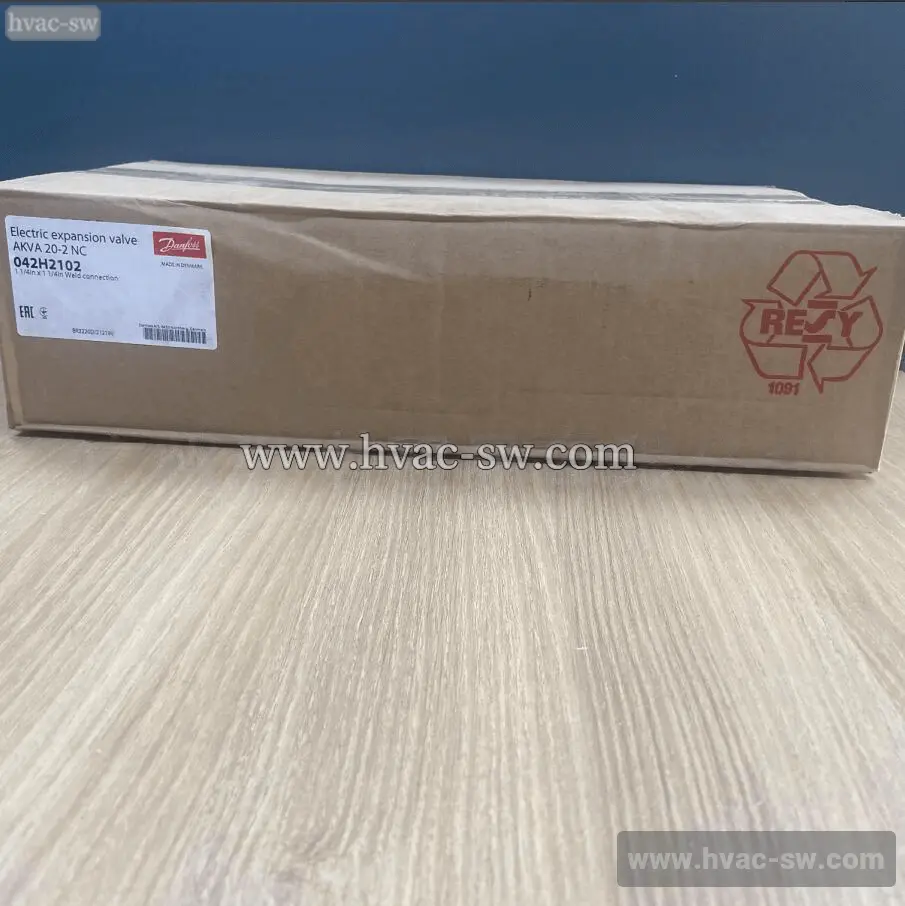

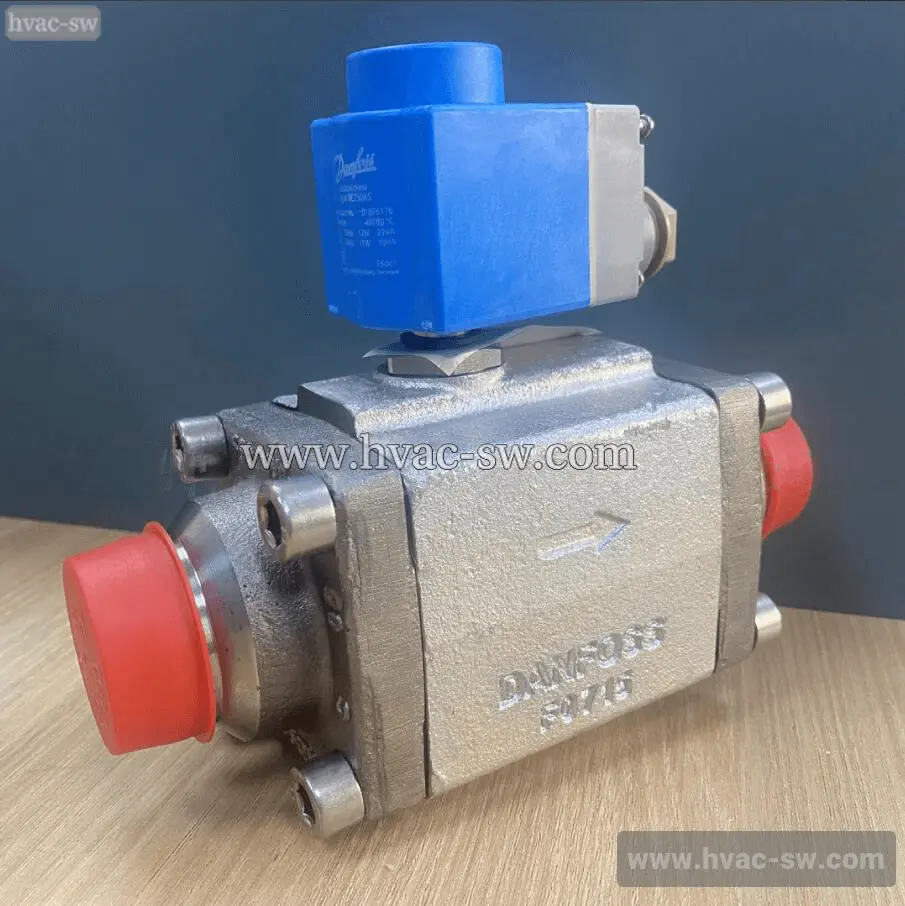

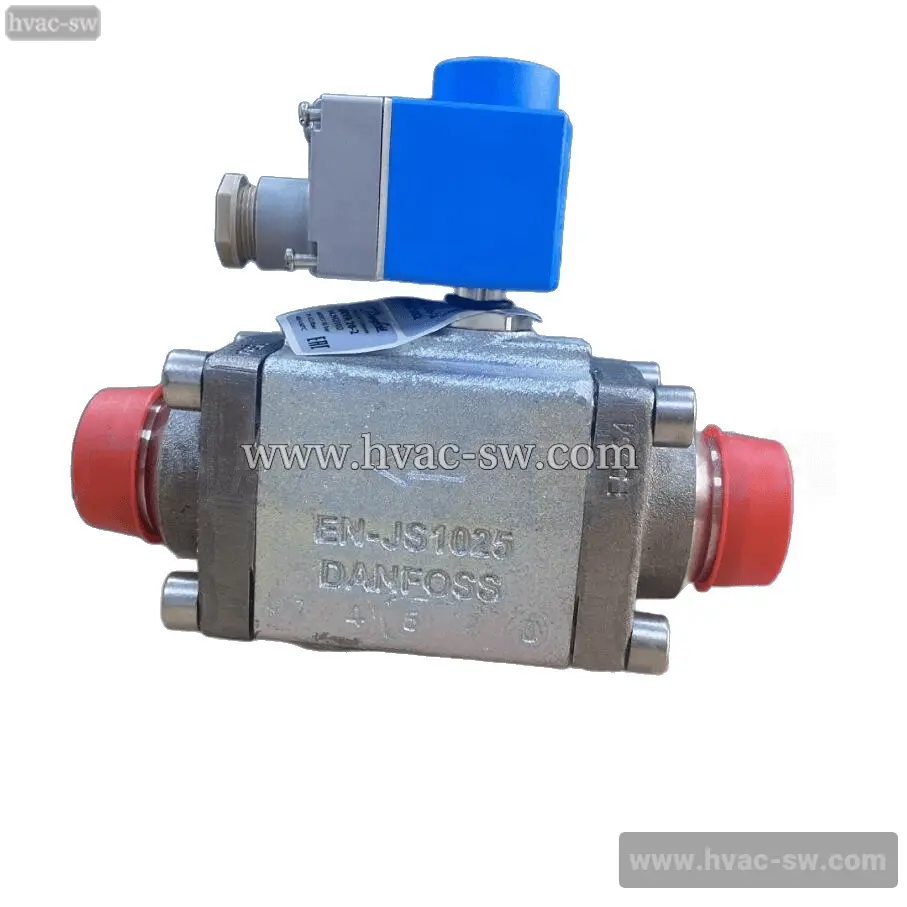

Danfoss AKVA20-2 042H2102 Electronic Expansion Valve Ammonia Special
The Danfoss AKVA20-2 is an electronic expansion valve designed for ammonia (R717) refrigeration systems. Model 042H2102 ensures precise control of refrigerant flow, enhancing system efficiency, stability, and safety in industrial cooling applications.
Need help confirming this part?
Send us the part number, equipment model, nameplate information or a product photo. We can check available sourcing options, pricing and lead time.
Product Overview
| Attribute | Value |
|---|---|
| Grossweight | 4.902Kilogram |
| Netweight | 4.712Kilogram |
| Volume | 7.56Liter |
| EAN | 5702422120681 |
| Type | AKVA20-2 |
| Productgroup | Expansionvalves |
| ProductNameDescription | Electricexpansionvalve |
| Actuatorsystem[mm] | 13.5mm |
| Ambienttemperature | -40-50°C |
| Ambienttemperaturerange[°F][max] | 120°F |
| Ambienttemperaturerange[°F][min] | -40°F |
| Approval | EACLLCCDCTYSK |
| Bodymaterial | Steel |
| ChinaRoHScompliance | Outofscope |
| Coil | No |
| CompatibleDanfosscontrollers | EKC315AEKE347 |
| Connectionmaterial | Steel |
| Containsbatteries | No |
| Cvvalue[gal/min] | 1.85gal/min |
| Direction | Straightway |
| EURoHScompliance | Yeswithexemptions |
| EURoHSexemptionclause | 6(a)6(c) |
| Flowdirectionindicator | Embossed1-wayarrow |
| Function | NC |
| Inletconnectiontype | Weldconnection |
| Inletsize[in] | 11/4in |
| Kvvalue[m³/h] | 1.6m³/h |
| Manualoperationoption | No |
| Max.WorkingPressure[bar] | 42bar |
| Max.WorkingPressure[psig] | 610psig |
| MaxOPD[bar]10WAC | 18bar |
| MaxOPD[psi]10WAC | 260psi |
| Mediumtemperaturerange[°C][max] | 60°C |
| Mediumtemperaturerange[°C][min] | -40°C |
| Mediumtemperaturerange[°F][max] | 140°F |
| Mediumtemperaturerange[°F][min] | -40°F |
| MinODP[bar] | 0bar |
| MinODP[psi] | 0psi |
| MOPD[bar/psi] | 18bar |
| Orificesize[mm] | 8mm |
| Outletconnectiontype | Weldconnection |
| Outletsize[in] | 11/4in |
| Packingformat | Singlepack |
| PartsProgramname | AKVA |
| Productaccessories | Electricvalveaccessories |
| Quantityperpackingformat | 1pc |
| RatedcapacityR717[kW] | 800kW |
| REACHCandidateListsubstances | No |
| Refrigerants | R717R744 |
| Serviceable | Electricvalvespareparts |
| Typedesignation | Electricexpansionvalve |
| Workingprinciple | PWM |
