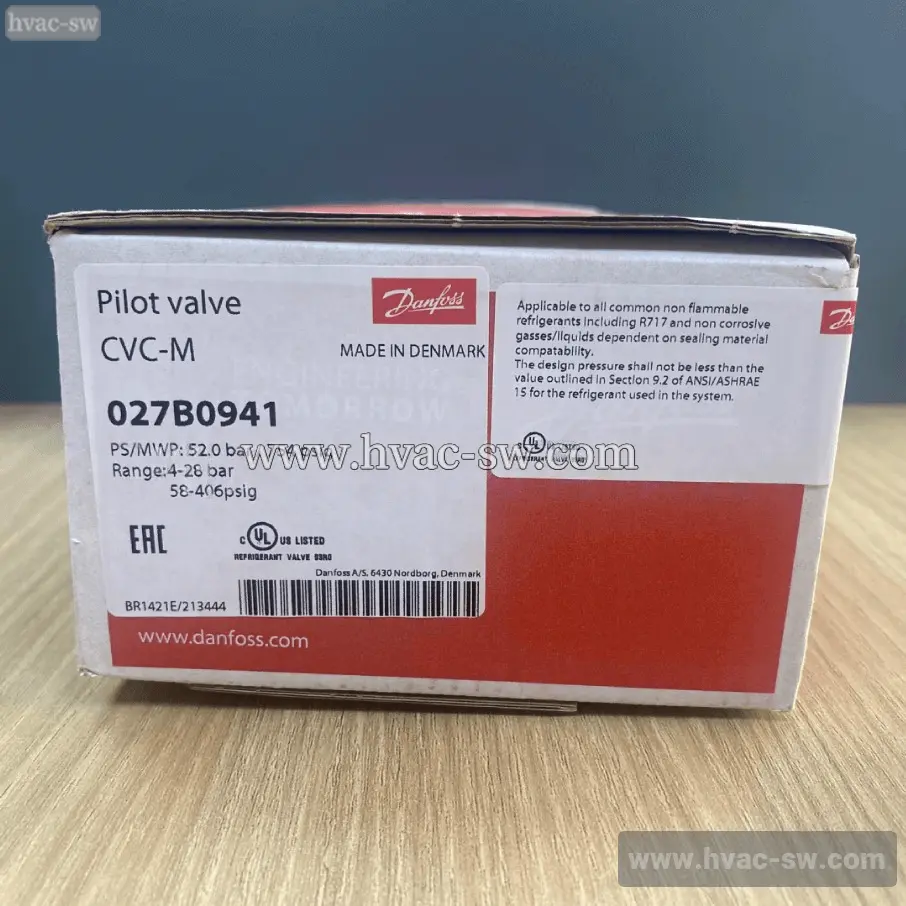

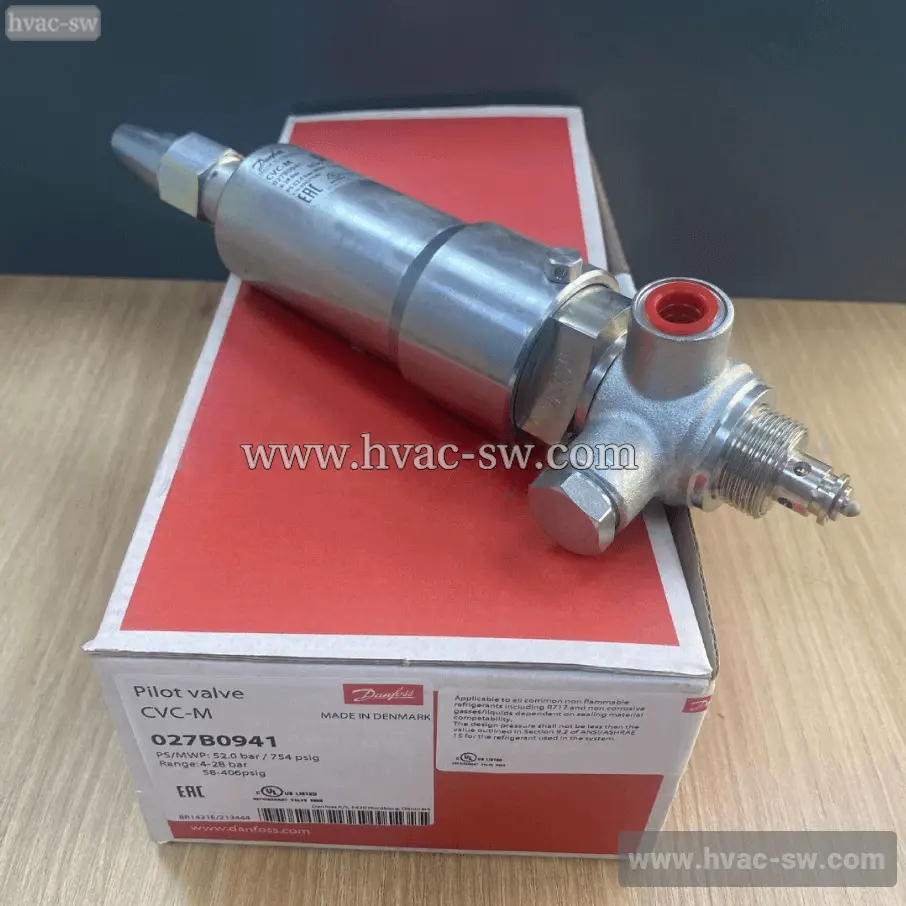

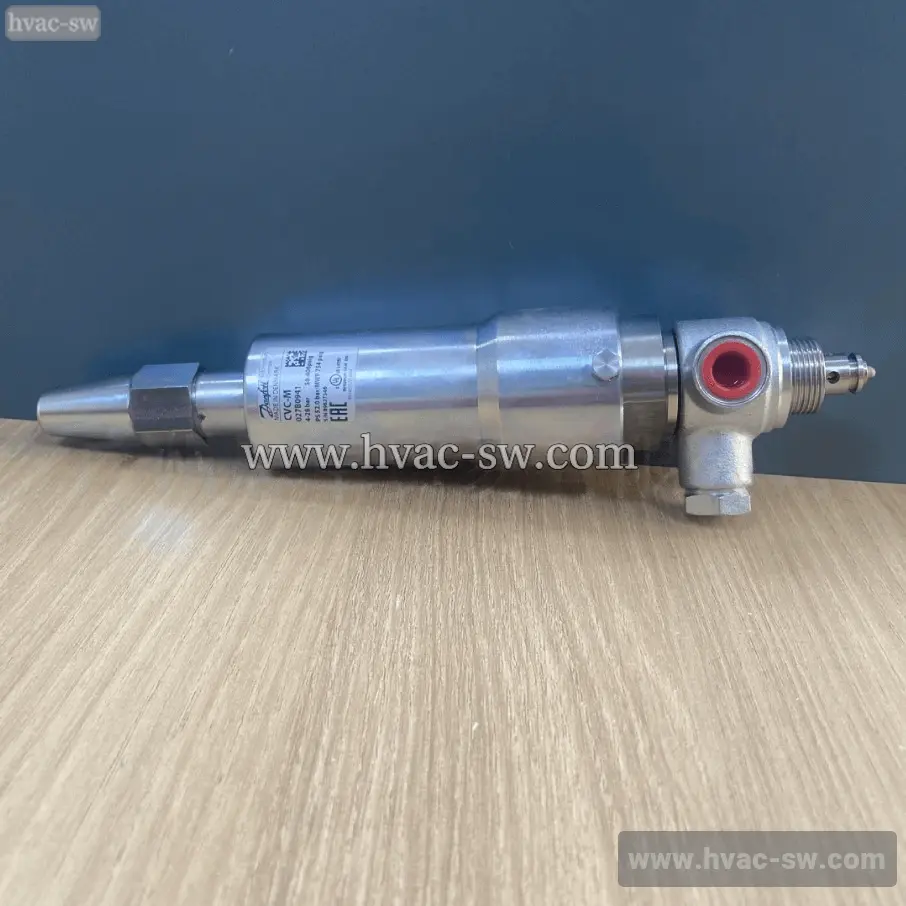

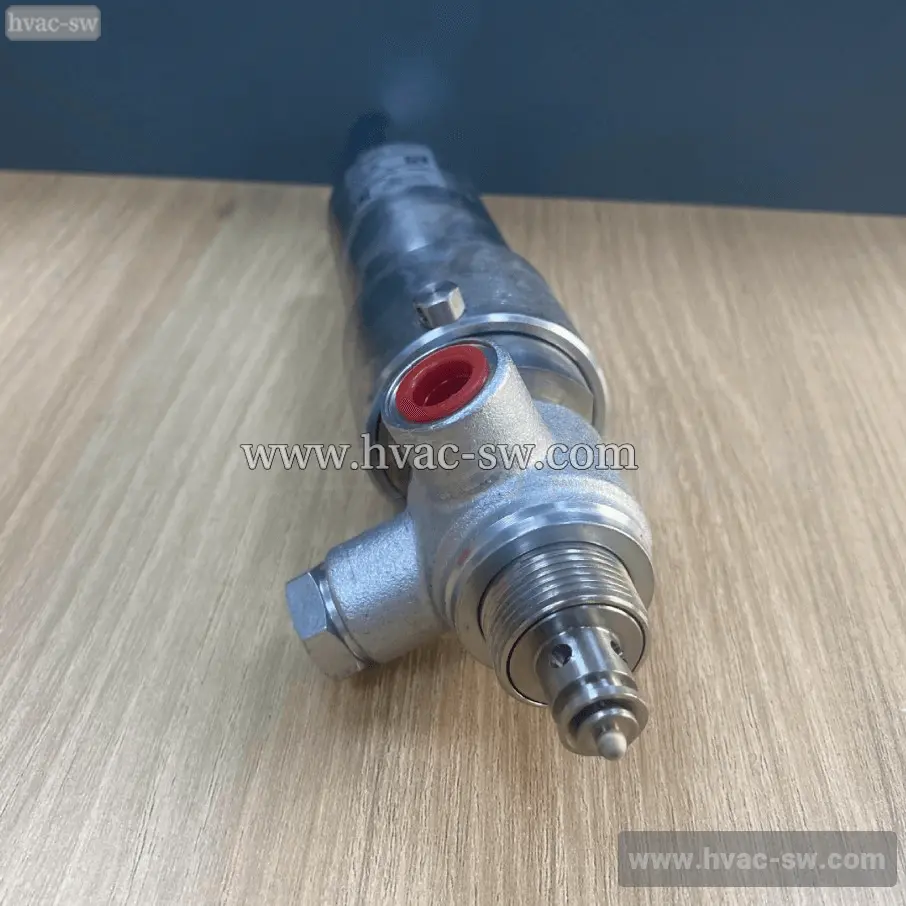

Danfoss 027B0941 Pressure Pilot Valve CVC-M
The Danfoss 027B0941 Pressure Pilot Valve CVC-M is a direct-operated, pressure-independent control valve designed for precise regulation in heating and cooling systems. It ensures stable differential pressure control, maintaining consistent flow and optimizing hydraulic balance. Ideal for commercial and industrial applications.
Need help confirming this part?
Send us the part number, equipment model, nameplate information or a product photo. We can check available sourcing options, pricing and lead time.
Product Overview
| Attribute | Value |
|---|---|
| Gross weight | 2.072 Kilogram |
| Net weight | 1.78 Kilogram |
| Volume | 3.146 Liter |
| EAN | 5702428557689 |
| Type | CVC-M |
| Product group | Press. and temp. regul. valves |
| Product Name Description | Pilot valve |
| Approval | EACUL |
| Brand | ICV Flexline |
| China RoHS compliance | Out of scope |
| Contains batteries | No |
| Cv value [gal/min] | 0.23 gal/min |
| EU RoHS compliance | Out of scope |
| Fluid Group | 1 |
| Kv value [m³/h] | 0.2 m³/h |
| Max. Working Pressure [bar] | 65 bar |
| Max. Working Pressure [psig] | 943 psig |
| Packing format | Multi pack |
| Parts included | AdapterGasket |
| Parts Program name | CVHICSICFPM |
| PED category | Art. 3, par. 3 |
| Pressure range [bar] Pe [max] | 28 bar |
| Pressure range [bar] Pe [min] | 4 bar |
| Pressure range [psig] Pe [max] | 406 psig |
| Pressure range [psig] Pe [min] | 58 psig |
| Product accessories | No |
| Product description | Pressure-operated pilot valve |
| Quantity per packing format | 6 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R134aR22R401AR402AR404AR407AR407BR407CR407FR409AR410AR421AR502R717R744R507AR1234yfR1234ze(E)R125R152aR227eaR236faR245faR290R32R407HR413AR417AR422AR422BR422DR438AR442AR444BR447AR447BR448AR449AR449BR450AR452AR452BR454AR454BR454CR455AR463AR512AR513AR513BR515AR515BR516AR170R452CR600R600a |
| Serviceable | Pilot valve spare parts |
| Surface coating | Zn (TLP) |
| Temperature range [°C] [max] | 120 °C |
| Temperature range [°C] [min] | -60 °C |
| Temperature range [°F] [max] | 248 °F |
| Temperature range [°F] [min] | -76 °F |
| UL approval file name | REFRIGERANT VALVE 53R0 |
| UL evaluated | Yes |
| Valve version | Medium pressure |
