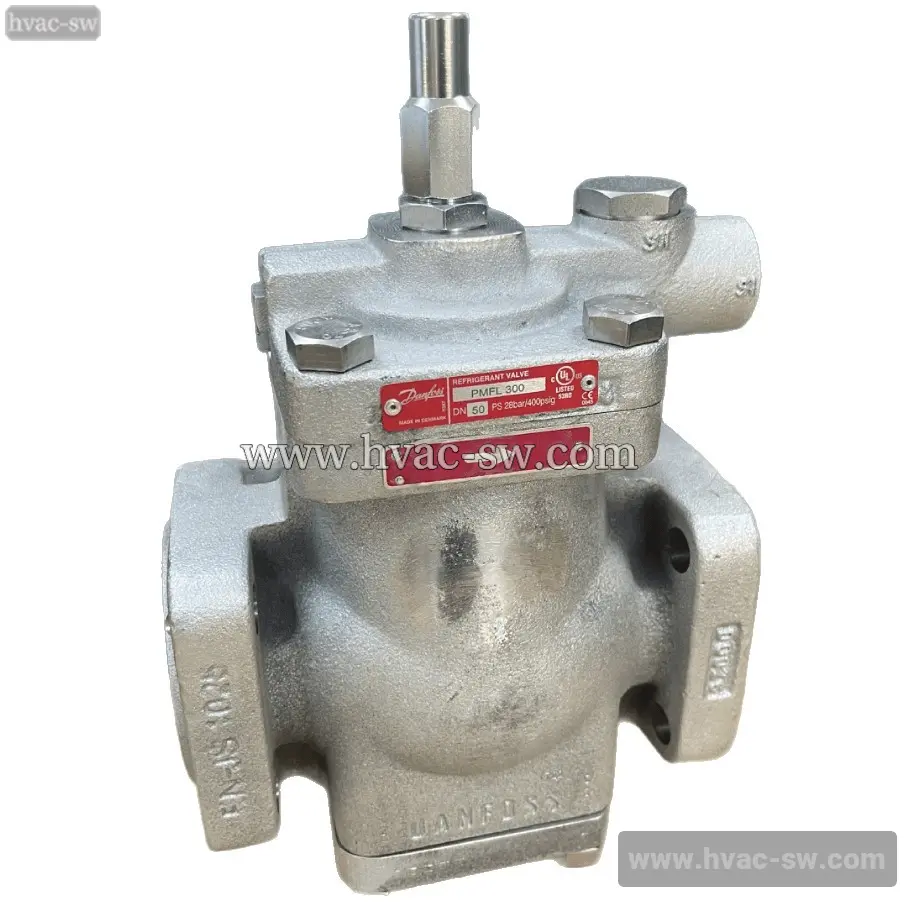

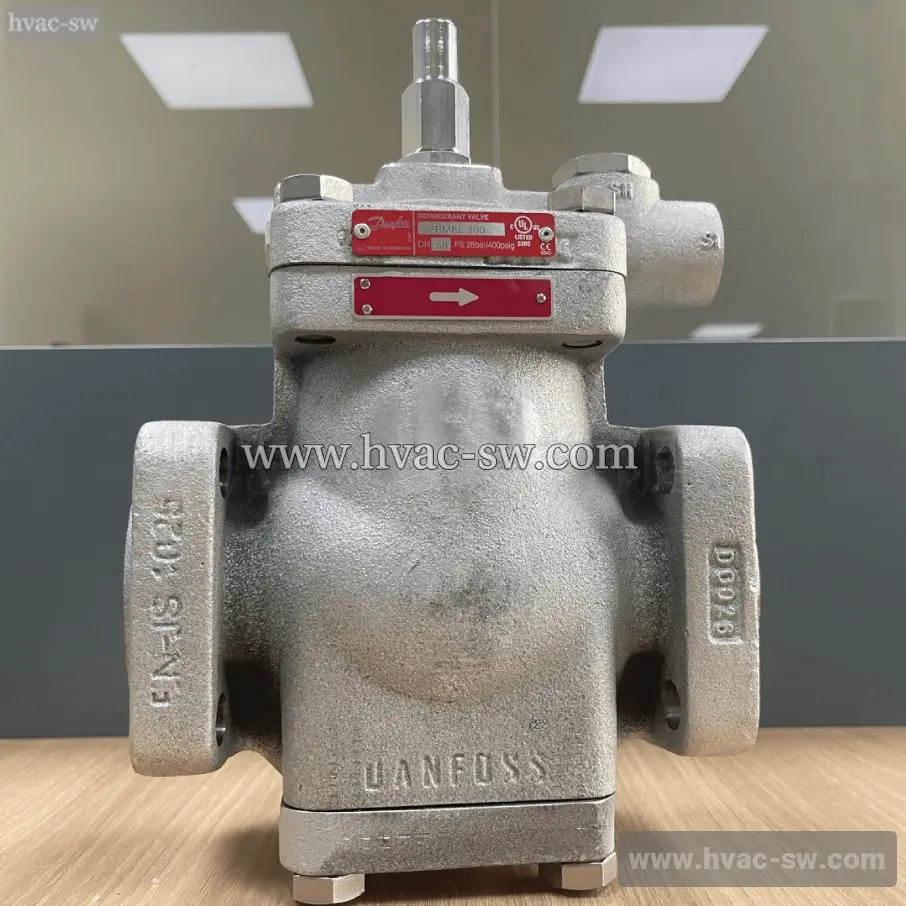

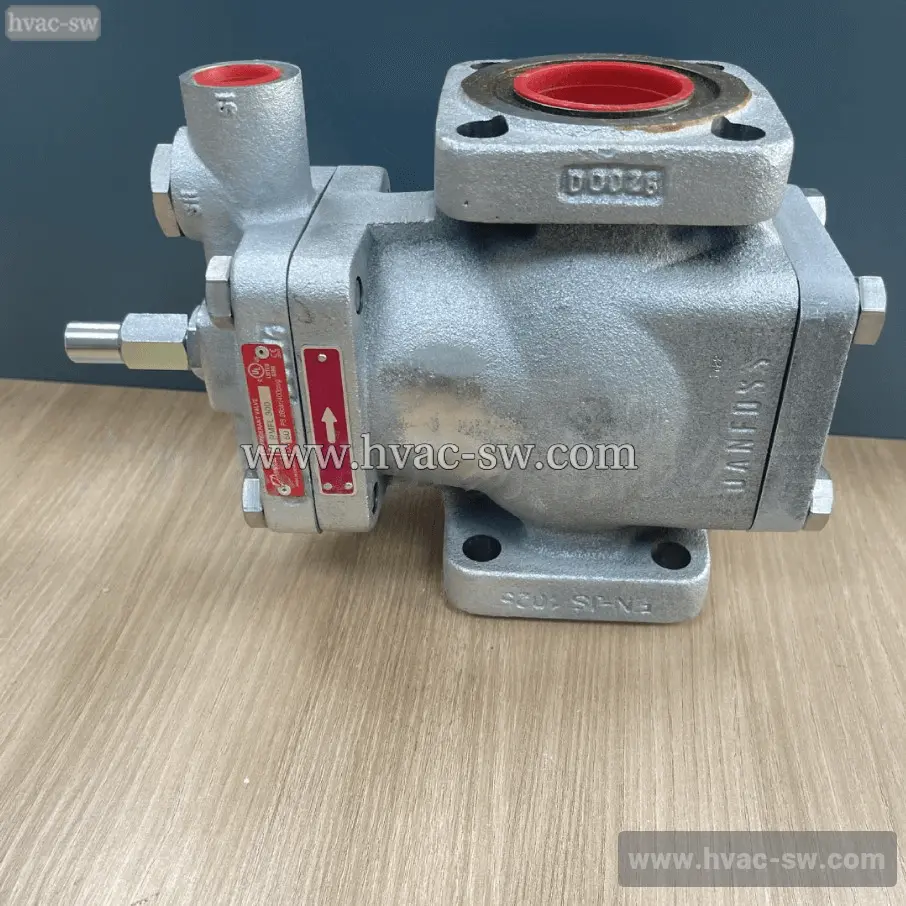

Danfoss 027F3063 Level Solenoid Valve
The PMFL300 and PMFH300 (027F3073, 027F3063) are level solenoid valves from DANFOSS designed for precise control of liquid flow. These reliable valves are engineered for applications requiring accurate on/off operation, commonly used in refrigeration, air conditioning, and fluid management systems. They ensure efficient and dependable performance for maintaining specific liquid levels.
Need help confirming this part?
Send us the part number, equipment model, nameplate information or a product photo. We can check available sourcing options, pricing and lead time.
Product Overview
| Model | Specification | Nominal Diameter (DN) (mm) | Nominal Pressure (PN) (MPa) | Body Material | Connection Type |
|---|---|---|---|---|---|
| PMFL300/PMFH300 | DN32 | 40 | Cast Steel | Flange | Medium |
| PMFH500 | DN50 | 40 | Cast Steel | Flange | Medium |
| EVM 027B1120 | DN12 | 52 | Cast Steel | Welding | Medium |
| Attribute | Value |
|---|---|
| Gross weight | 18.154 Kilogram |
| Net weight | 17.14 Kilogram |
| Volume | 19.006 Liter |
| EAN | 5702422171744 |
| Type | PMFH 300 |
| Product group | Liquid level regulating valves |
| Product Name Description | Liquid level regulating valve |
| Approval | CEEACLLC CDC TYSKUL |
| Approval file name | REFRIGERANT VALVE 53R0 |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Colour Paint | Cr3 / TLP |
| Contains batteries | No |
| EU RoHS compliance | Out of scope |
| Fluid Group | 1 |
| Inlet connection size [mm] | 50 mm |
| Max. Working Pressure [bar] | 28 bar |
| Max. Working Pressure [psig] | 406 psig |
| Packing format | Single pack |

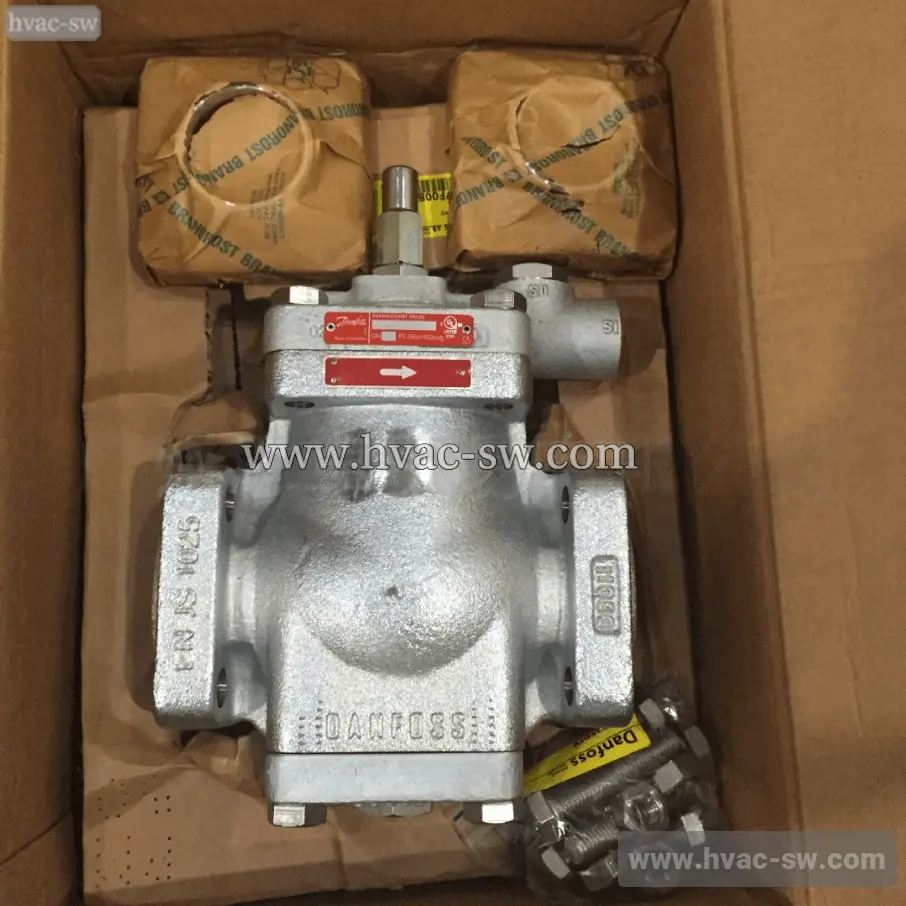

| Parts included | Blanking plugFlange boltsFlange gasketsPilot connector |
| PED category | II |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R134aR22R404AR407AR407BR407CR407FR410AR502R717R401AR402AR409AR421AR507A |
| SCIP dossier no. | b9a4d397-4040-40d8-bf76-2fbd22ec1ba4 |
| Temperature range [°C] [max] | 120 °C |
| Temperature range [°C] [min] | -60 °C |
| Temperature range [°F] [max] | 248 °F |
| Temperature range [°F] [min] | -76 °F |
| UL approval file name | REFRIGERANT VALVE 53R0 |
| UL evaluated | Yes |
