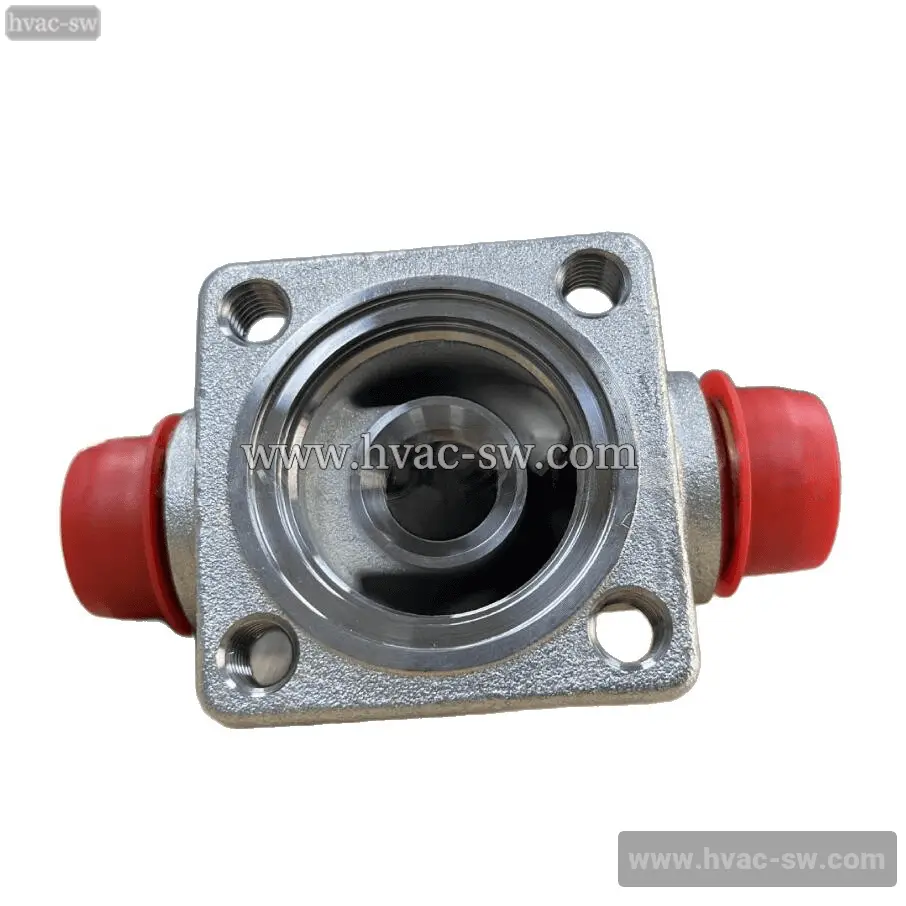

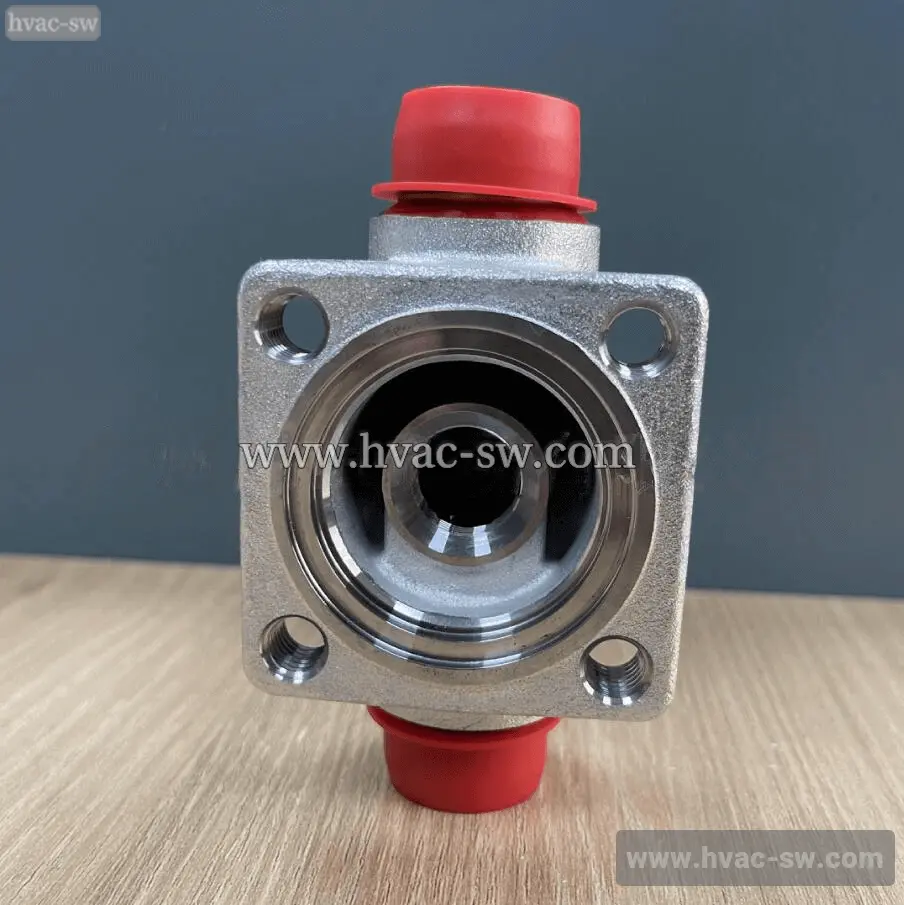

Danfoss ICV20 027H1166 Butt Welding Valve Body
Original Danfoss ICV20 027H1166 valve bodies, manufactured using precision butt welding for high structural integrity and leak-proof performance. Designed for reliable operation in refrigeration and industrial hydraulic systems.
Need help confirming this part?
Send us the part number, equipment model, nameplate information or a product photo. We can check available sourcing options, pricing and lead time.
Product Overview
| Attribute | Value |
|---|---|
| Gross weight | 0.808 Kilogram |
| Net weight | 0.65 Kilogram |
| Volume | 1.197 Liter |
| EAN | 5702428243100 |
| Type | ICV 20 |
| Product group | Multifunction valves |
| Product Name Description | Multifunction valve body |
| Body material | Steel |
| Brand | ICV Flexline |
| China RoHS compliance | Out of scope |
| Connection material | Steel |
| Connection size [in] | 3/4 in |
| Connection size [mm] | 20 mm |
| Connection standard | ASME B 36.10M SCHEDULE 80 |
| Connection type | Butt weld |
| Contains batteries | No |
| EU RoHS compliance | Out of scope |

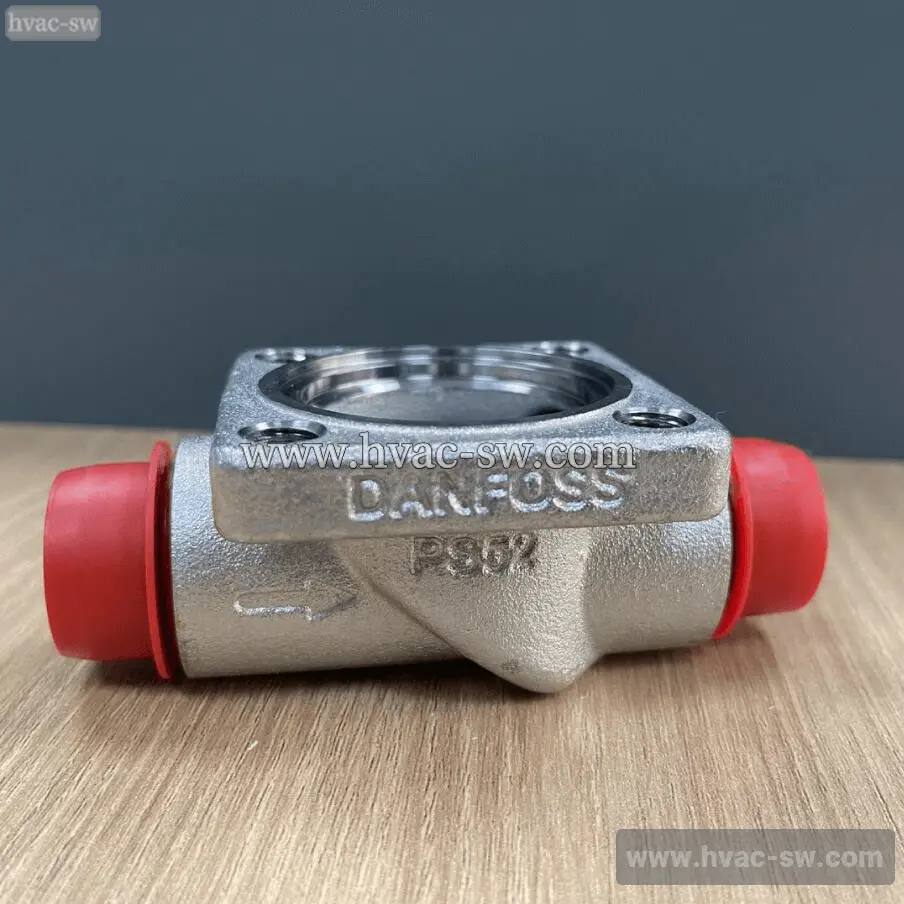

| Flow direction indicator | Embossed 1-way arrow |
| Max. Working Pressure [bar] | 52 bar |
| Max. Working Pressure [psig] | 754 psig |
| Packing format | Single pack |
| Parts Program name | ICLXICMICS |
| Product accessories | ICM / ICS / ICLX accessories |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R113R114R1233zd(E)R1234yfR1234ze(E)R125R1270R1336mzz(Z)R134aR152aR170R22R227eaR23R236faR290R32R401AR402AR402BR404AR407AR407BR407CR407FR407HR408AR409AR410AR417AR421AR422AR422BR422DR427AR438AR444BR447AR448AR449AR449BR450AR452AR454BR455AR502R503R513AR600R600aR717R744RE170R507AR1150R245faR413AR442AR447BR452BR454AR454CR463AR512AR513BR515AR515BR516AR508B |
| Serviceable | ICM / ICS / ICLX spare parts |
| Temperature range [°C] [max] | 120 °C |
| Temperature range [°C] [min] | -60 °C |
| Temperature range [°F] [max] | 248 °F |
| Temperature range [°F] [min] | -76 °F |
| Used for product | ICM 20 |
| Valve operation | Function module |
