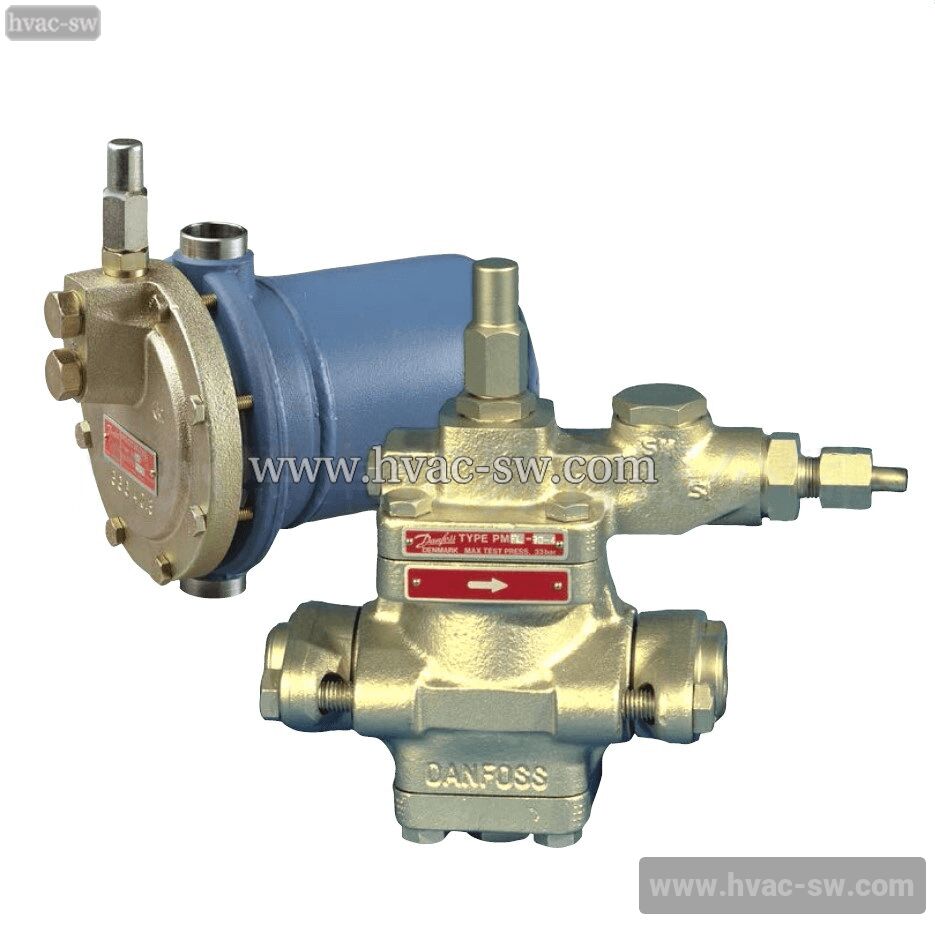

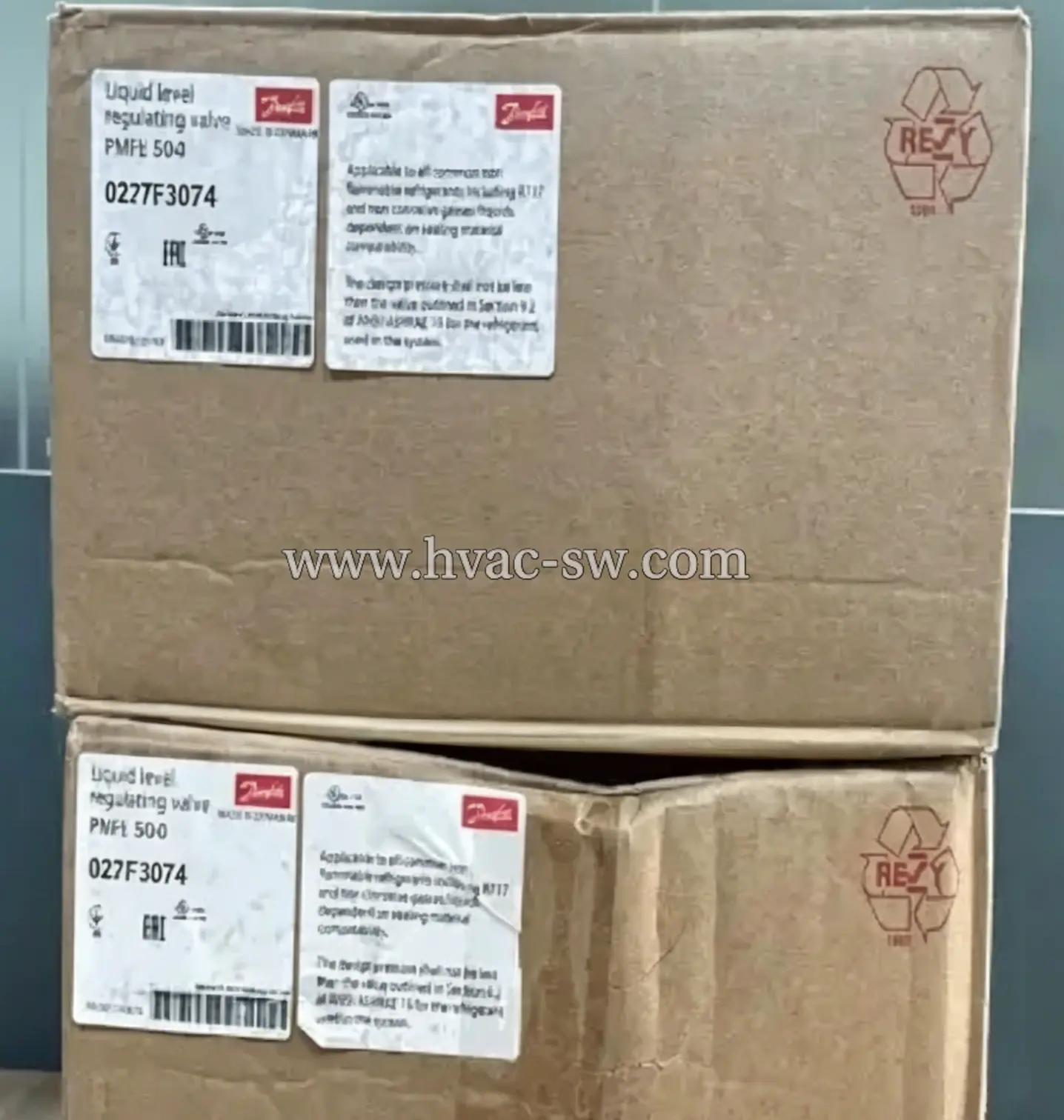

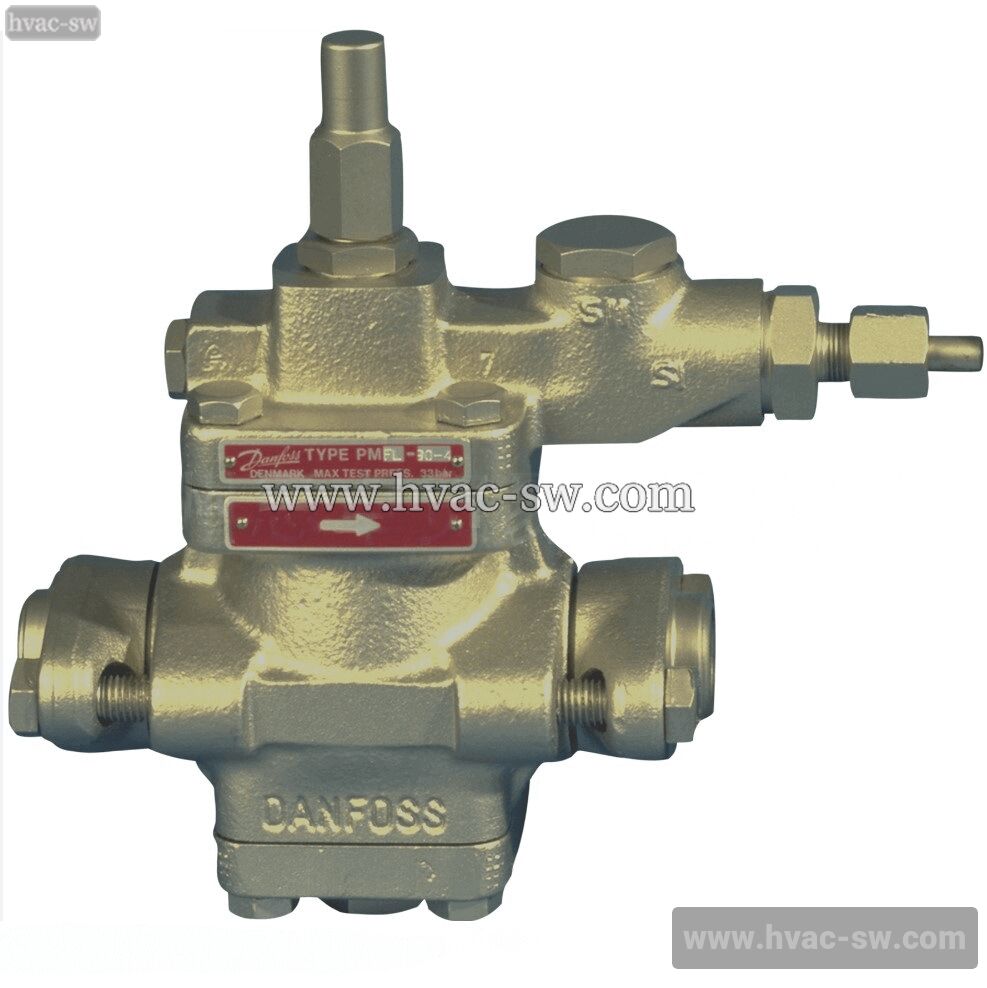

Danfoss 027F3074 PMFH500 Level Control Valve
The Danfoss 027F3074 PMFH500 is a robust level control valve designed for precise regulation of liquid levels in industrial applications. Engineered for use in refrigeration, air conditioning, and other systems requiring accurate pressure and level management, this valve ensures reliable performance and efficient flow control.
Need help confirming this part?
Send us the part number, equipment model, nameplate information or a product photo. We can check available sourcing options, pricing and lead time.
Product Overview
| Model | Specification | Nominal Diameter (DN) (mm) | Nominal Pressure (PN) (MPa) | Body Material | Connection Type |
|---|---|---|---|---|---|
| PMFH500 | DN50 | 4 | Cast Steel | Flange | Medium |
| SV 4 027B2024 Pilot Float Valve | DN25 | 4 | Cast Steel | Flange | Medium |
| Attribute | Value |
|---|---|
| Gross weight | 25.707 Kilogram |
| Net weight | 25.707 Kilogram |
| Volume | 18.687 Liter |
| EAN | 5702422171140 |
| Type | PMFH 500 |
| Product group | Liquid level regulating valves |
| Product Name Description | Liquid level regulating valve |
| Approval | CEEACLLC CDC TYSKUL |
| Approval file name | REFRIGERANT VALVE 53R0 |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Colour Paint | Cr3 / TLP |
| Contains batteries | No |
| EU RoHS compliance | Out of scope |
| Fluid Group | 1 |
| Inlet connection size [mm] | 50 mm |
| Max. Working Pressure [bar] | 28 bar |
| Max. Working Pressure [psig] | 406 psig |
| Packing format | Single pack |
| Parts included | Blanking plugFlange boltsFlange gasketsPilot connector |
| PED category | II |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R134aR22R404AR407AR407BR407CR407FR410AR502R717R401AR402AR409AR421AR507A |
| SCIP dossier no. | b9a4d397-4040-40d8-bf76-2fbd22ec1ba4 |
| Temperature range [°C] [max] | 120 °C |
| Temperature range [°C] [min] | -60 °C |
| Temperature range [°F] [max] | 248 °F |
| Temperature range [°F] [min] | -76 °F |
| UL approval file name | REFRIGERANT VALVE 53R0 |
| UL evaluated | Yes |
