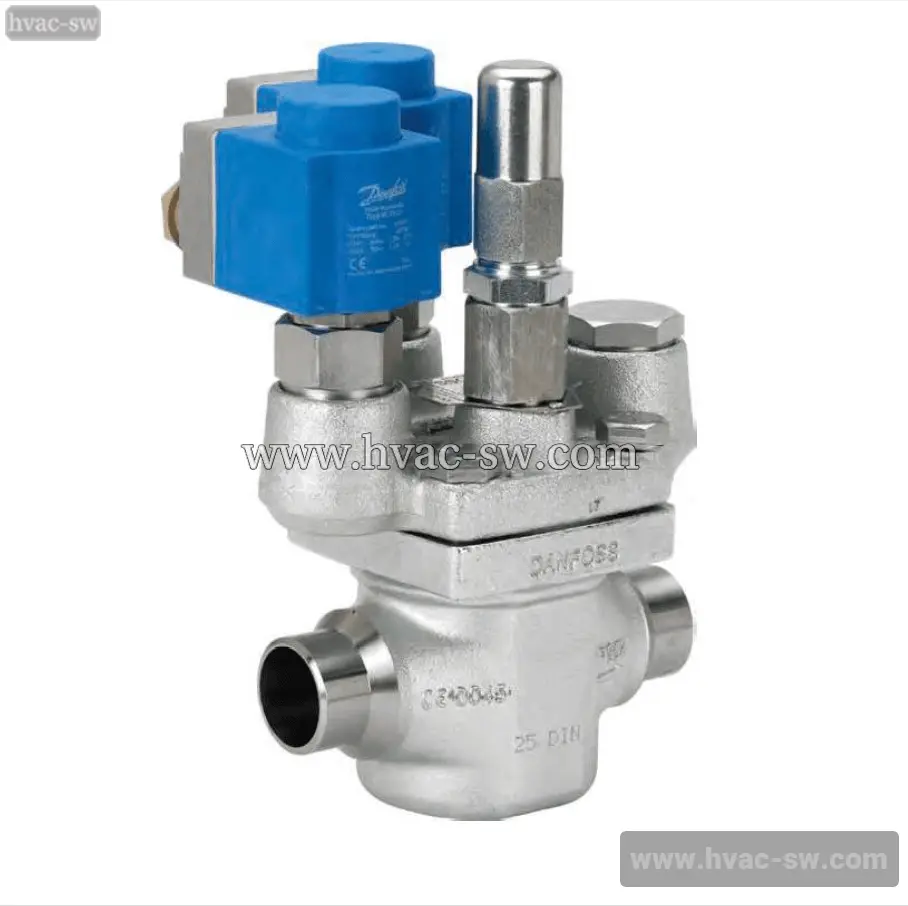

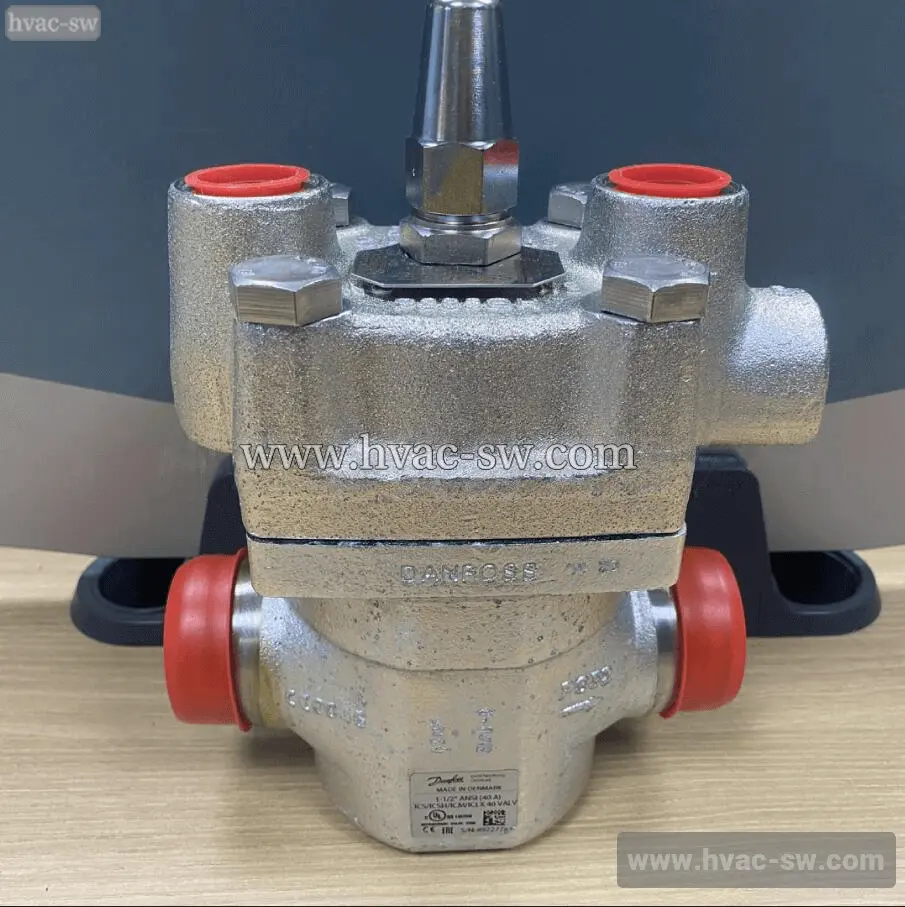

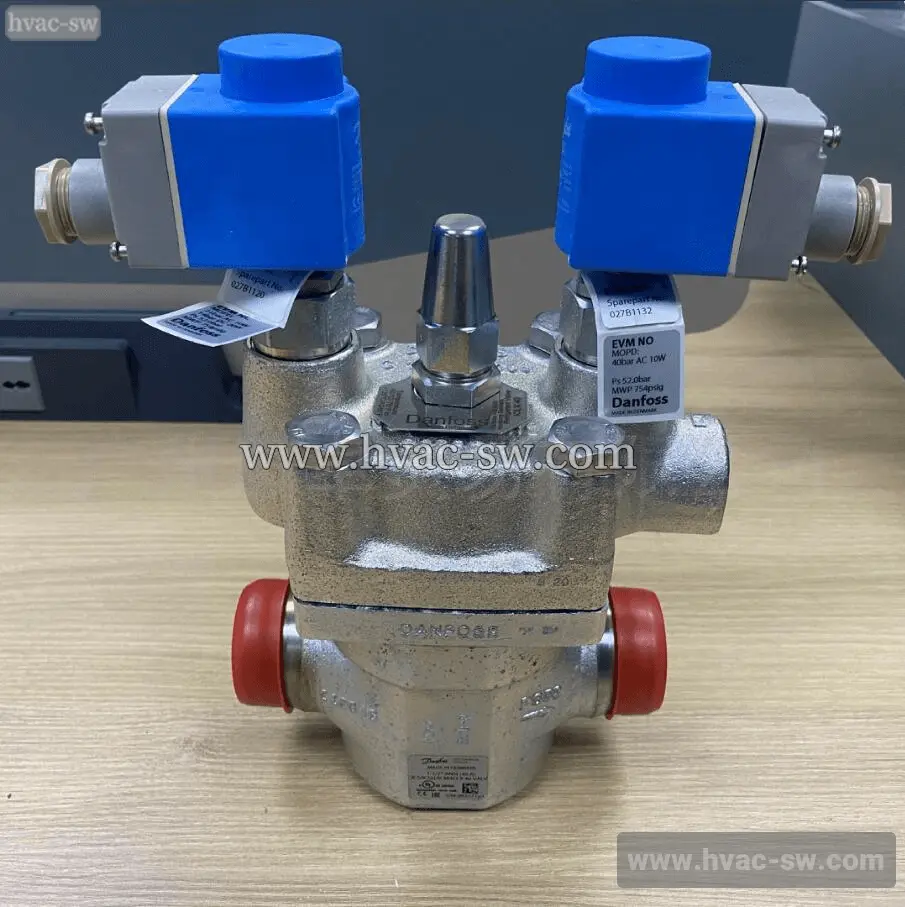

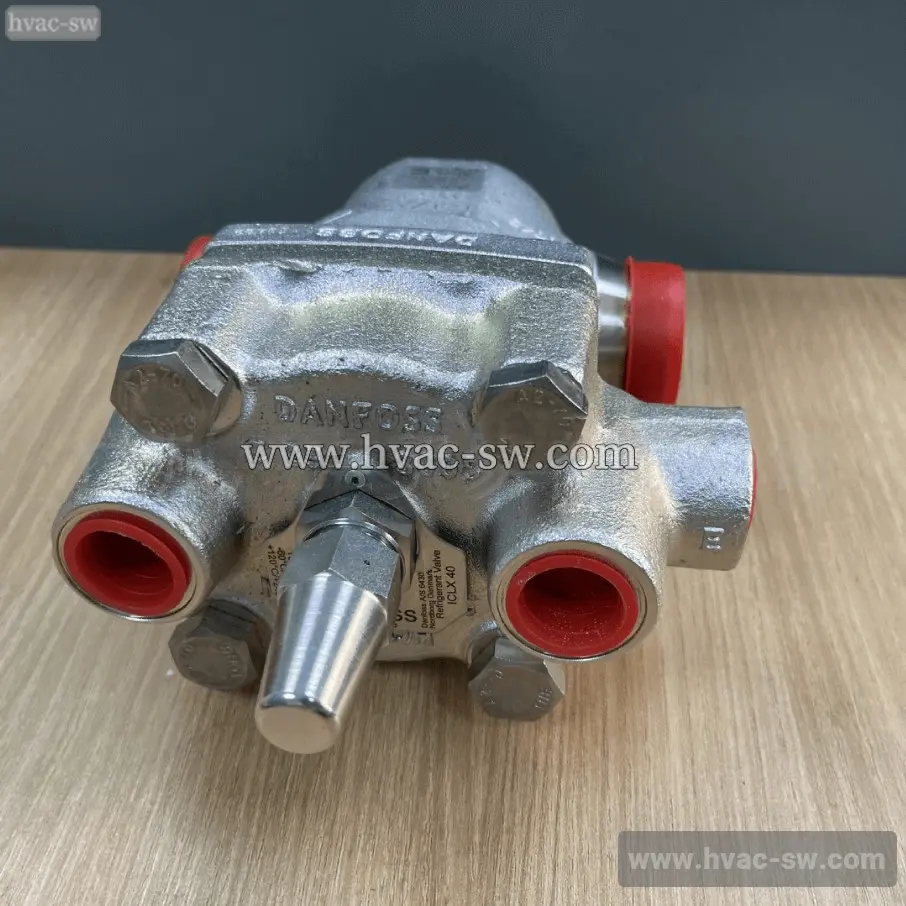

Danfoss ICLX32 027H3041 Two-Step Opening Solenoid Valve
The Danfoss ICLX32 027H3041 is a two-step opening solenoid valve designed for precise and efficient flow control in refrigeration and air conditioning systems. It ensures reliable operation with minimal energy consumption.
Need help confirming this part?
Send us the part number, equipment model, nameplate information or a product photo. We can check available sourcing options, pricing and lead time.
Product Overview
| Attribute | Value |
|---|---|
| Grossweight | 8.013Kilogram |
| Netweight | 6.95Kilogram |
| Volume | 8.68Liter |
| EAN | 5702428483032 |
| Type | ICLX32 |
| Productgroup | Solenoidvalves |
| ProductNameDescription | 2-stepsolenoidvalve |
| Actuatorsystem | 2EVMpilotsolvalvemodule |
| Approval | EACLLCCDCTYSKTÜVUL |
| Bodymaterial | Steel |
| Brand | ICVFlexline |
| ChinaRoHScompliance | Outofscope |
| Connectionmaterial | Steel |
| Connectionstandard | ASMEB36.10MSCHEDULE80 |
| Containsbatteries | No |
| Cvvalue[gal/min] | 25.52gal/min |
| Description | 2-stepsolenoidvalve |
| Direction | Straightway |
| EURoHScompliance | Outofscope |
| Extpilotpressureconnection | Nipple(P2port) |
| Flowdirectionindicator | Embossed1-wayarrow |
| FluidGroup | 1 |
| Inletconnectionsize[in] | 11/4in |
| Inletconnectionsize[mm] | 32mm |
| Inletconnectiontype | Buttweld |
| Kvvalue[m³/h] | 22m³/h |
| Manualoperationoption | Manualopenspindle |
| Max.WorkingPressure[bar] | 65bar |
| Max.WorkingPressure[psig] | 943psig |
| Openingconfiguration | 1-step(optionalsetting)2-step(default) |
| Outletconnectionsize[in] | 11/4in |
| Outletconnectionsize[mm] | 32mm |
| Outletconnectiontype | Buttweld |
| Packingformat | Singlepack |
| PartsProgramname | ICLX |
| PEDcategory | II |
| Productaccessories | ICM/ICS/ICLXaccessories |
| Productdescription | Solenoidvalve |
| Quantityperpackingformat | 1pc |
| REACHCandidateListsubstances | Lead(CASno.7439-92-1) |
| Refrigerants | R134aR22R401AR402AR404AR407AR407BR407CR407FR409AR410AR421AR502R717R744R507AR1234yfR1234ze(E)R125R152aR227eaR236faR245faR290R32R407HR413AR417AR422AR422BR422DR438AR442AR444BR447AR447BR448AR449AR449BR450AR452AR452BR454AR454BR454CR455AR463AR512AR513AR513BR515AR515BR516AR170R452CR600R600a |
| Serviceable | ICM/ICS/ICLXspareparts |
| Step1openingdegree(~)[%] | 10% |
| Step2initialization | Deltap<1.25bar(18psig) |
| Surfacecoating | Zn(TLP) |
| Temperaturerange[°C][max] | 120°C |
| Temperaturerange[°C][min] | -60°C |
| Temperaturerange[°F][max] | 248°F |
| Temperaturerange[°F][min] | -76°F |
| ULapprovalfilename | REFRIGERANTVALVE53R0 |
| ULevaluated | Yes |
| Valveoperation | Directoperated |
| Valveversion | Standardversion |
