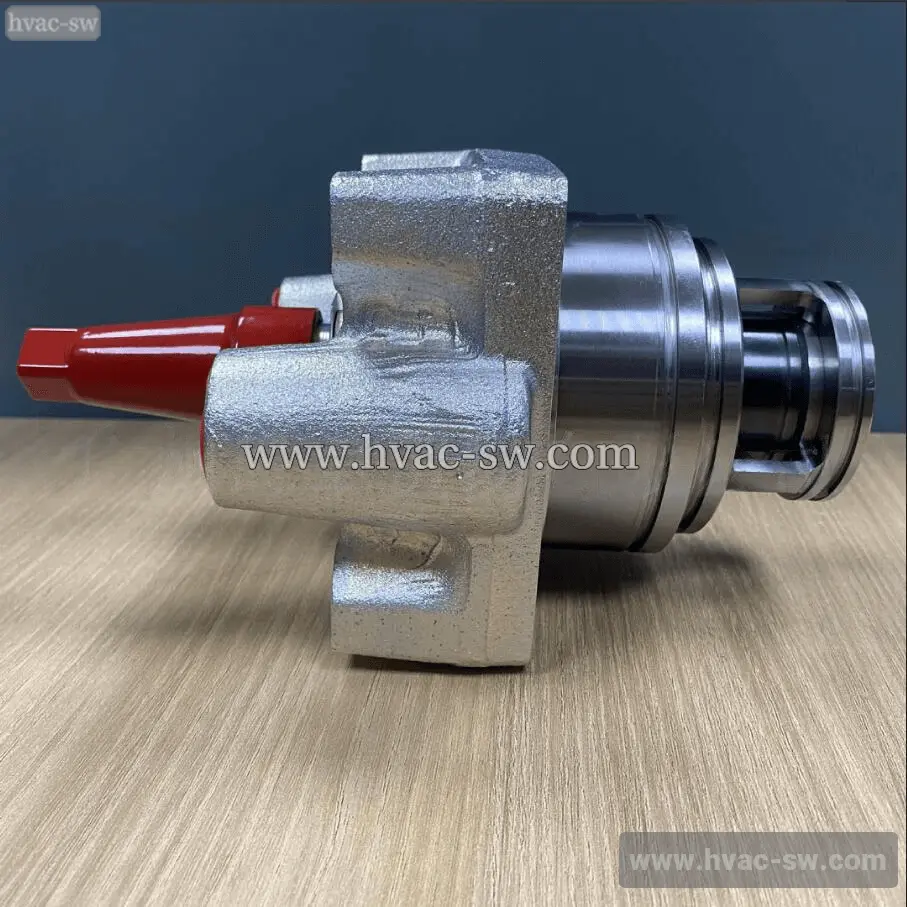

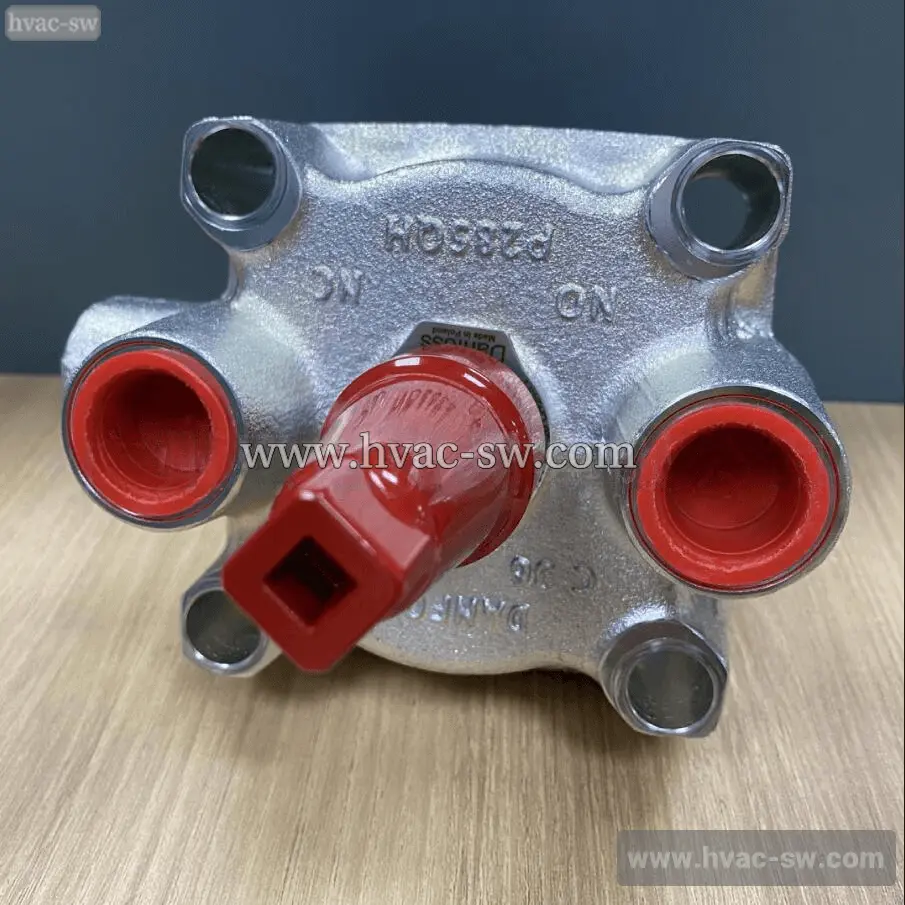

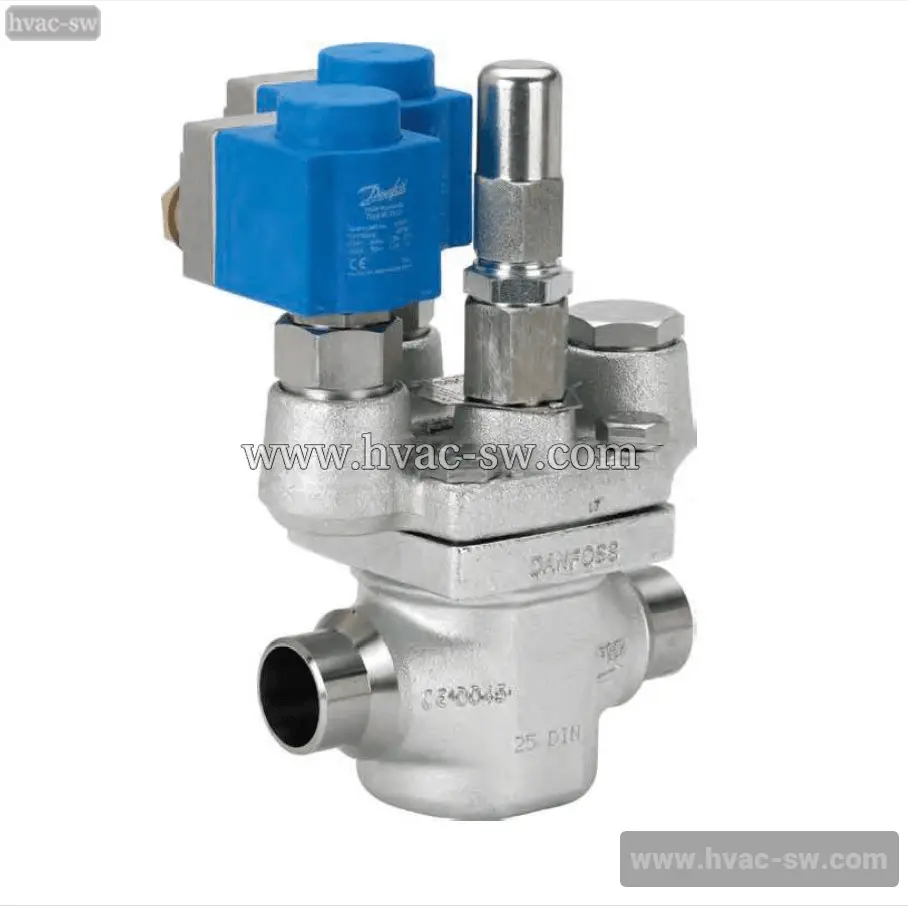

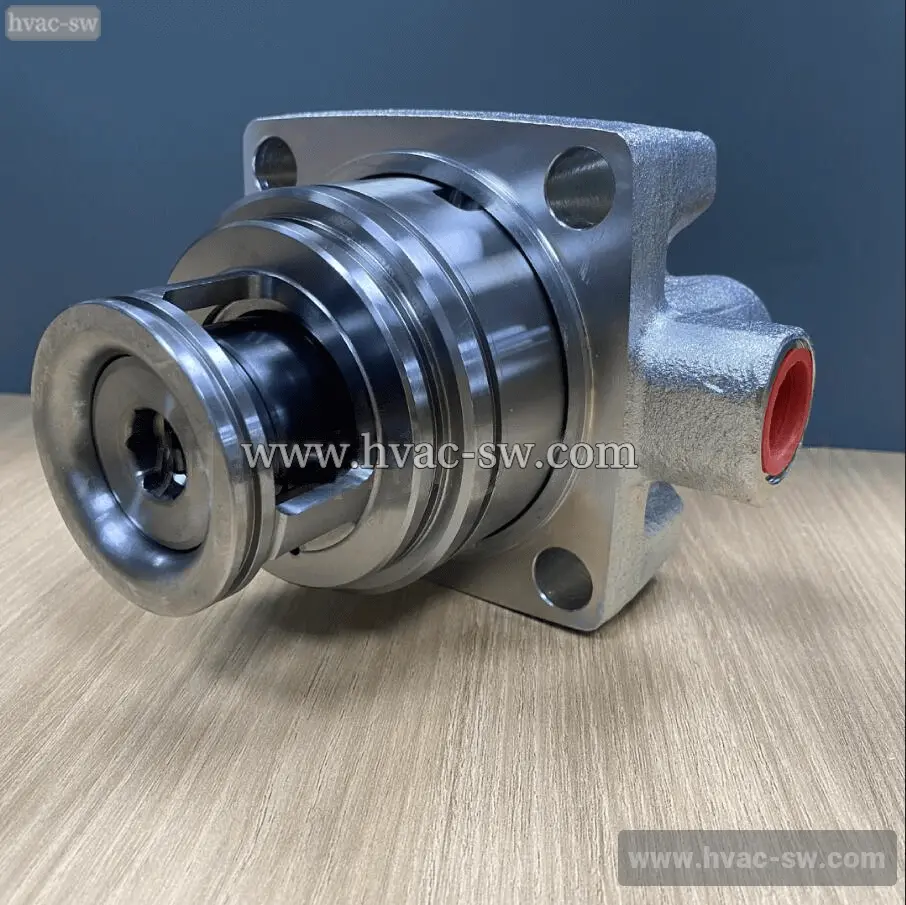

DANFOSS 027H5204 Two-Step Solenoid Valve ICLX50
The DANFOSS ICLX50 027H5204 is a two-step opening solenoid valve function module designed for precise flow control in refrigeration and air conditioning systems. It ensures optimal system performance and energy savings, making it ideal for commercial and industrial applications.
Need help confirming this part?
Send us the part number, equipment model, nameplate information or a product photo. We can check available sourcing options, pricing and lead time.
Product Overview
| Attribute | Value |
|---|---|
| Gross weight | 8.859 Kilogram |
| Net weight | 5.016 Kilogram |
| Volume | 20.671 Liter |
| EAN | 5702428483179 |
| Type | ICLX 50 |
| Product group | Press. and temp. regul. valves |
| Product Name Description | Function module |
| Actuator system | 2 EVM pilot sol valve module |
| Brand | ICV Flexline |
| China RoHS compliance | Out of scope |
| Contains batteries | No |
| Cv value [gal/min] | 54.5 gal/min |
| Description | Function module |
| EU RoHS compliance | Out of scope |
| Ext pilot pressure connection | Weld nipple (P2 Port) |
| Kv value [m³/h] | 47 m³/h |
| Manual operation option | Manual open spindle |
| Opening configuration | 1-step (optional setting)2-step (default) |
| Packing format | Single pack |
| Parts Program name | ICLX |
| Product accessories | ICM / ICS / ICLX accessories |
| Product description | Function Module |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R134aR22R401AR402AR404AR407AR407BR407CR407FR409AR410AR421AR502R717R744R507AR1234yfR1234ze(E)R125R152aR227eaR236faR245faR290R32R407HR413AR417AR422AR422BR422DR438AR442AR444BR447AR447BR448AR449AR449BR450AR452AR452BR454AR454BR454CR455AR463AR512AR513AR513BR515AR515BR516AR170R452CR600R600a |
| Serviceable | ICM / ICS / ICLX spare parts |
| Step 1 opening degree (~) [%] | 10 % |
| Step 2 initialization | Delta p < 1.25 bar (18 psig) |
| Used for product | ICV 50 |
| Used for product comments | With top assembly |
| Valve operation | Solenoid operated |
