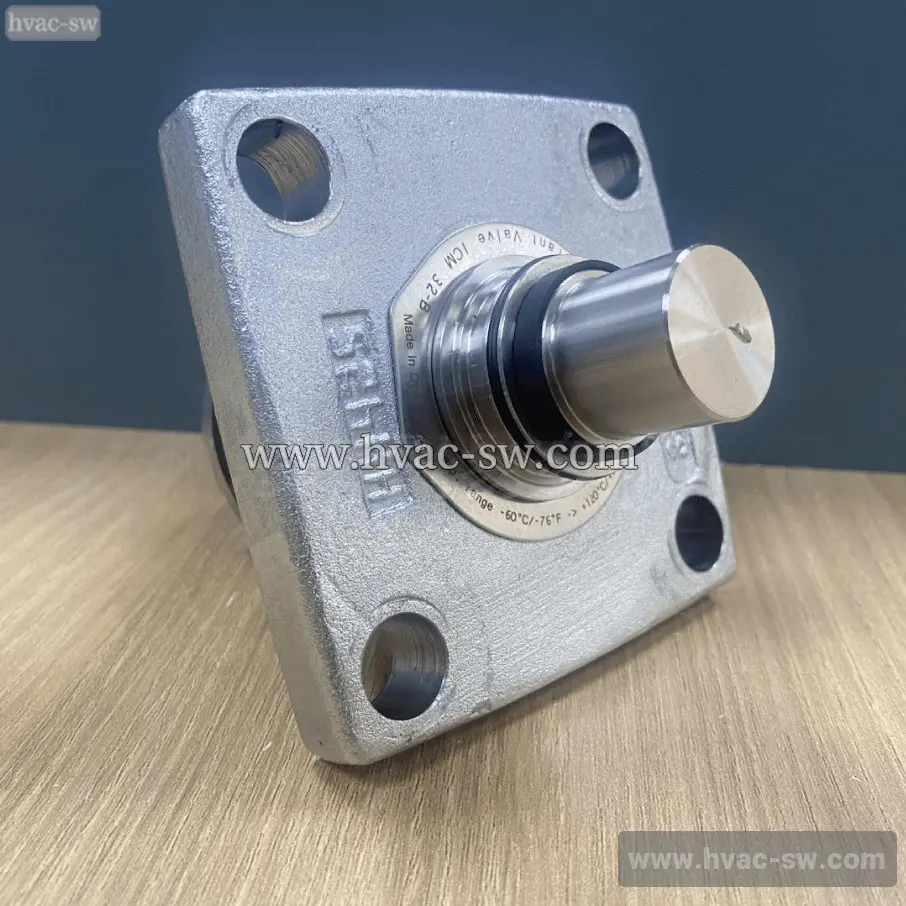

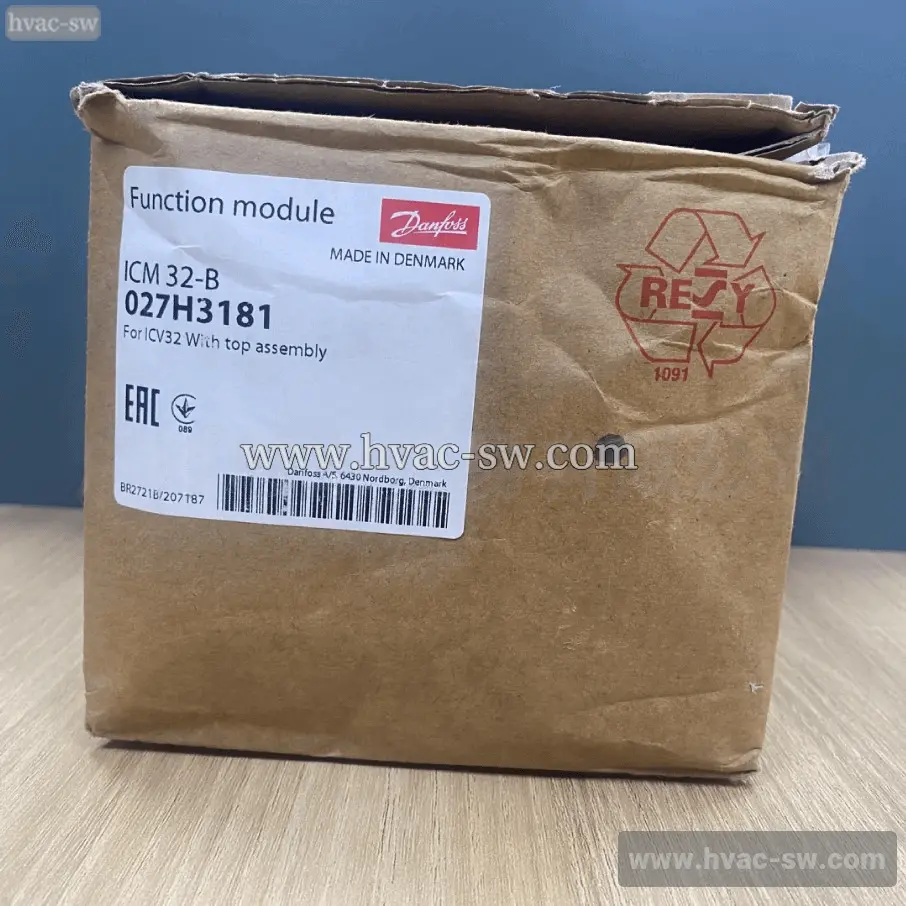

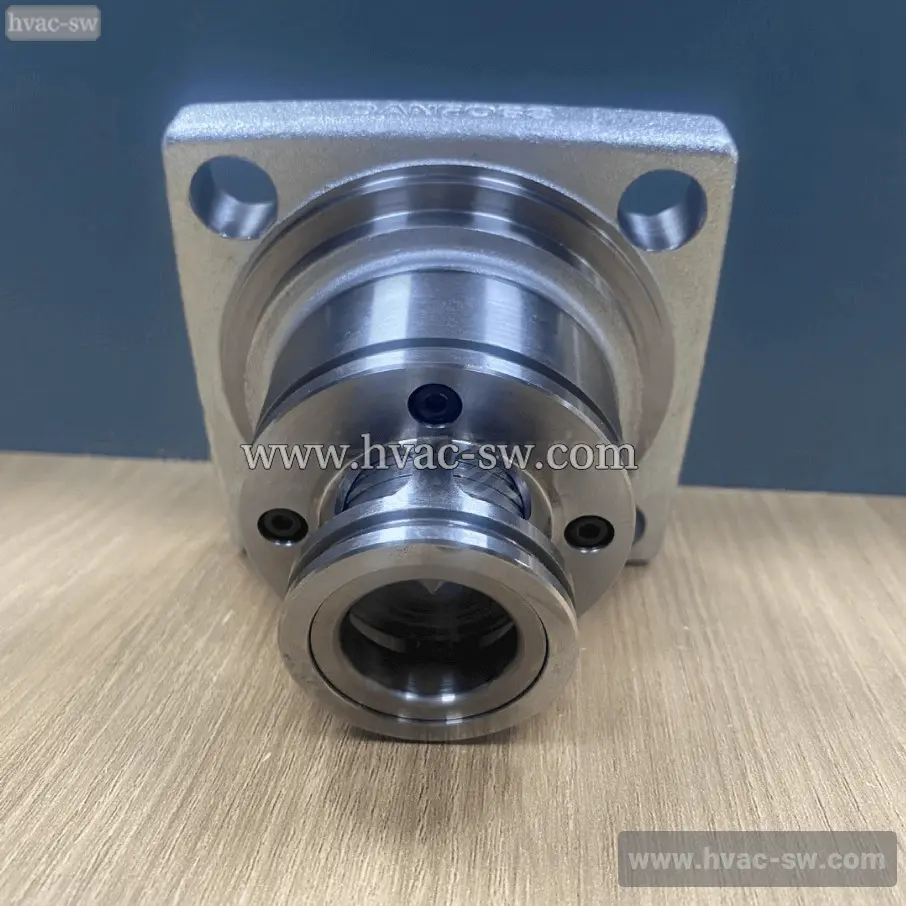

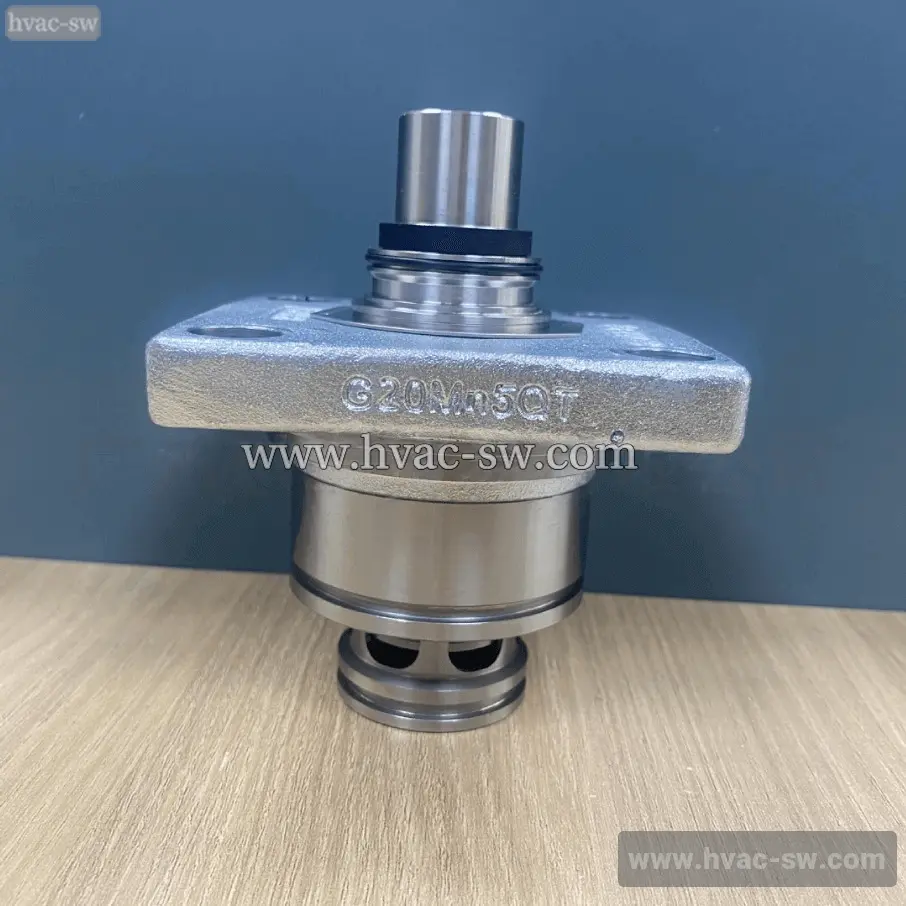

Danfoss 027H3181 ICM32-B Electric Valve Module
The Danfoss 027H3181 ICM32-B is an electric valve function module designed for precise control and regulation in HVAC systems. It ensures accurate and reliable operation of compatible Danfoss electric valves, contributing to optimal system performance and energy efficiency.
Need help confirming this part?
Send us the part number, equipment model, nameplate information or a product photo. We can check available sourcing options, pricing and lead time.
Product Overview
| Model | Specification | Nominal Diameter (DN) (mm) | Nominal Pressure (PN) (MPa) | Body Material |
|---|---|---|---|---|
| ETS250-034G2602 | 42 | 34 | Copper | Welding |
| 034G7073 Connection Cable | DN12 | 34 | Copper | Internal Thread |
| Attribute | Value |
|---|---|
| Gross weight | 2.896 Kilogram |
| Net weight | 2.729 Kilogram |
| Volume | 3.349 Liter |
| EAN | 5702428237550 |
| Type | ICM 32-B |
| Product group | Press. and temp. regul. valves |
| Product Name Description | Function module |
| Actuator system | ICAD motor, magnet coupling |
| Body material | Steel |
| Brand | ICV Flexline |
| China RoHS compliance | Out of scope |
| Contains batteries | No |
| Cv value [gal/min] | 20 gal/min |
| EU RoHS compliance | Out of scope |
| Kv value [m³/h] | 17 m³/h |
| Manual operation option | Via ICAD settingVia Multifunction tool |
| Open/close time [s] | 8 s |
| Outlet connection size [mm] | 32 mm |
| Packing format | Single pack |
| Parts included | Bolts/O-ringSeat/O-ring |
| Parts Program name | ICM |
| Product accessories | ICAD accessoriesICM / ICS / ICLX accessories |
| Product description | Function Module |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrigerants | R134aR22R401AR402AR404AR407AR407BR407CR407FR409AR410AR421AR502R717R744R1234ze(E)R507AR1234yfR125R227eaR236faR245faR32R407HR417AR422AR422BR422DR438AR442AR444BR447AR447BR448AR449AR449BR450AR452AR452BR454AR454BR454CR455AR463AR513AR513BR515AR515BR516AR170R290R600R600aR601R601a |
| Serviceable | ICM / ICS / ICLX spare parts |
| Used for product | ICV 32 |
| Used for product comments | With top assembly |
| Valve operation | Motor operated |
