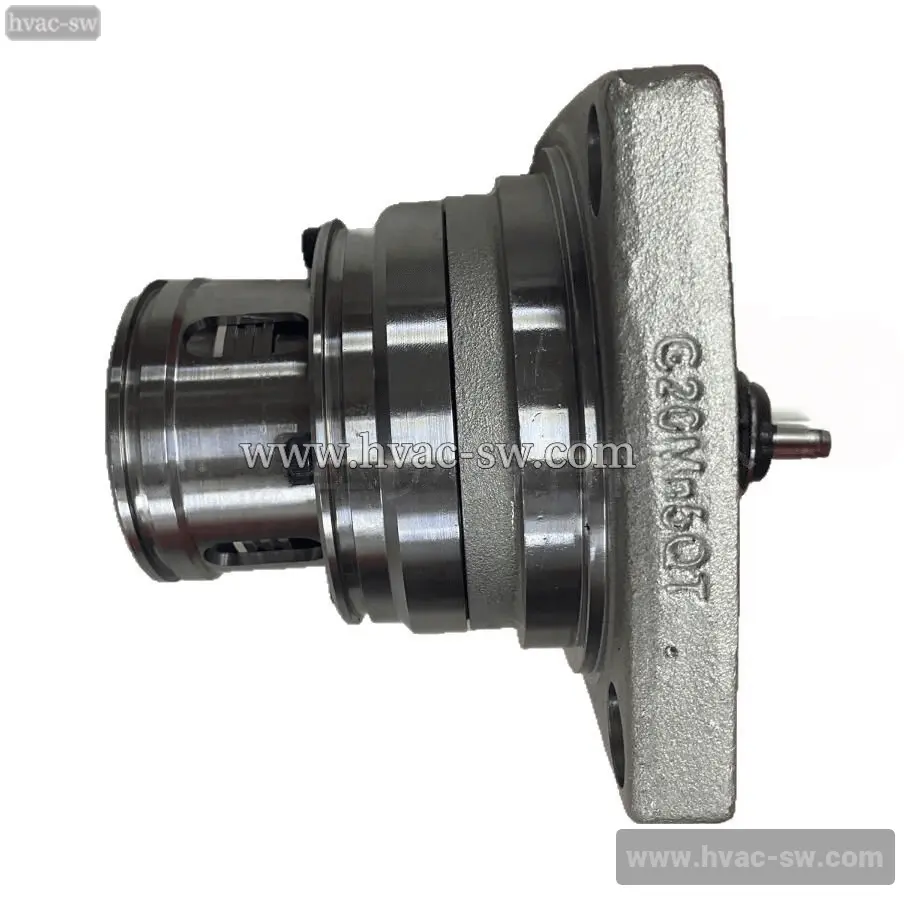

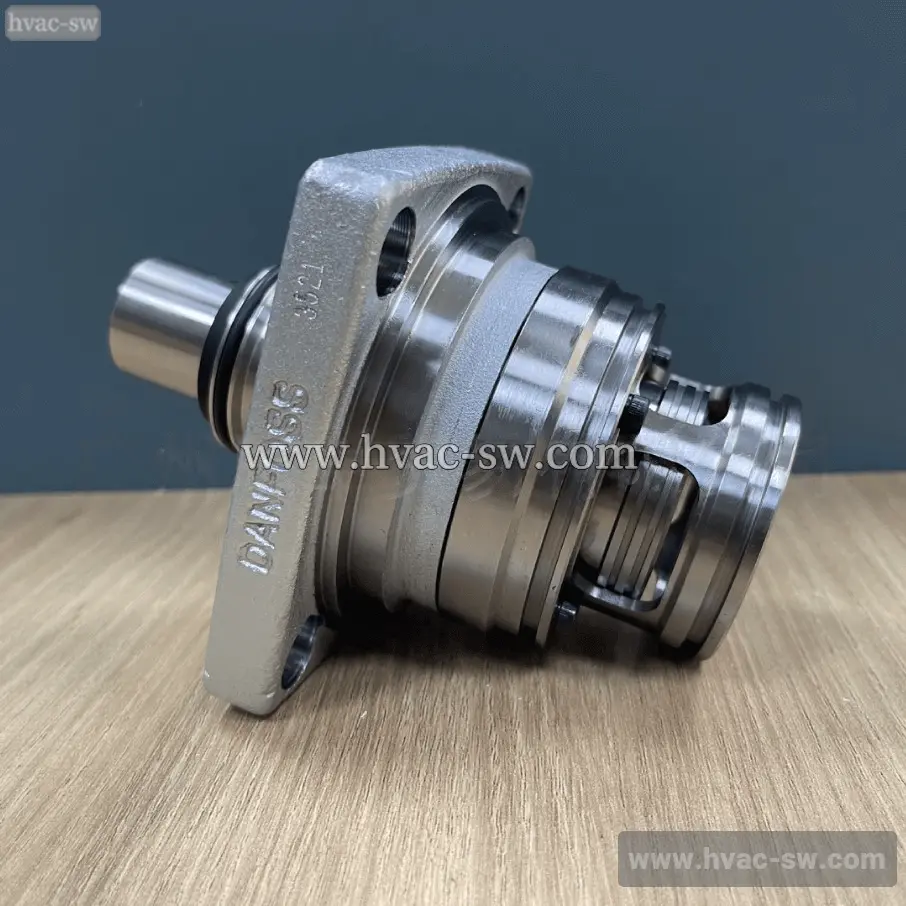

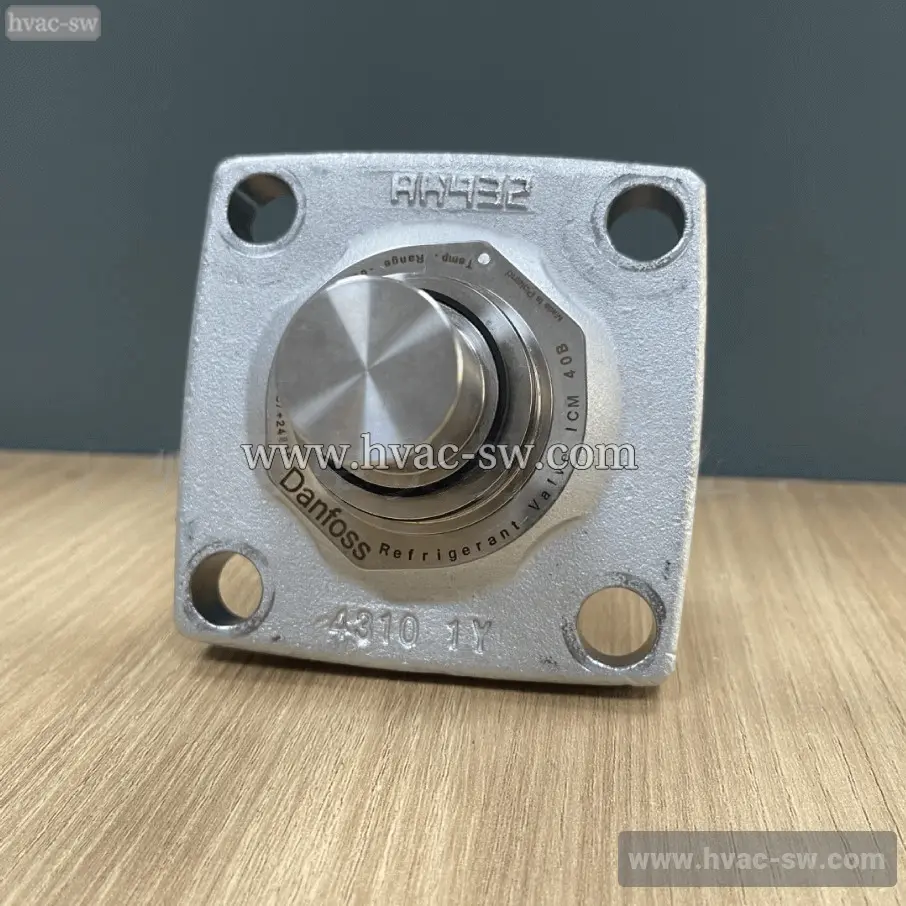

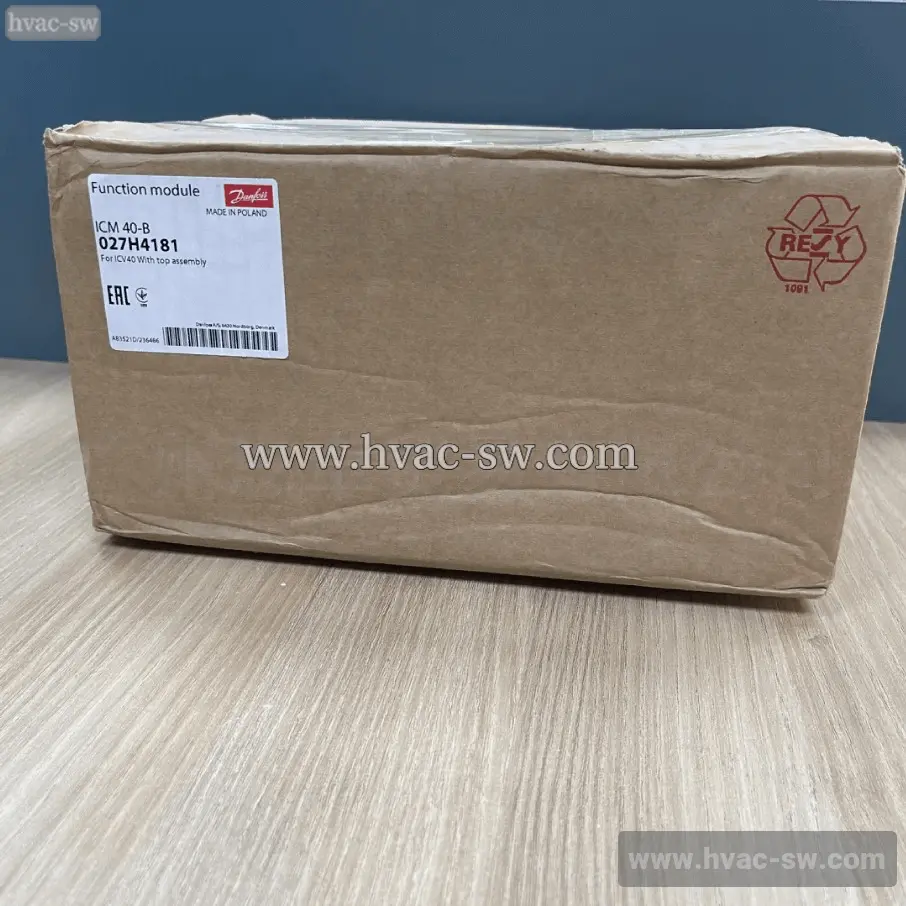

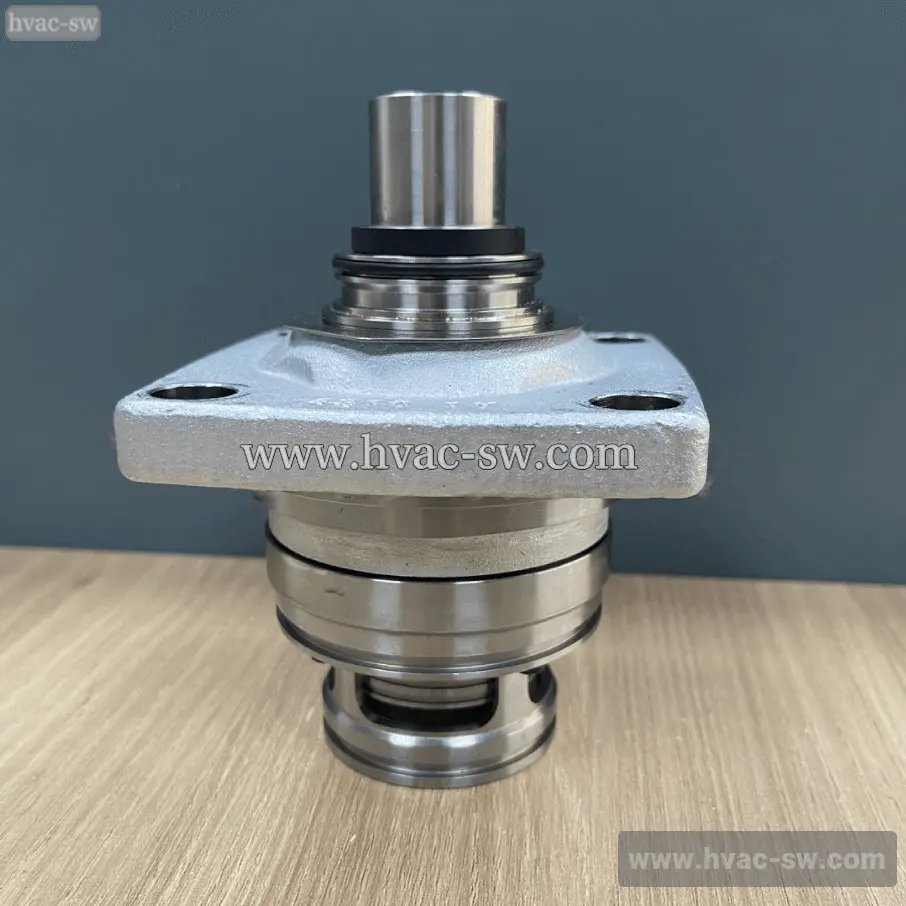

Danfoss 027H4181 ICM40-B Electric Valve Module
The Danfoss 027H4181 ICM40-B is an electric valve module for precise fluid flow control in HVAC systems. It ensures reliable and energy-efficient operation, ideal for commercial and industrial applications with water or glycol mixtures. Integration with building management systems allows for automated climate control.
Need help confirming this part?
Send us the part number, equipment model, nameplate information or a product photo. We can check available sourcing options, pricing and lead time.
Product Overview
| Model | Specification | Nominal Diameter (DN) (mm) | Nominal Pressure (PN) (MPa) | Body Material |
|---|---|---|---|---|
| ETS250-034G2602 | 42 | 34 | Copper | Welding |
| 034G7073 Connection Cable | DN12 | 34 | Copper | Internal Thread |
| Attribute | Value |
|---|---|
| Gross weight | 3.584 Kilogram |
| Net weight | 3.2 Kilogram |
| Volume | 8.68 Liter |
| EAN | 5702428237529 |
| Type | ICM 40-B |
| Product group | Press. and temp. regul. valves |
| Product Name Description | Function module |
| Actuator system | ICAD motor, magnet coupling |
| Body material | Steel |
| Brand | ICV Flexline |
| Contains batteries | No |
| Cv value [gal/min] | 30.16 gal/min |
| Kv value [m³/h] | 26 m³/h |
| Manual operation option | Via ICAD settingVia Multifunction tool |
| Open/close time [s] | 10 s |
| Outlet connection size [mm] | 40 mm |
| Packing format | Single pack |
| Parts included | Bolts/O-ringSeat/O-ring |
| Parts Program name | ICM |
| Product accessories | ICAD accessoriesICM / ICS / ICLX accessories |
| Product description | Function Module |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrigerants | R134aR22R401AR402AR404AR407AR407BR407CR407FR409AR410AR421AR502R717R744R1234ze(E)R507AR1234yfR125R227eaR236faR245faR32R407HR417AR422AR422BR422DR438AR442AR444BR447AR447BR448AR449AR449BR450AR452AR452BR454AR454BR454CR455AR463AR513AR513BR515AR515BR516AR170R290R600R600aR601R601a |
| Serviceable | ICM / ICS / ICLX spare parts |
| Used for product | ICV 40 |
| Used for product comments | With top assembly |
| Valve operation | Motor operated |
