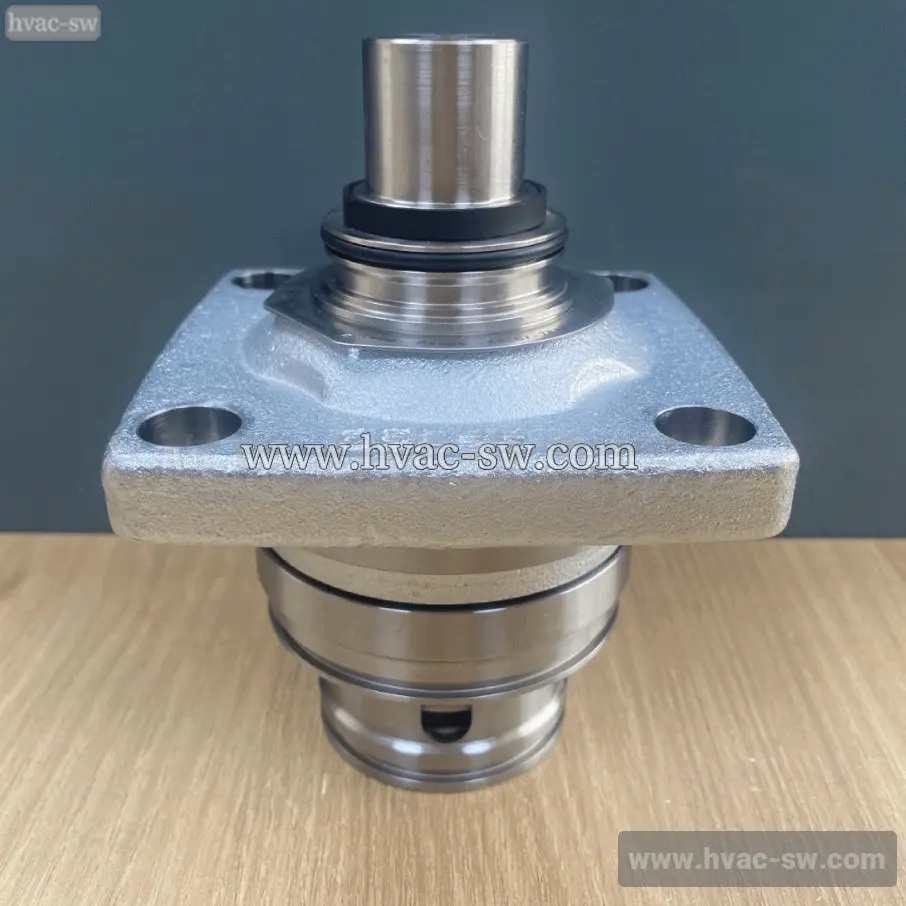

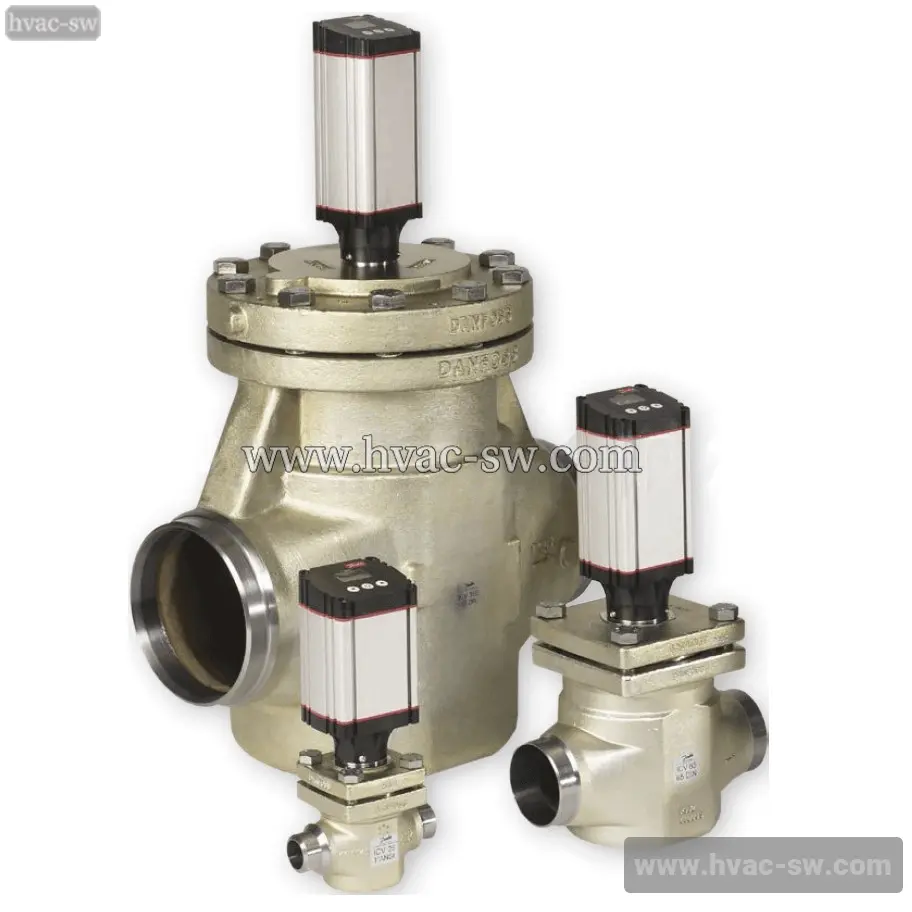

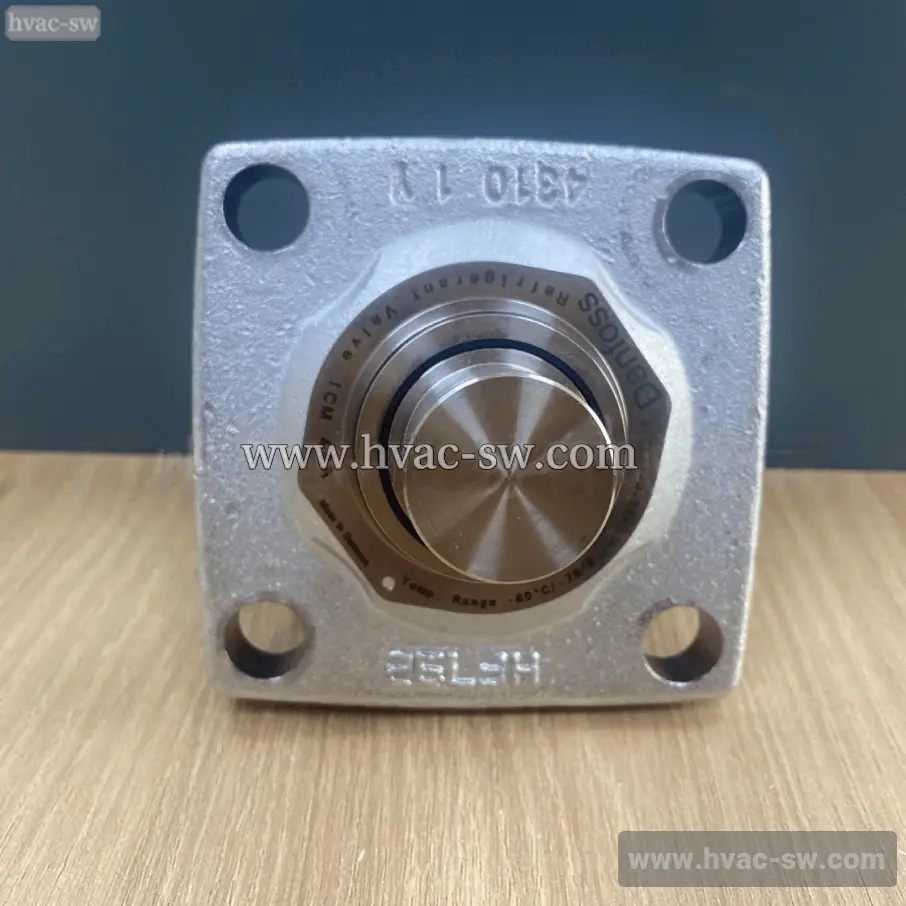

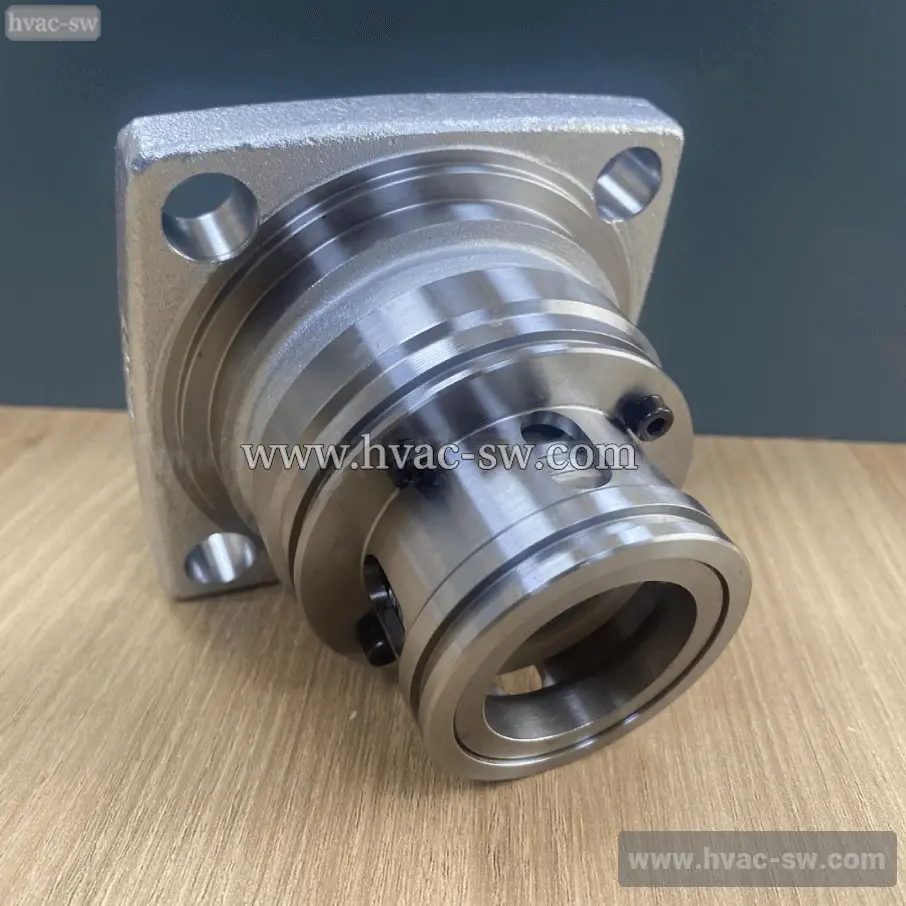

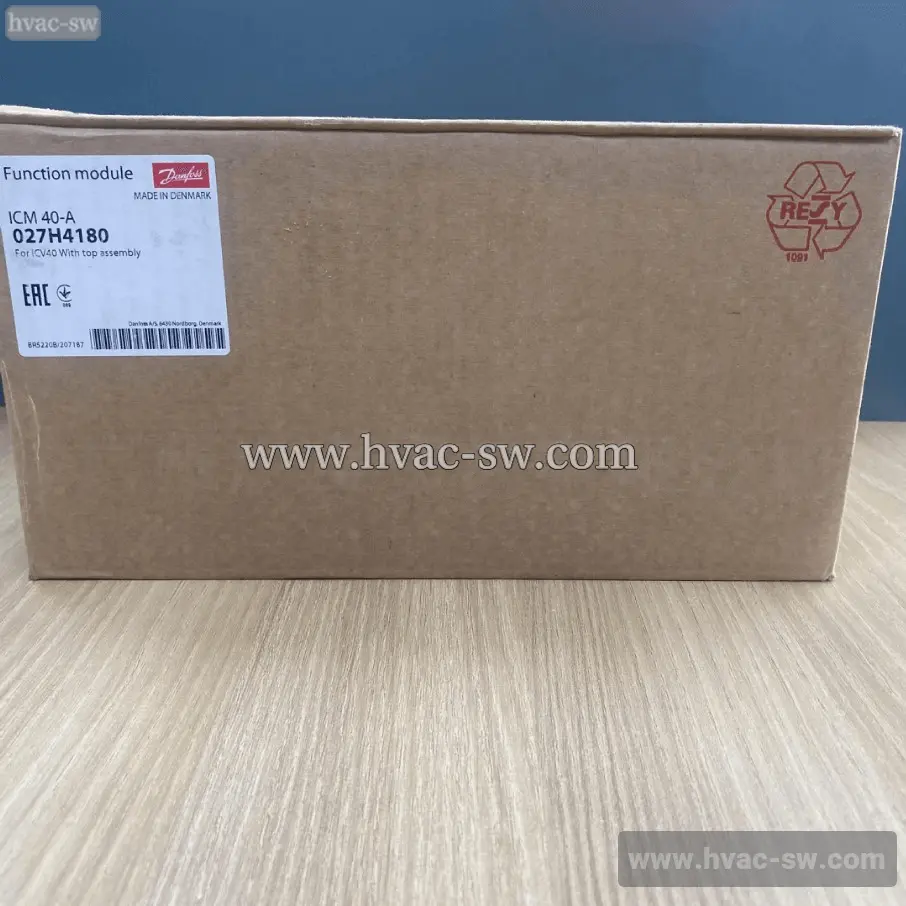

Danfoss 027H4180 ICM40-A Electric Valve Module
The Danfoss 027H4180 ICM40-A is an electric valve function module designed for precise control in HVAC and industrial applications. It ensures reliable operation and seamless integration into automation systems.
Need help confirming this part?
Send us the part number, equipment model, nameplate information or a product photo. We can check available sourcing options, pricing and lead time.
Product Overview
| Attribute | Value |
|---|---|
| Gross weight | 3.582 Kilogram |
| Net weight | 3.26 Kilogram |
| Volume | 8.68 Liter |
| EAN | 5702428237536 |
| Type | ICM 40-A |
| Product group | Press. and temp. regul. valves |
| Product Name Description | Function module |
| Actuator system | ICAD motor, magnet coupling |
| Body material | Steel |
| Brand | ICV Flexline |
| Contains batteries | No |
| Cv value [gal/min] | 17 gal/min |
| Kv value [m³/h] | 15 m³/h |
| Manual operation option | Via ICAD settingVia Multifunction tool |
| Open/close time [s] | 10 s |
| Outlet connection size [mm] | 40 mm |
| Packing format | Single pack |
| Parts included | Bolts/O-ringSeat/O-ring |
| Parts Program name | ICM |
| Product accessories | ICAD accessoriesICM / ICS / ICLX accessories |
| Product description | Function Module |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrigerants | R134aR22R401AR402AR404AR407AR407BR407CR407FR409AR410AR421AR502R717R744R1234ze(E)R507AR1234yfR125R227eaR236faR245faR32R407HR417AR422AR422BR422DR438AR442AR444BR447AR447BR448AR449AR449BR450AR452AR452BR454AR454BR454CR455AR463AR513AR513BR515AR515BR516AR170R290R600R600aR601R601a |
| Serviceable | ICM / ICS / ICLX spare parts |
| Used for product | ICV 40 |
| Used for product comments | With top assembly |
| Valve operation | Motor operated |
