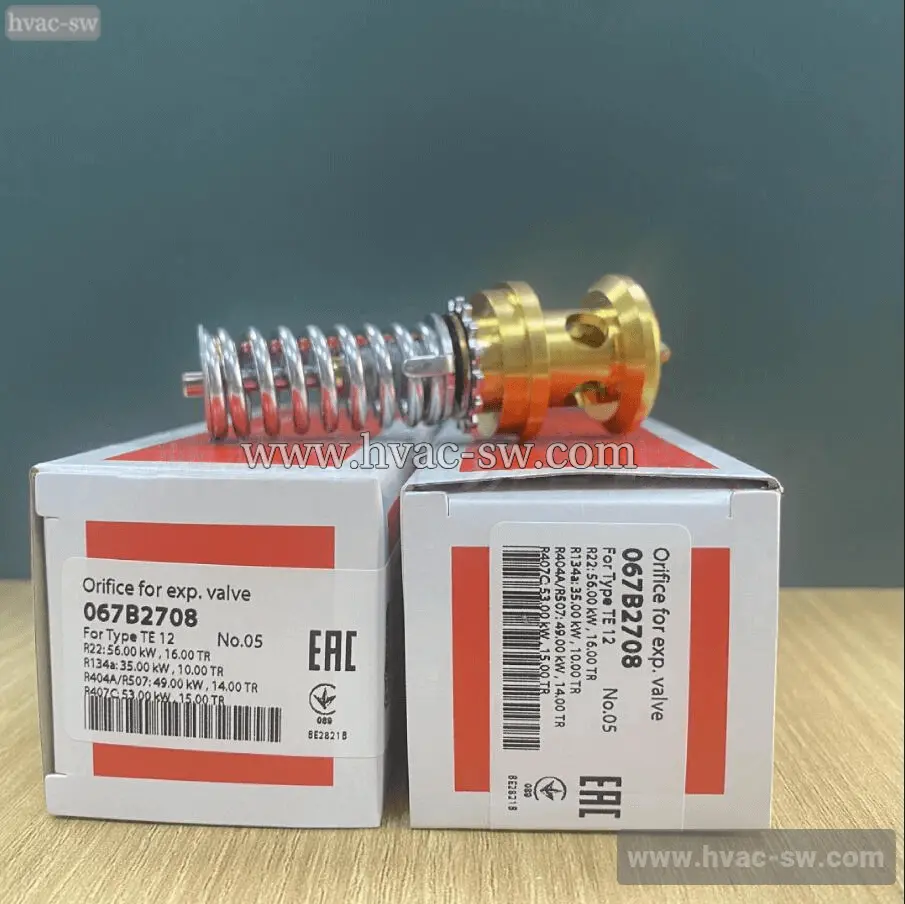

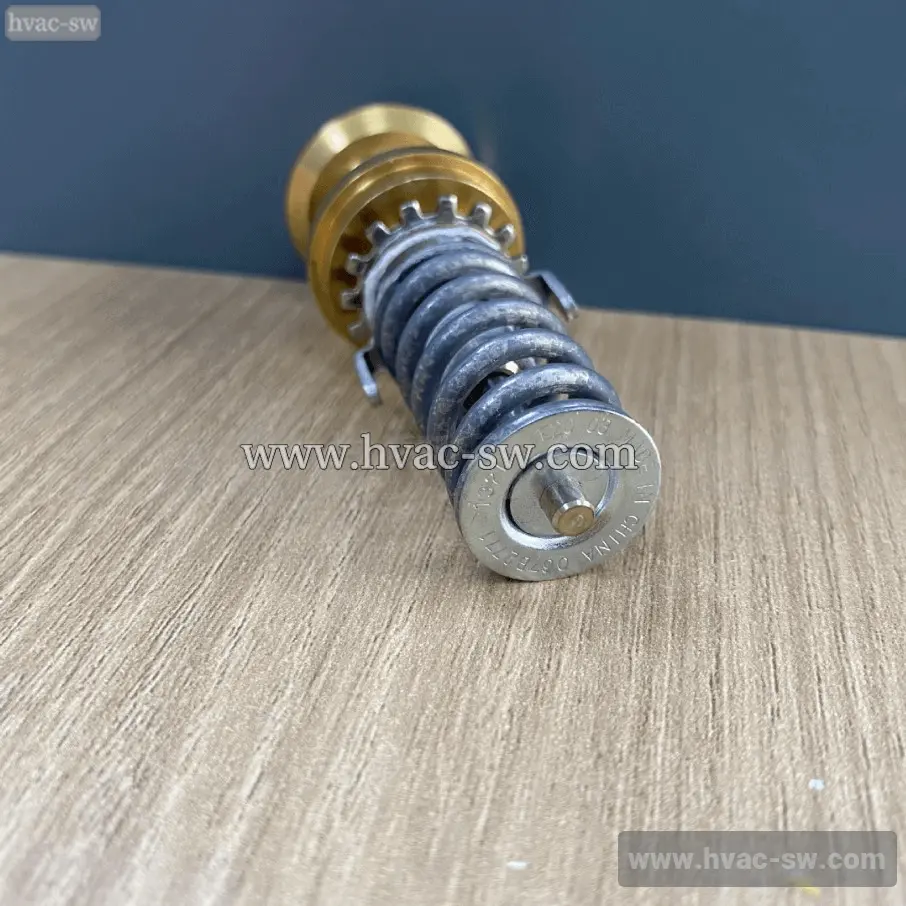

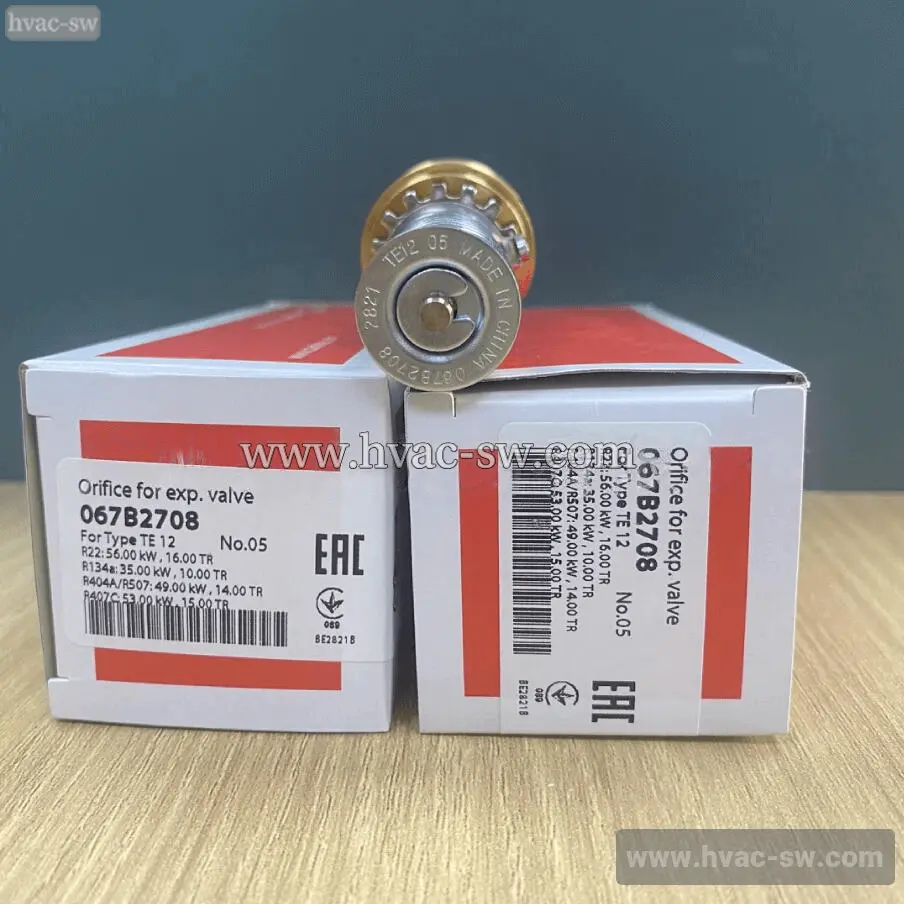

Danfoss 067B2708 No.05 Orifice for TE12 Expansion Valve, 10-16TR Multi-Refrigerant
The Danfoss 067B2708 (No.05) is an orifice insert designed for TE12 series thermostatic expansion valves. Rated for multiple refrigerants, it provides 16.00 TR (56.00 kW) for R22, 10.00 TR (35.00 kW) for R134a, 14.00 TR (49.00 kW) for R404A/R507, and 15.00 TR (53.70 kW) for R407C. EAC certified, this insert allows capacity matching of TE12 valves for various refrigeration systems, offering flexibility for HVAC&R, chillers, cold storage, and industrial refrigeration applications.
Need help confirming this part?
Send us the part number, equipment model, nameplate information or a product photo. We can check available sourcing options, pricing and lead time.
Product Overview
Danfoss 067B2708 No.05 Orifice Insert for TE12 Expansion Valve
Key Features & Benefits
Multi-Refrigerant Compatibility: Rated for R22, R134a, R404A/R507, and R407C, allowing the same insert to be used across different refrigerant systems, reducing inventory costs.
Flexible Capacity Matching: Provides a range of rated capacities (10-16 TR / 35-56 kW) depending on the refrigerant, enabling optimal performance tuning for various system sizes.
Modular Design: The insert can be easily replaced within TE12 valve bodies, simplifying maintenance, retrofitting, and system upgrades without replacing the entire valve.
Reliable Construction: Precision-manufactured to strict Danfoss standards, ensuring consistent flow characteristics, long-term durability, and leak-free performance in refrigeration environments.
Certified Quality: EAC certified, meeting international safety and performance standards for refrigeration components.
Application Scenarios
Commercial air conditioning and split systems
Water chillers and heat pump units
Cold storage warehouses and walk-in coolers
Industrial refrigeration and process cooling systems
TE12 expansion valve retrofits and maintenance projects
| Attribute | Value |
|---|---|
| Gross weight | 1.27 Kilogram |
| Type | RT260A |
| Ambient temperature range [°C] [max] | 70 °C |
| Max. test pressure [bar] Pe | 25 bar |
| Net weight | 1.02 Kilogram |
| Product group | Switches and thermostats |
| Ambient temperature range [°C] [min] | -50 °C |
| Max. test pressure [psig] | 362 psig |
| Volume | 4.715 Liter |
| Product Name Description | Differential pressure switch |
| Ambient temperature range [°F] [max] | 158 °F |
| Max. Working Pressure [bar] | 22 bar |
| EAN | 5702428042840 |
| Ambient temperature range [°F] [min] | -58 °F |
| Max. Working Pressure [psig] | 319 psig |
| Approval | CCCCECMIMEACKRLLC CDC EURO-TYSKLVDRINARMRSRoHSRoHS ChinaTYSK |
| Operat. range LP side [bar] Pe [max] | 18 bar |
| CE evaluated | Yes |
| Operat. range LP side [bar] Pe [min] | -1 bar |
| China RoHS compliance | Yes |
| Operat. range LP side [psig]Pe [max] | 261 psig |
| Contact differential [bar] | 0.3 bar |
| Operat. range LP side [psig]Pe [min] | -15 psig |
| Contact function | SPDT |
| Other RoHS documentation | Saudi Arabia RoHS |
| Contact rating | AC15=3 A, 400 VAC1=10 A, 400 VAC3=4 A, 400 VDC13=12 W, 220 VLR=28 A, 400 V |
| Packing format | Multi pack |
| Contains batteries | No |
| Pressure connection notes | Weld nipple d6.5/D10mm |
| Diff.press.setting range [bar] [max] | 4 bar |
| Pressure connection size | 3/8 |
| Diff.press.setting range [bar] [min] | 0.5 bar |
| Pressure connection standard | ISO 228-1 |
| Diff.press.setting range [MPa] [max] | 0.4 MPa |
| Pressure connection type | G |
| Diff.press.setting range [MPa] [min] | 0.05 MPa |
| Pressure Male/Female | Male |
| Diff.press.setting range [psi] [max] | 58 psi |
| Pressure range [bar] Pe [max] | 18 bar |
| Diff.press.setting range [psi] [min] | 7.3 psi |
| Pressure range [bar] Pe [min] | -1 bar |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Product accessories | Generic accessoriesSwitches accessories |
| Electrical conn. Male/Female | Female |
| Product description | Diff. Pressure Switch |
| Electrical connection | Screwed cable entry |
| Quantity per packing format | 9 pc |
| Electrical connection size | 2xPg 13.5 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Electrical connection standard | DIN 40430 |
| Refrigerants | R11R12R123R124R134aR22R404AR407AR407CR407FR407HR422BR422DR438AR507CR717 |
| Electrical spec. standard | EN 60947-4/-5 |
| Relay release time [s] | 0 s |
| EN 60947 electrical properties | Insulation: 400VPollution degree: 3Rated impulse voltage: 4 kVShort circuit prot, fuse: 10A |
| Reset function | Auto |
| EN 60947 wiring properties | Flex, ferrules: 0.2-1.5 mm2Flex, no ferrules: 0.2-2.5 mm2Solid/stranded: 0.2-2.5 mm2 |
| SCIP dossier no. | f62fe422-beda-433a-a602-740419c82c06 |
| Enclosure rating IP | IP66 |
| SCIP dossier product name | RT Presso_Diff.Presso |
| EU RoHS compliance | Yes |
| Serviceable | Contact systems |
| EU RoHS exemption clause | No |
| UL approved refrigerants | R11R12R123R124R134aR22R404AR407AR407CR407FR407HR422BR422DR438AR507C |
| In scope of WEEE | Yes |
