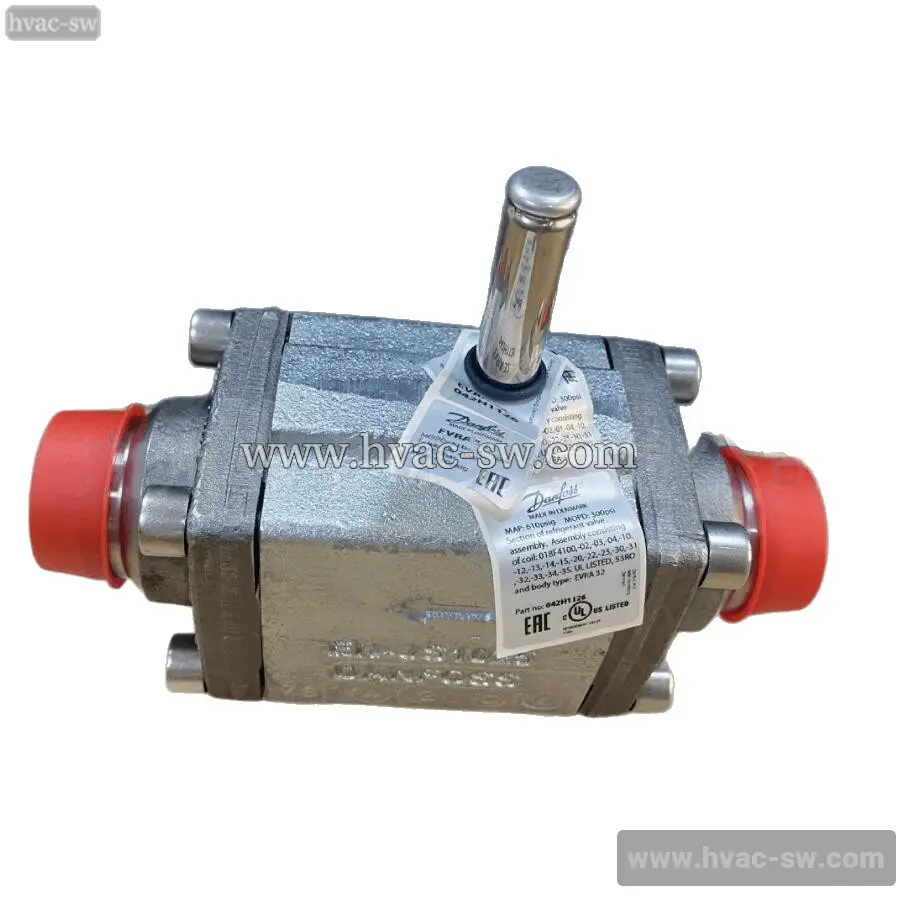

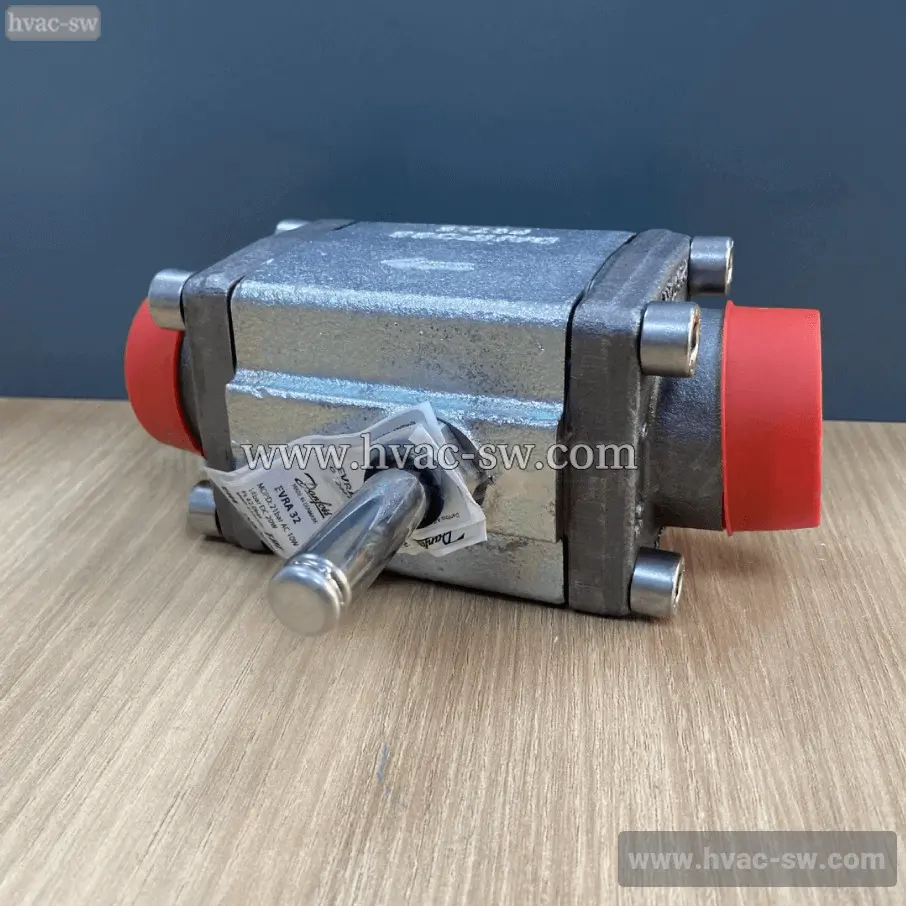

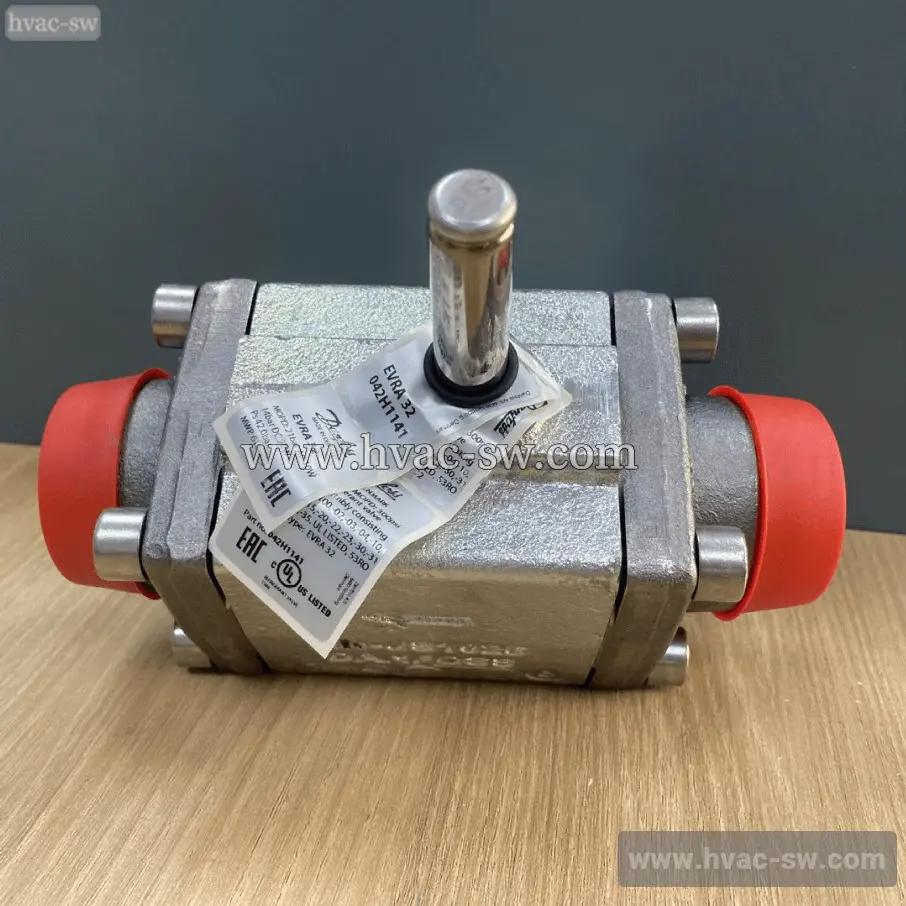

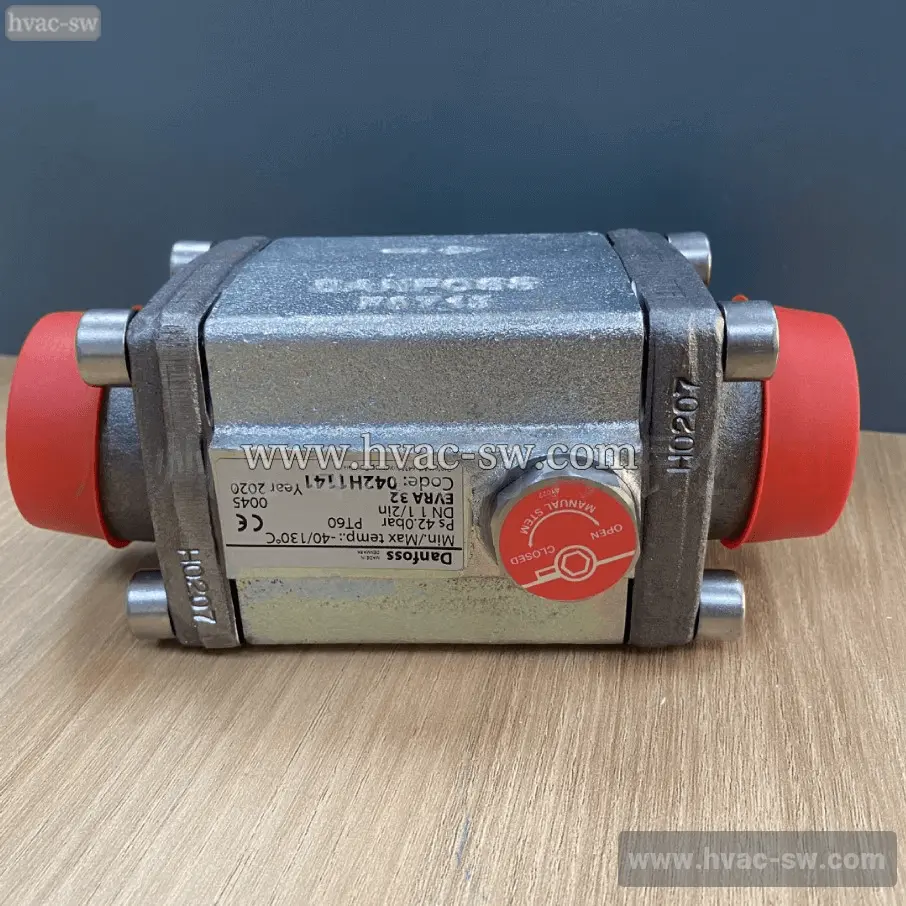

Danfoss 042H1141 Ammonia Solenoid Valve EVRA32
The Danfoss EVRA32 042H1141 is a direct-acting solenoid valve designed for ammonia (R717) applications. It features a compact and robust construction, suitable for liquid line, suction line, and hot gas line service in commercial and industrial refrigeration systems. The valve offers tight shut-off, high reliability, and is compatible with a wide range of operating conditions. Model 042H1141 provides excellent performance and durability for precise flow control.
Need help confirming this part?
Send us the part number, equipment model, nameplate information or a product photo. We can check available sourcing options, pricing and lead time.
Product Overview
| Attribute | Value |
|---|---|
| Gross weight | 4.95 Kilogram |
| Net weight | 4.601 Kilogram |
| Volume | 7.56 Liter |
| EAN | 5702428517157 |
| Type | EVRA 32 |
| Product group | Solenoid valves |
| Product Name Description | Solenoid valve |
| Actuator system [mm] | 13.5 mm |
| Ambient temperature | -40 - 80 °C |
| Ambient temperature range [°F] [max] | 175 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | C UL US LISTEDEACLLC CDC TYSK |
| Body material | Cast iron |
| China RoHS compliance | Out of scope |
| Coil | No |
| Connection material | Steel |
| Connection standard, inlet | ANSI 36.10 |
| Connection standard, outlet | ANSI 36.10 |
| Contains batteries | No |
| Cv value [gal/min] | 18.5 gal/min |
| Direction | Straightway |
| EU RoHS compliance | Out of scope |
| Flow direction indicator | Embossed 1-way arrow |
| Function | NC |
| Inlet connection type | Butt weld |
| Inlet size [in] | 1 1/2 in |
| Kv value [m³/h] | 16 m³/h |
| Manual operation option | Yes |
| Max. Working Pressure [bar] | 42 bar |
| Max. Working Pressure [psig] | 610 psig |
| MaxOPD[bar] 10W AC | 21 bar |
| MaxOPD[bar] 12W AC | 25 bar |
| MaxOPD[bar] 20W DC | 14 bar |
| MaxOPD[psi] 14W AC | 300 psi |
| Medium temp. range note | Defrost max 130°C/265°F |
| Medium temperature range [°C] [max] | 105 °C |
| Medium temperature range [°C] [min] | -40 °C |
| Medium temperature range [°F] [max] | 221 °F |
| Medium temperature range [°F] [min] | -40 °F |
| MinODP [bar] | 0.2 bar |
| MinODP [psi] | 2.9 psi |
| Orifice size [mm] | 22.23 mm |
| Outlet connection type | Butt weld |
| Outlet size [in] | 1 1/2 in |
| Packing format | Single pack |
| Parts Program name | EVRA / EVRAT |
| Product accessories | Solenoid valve accessories |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R134aR22R401AR402AR404AR407AR407BR407CR407FR409AR410AR421AR502R507AR717 |
| SCIP dossier no. | d38f86ba-12bb-4e70-8d9f-ec3fd58b7365 |
| SCIP dossier product name | EVRA EVRAT |
| Serviceable | Solenoid valve spare parts |
| Type designation | Solenoid valve |
| UL evaluated | Yes |
| Valve operation | Servo-piston |
