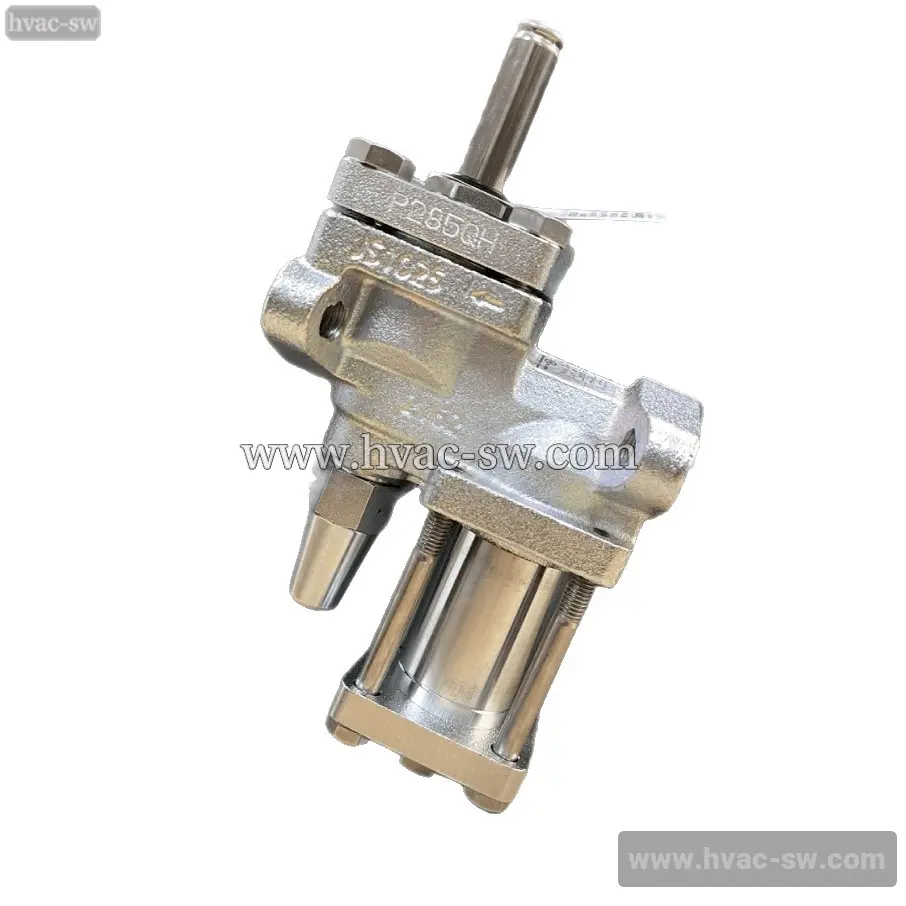

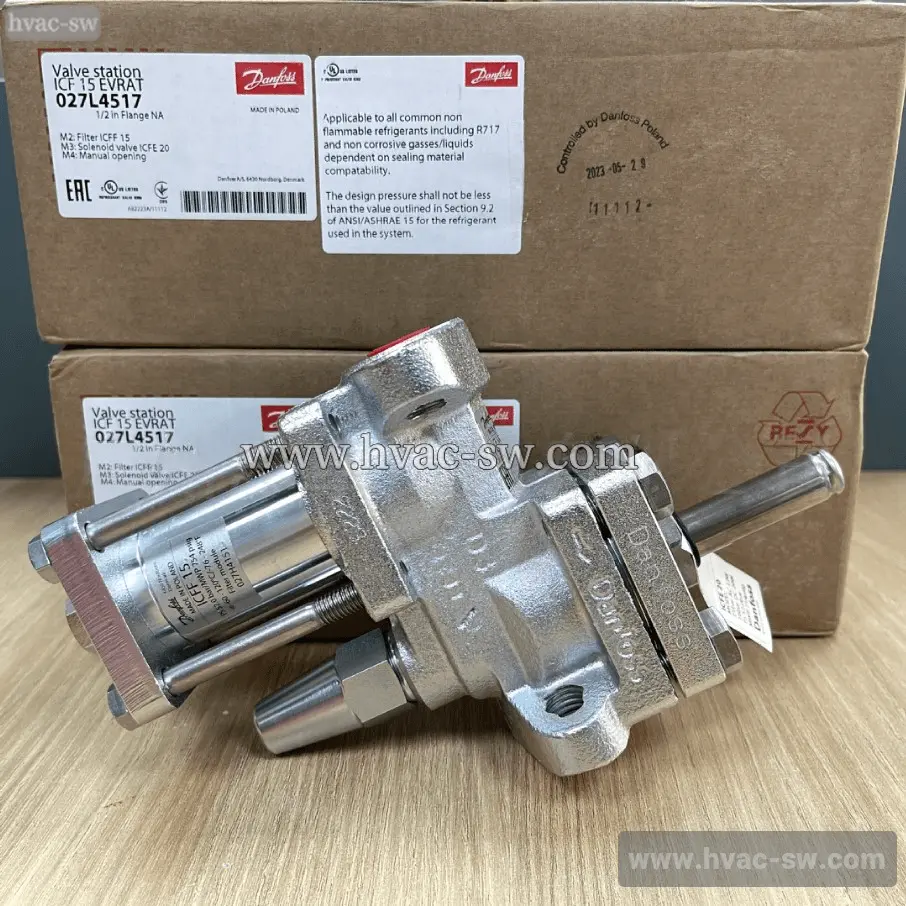

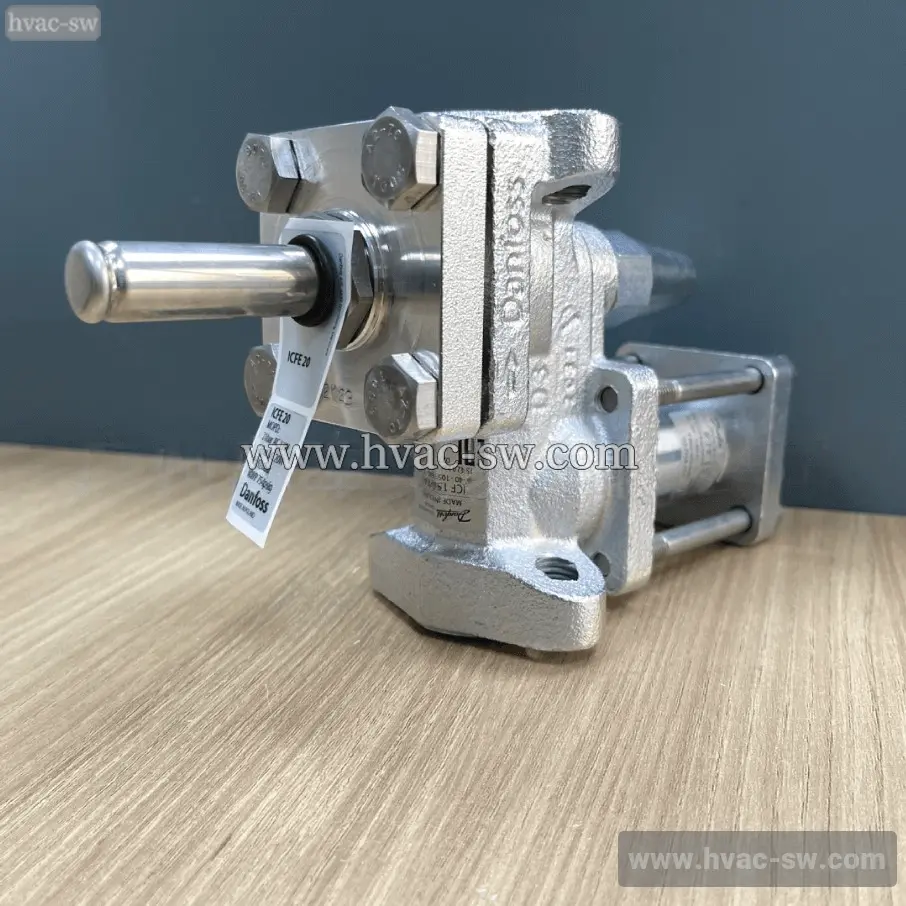

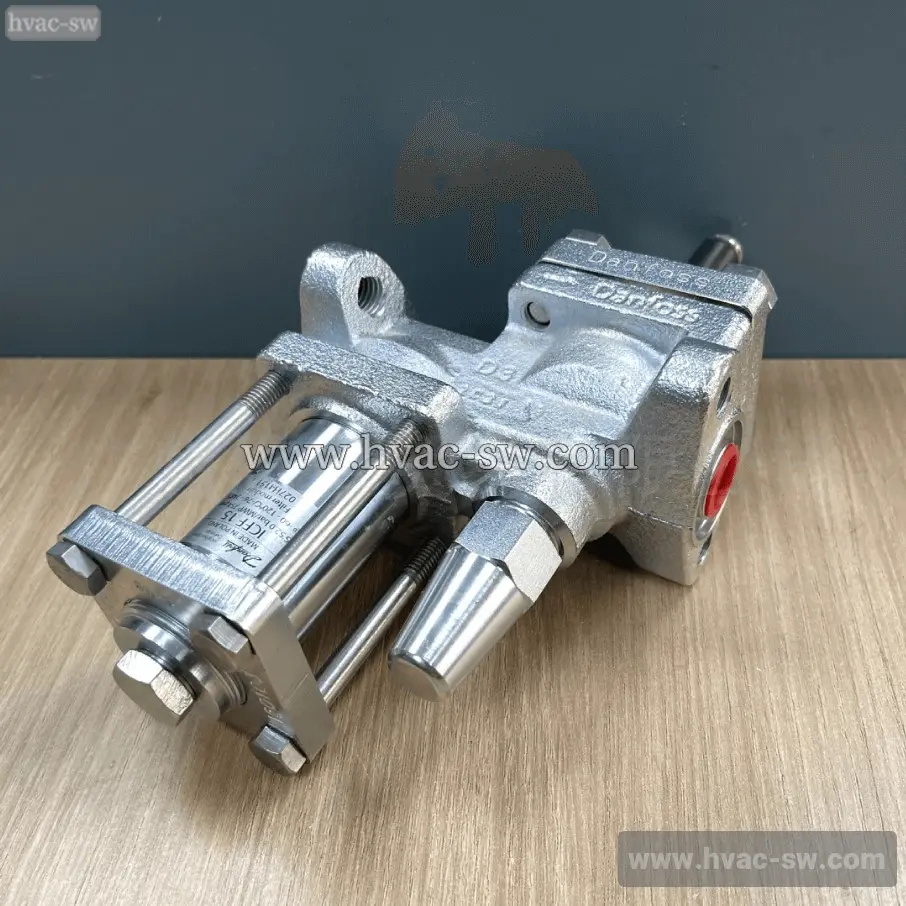

Danfoss ICF15 027L4517 EVRAT Combination Valve
The Danfoss ICF15 EVRAT (SKU PCN PN: 027L4517) is a combination valve designed for precise regulation and control in refrigeration and air conditioning systems. This compact unit integrates multiple functions for efficient operation and reliable performance.
Need help confirming this part?
Send us the part number, equipment model, nameplate information or a product photo. We can check available sourcing options, pricing and lead time.
Product Overview
| Attribute | Value |
|---|---|
| Gross weight | 3.683 Kilogram |
| Net weight | 3.335 Kilogram |
| Volume | 27.38 Liter |
| EAN | 5702428884143 |
| Type | ICF 15 EVRAT |
| Product group | Multifunction valves |
| Product Name Description | Valve station |
| Approval | EACUL |
| Body material | Steel |
| China RoHS compliance | Out of scope |
| Connection material | Steel |
| Connection size [in] | 1/2 in |
| Connection size [mm] | 15 mm |
| Connection standard | NA |
| Connection type | Flange |
| Contains batteries | No |
| Direction | Straightway |
| EU RoHS compliance | Out of scope |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | 1 |
| Max. Working Pressure [bar] | 42 bar |
| Max. Working Pressure [psig] | 610 psig |
| Module 2 | Filter |
| Module 2 type | ICFF 15 |
| Module 3 | Solenoid valve |
| Module 3 type | ICFE 20 |
| Module 4 | Manual opening |
| Module 4 type | ICF 14 |
| Packing format | Single pack |
| PED category | Art. 4, par. 3 |
| Product accessories | FlangesICF accessories |
| Product description | Control Solution |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrigerants | R134aR22R401AR402AR404AR407AR407BR407CR407FR409AR410AR421AR502R717R507A |
| Serviceable | ICF spare parts |
| Surface coating | Zn (TLP) |
| Temperature range [°C] [max] | 105 °C |
| Temperature range [°C] [min] | -40 °C |
| Temperature range [°F] [max] | 221 °F |
| Temperature range [°F] [min] | -40 °F |
| Type code ICF | ICF-15-4-15XXXXXXXXXXXXXXYXX |
| UL approval file name | REFRIGERANT VALVE 53R0 |
| UL evaluated | Yes |
