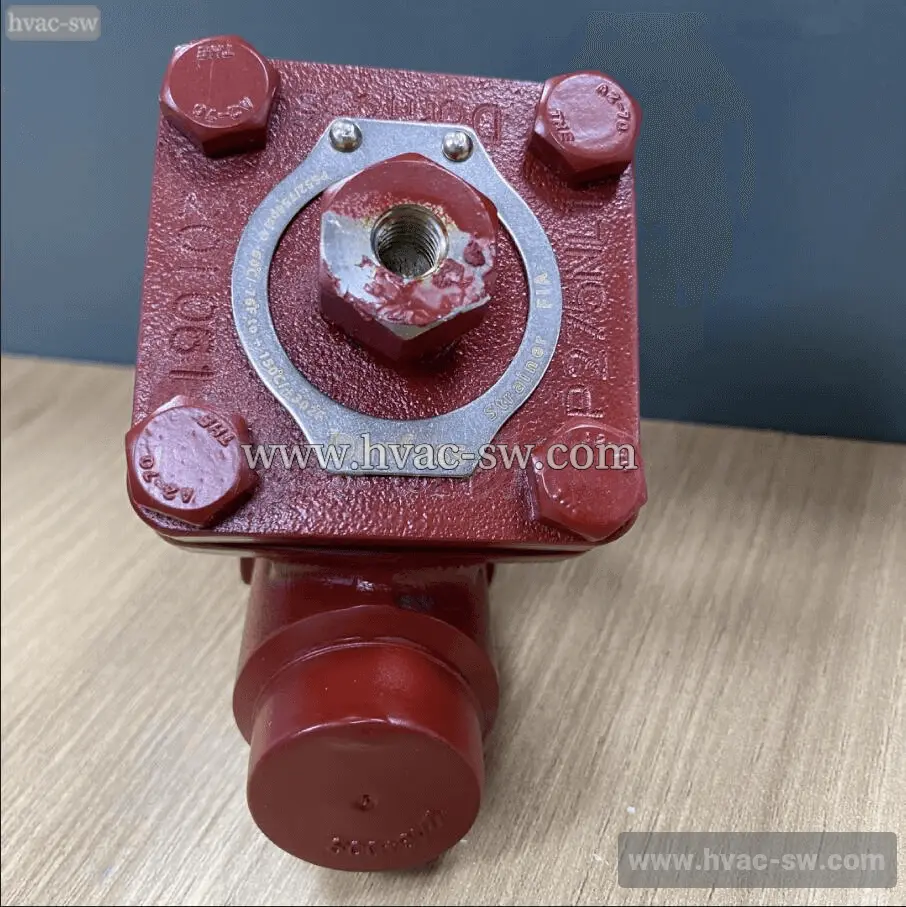

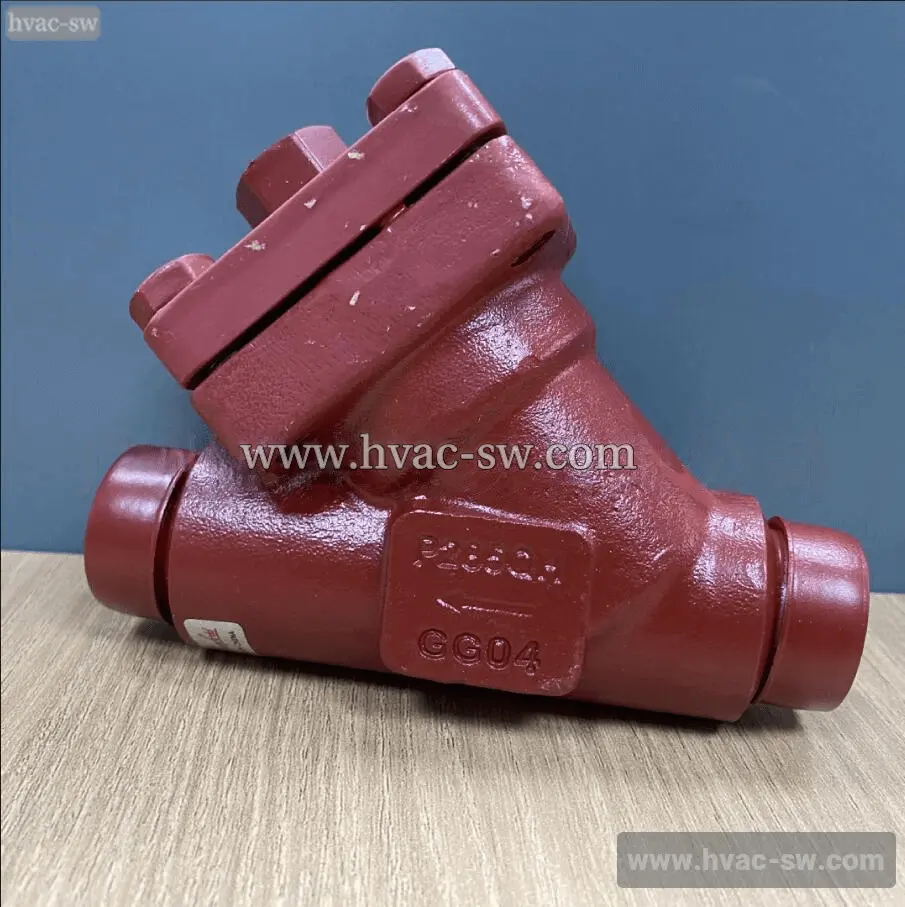

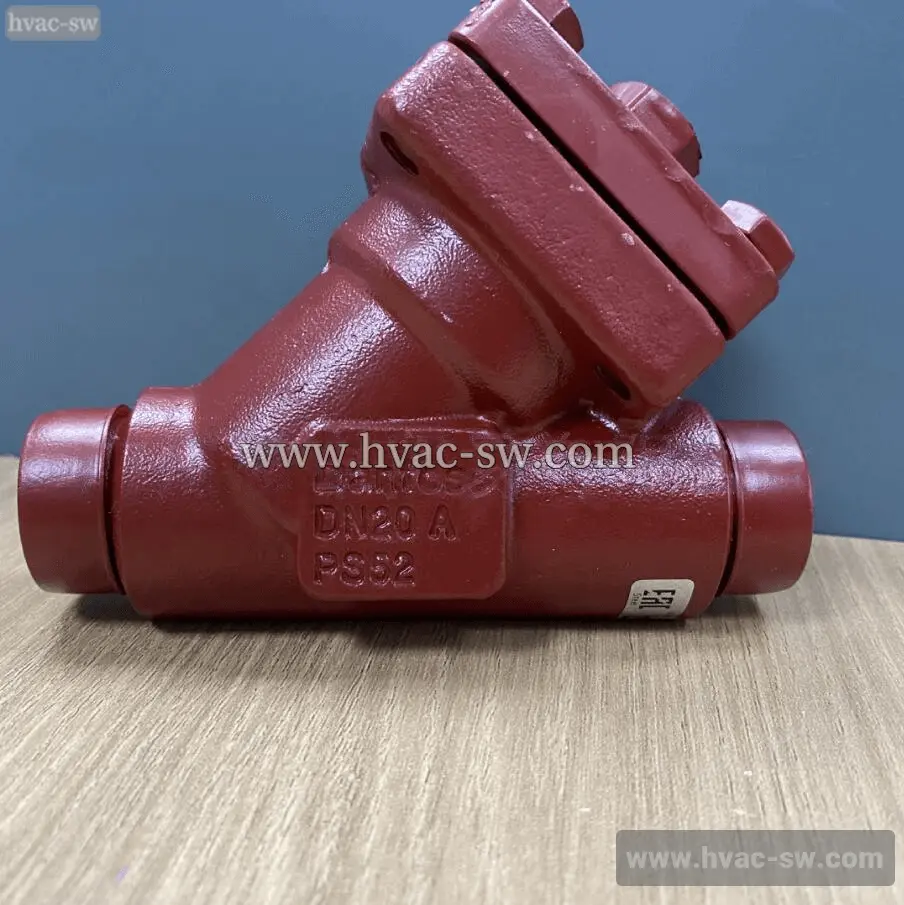

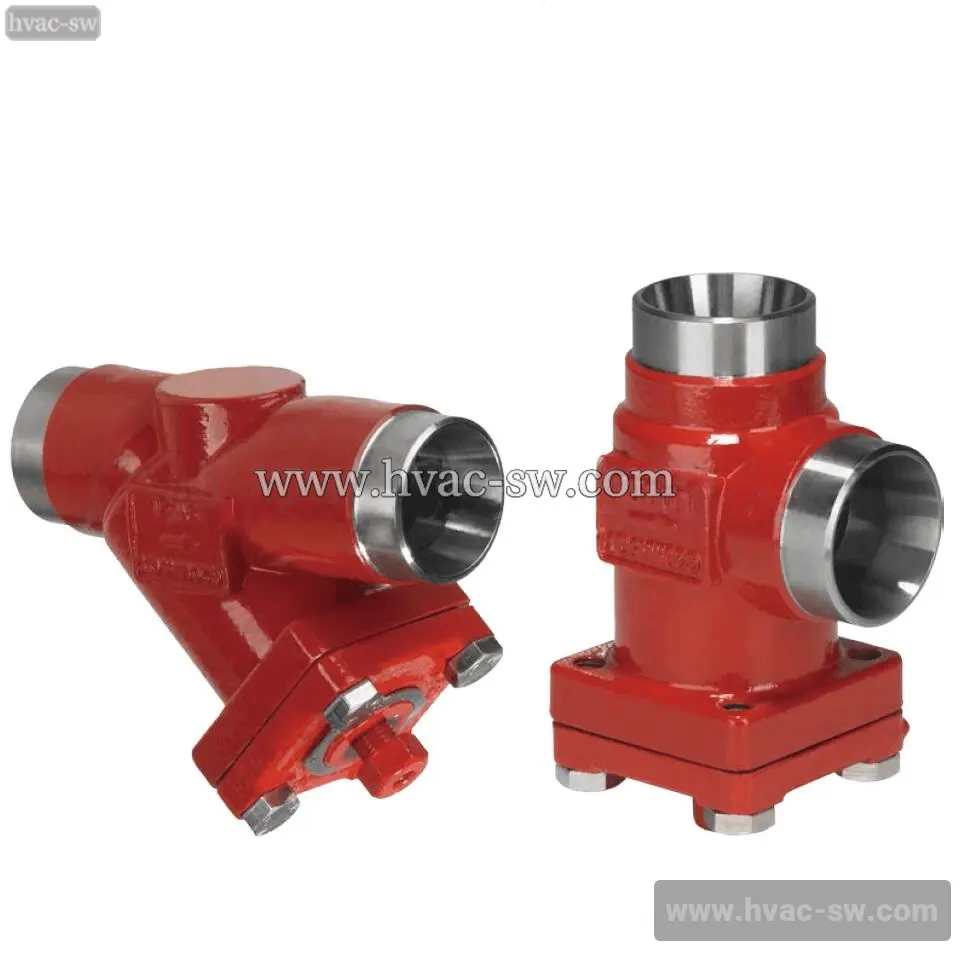

Danfoss 148B5347 FIA20 Refrigeration Filter
Danfoss
Description
The Danfoss 148B5347 FIA20 is a high-efficiency refrigeration filter designed to remove moisture, acids, and solid contaminants, ensuring reliable operation and extending the lifespan of compressors and other critical components. Compatible with various refrigerants, this genuine Danfoss filter protects refrigeration and air conditioning systems.
Product Details
| Attribute | Value |
|---|---|
| Gross weight | 1.8 Kilogram |
| Net weight | 1.33 Kilogram |
| Volume | 2.612 Liter |
| EAN | 5702428476317 |
| Type | FIA 20 |
| Product group | Strainers |

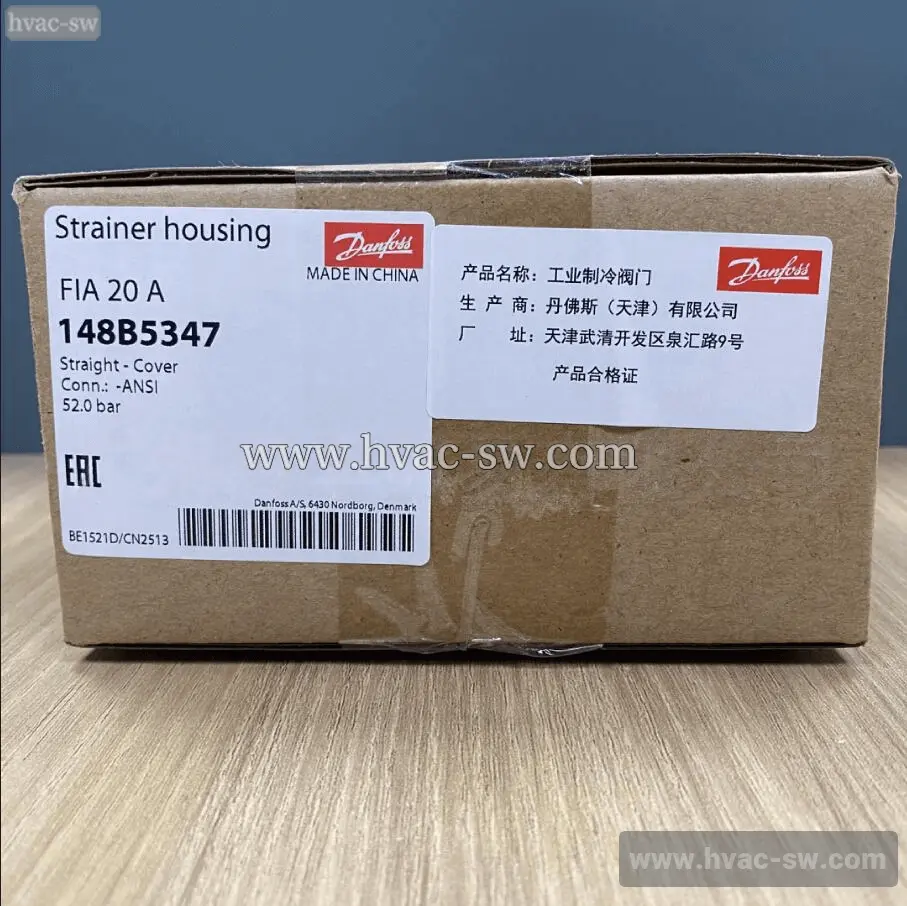

| Product Name Description | Strainer housing |
| Brand | SVL Flexline |
| China RoHS compliance | Out of scope |
| Colour Paint | Reddish brown |
| Connection material | Steel |
| Connection standard | ASME B 36.10M SCHEDULE 80 |
| Contains batteries | No |
| Cv value [gal/min] 100 plain | 23.78 gal/min |
| Cv value [gal/min] 100 pleated | 30.38 gal/min |
| Cv value [gal/min] 150 plain | 23.34 gal/min |
| Cv value [gal/min] 38 plain | 25.98 gal/min |
| Cv value [gal/min] 72 plain | 24.66 gal/min |
| Direction | Straightway |
| Equipment | Cover |
| EU RoHS compliance | Out of scope |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | 12 |
| Inlet connection size [in] | 3/4 in |
| Inlet connection size [mm] | 20 mm |
| Inlet connection type | Butt weld |
| Kv value [m3/h] µ100 plain | 5.3 m³/h |
| Kv value [m3/h] µ150 plain | 5.4 m³/h |
| Kv value [m3/h] µ150 pleated | 6.9 m³/h |
| Kv value [m3/h] µ250 plain | 5.6 m³/h |
| Kv value [m3/h] µ500 plain | 5.9 m³/h |
| Max. Working Pressure [bar] | 52 bar |
| Max. Working Pressure [psig] | 754 psig |
| Outlet connection size [in] | 3/4 in |
| Outlet connection size [mm] | 20 mm |
| Outlet connection type | Butt weld |
| Packing format | Single pack |
| Parts Program name | FIA |
| PED category | Art. 4, par. 3 |
| Product accessories | SVL Flexline accessories |
| Product description | Filter housing |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrigerants | R113R114R1233zd(E)R1234yfR1234ze(E)R125R1270R1336mzz(Z)R134aR152aR170R22R227eaR23R236faR290R32R401AR402AR402BR404AR407AR407BR407CR407FR407HR408AR409AR410AR417AR421AR422AR422BR422DR427AR438AR444BR447AR448AR449AR449BR450AR452AR454BR455AR502R503R513AR600R600aR717R744RE170R507AR1150R245faR413AR442AR447BR452BR454AR454CR463AR512AR513BR515AR515BR516AR508B |
| Serviceable | SVL Flexline spare parts |
| Temperature range [°C] [max] | 150 °C |
| Temperature range [°C] [min] | -60 °C |
| Temperature range [°F] [max] | 302 °F |
| Temperature range [°F] [min] | -76 °F |
| Valve version | Standard version |
