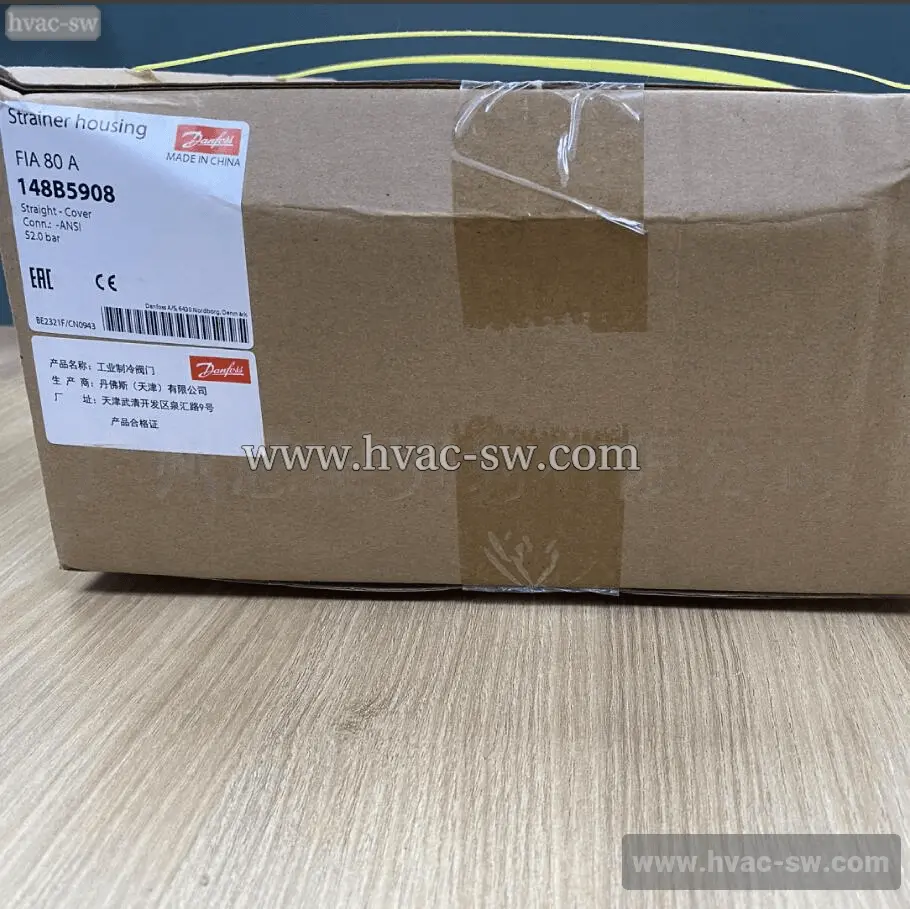

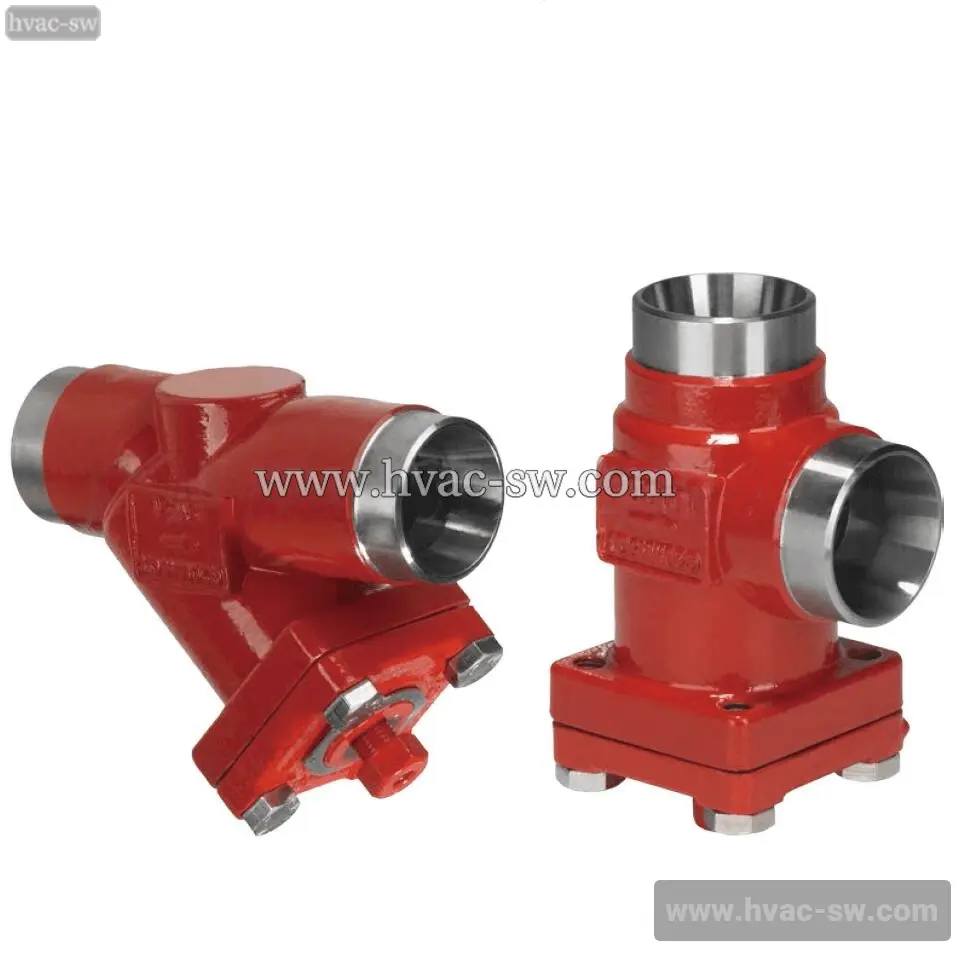

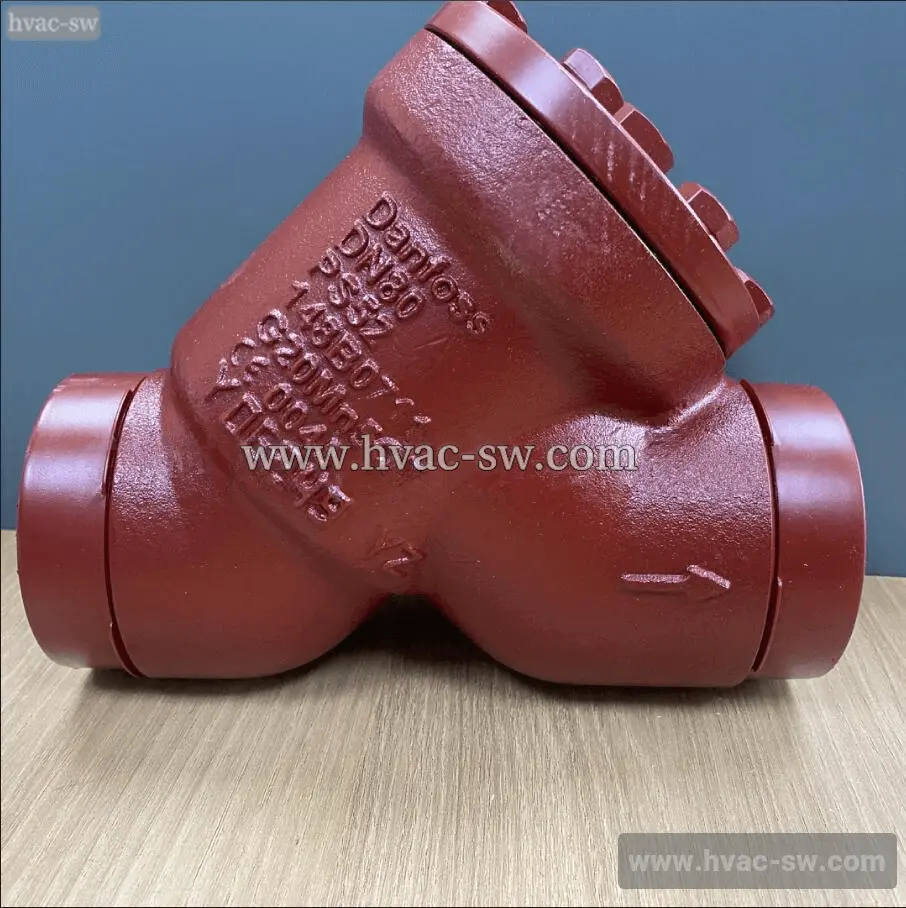

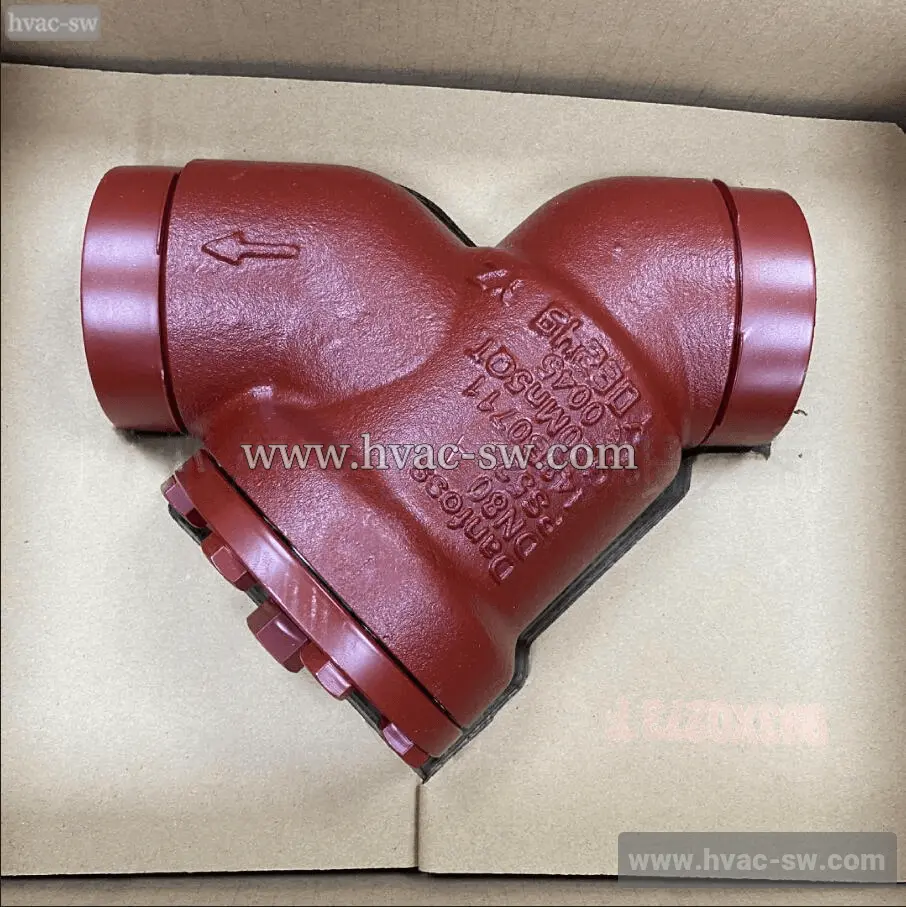

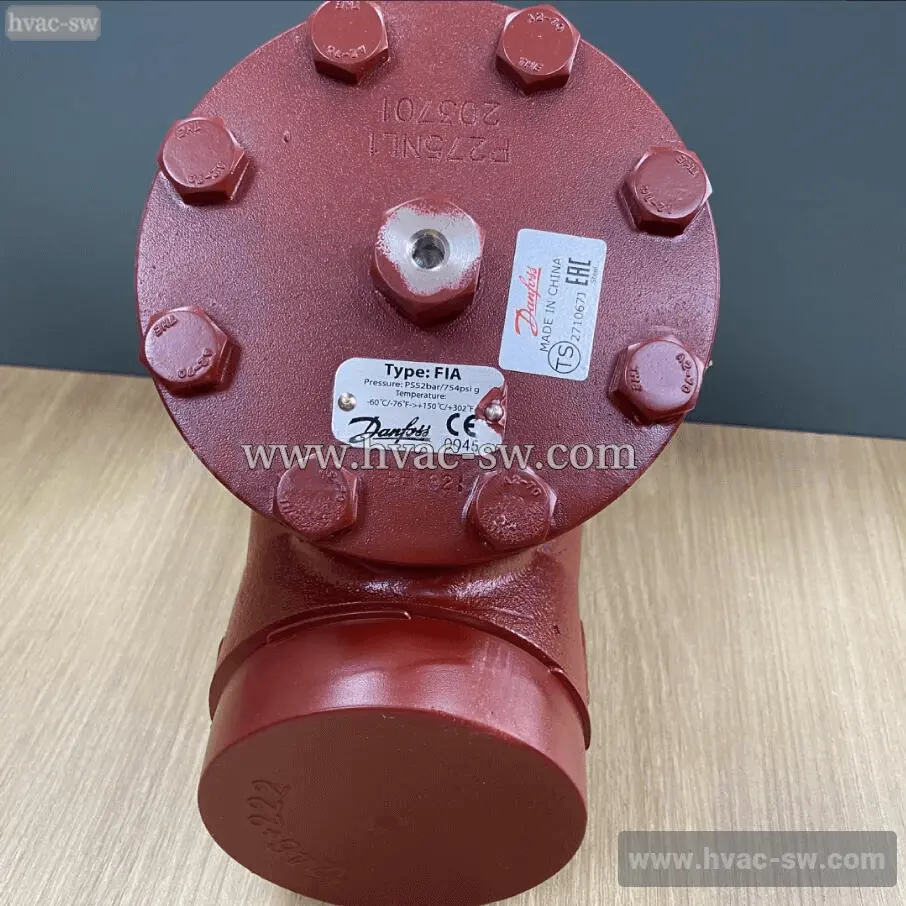

DANFOSS 148B5908 FIA80 Refrigeration Filter
DANFOSS 148B5908 FIA80 is a genuine core filter drier designed for refrigeration and air conditioning systems. It efficiently removes moisture, acids, and solid contaminants to protect critical components like compressors and expansion valves, ensuring optimal system performance, reliability, and longevity.
Need help confirming this part?
Send us the part number, equipment model, nameplate information or a product photo. We can check available sourcing options, pricing and lead time.
Product Overview
| Model | Specification | Nominal Diameter (DN) (mm) | Nominal Pressure (PN) (MPa) | Body Material |
|---|---|---|---|---|
| ETS250-034G2602 | 42 | 34 | Copper | Welding |
| 034G7073 Connection Cable | DN12 | 34 | Copper | Internal Thread |
| Attribute | Value |
|---|---|
| Gross weight | 10.938 Kilogram |
| Net weight | 7.6 Kilogram |
| Volume | 16.748 Liter |
| EAN | 5702428476362 |
| Type | FIA 80 |
| Product group | Strainers |
| Product Name Description | Strainer housing |
| Approval | CEUKCA |
| Brand | SVL Flexline |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Colour Paint | Reddish brown |
| Connection material | Steel |
| Connection standard | ASME B 36.10M SCHEDULE 40 |
| Contains batteries | No |
| Cv value [gal/min] 100 plain | 352.23 gal/min |
| Cv value [gal/min] 100 pleated | 460.54 gal/min |
| Cv value [gal/min] 38 plain | 380.85 gal/min |
| Cv value [gal/min] 38 pleated | 497.96 gal/min |
| Cv value [gal/min] 72 plain | 363.68 gal/min |
| Cv value [gal/min] 72 pleated | 475.51 gal/min |
| Direction | Straightway |
| Equipment | Cover |
| EU RoHS compliance | Out of scope |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | 12 |
| Inlet connection size [in] | 3 in |
| Inlet connection size [mm] | 80 mm |
| Inlet connection type | Butt weld |
| Kv value [m3/h] µ150 plain | 80 m³/h |
| Kv value [m3/h] µ150 pleated | 104.6 m³/h |
| Kv value [m3/h] µ250 plain | 82.6 m³/h |
| Kv value [m3/h] µ250 pleated | 108 m³/h |
| Kv value [m3/h] µ500 plain | 86.5 m³/h |
| Kv value [m3/h] µ500 pleated | 113.1 m³/h |
| Max. Working Pressure [bar] | 52 bar |
| Max. Working Pressure [psig] | 754 psig |
| Outlet connection size [in] | 3 in |
| Outlet connection size [mm] | 80 mm |
| Outlet connection type | Butt weld |
| Packing format | Single pack |
| Parts Program name | FIA |
| PED category | II |
| Product accessories | SVL Flexline accessories |
| Product description | Filter housing |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrigerants | R113R114R1233zd(E)R1234yfR1234ze(E)R125R1270R1336mzz(Z)R134aR152aR170R22R227eaR23R236faR290R32R401AR402AR402BR404AR407AR407BR407CR407FR407HR408AR409AR410AR417AR421AR422AR422BR422DR427AR438AR444BR447AR448AR449AR449BR450AR452AR454BR455AR502R503R513AR600R600aR717R744RE170R507AR1150R245faR413AR442AR447BR452BR454AR454CR463AR512AR513BR515AR515BR516AR508B |
| Serviceable | SVL Flexline spare parts |
| Temperature range [°C] [max] | 150 °C |
| Temperature range [°C] [min] | -60 °C |
| Temperature range [°F] [max] | 302 °F |
| Temperature range [°F] [min] | -76 °F |
| Valve version | Standard version |
