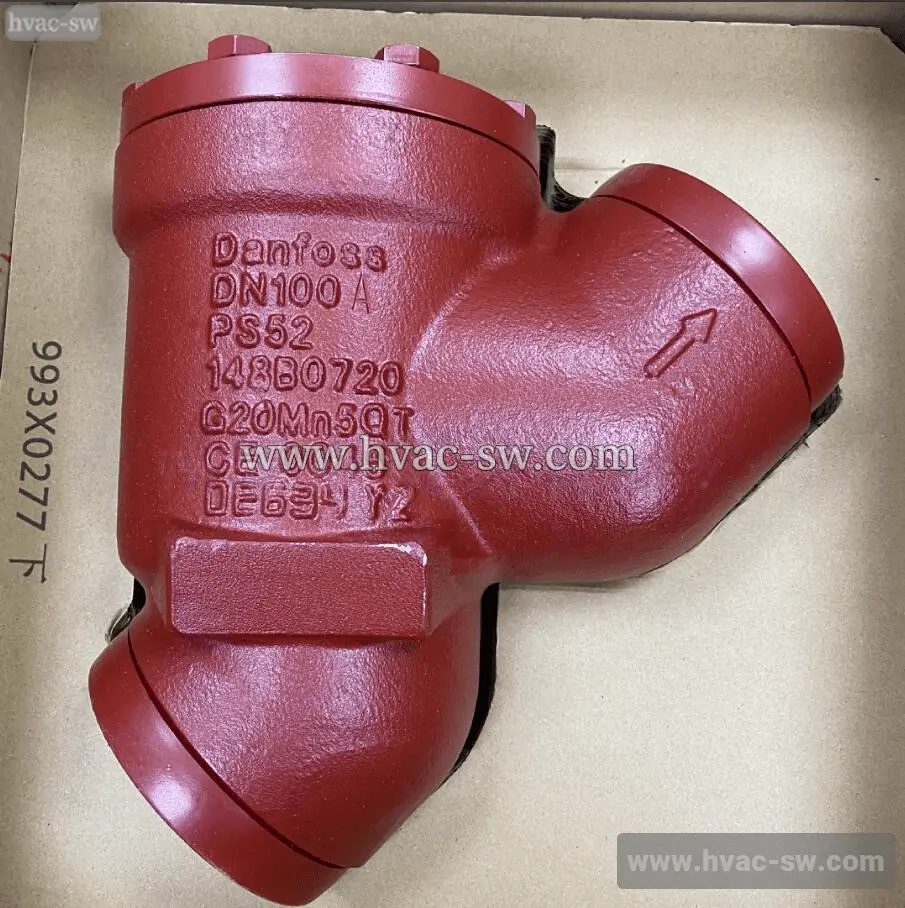

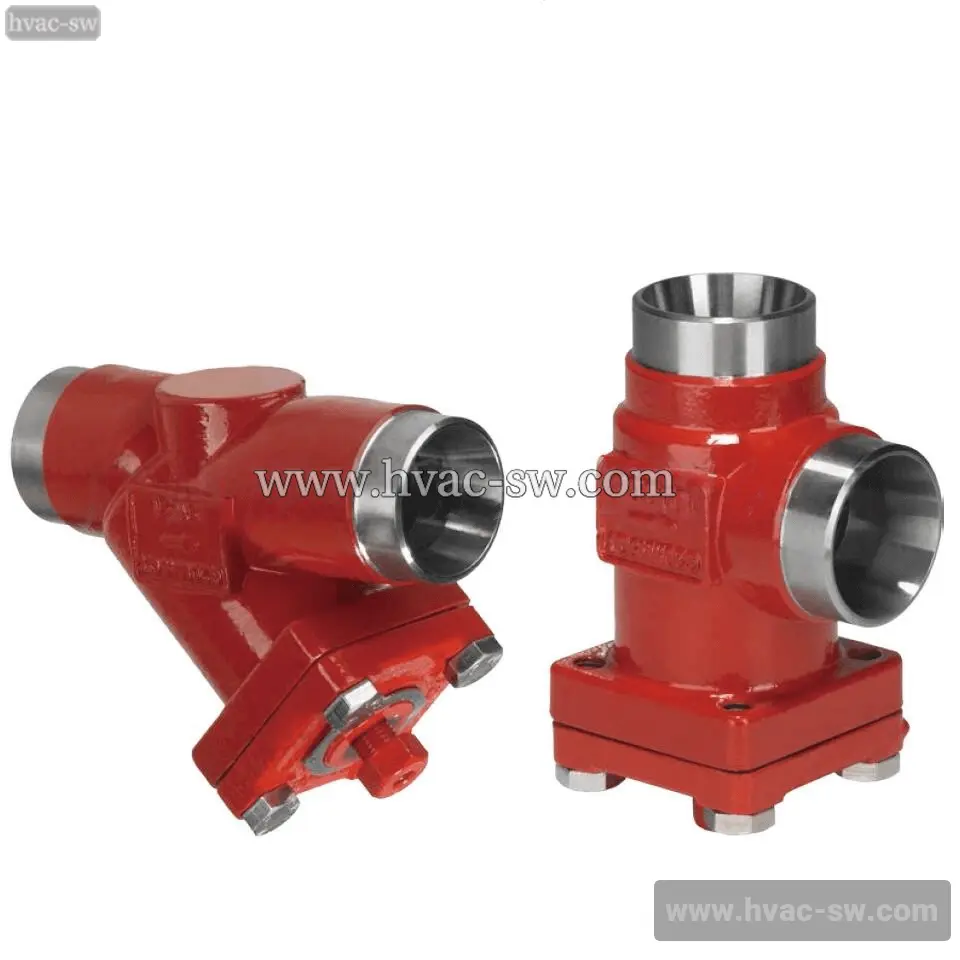

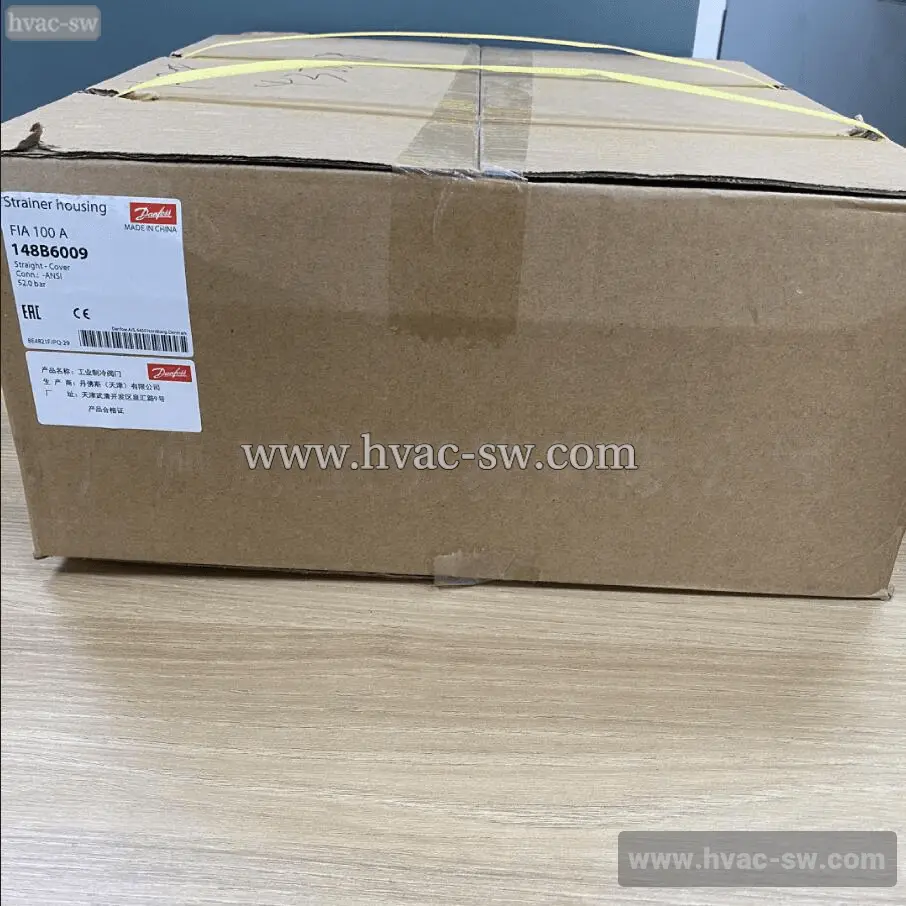

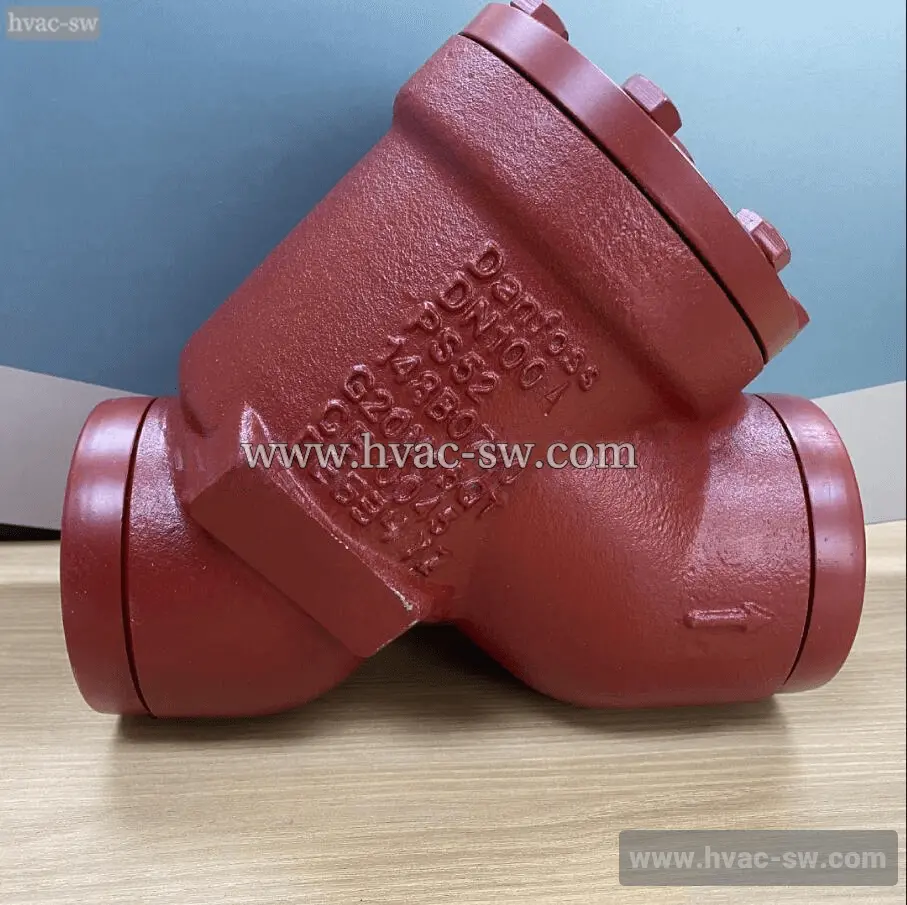

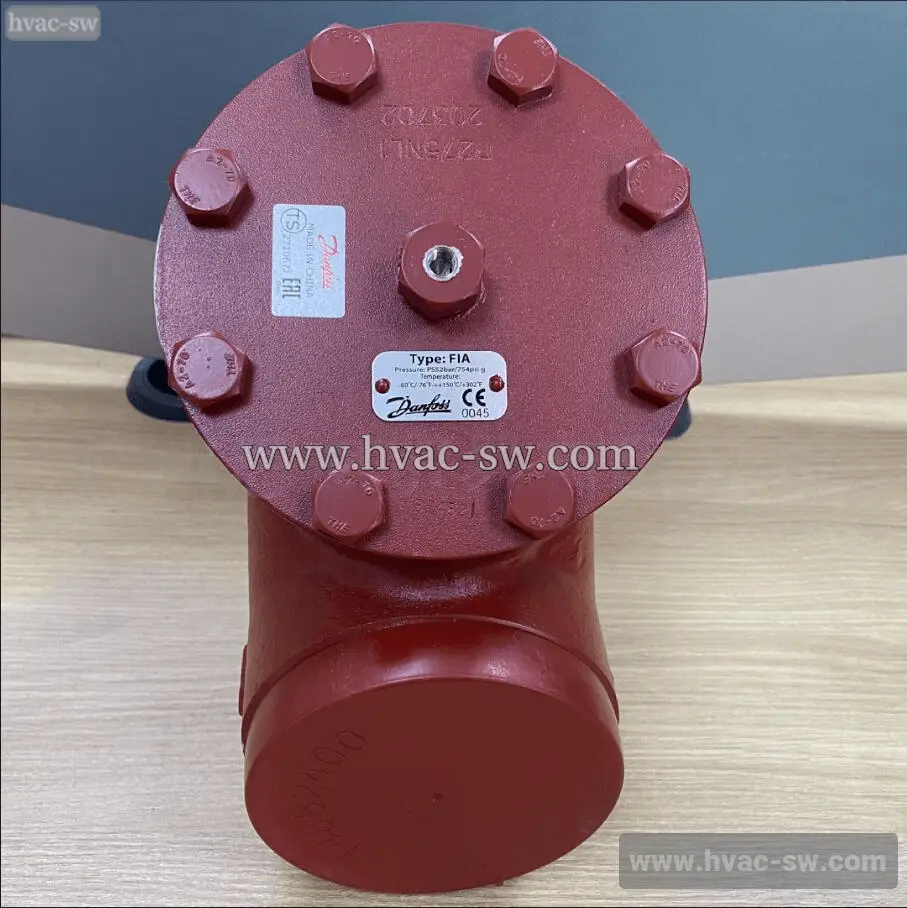

Danfoss 148B6009 FIA100 Refrigeration Filter
Danfoss FIA100 148B6009 Core Filter Drier removes moisture, acids, and solid contaminants, ensuring system cleanliness, enhancing performance, and extending equipment service life for refrigeration and air conditioning systems.
Need help confirming this part?
Send us the part number, equipment model, nameplate information or a product photo. We can check available sourcing options, pricing and lead time.
Product Overview
| Attribute | Value |
|---|---|
| Gross weight | 19.142 Kilogram |
| Net weight | 16.8 Kilogram |
| Volume | 26.676 Liter |
| EAN | 5702428476379 |
| Type | FIA 100 |
| Product group | Strainers |
| Product Name Description | Strainer housing |
| Approval | CEUKCA |
| Brand | SVL Flexline |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Colour Paint | Reddish brown |
| Connection material | Steel |
| Connection standard | ASME B 36.10M SCHEDULE 40 |
| Contains batteries | No |
| Cv value [gal/min] 100 plain | 546.84 gal/min |
| Cv value [gal/min] 100 pleated | 715.03 gal/min |
| Cv value [gal/min] 38 plain | 592.63 gal/min |
| Cv value [gal/min] 38 pleated | 774.9 gal/min |
| Cv value [gal/min] 72 plain | 564.01 gal/min |
| Cv value [gal/min] 72 pleated | 737.48 gal/min |
| Direction | Straightway |
| Equipment | Cover |
| EU RoHS compliance | Out of scope |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | 12 |
| Inlet connection size [in] | 4 in |
| Inlet connection size [mm] | 100 mm |
| Inlet connection type | Butt weld |
| Kv value [m3/h] µ150 plain | 124.2 m³/h |
| Kv value [m3/h] µ150 pleated | 162.4 m³/h |
| Kv value [m3/h] µ250 plain | 128.1 m³/h |
| Kv value [m3/h] µ250 pleated | 167.5 m³/h |
| Kv value [m3/h] µ500 plain | 134.6 m³/h |
| Kv value [m3/h] µ500 pleated | 176 m³/h |
| Max. Working Pressure [bar] | 52 bar |
| Max. Working Pressure [psig] | 754 psig |
| Outlet connection size [in] | 4 in |
| Outlet connection size [mm] | 100 mm |
| Outlet connection type | Butt weld |
| Packing format | Single pack |
| Parts Program name | FIA |
| PED category | II |
| Product accessories | SVL Flexline accessories |
| Product description | Filter housing |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrigerants | R113R114R1233zd(E)R1234yfR1234ze(E)R125R1270R1336mzz(Z)R134aR152aR170R22R227eaR23R236faR290R32R401AR402AR402BR404AR407AR407BR407CR407FR407HR408AR409AR410AR417AR421AR422AR422BR422DR427AR438AR444BR447AR448AR449AR449BR450AR452AR454BR455AR502R503R513AR600R600aR717R744RE170R507AR1150R245faR413AR442AR447BR452BR454AR454CR463AR512AR513BR515AR515BR516AR508B |
| Serviceable | SVL Flexline spare parts |
| Temperature range [°C] [max] | 150 °C |
| Temperature range [°C] [min] | -60 °C |
| Temperature range [°F] [max] | 302 °F |
| Temperature range [°F] [min] | -76 °F |
| Valve version | Standard version |
