name

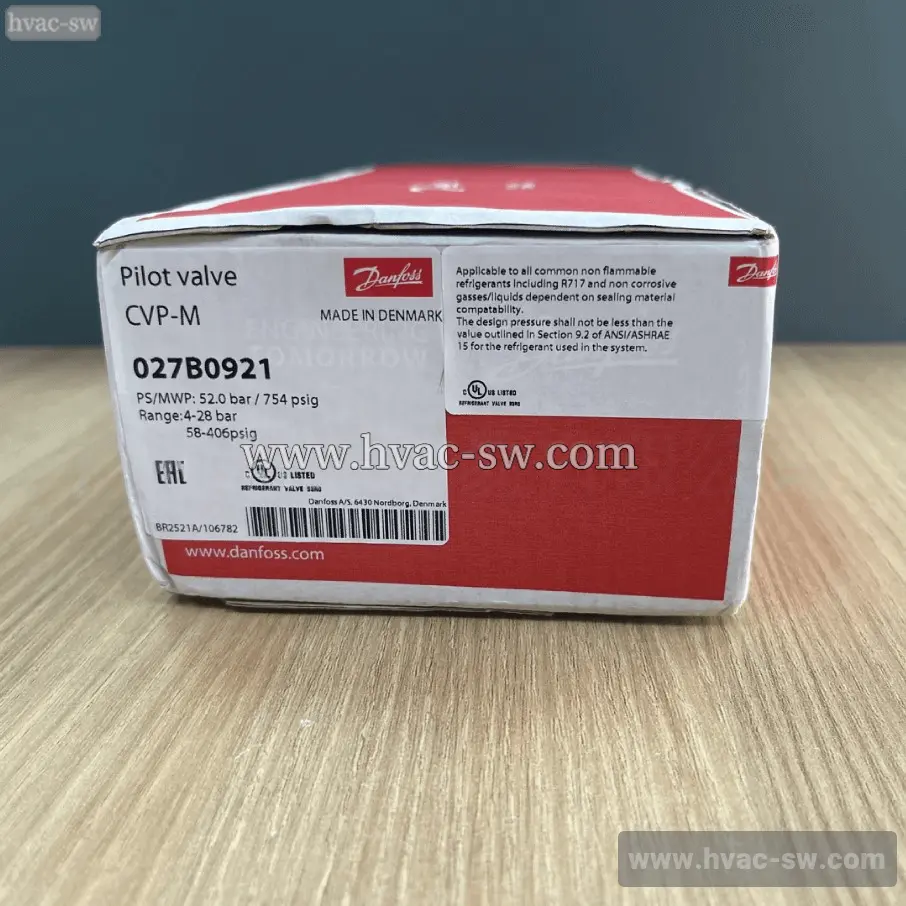

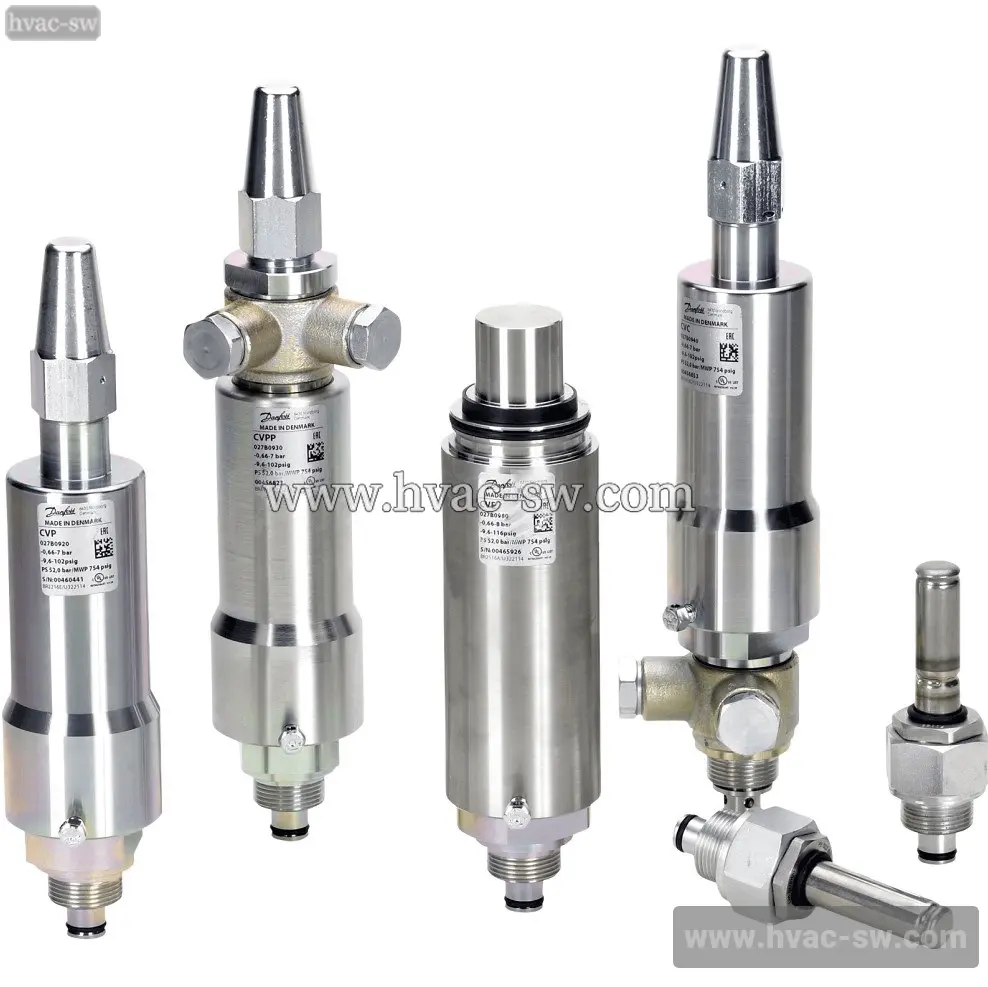

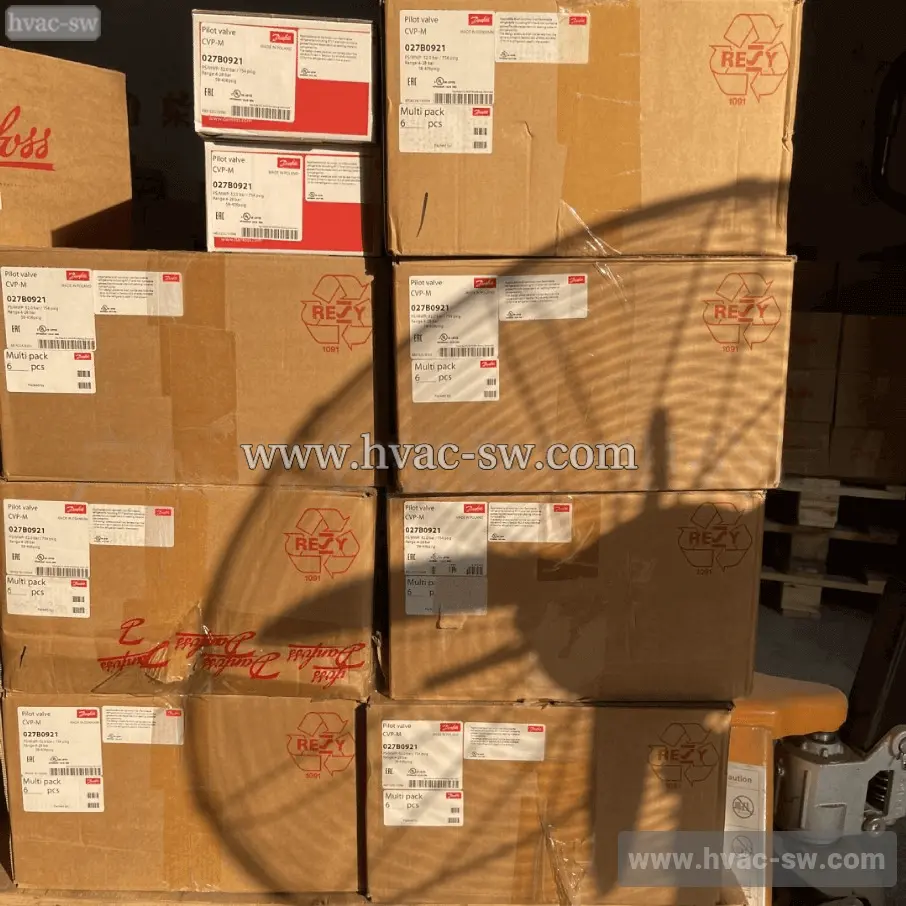

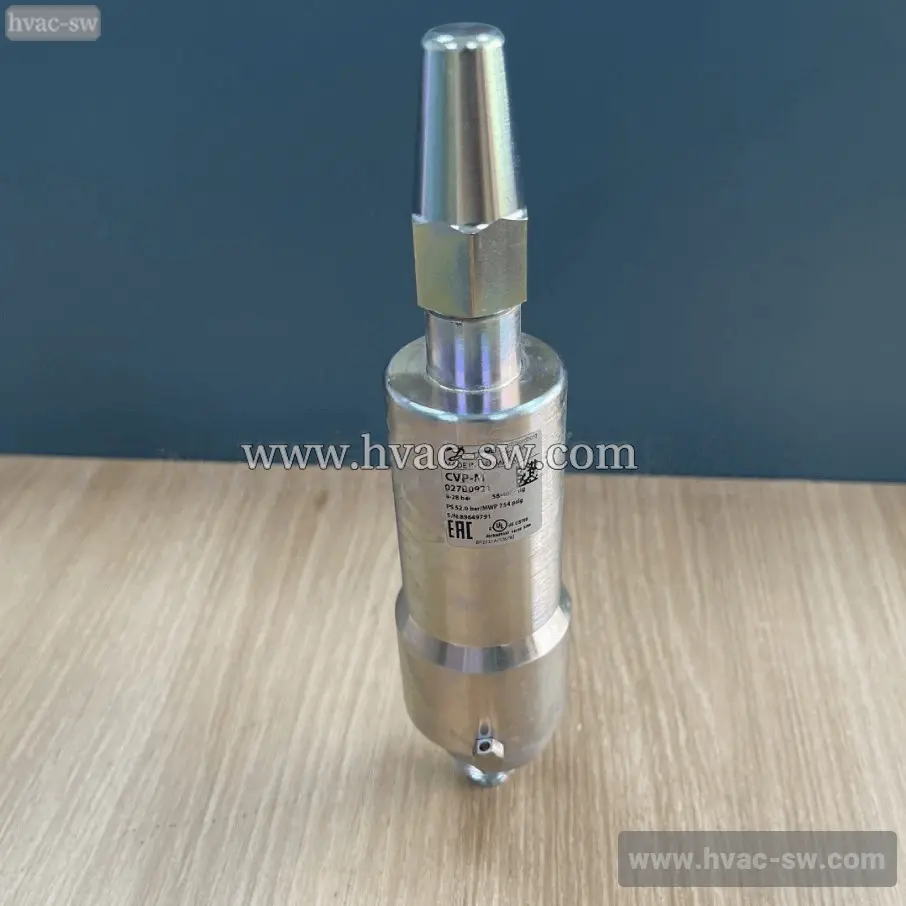

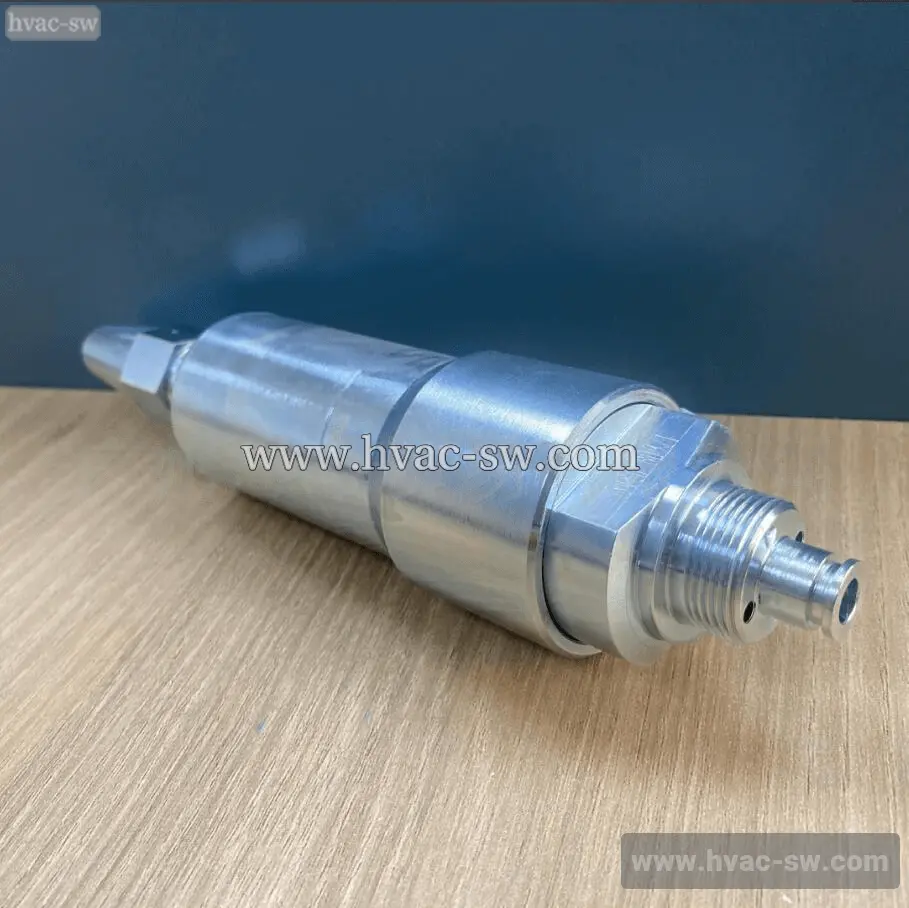

Danfoss 027B0921 Pressure Pilot Valve CVP-M
Danfoss
Description
The Danfoss 027B0921 CVP-M is a pressure pilot valve designed for precise control in refrigeration and air conditioning systems. It ensures reliable pressure regulation, contributing to system efficiency and stability. Known for its durable construction and consistent performance in various industrial applications.
Product Details
| Attribute | Value |
|---|---|
| Gross weight | 1.632 Kilogram |
| Net weight | 1.389 Kilogram |
| Volume | 2.964 Liter |
| EAN | 5702428557634 |
| Type | CVP-M |
| Product group | Press. and temp. regul. valves |
| Product Name Description | Pilot valve |
| Approval | EACUL |
| Brand | ICV Flexline |
| China RoHS compliance | Out of scope |
| Contains batteries | No |
| Cv value [gal/min] | 0.46 gal/min |
| EU RoHS compliance | Out of scope |
| Fluid Group | 1 |
| Kv value [m³/h] | 0.4 m³/h |
| Max. Working Pressure [bar] | 65 bar |
| Max. Working Pressure [psig] | 943 psig |
| Packing format | Multi pack |
| Parts included | Gasket |
| Parts Program name | CVHICSICFPM |
| PED category | Art. 3, par. 3 |
| Pressure range [bar] Pe [max] | 28 bar |
| Pressure range [bar] Pe [min] | 4 bar |
| Pressure range [psig] Pe [max] | 406 psig |
| Pressure range [psig] Pe [min] | 58 psig |
| Product accessories | No |
| Product description | Constant-pressure pilot valve |
| Quantity per packing format | 6 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R134aR22R401AR402AR404AR407AR407BR407CR407FR409AR410AR421AR502R717R744R507AR1234yfR1234ze(E)R125R152aR227eaR236faR245faR290R32R407HR413AR417AR422AR422BR422DR438AR442AR444BR447AR447BR448AR449AR449BR450AR452AR452BR454AR454BR454CR455AR463AR512AR513AR513BR515AR515BR516AR170R452CR600R600a |
| Serviceable | Pilot valve spare parts |
| Surface coating | Zn (TLP) |
| Temperature range [°C] [max] | 120 °C |
| Temperature range [°C] [min] | -60 °C |
| Temperature range [°F] [max] | 248 °F |
| Temperature range [°F] [min] | -76 °F |
| UL approval file name | REFRIGERANT VALVE 53R0 |
| UL evaluated | Yes |
| Valve version | Medium pressure |
