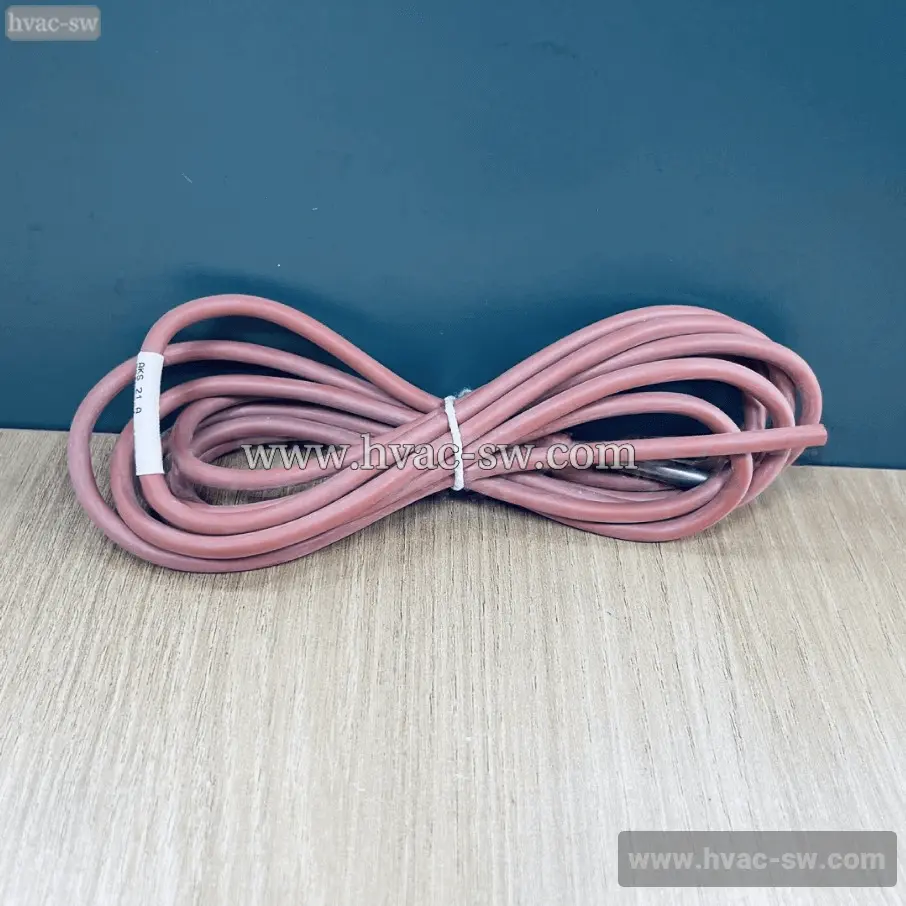

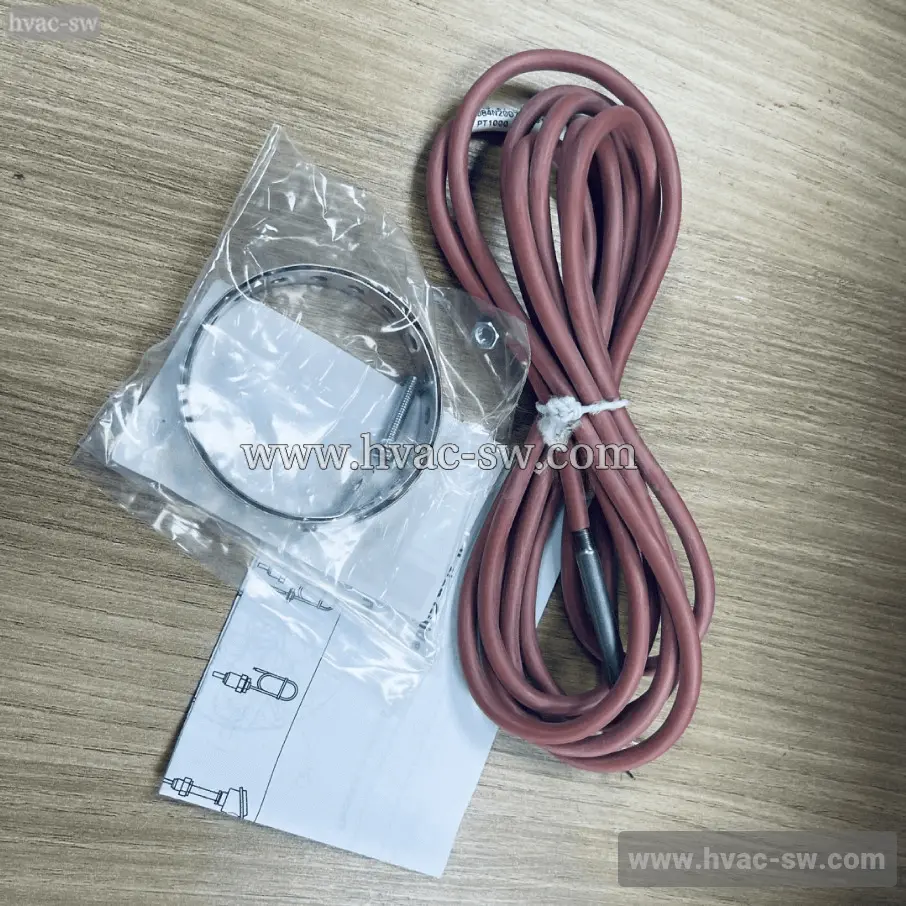

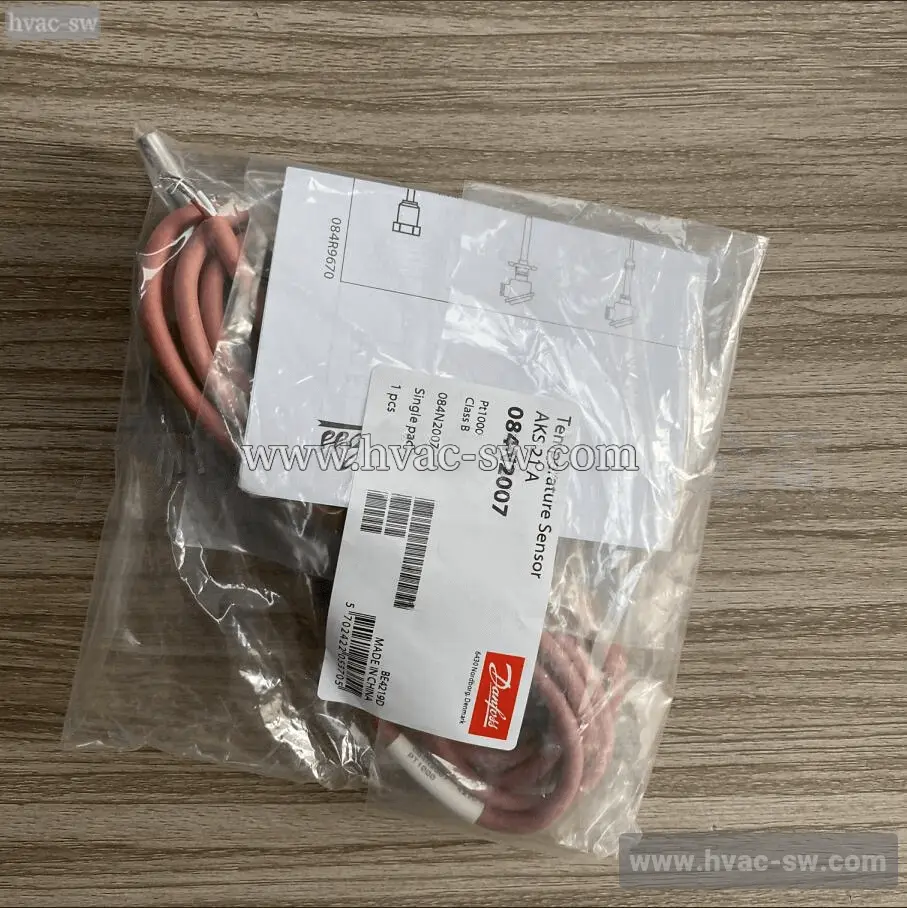

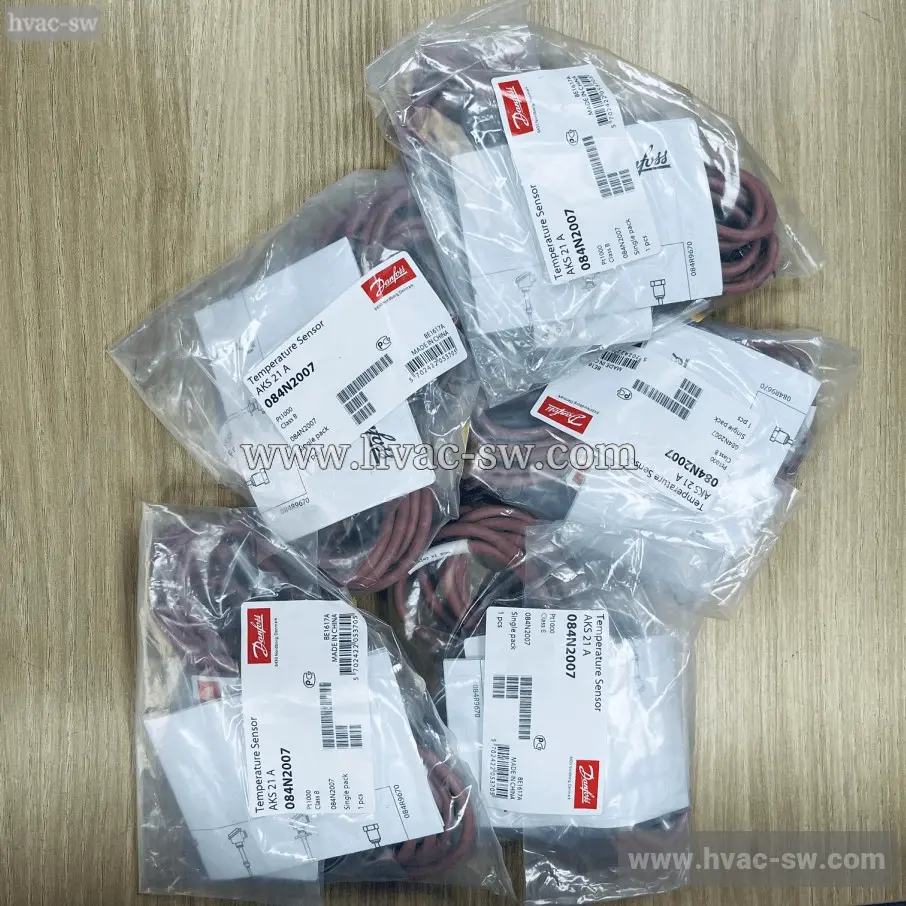

Danfoss AKS21A 084N2007 High-Precision PT1000 Sensor
The Danfoss AKS21A 084N2007 is a PT1000 temperature sensor designed for precise and reliable temperature measurement. It features a high-quality platinum sensing element, ensuring excellent accuracy and long-term stability. This sensor is ideal for industrial applications such as HVAC, refrigeration, and process control systems, offering robust construction and seamless compatibility with Danfoss controls.
Need help confirming this part?
Send us the part number, equipment model, nameplate information or a product photo. We can check available sourcing options, pricing and lead time.
Product Overview
| Attribute | Value |
|---|---|
| Gross weight | 0.108 Kilogram |
| Net weight | 0.101 Kilogram |
| Volume | 0.2 Liter |
| EAN | 5702422053705 |
| Type | AKS 21 A |
| Product group | Sensors |
| Product Name Description | Temperature sensor |
| Ambient temperature max. [°C] | 180 °C |
| Ambient temperature max. [°F] | 356 °F |
| Approval | CE |
| Cable length [in] | 98.43 in |
| Cable length [m] | 2.5 m |
| Cable tempr. range [°C] [max] | 200 °C |
| Cable tempr. range [°C] [min] | -60 °C |
| Cable type | Silicone |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Contains batteries | No |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical connection | Cable |
| Electrical connection size | 2 wire |
| Enclosure rating IP | IP67 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| In scope of WEEE | Yes |
| Measuring range [°C] [max] | 200 °C |
| Measuring range [°C] [min] | -60 °C |
| Measuring range [°F] [max] | 392 °F |
| Measuring range [°F] [min] | -76 °F |
| Packing format | Multi pack |
| Protection tube diameter [in] | 0.23 in |
| Protection tube diameter [mm] | 5.8 mm |
| Protection tube length [in] | 1.58 in |
| Protection tube length [mm] | 40 mm |
| Protection tube material | STAINLEES STEEL |
| Quantity per packing format | 36 pc |
| REACH Candidate List substances | No |
| Sensor elem. resistance [Ohm] | 1000 Ohm |
| Sensor element [pc] | 1 pc |
| Sensor element standard | EN 60751 |
| Sensor element tolerance | Class B |
| Sensor element type | Pt |
| Sensor Insert | Fixed |
| Wires [pcs] | 2 pc |
