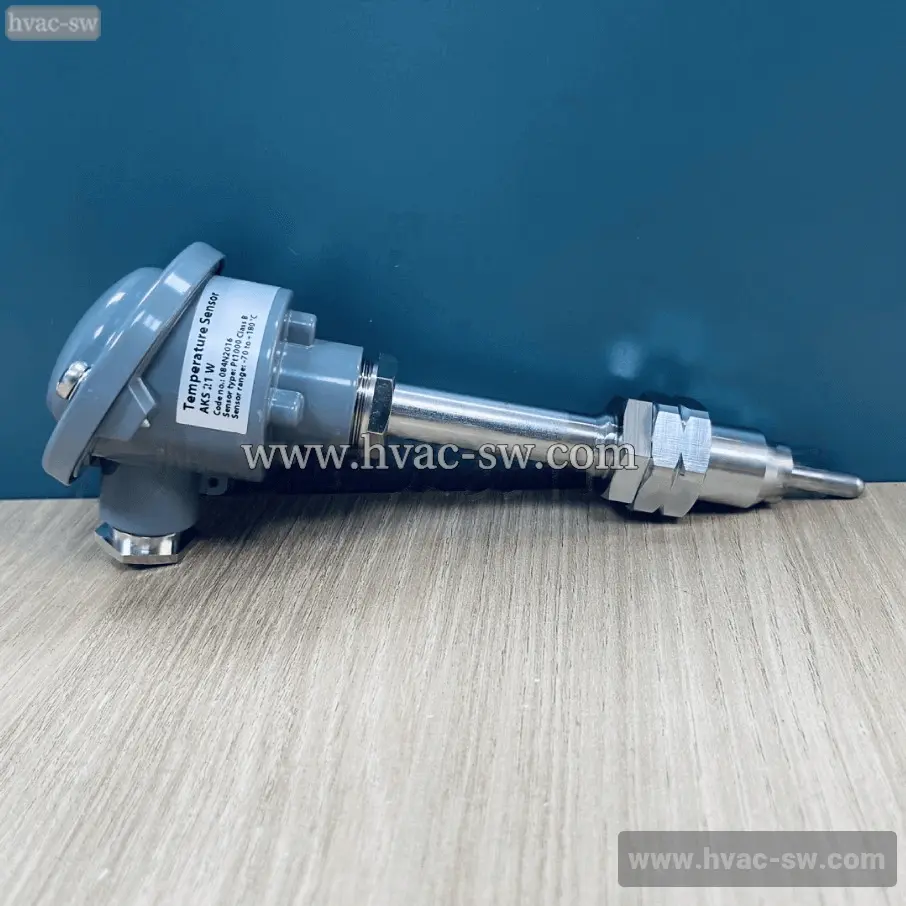

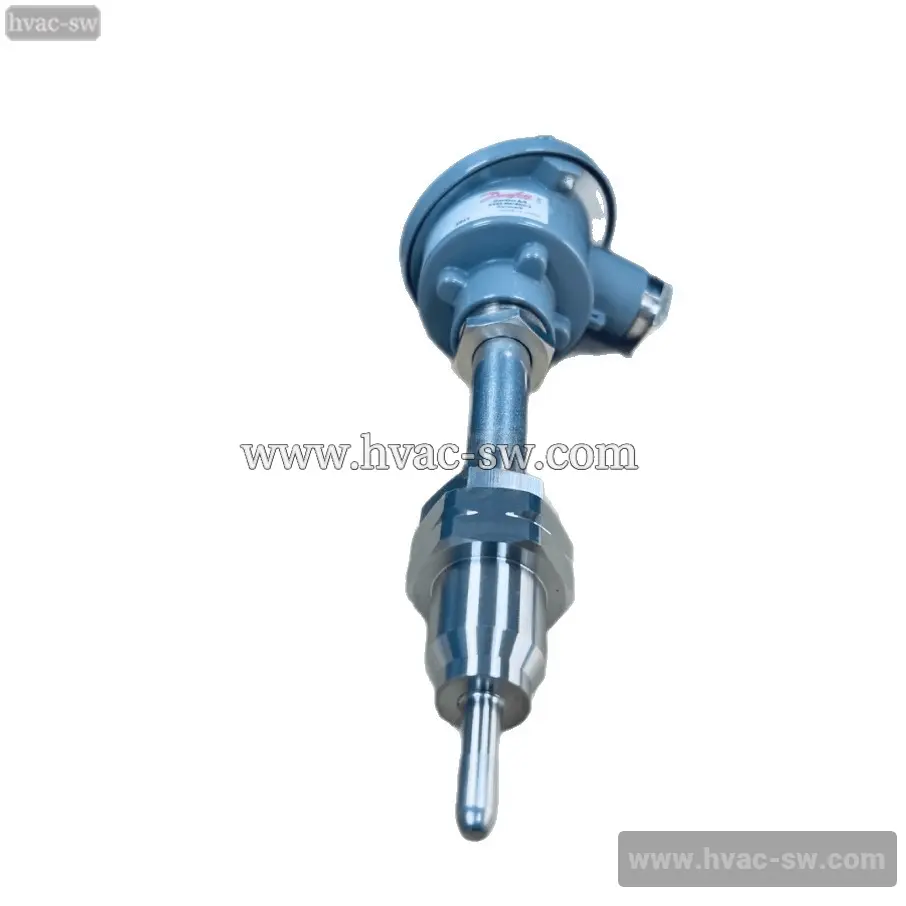

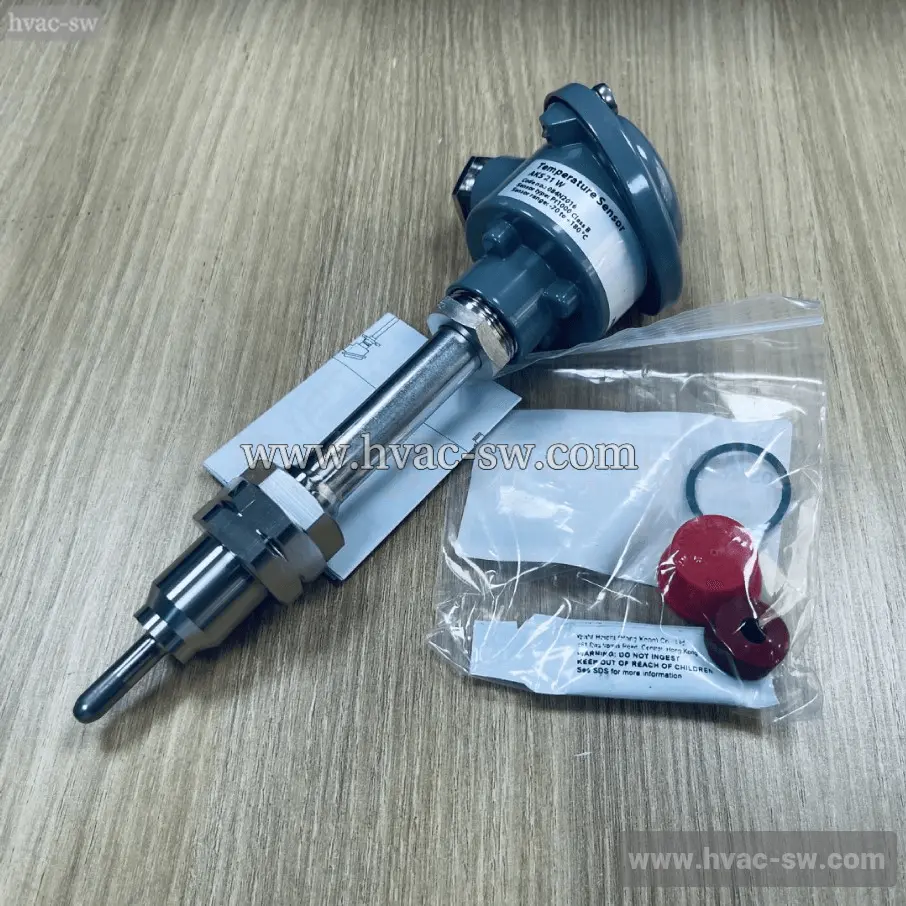

Danfoss AKS21A 084N2016 PT1000 Temperature Sensor
The Danfoss AKS21A 084N2016 is a PT1000 temperature sensor designed for precise and reliable temperature measurement in industrial applications such as HVAC systems, refrigeration, and process control. It features a robust construction, easy installation, and long-term durability, ensuring consistent performance in demanding environments.
Need help confirming this part?
Send us the part number, equipment model, nameplate information or a product photo. We can check available sourcing options, pricing and lead time.
Product Overview
| Attribute | Value |
|---|---|
| Gross weight | 0.468 Kilogram |
| Net weight | 0.458 Kilogram |
| Volume | 3.136 Liter |
| EAN | 5702422033165 |
| Type | AKS 21 W |
| Product group | Sensors |
| Product Name Description | Temperature sensor |
| Ambient temperature max. [°C] | 180 °C |
| Ambient temperature max. [°F] | 356 °F |
| Approval | CE |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Connection type | Weld |
| Contains batteries | No |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical connection | Type B |
| Electrical connection size | Pg 16 |
| Enclosure rating IP | IP56 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| In scope of WEEE | Yes |
| Insertion length [in] | 1.95 in |
| Insertion length [mm] | 50 mm |
| Measuring range [°C] [max] | 180 °C |
| Measuring range [°C] [min] | -60 °C |
| Measuring range [°F] [max] | 356 °F |
| Measuring range [°F] [min] | -76 °F |
| Number of terminals [pcs] | 3 pc |
| Packing format | Multi pack |
| Process connection notes | Weldable |
| Process connection size | 22 |
| Process connection type | Ø |
| Protection tube diameter [in] | 0.28 in |
| Protection tube diameter [mm] | 7 mm |
| Protection tube length [in] | 1.97 in |
| Protection tube length [mm] | 50 mm |
| Protection tube material | STAINLEES STEEL |
| Quantity per packing format | 12 pc |
| REACH Candidate List substances | No |
| Sensor elem. resistance [Ohm] | 1000 Ohm |
| Sensor element [pc] | 1 pc |
| Sensor element standard | EN 60751 |
| Sensor element tolerance | Class B |
| Sensor element type | Pt |
| Sensor Insert | Exchangeable |
| Wires [pcs] | 2 pc |
