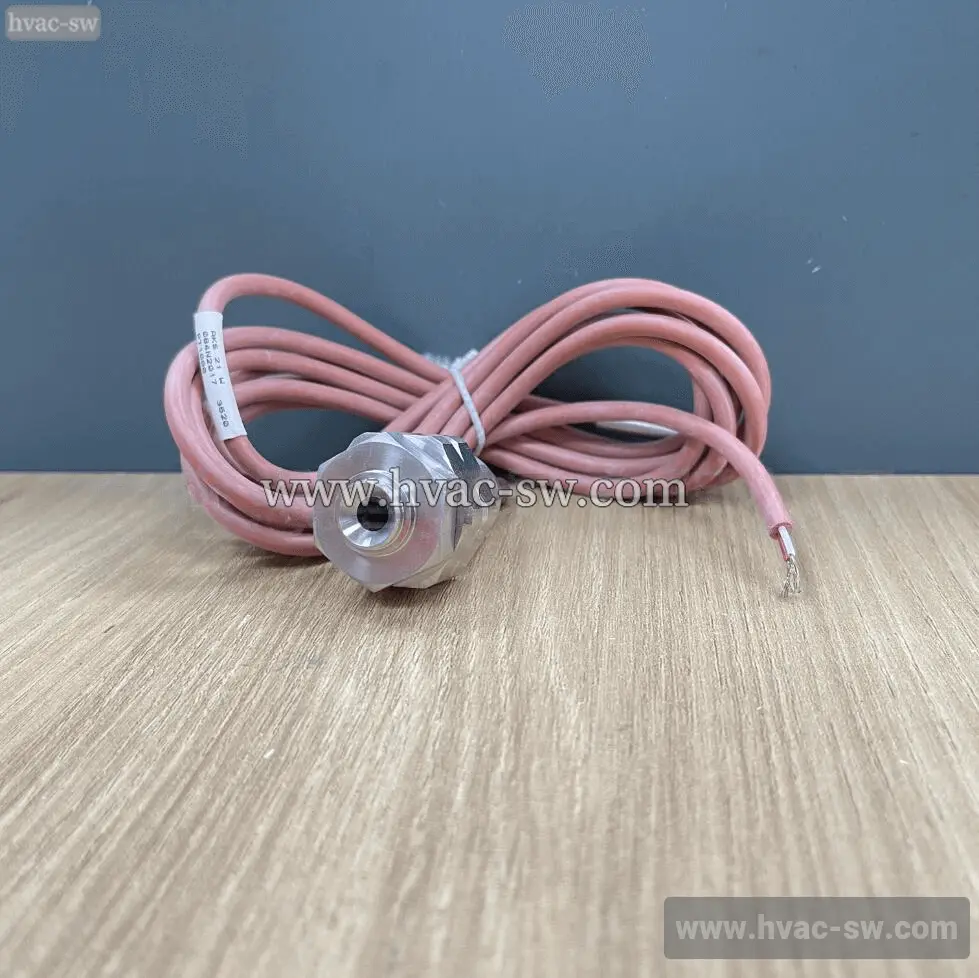

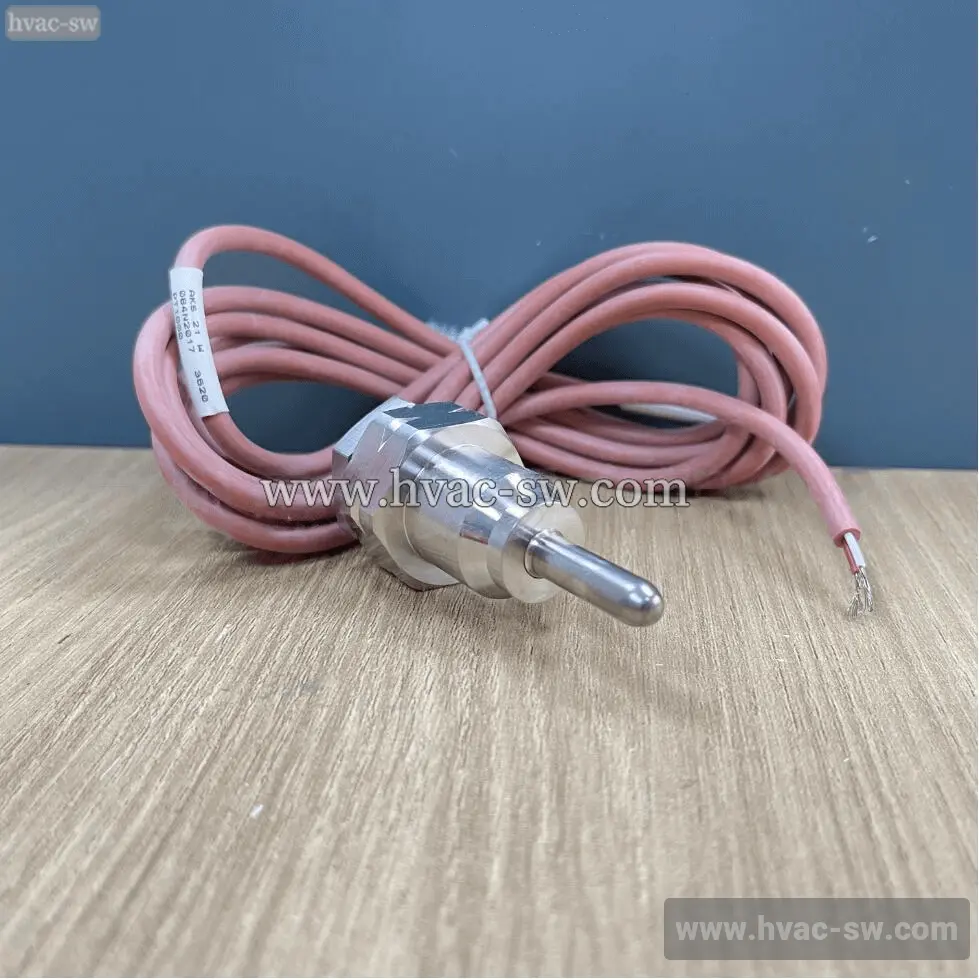

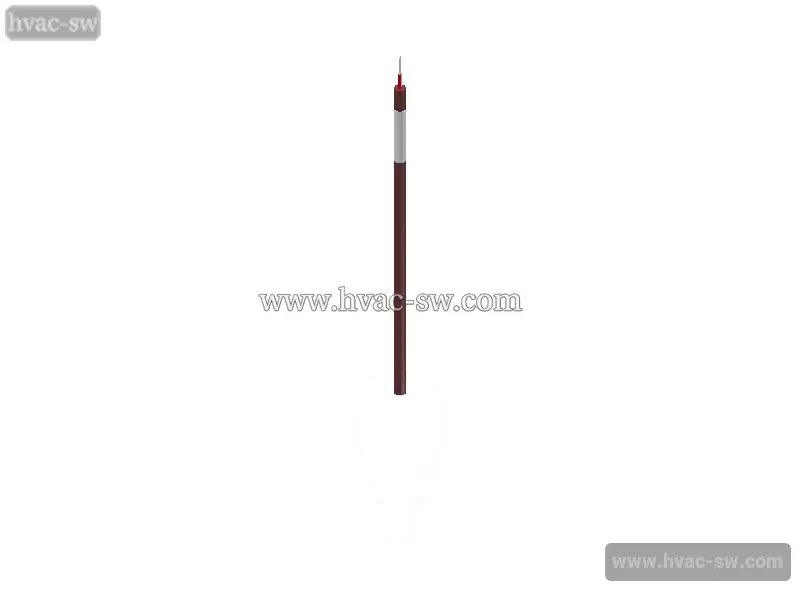

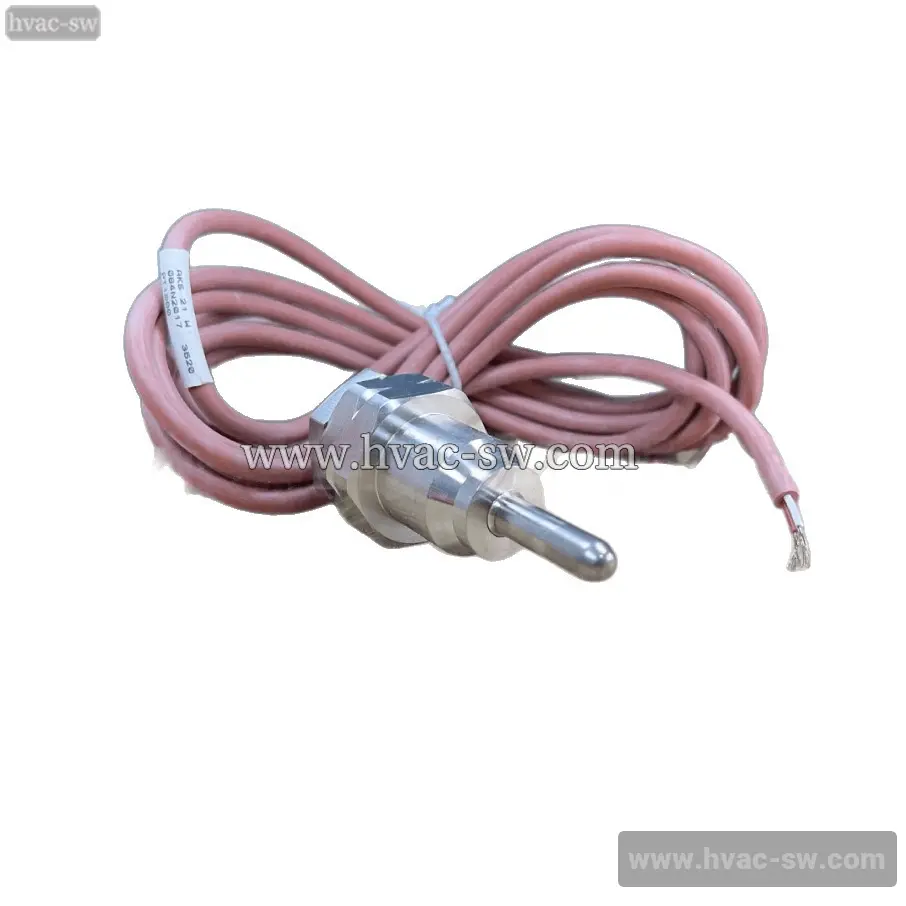

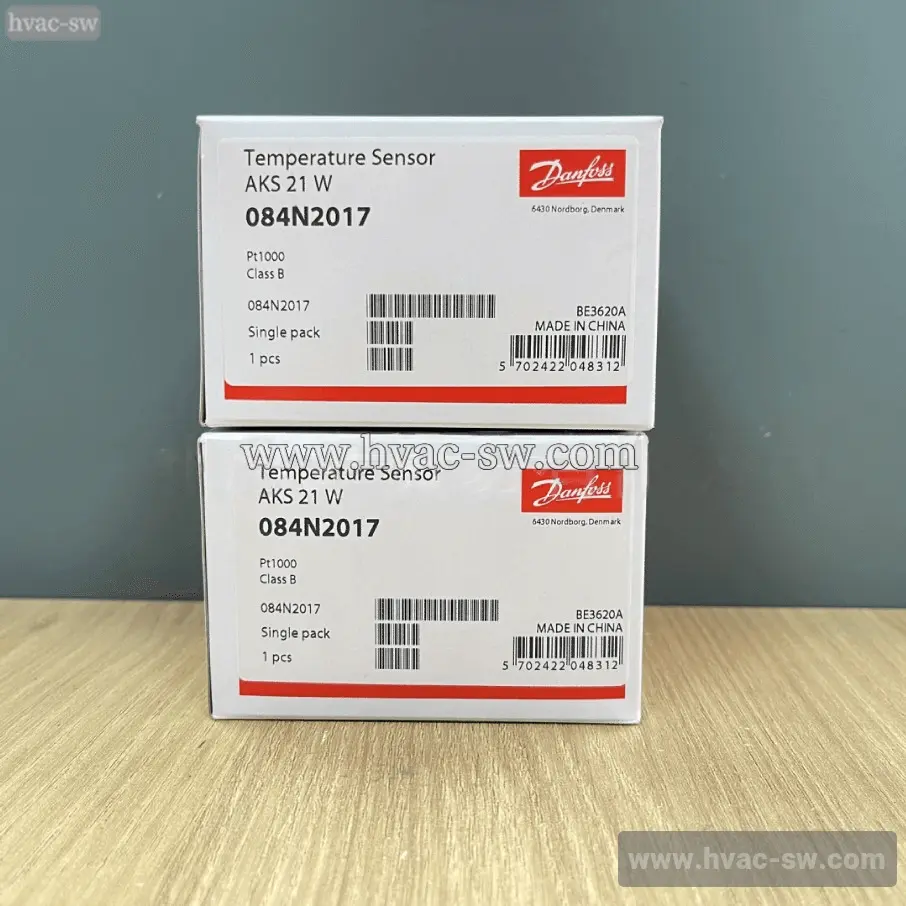

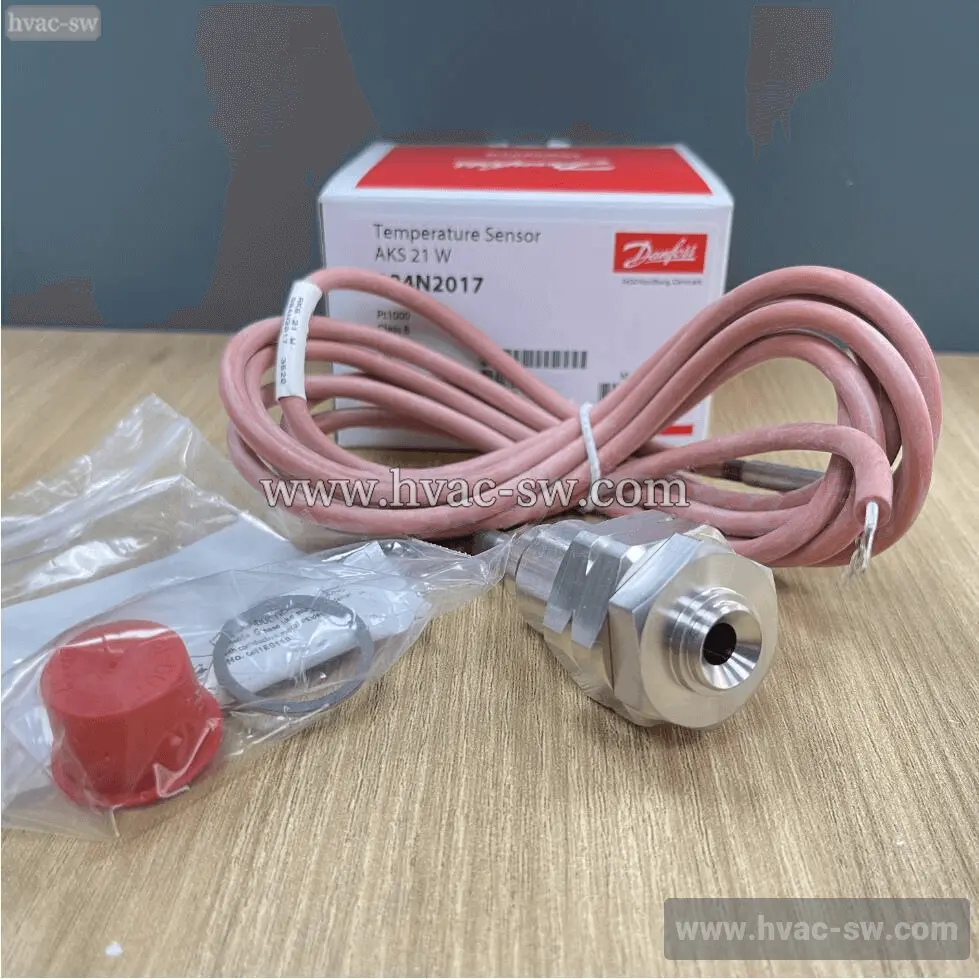

Danfoss AKS21W 084N2017 PT1000 Temperature Sensor
Danfoss
Description
The Danfoss AKS21W 084N2017 is a high-quality PT1000 temperature sensor designed for precise and reliable temperature measurement. It features a robust construction suitable for various industrial applications, including refrigeration, HVAC systems, and industrial automation. The PT1000 element ensures accurate readings with excellent long-term stability.
Product Details
| Attribute | Value |
|---|---|
| Gross weight | 0.294 Kilogram |
| Type | AKS 21 M |
| Ambient temperature max. [°C] | 180 °C |
| Measuring range [°F] [max] | 392 °F |
| Net weight | 0.261 Kilogram |
| Product group | Sensors |
| Ambient temperature max. [°F] | 356 °F |
| Measuring range [°F] [min] | -75 °F |
| Volume | 0.522 Liter |
| Product Name Description | Temperature sensor |
| Approval | CE |
| Packing format | Multi pack |
| EAN | 5702422048312 |
| Cable length [in] | 98.43 in |
| Process connection notes | Weldable |
| Cable length [m] | 2.5 m |
| Process connection size | 22 |
| Cable tempr. range [°C] [max] | 200 °C |
| Process connection type | Ø |
| Cable tempr. range [°C] [min] | -60 °C |
| Protection tube diameter [in] | 0.28 in |
| Cable type | Silicone |
| Protection tube diameter [mm] | 7 mm |
| CE evaluated | Yes |
| Protection tube length [in] | 1.97 in |
| China RoHS compliance | Out of scope |
| Protection tube length [mm] | 50 mm |
| Connection type | Weld |
| Protection tube material | STAINLEES STEEL |
| Contains batteries | No |
| Quantity per packing format | 18 pc |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| REACH Candidate List substances | No |
| Electrical connection | Cable |
| Sensor elem. resistance [Ohm] | 1000 Ohm |
| Electrical connection size | 2 wire |
| Sensor element [pc] | 1 pc |
| Enclosure rating IP | IP56 |
| Sensor element standard | EN 60751 |
| EU RoHS compliance | Yes |
| Sensor element tolerance | Class B |
| EU RoHS exemption clause | No |
| Sensor element type | Pt |
| In scope of WEEE | Yes |
| Sensor Insert | Exchangeable |
| Measuring range [°C] [max] | 200 °C |
| Wires [pcs] | 2 pc |
| Measuring range [°C] [min] | -60 °C |
