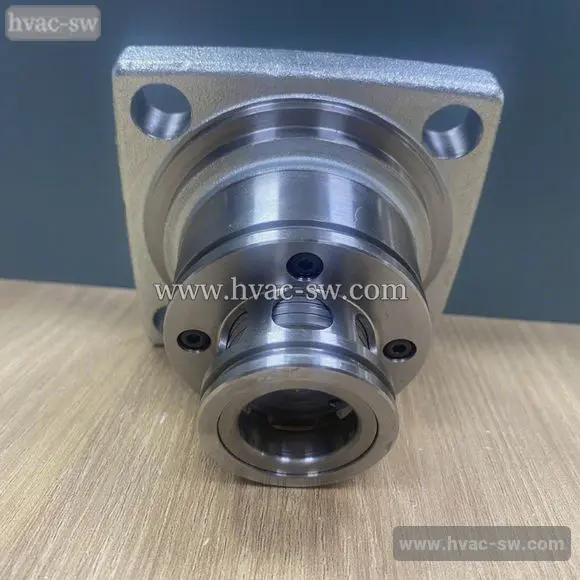

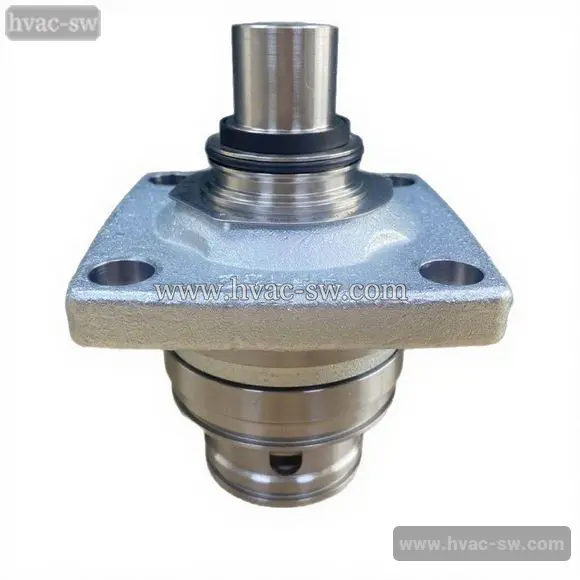

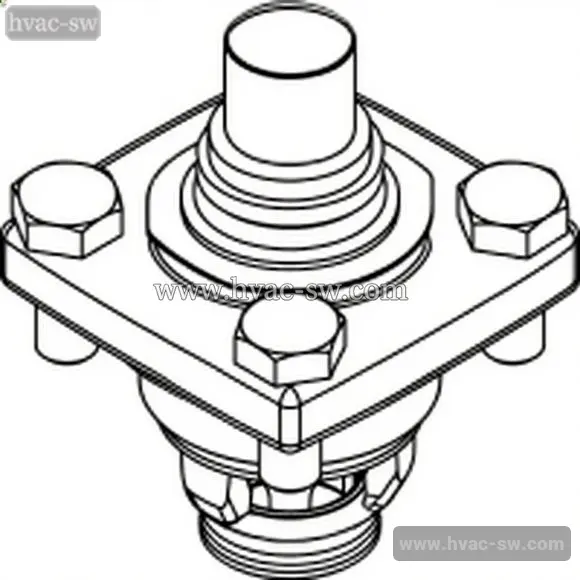

Danfoss ICM25-A 027H2180 ICM25-B 027H2181 Functional Module
Danfoss
Description
Danfoss 027H2181 (Model ICM25-B) and Danfoss 027H2180 (Model ICM25-A) are functional modules manufactured by DANFOSS. These modules are designed to deliver reliable performance, suitable for integrating into various industrial or mechanical systems. They embody DANFOSS's quality standards, ensuring efficient and stable operation to meet diverse application needs in relevant fields.
Product Details
| Model No. | Nominal Diameter (DN) (mm) | Nominal Pressure (PN) (MPa) | Valve Body Material | Connection Type |
|---|---|---|---|---|
| ICLX100 | DN100 | 4 | Cast Steel | Welding |
| ICLX125 | DN125 | 4 | Cast Steel | Welding |
| ICLX150 | DN150 | 4 | Cast Steel | Welding |
| EVM 027B1130 | DN15 | 6 | Cast Steel | External Thread |
| Attribute | Value |
|---|---|
| Gross weight | 1.856 Kilogram |
| Net weight | 1.69 Kilogram |
| Volume | 3.358 Liter |
| EAN | 5702428237628 |
| Type | ICM 25-B |
| Product group | Press. and temp. regul. valves |
| Product Name Description | Function module |
| Actuator system | ICAD motor, magnet coupling |
| Body material | Steel |
| Brand | ICV Flexline |
| China RoHS compliance | Out of scope |
| Contains batteries | No |
| Cv value [gal/min] | 13.92 gal/min |
| EU RoHS compliance | Out of scope |
| Kv value [m³/h] | 12 m³/h |
| Manual operation option | Via ICAD setting; |
