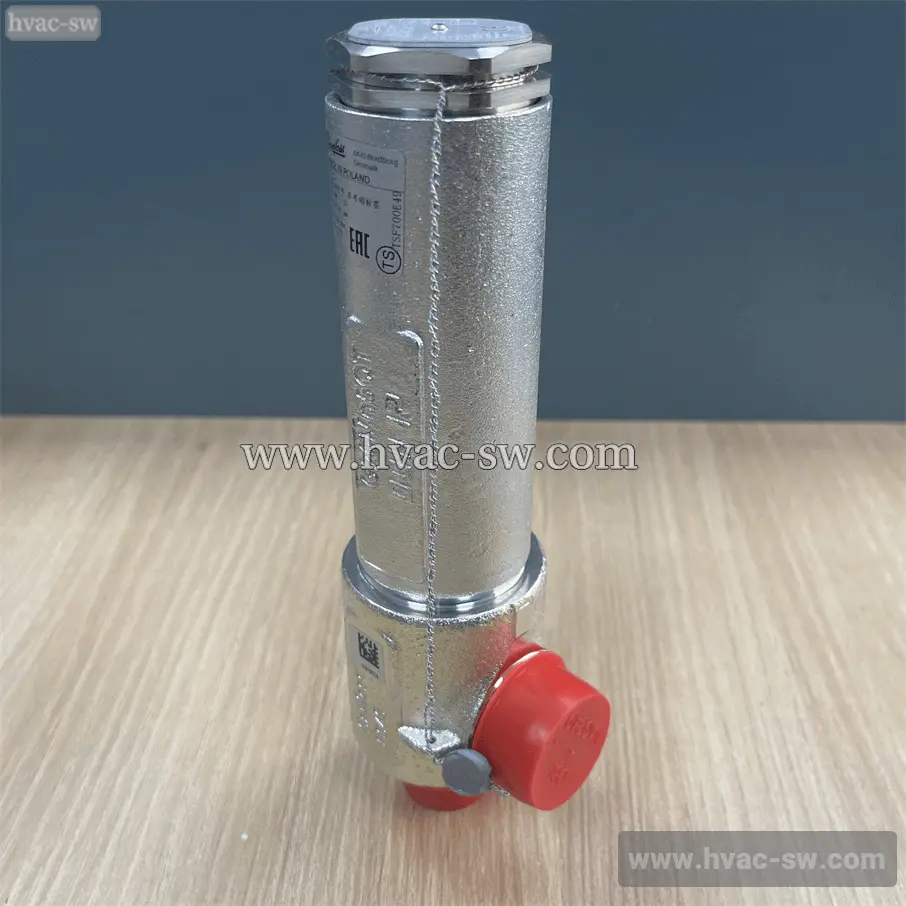

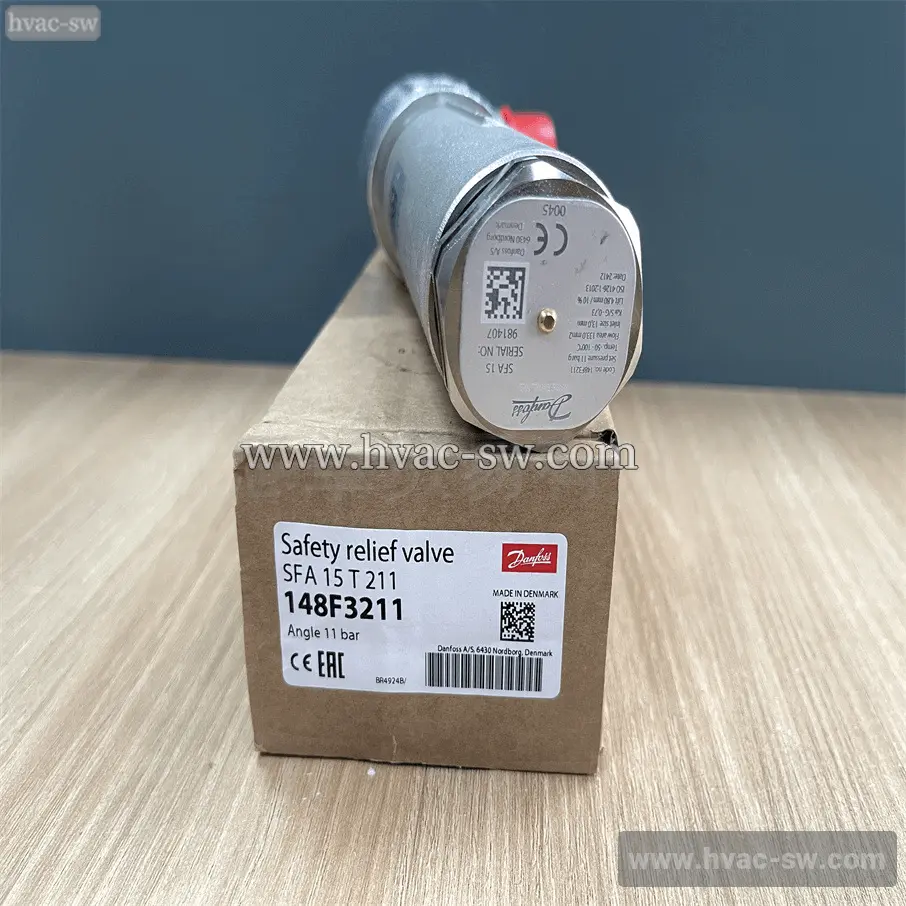

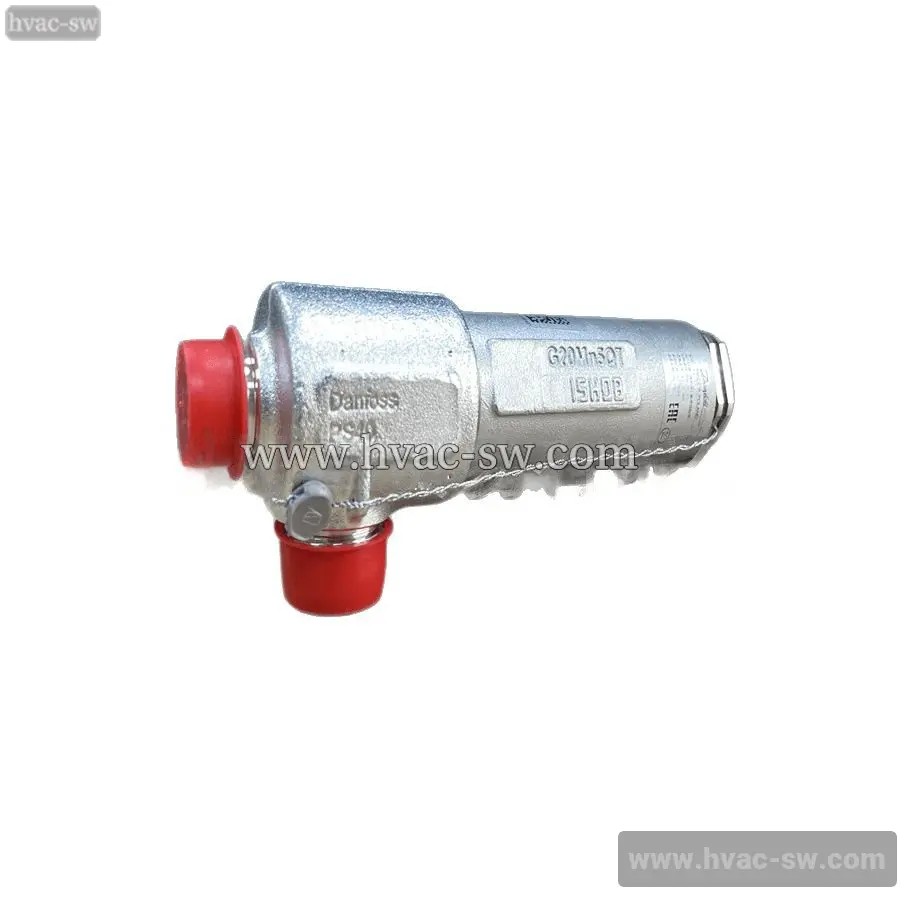

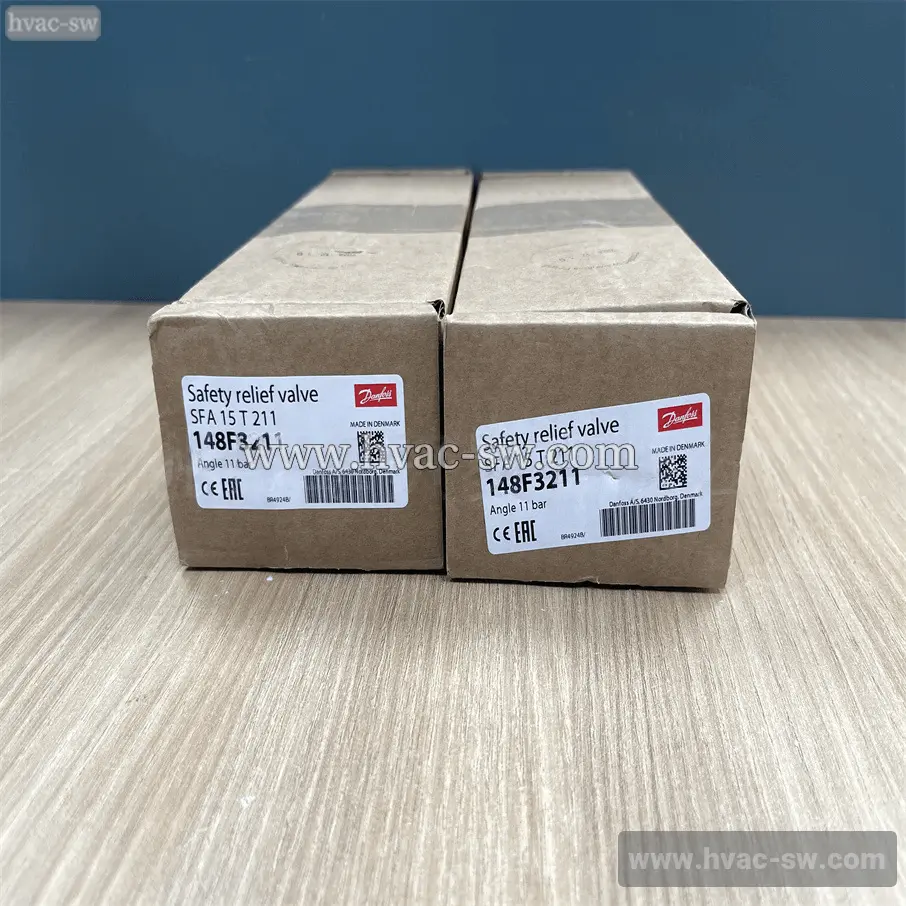

Danfoss SFA15T211 Safety Valve 148F3211
Danfoss
Description
Danfoss SFA15T211 Safety Valve (148F3211) offers precise cracking pressure settings, tight sealing, and robust construction for reliable overpressure protection in refrigeration and air conditioning systems. It ensures system safety by automatically releasing refrigerant when pressure exceeds the set point.
Product Details
| Specification | Nominal Diameter (DN) (mm) | Nominal Pressure (PN) (MPa) | Body Material | Connection Type | Appearance |
|---|---|---|---|---|---|
| PMFL80-4 027F3057 DN25 PMFH80-4 | DN25 | 4.2 | Cast Steel | Flange | Medium |
| EVM 027B1120 | DN12 | 42 | Cast Steel | External Thread | Medium |
| Attribute | Value |
|---|---|
| Gross weight | 1.98 Kilogram |
| Net weight | 1.926 Kilogram |
| Volume | 1.326 Liter |
| EAN | 5702428194150 |
| Type | SFA 15 |
| Product group | Safety relief valves |
| Product Name Description | Safety relief valve |
| Approval | CEEACTS |
| CE evaluated | Yes |
| Certified Coef of Disc | 0.73 kg |
| China RoHS compliance | Out of scope |
| Comments | 0 |
| Connection Internal/External | External |
| Connection size [in] | 1/2 in |
| Connection size [mm] | 15 mm |
| Connection standard | ISO 228-1 |
| Connection type | G |
| Contains batteries | No |
| Direction | Angleway |
| EU RoHS compliance | Out of scope |
| Flow area [in2] | 0.206 in² |
| Flow area [mm2] | 133 mm² |
| Flow diameter [in] | 0.512 in |
| Flow diameter [mm] | 13 mm |
| Fluid Group | 1 |
| Inlet connection size [in] | 3/4 |
| Lift [mm] | 4.8 mm |
| Nominal diameter | DN < 15 |
| Outlet connection size [in] | 1 |
| Packing format | Single pack |
| PED category | IV |
| Pressure certificate | Danfoss certificate included |
| Pressure setting [bar] | 11 bar |
| Pressure setting [psig] | 160 psig |
| Product description | Safety Relief Valve |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R134aR170R22R401AR402AR404AR407AR407BR407CR407FR409AR410AR421AR502R600R600aR717R744R507AR1234yfR1234ze(E)R125R152aR227eaR236faR245faR290R32R407HR413AR417AR422AR422BR422DR438AR442AR444BR447AR447BR448AR449AR449BR450AR452AR452BR452CR454AR454BR454CR455AR463AR512AR513AR513BR515AR515BR516A |
| SCIP dossier no. | b6d989c8-42d2-47d3-85cd-8518f10699b1 |
| SCIP dossier product name | SFA 15 |
| Temperature range [°C] [max] | 100 °C |
| Temperature range [°C] [min] | -50 °C |
| Temperature range [°F] [max] | 212 °F |
| Temperature range [°F] [min] | -58 °F |
