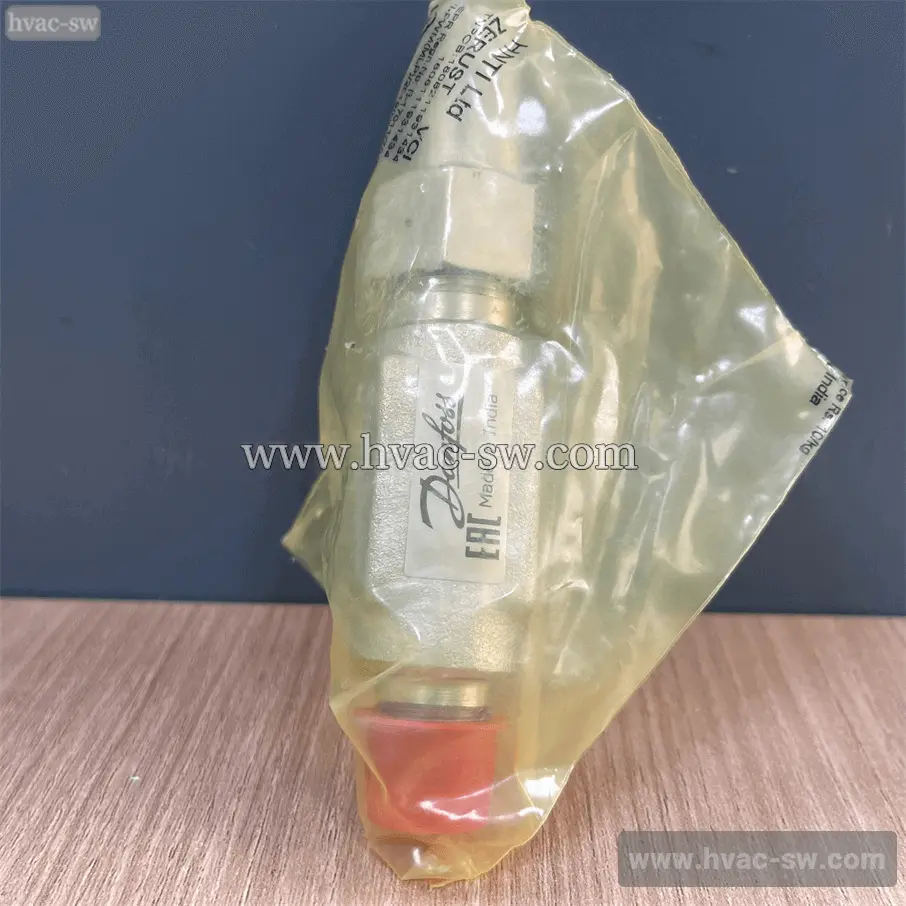

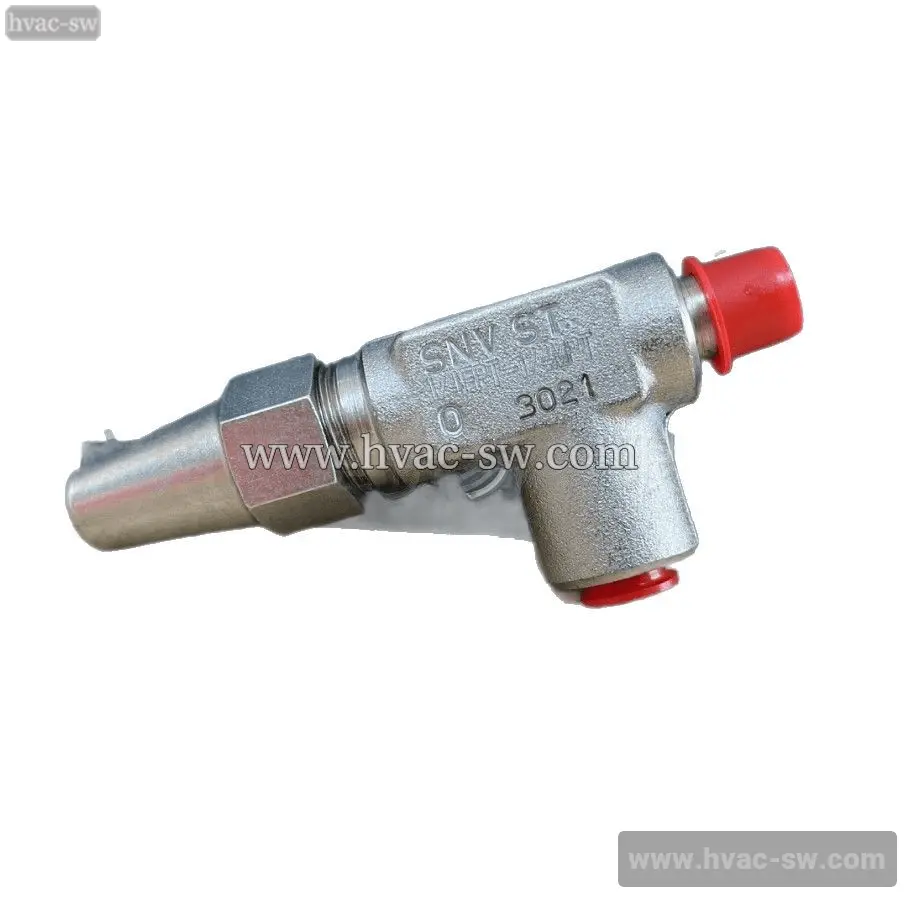

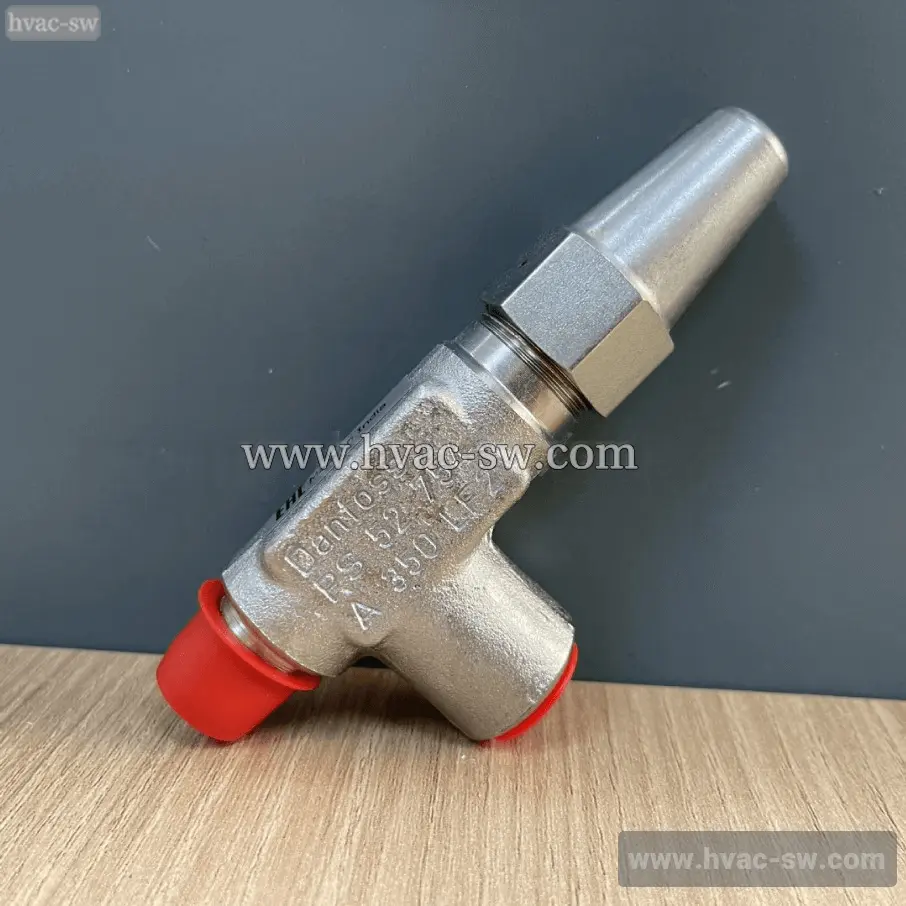

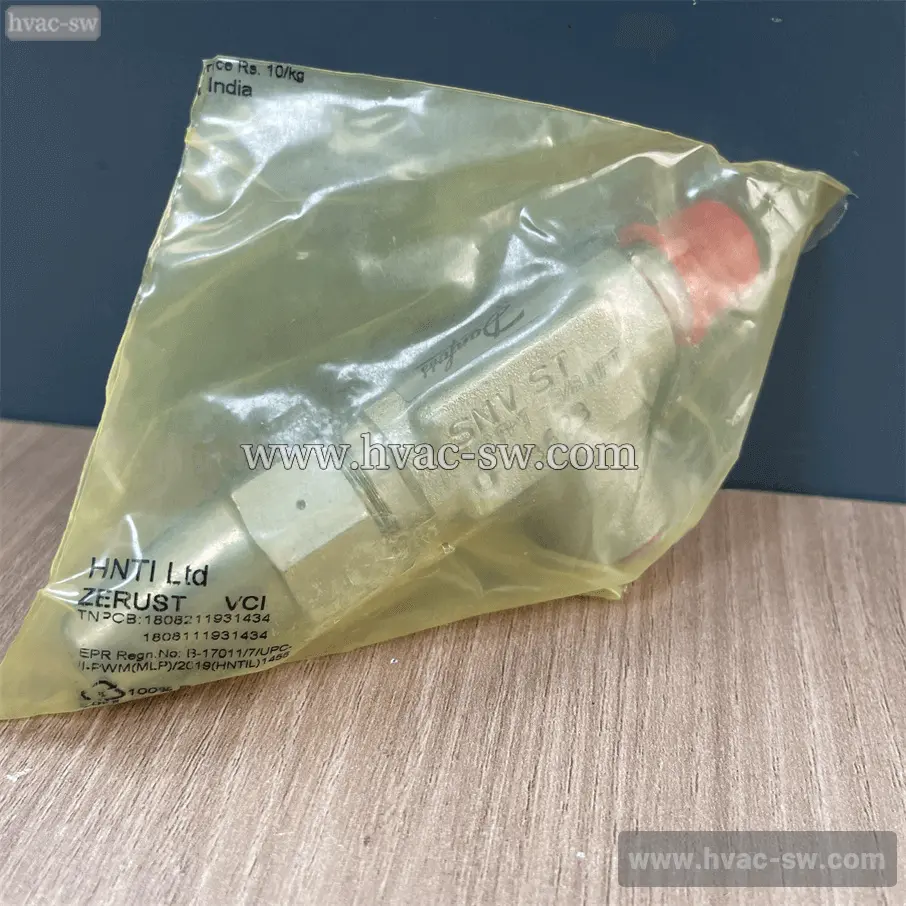

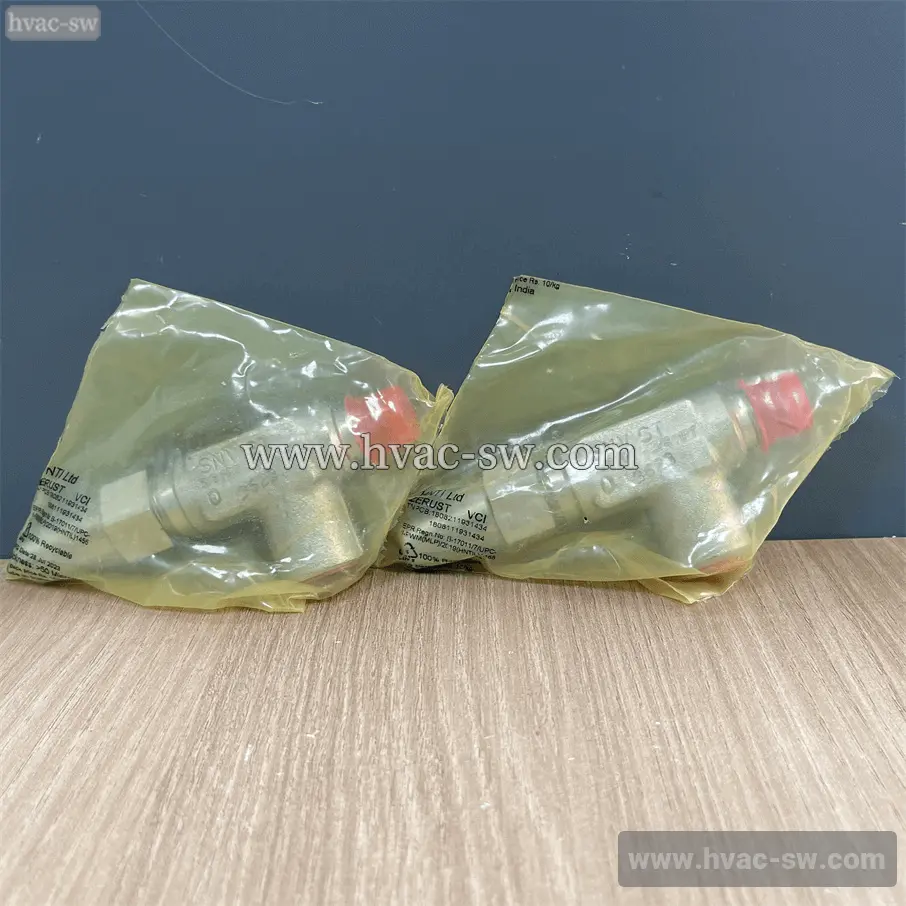

Danfoss 148B4181 ST Instrument Globe Valve
Danfoss 148B4181 ST Series is a compact instrument shut-off globe valve designed for precise flow control in industrial applications. It ensures secure, leak-tight shut-off for gases, liquids, or steam in sampling, gauging, and regulation systems, built for long-term durability.
Need help confirming this part?
Send us the part number, equipment model, nameplate information or a product photo. We can check available sourcing options, pricing and lead time.
Product Overview
| Attribute | Value |
|---|---|
| Gross weight | 0.418 Kilogram |
| Net weight | 0.391 Kilogram |
| Volume | 0.679 Liter |
| EAN | 5702428177320 |
| Type | SNV-ST |
| Product group | Shut-off and regulating valves |
| Product Name Description | Gauge valve |
| Approval | EACLLC CDC TYSKTÜV |
| Body material | Steel |
| China RoHS compliance | Out of scope |
| Colour Paint | Cr3 / TLP |
| Connection material | Steel |
| Connection standard | ANSI/ASME B1.20.1 |
| Contains batteries | No |
| Direction | Angleway |
| Equipment | Cap |
| EU RoHS compliance | Out of scope |
| Flow direction | Bi-flow |
| Fluid Group | 1 |
| Identical product | 148B3747 |
| Inlet connection size [in] | 3/8 |
| Inlet connection type | NPT |
| Inlet Internal/External | External |
| Max. Working Pressure [bar] | 52 bar |
| Max. Working Pressure [psig] | 754 psig |
| Outlet connection size [in] | 3/8 |
| Outlet connection type | NPT |
| Outlet Internal/External | Internal |
| Packing format | Industrial pack |
| PED category | Art. 4, par. 3 |
| Product accessories | SNV accessories |
| Product description | Stop needle valve |
| Quantity per packing format | 30 pc |
| REACH Candidate List substances | No |
| Refrigerants | R113R114R1233zd(E)R1234yfR1234ze(E)R125R1270R1336mzz(Z)R134aR152aR170R22R227eaR23R236faR290R32R401AR402AR402BR404AR407AR407BR407CR407FR407HR408AR409AR410AR417AR421AR422AR422BR422DR427AR438AR444BR447AR448AR449AR449BR450AR452AR454BR455AR502R503R513AR600R600aR717R744RE170R507AR1150R245faR413AR442AR447BR452BR454AR454CR463AR512AR513BR515AR515BR516AR508B |
| Serviceable | SNV spare parts |
| Temperature range [°C] [max] | 150 °C |
| Temperature range [°C] [min] | -60 °C |
| Temperature range [°F] [max] | 302 °F |
| Temperature range [°F] [min] | -76 °F |
| Valve version | Standard version |
