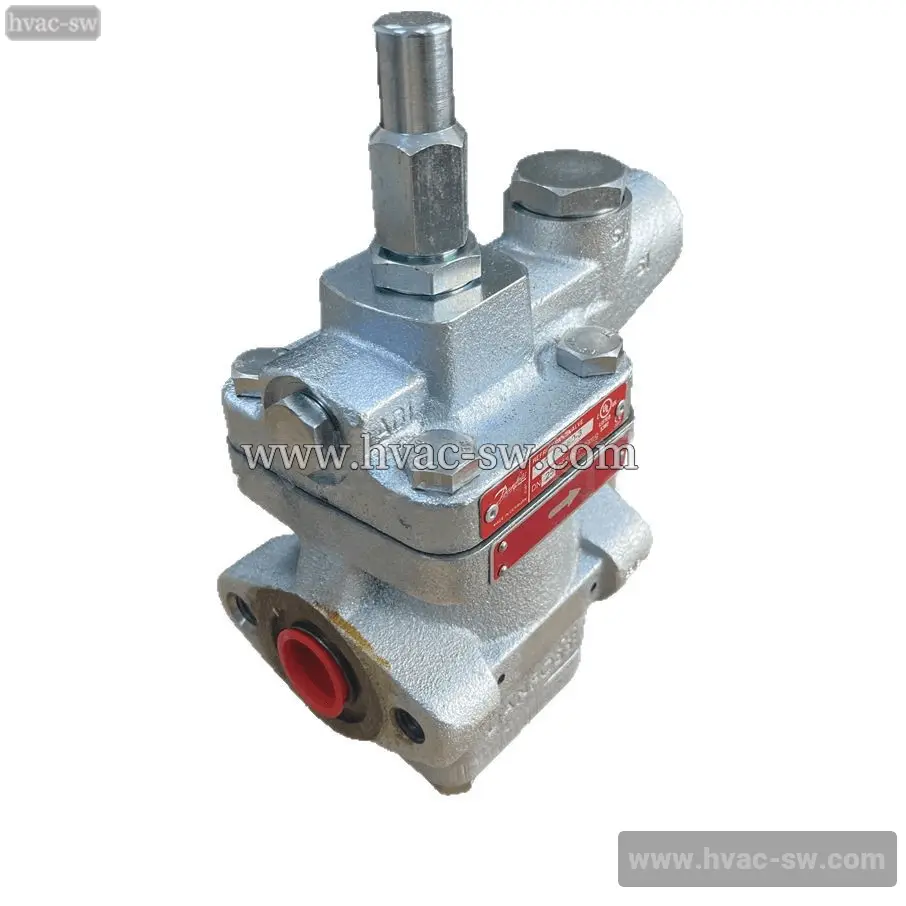

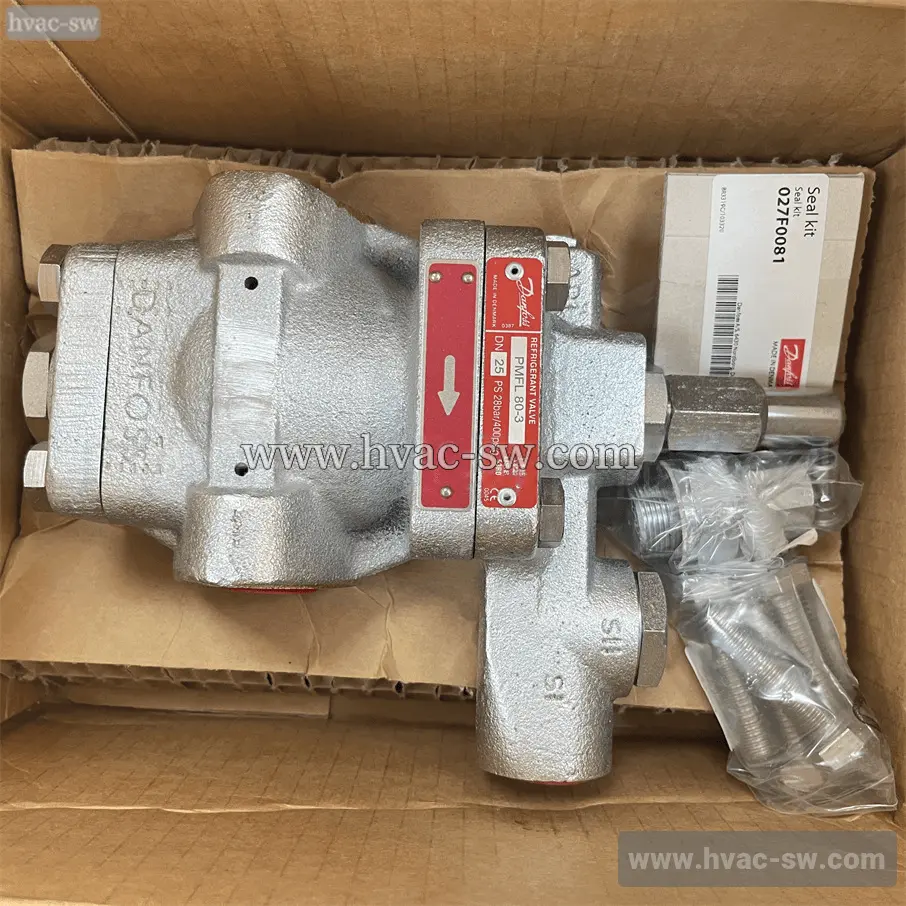

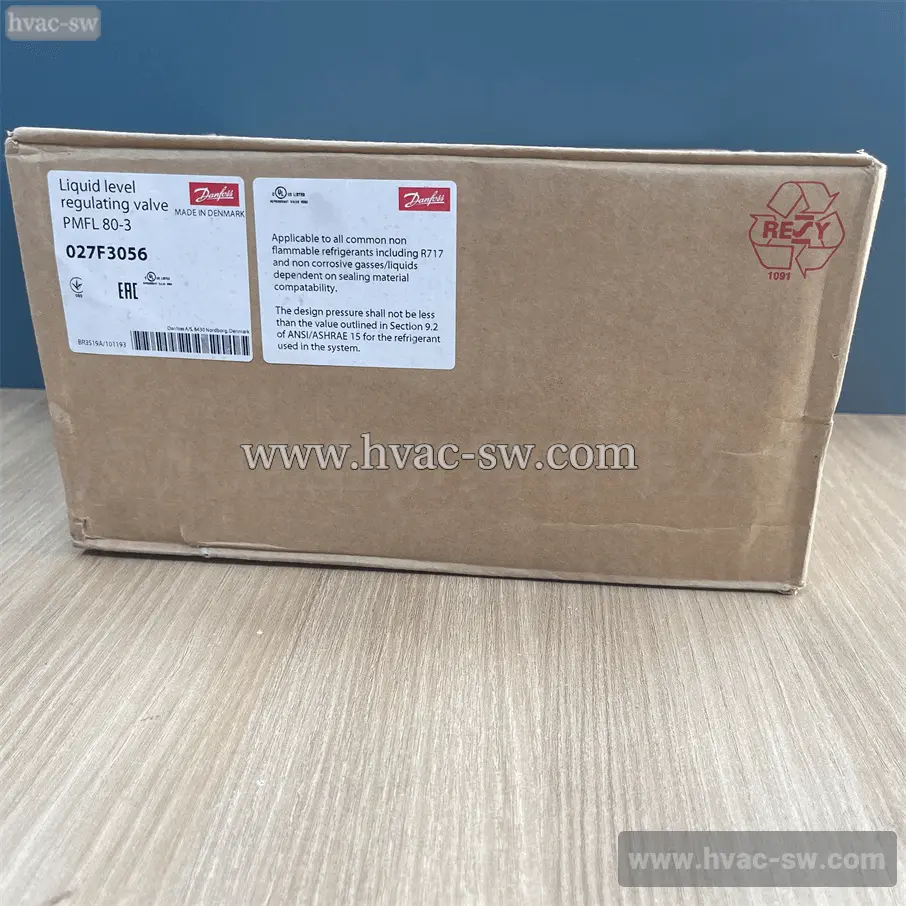

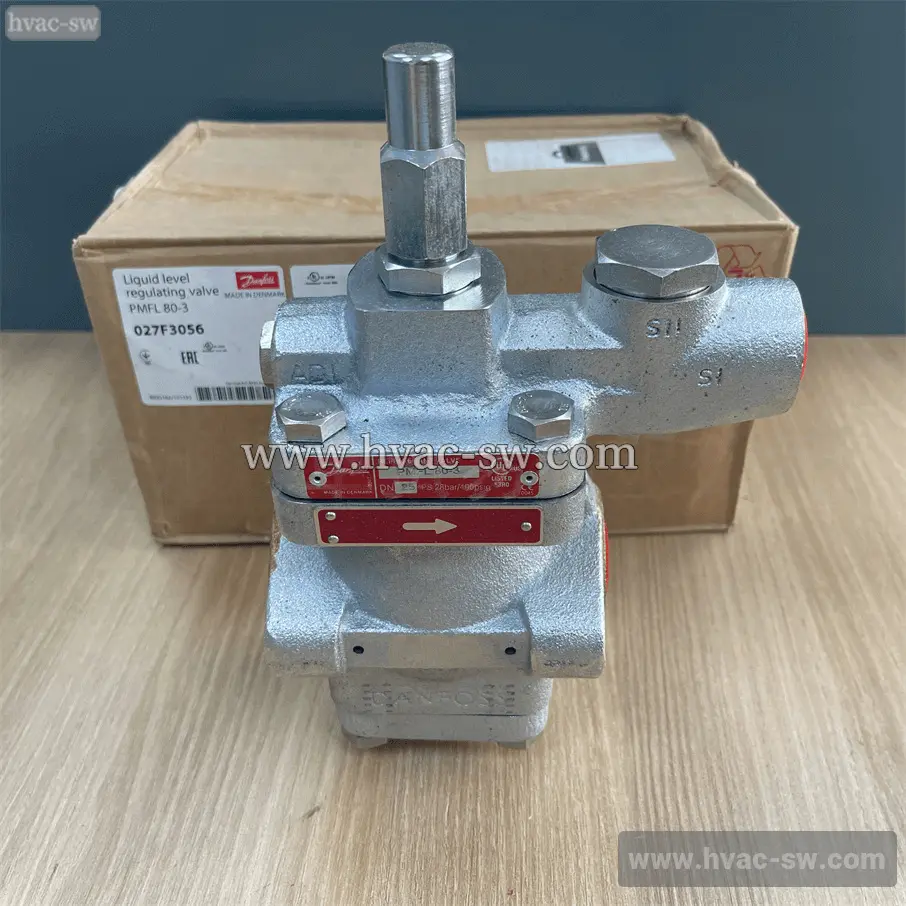

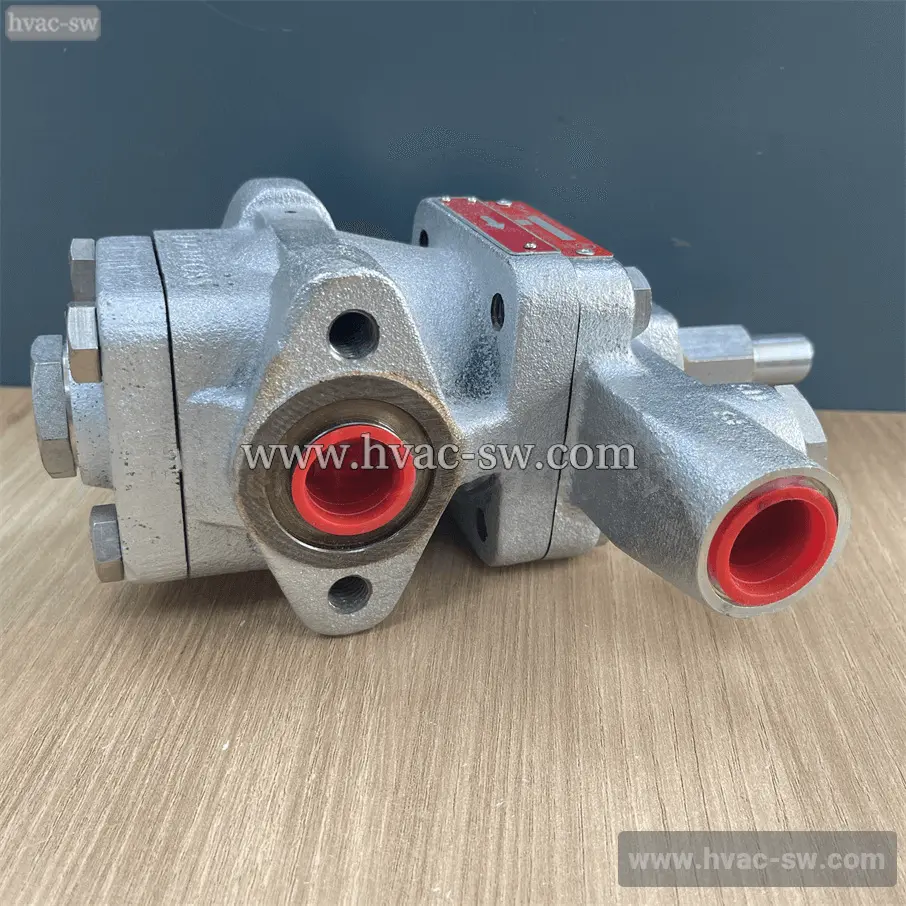

Danfoss 027F3056 PMFL80-3 Level Control Valve
Danfoss PMFL80-3 (SKU PCN PN: 027F3056) is a precision level control valve with DN25 port size, designed for reliable operation in industrial refrigeration and fluid handling applications. This PMFL80-3 model ensures accurate liquid level management and is built to withstand demanding industrial conditions.
Need help confirming this part?
Send us the part number, equipment model, nameplate information or a product photo. We can check available sourcing options, pricing and lead time.
Product Overview
| Model | Specification | Nominal Diameter (DN) (mm) | Nominal Pressure (PN) (MPa) | Body Material | Connection Type |
|---|---|---|---|---|---|
| PMFL80-3 027F3056 DN25 PMFH80-3 | DN25 | 4.2 | Cast Steel | Flange | Medium |
| EVM 027B1120 | DN12 | 42 | Cast Steel | External Thread | Medium |
| Attribute | Value |
|---|---|
| Gross weight | 7.046 Kilogram |
| Net weight | 6.78 Kilogram |
| Volume | 8.731 Liter |
| EAN | 5702422171256 |
| Type | PMFL 80-3 |
| Product group | Liquid level regulating valves |
| Product Name Description | Liquid level regulating valve |
| Approval | CEEACLLC CDC TYSKUL |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Colour Paint | Cr3 / TLP |
| Contains batteries | No |
| EU RoHS compliance | Out of scope |
| Fluid Group | 1 |
| Inlet connection size [mm] | 25 mm |
| Max. Working Pressure [bar] | 28 bar |
| Max. Working Pressure [psig] | 406 psig |
| Packing format | Single pack |
| Parts included | Blanking plugFlange boltsFlange gasketsPilot connector |
| PED category | Art. 3, par. 3 |
| Product description | Liquid Level Control |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R134aR22R404AR407AR407BR407CR407FR410AR502R717R401AR402AR409AR421AR507A |
| SCIP dossier no. | b9a4d397-4040-40d8-bf76-2fbd22ec1ba4 |
| Temperature range [°C] [max] | 120 °C |
| Temperature range [°C] [min] | -60 °C |
| Temperature range [°F] [max] | 248 °F |
| Temperature range [°F] [min] | -76 °F |
| UL approval file name | REFRIGERANT VALVE 53R0 |
| UL evaluated | Yes |
