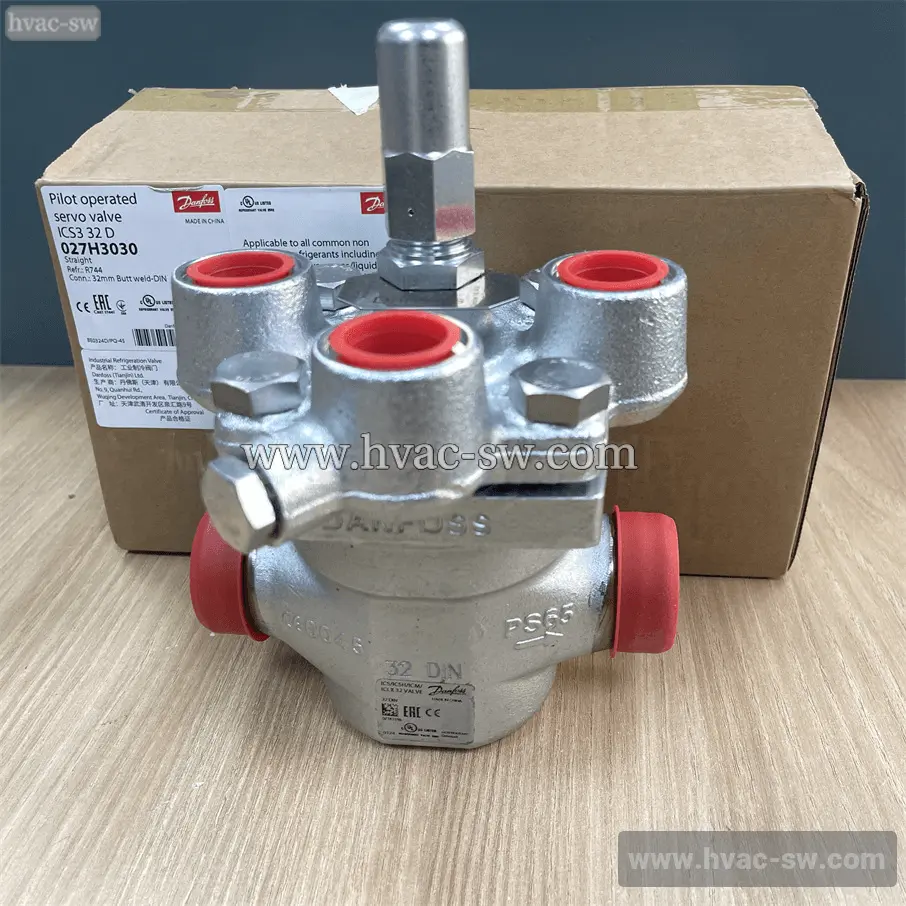

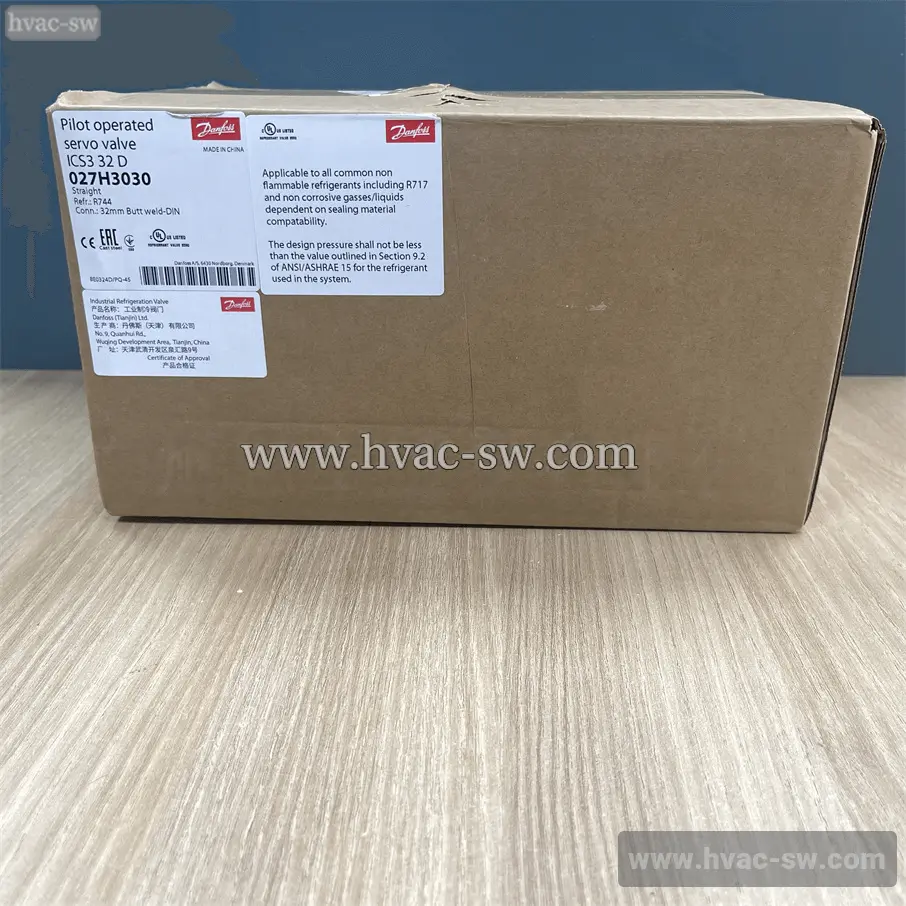

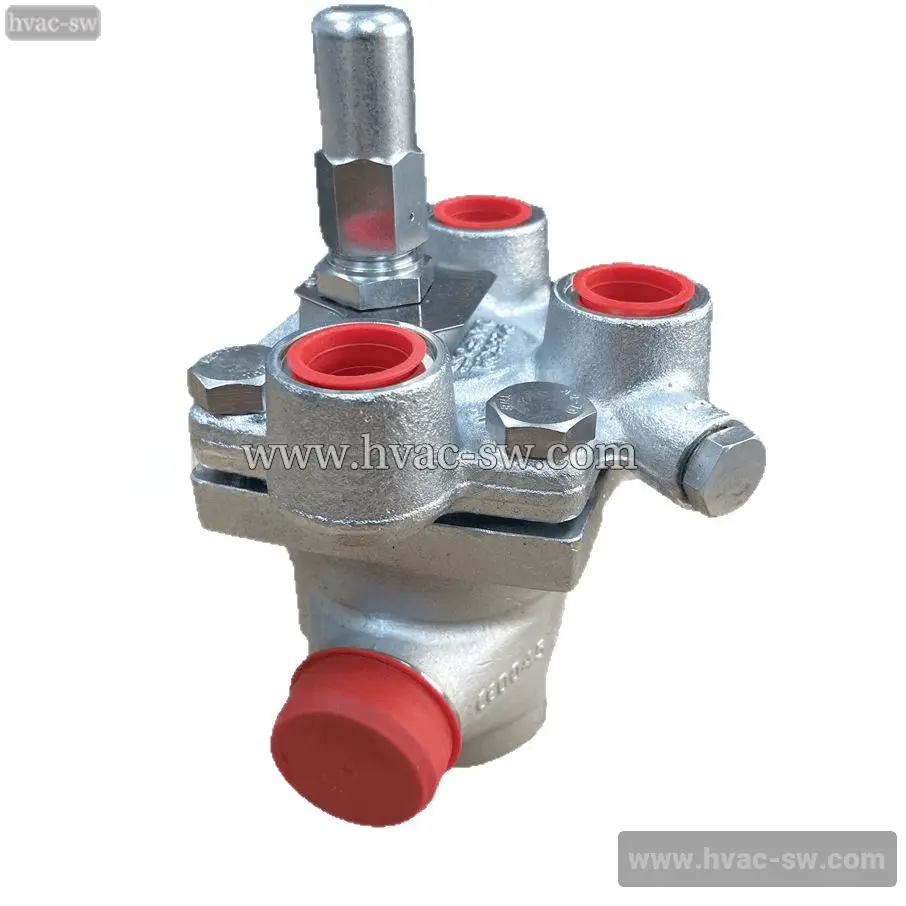

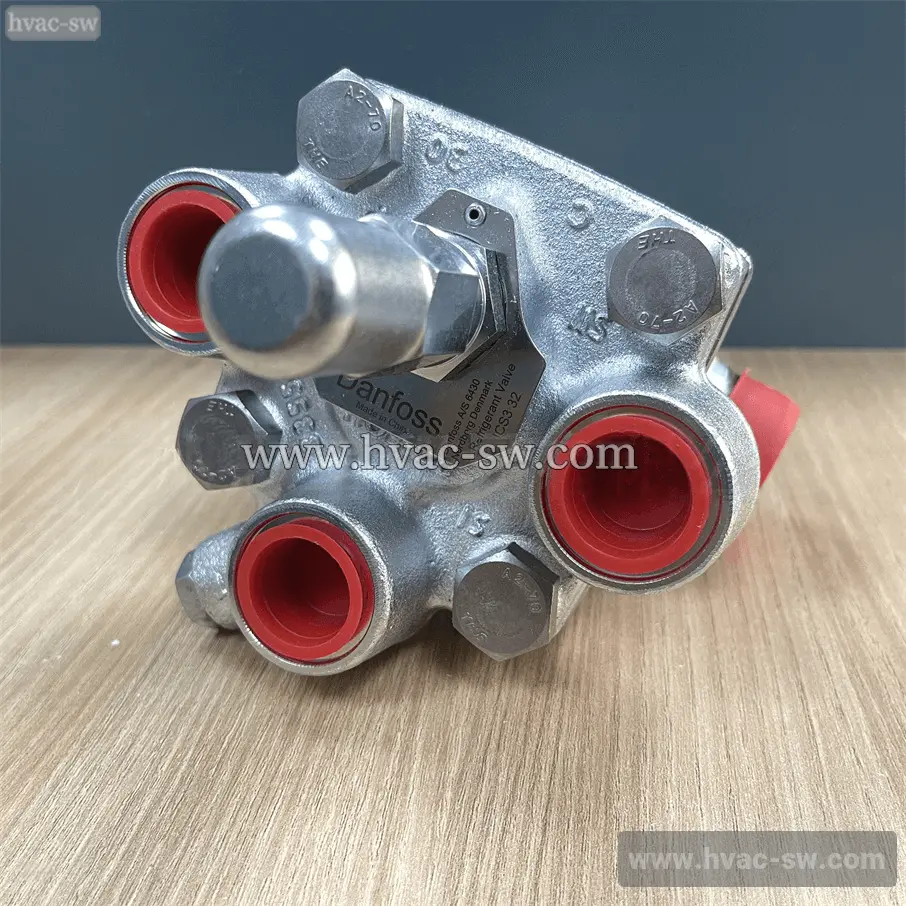

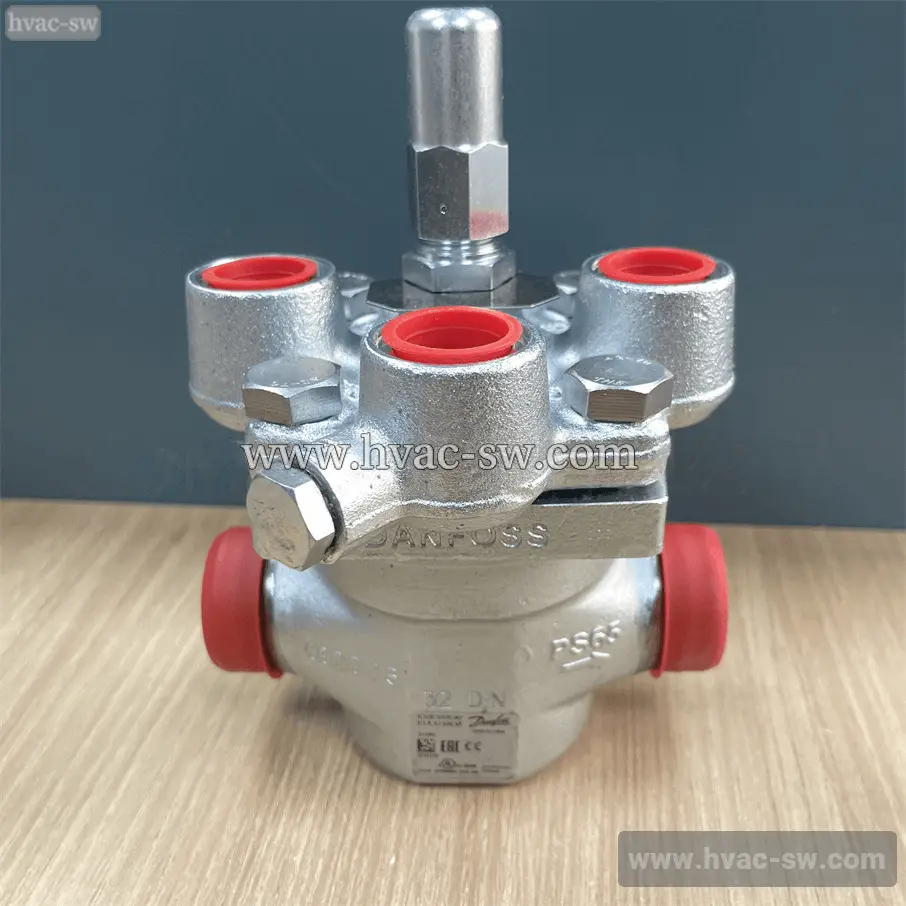

Danfoss ICS3 32 027H3030 Integrated Refrigeration Valve
The Danfoss ICS3 32 027H3030 is an integrated main valve unit featuring a solenoid valve and pressure regulating valve. Designed for precise control in refrigeration and air conditioning systems, it ensures reliable pressure management and efficient flow regulation.
Need help confirming this part?
Send us the part number, equipment model, nameplate information or a product photo. We can check available sourcing options, pricing and lead time.
Product Overview
| Model | Specification | Nominal Diameter (DN) (mm) | Nominal Pressure (PN) (MPa) | Body Material | Connection Type |
|---|---|---|---|---|---|
| ICS3 32 027H3030 ICS3-32 D | DN32 | 52 | Cast Steel | Welding | Large |
| CVVP | DN65 | 52 | Cast Steel | Welding | Large |
| Attribute | Value |
|---|---|
| Gross weight | 6.096 Kilogram |
| Type | ICS3 32 |
| Approval | EACLLC CDC TYSKTÜVUL |
| Outlet connection type | Butt weld |
| Net weight | 5.792 Kilogram |
| Product group | Press. and temp. regul. valves |
| Body material | Steel |
| Packing format | Single pack |
| Volume | 8.68 Liter |
| Product Name Description | Pilot operated servo valve |
| Brand | ICV Flexline |
| Parts Program name | ICS |
| EAN | 5702428235983 |
| China RoHS compliance | Out of scope |
| PED category | II |
| Connection material | Steel |
| Pilot connection configuration | P: Parallel connectionSI-SII: Serial connection |
| Connection standard | EN 10220 |
| Pressure gauge connection | Int. thread with blind plug |
| Contains batteries | No |
| Product accessories | ICM / ICS / ICLX accessories |
| Cv value [gal/min] | 20 gal/min |
| Product description | Servo operated valve |
| Direction | Straightway |
| Quantity per packing format | 1 pc |
| EU RoHS compliance | Out of scope |
| REACH Candidate List substances | No |
| Ext pilot pressure connection | Weld nipple (P2 Port) |
| Refrigerants | R134aR22R401AR402AR404AR407AR407BR407CR407FR409AR410AR421AR502R717R744R1234ze(E)R507AR1234yfR125R152aR227eaR236faR245faR290R32R407HR413AR417AR422AR422BR422DR438AR442AR444BR447AR447BR448AR449AR449BR450AR452AR452BR454AR454BR454CR455AR463AR512AR513AR513BR515AR515BR516AR170R452CR600R600a |
| Flow direction indicator | Embossed 1-way arrow |
| Serviceable | ICM / ICS / ICLX spare parts |
| Fluid Group | 1 |
| Surface coating | Zn (TLP) |
| Inlet connection size [in] | 1 1/4 in |
| Temperature range [°C] [max] | 120 °C |
| Inlet connection size [mm] | 32 mm |
| Temperature range [°C] [min] | -60 °C |
| Inlet connection type | Butt weld |
| Temperature range [°F] [max] | 248 °F |
| Kv value [m³/h] | 17 m³/h |
| Temperature range [°F] [min] | -76 °F |
| Manual operation option | Manual open spindle |
| Top cover | 3 function modules |
| Max. Working Pressure [bar] | 65 bar |
| UL approval file name | REFRIGERANT VALVE 53R0 |
| Max. Working Pressure [psig] | 943 psig |
| UL evaluated | Yes |
| Opening configuration | Closed (delta p=0 bar)Full open (delta p≥0.2 bar)PropOpen (delta p=0.07-0.2bar) |
| Valve operation | Pilot operated |
| Outlet connection size [in] | 1 1/4 in |
| Valve version | Standard version |
| Outlet connection size [mm] | 32 mm |
