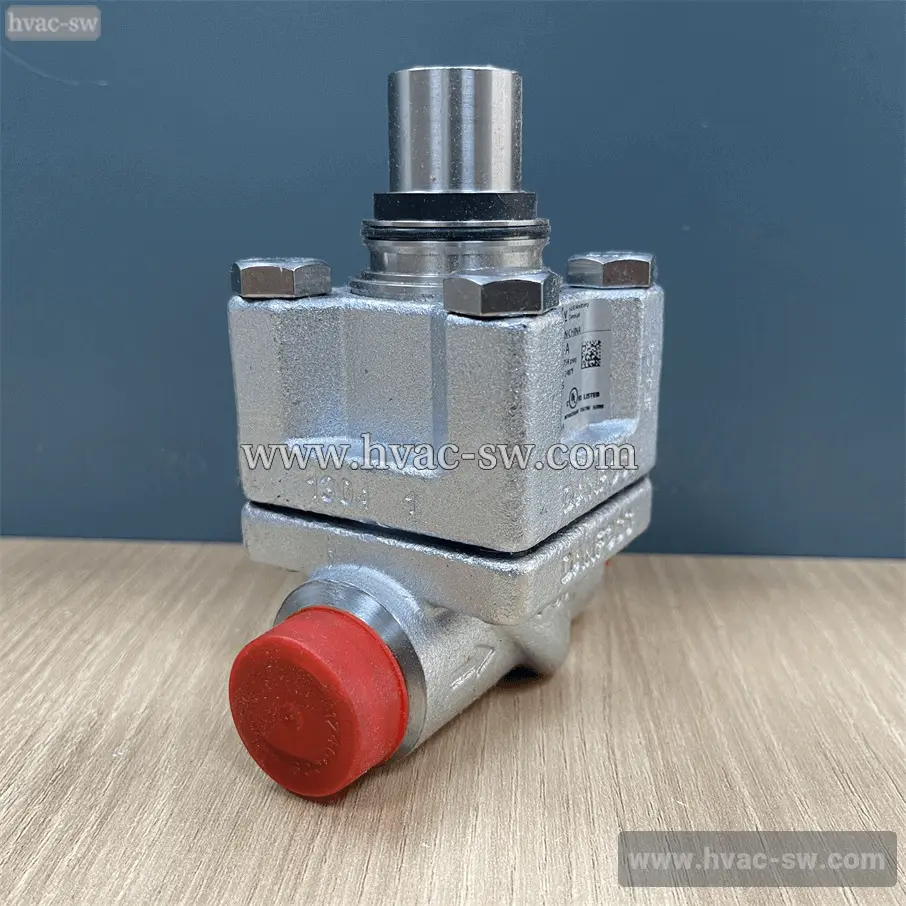

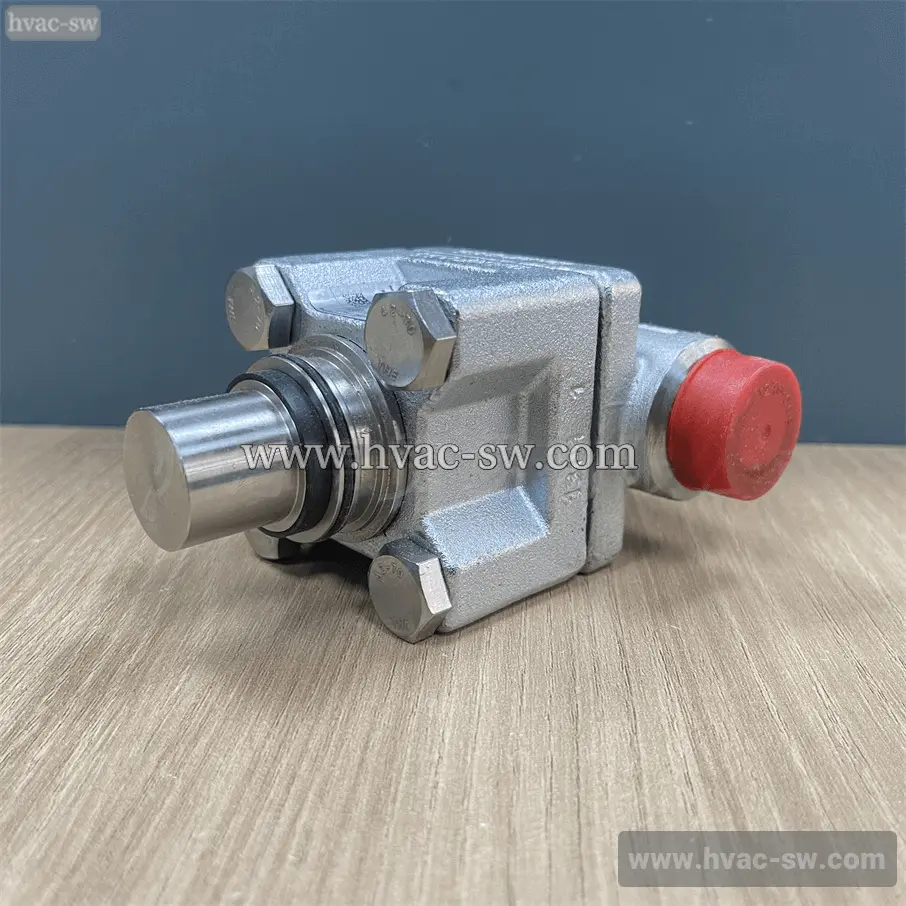

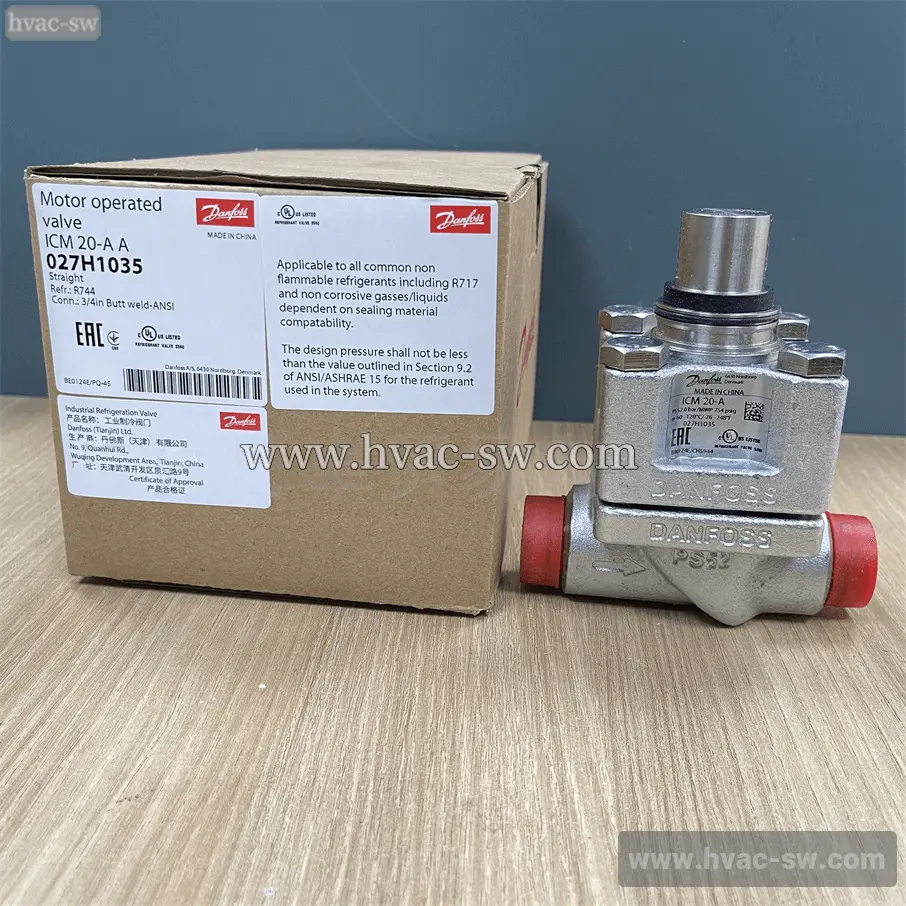

Danfoss ICM20-A33 027H1186 / ICM20-AA 027H1035 Electric Valve HVAC Control
The Danfoss ICM20 series electric valve (models ICM20-A33 027H1186 and ICM20-AA 027H1035) offers precise on/off or proportional control for HVAC systems, ensuring optimal energy efficiency and comfort management in commercial and industrial applications. It is designed for reliable regulation of water and glycol mixtures.
Need help confirming this part?
Send us the part number, equipment model, nameplate information or a product photo. We can check available sourcing options, pricing and lead time.
Product Overview
| Model | Specification | Nominal Diameter (DN) (mm) | Nominal Pressure (PN) (MPa) | Body Material |
|---|---|---|---|---|
| ICM20-A33 ICM 20-A33 027H1186 | 20 | 5.2 | Cast Steel | Welded |
| ICM 20-A 027H1035 ICM20 | 22 | 5.2 | Steel Valve | Welded |
| Attribute | Value |
|---|---|
| Gross weight | 1.392 Kilogram |
| Net weight | 1.282 Kilogram |
| Volume | 3.329 Liter |
| EAN | 5702428244503 |
| Type | ICM 20-A33 |
| Product group | Press. and temp. regul. valves |
| Product Name Description | Function module |
| Actuator system | ICAD motor, magnet coupling |
| Body material | Steel |
| Brand | ICV Flexline |
| China RoHS compliance | Out of scope |
| Contains batteries | No |
| Cv value [gal/min] | 0.23 gal/min |
| EU RoHS compliance | Out of scope |
| Kv value [m³/h] | 0.2 m³/h |
| Manual operation option | Via ICAD settingVia Multifunction tool |
| Open/close time [s] | 3 s |
| Packing format | Single pack |
| Parts included | Bolts/O-ringSeat/O-ring |
| Parts Program name | ICM |
| Product accessories | ICAD accessoriesICM / ICS / ICLX accessories |
| Product description | Function Module |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrigerants | R134aR22R401AR402AR404AR407AR407BR407CR407FR409AR410AR421AR502R717R744R1234ze(E)R507AR1234yfR125R227eaR236faR245faR32R407HR417AR422AR422BR422DR438AR442AR444BR447AR447BR448AR449AR449BR450AR452AR452BR454AR454BR454CR455AR463AR513AR513BR515AR515BR516AR170R290R600R600aR601R601a |
| Serviceable | ICM / ICS / ICLX spare parts |
| Used for product | ICV 20 |
| Used for product comments | With top assembly |
| Valve operation | Motor operated |
