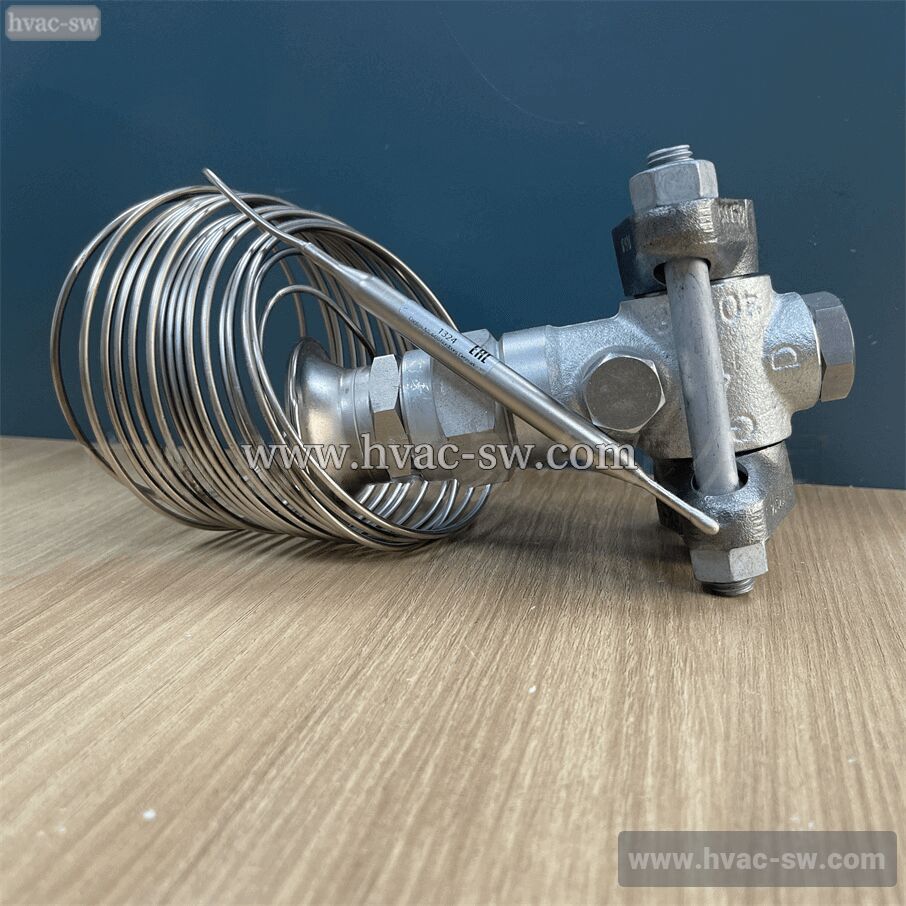

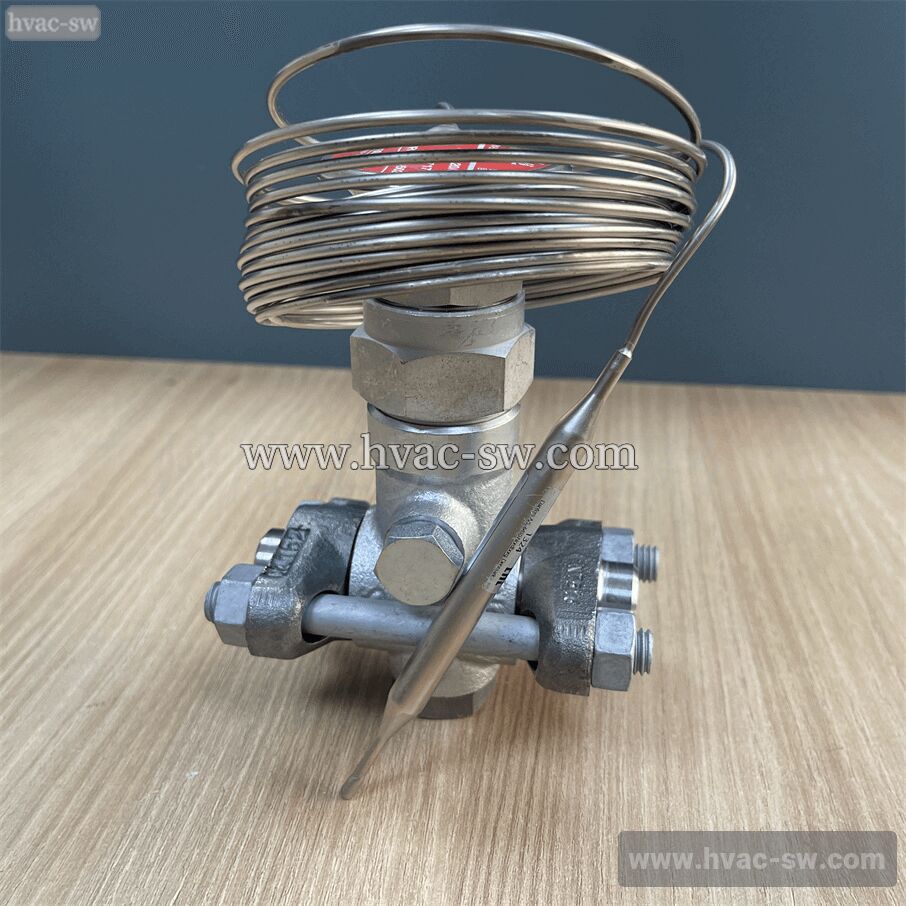

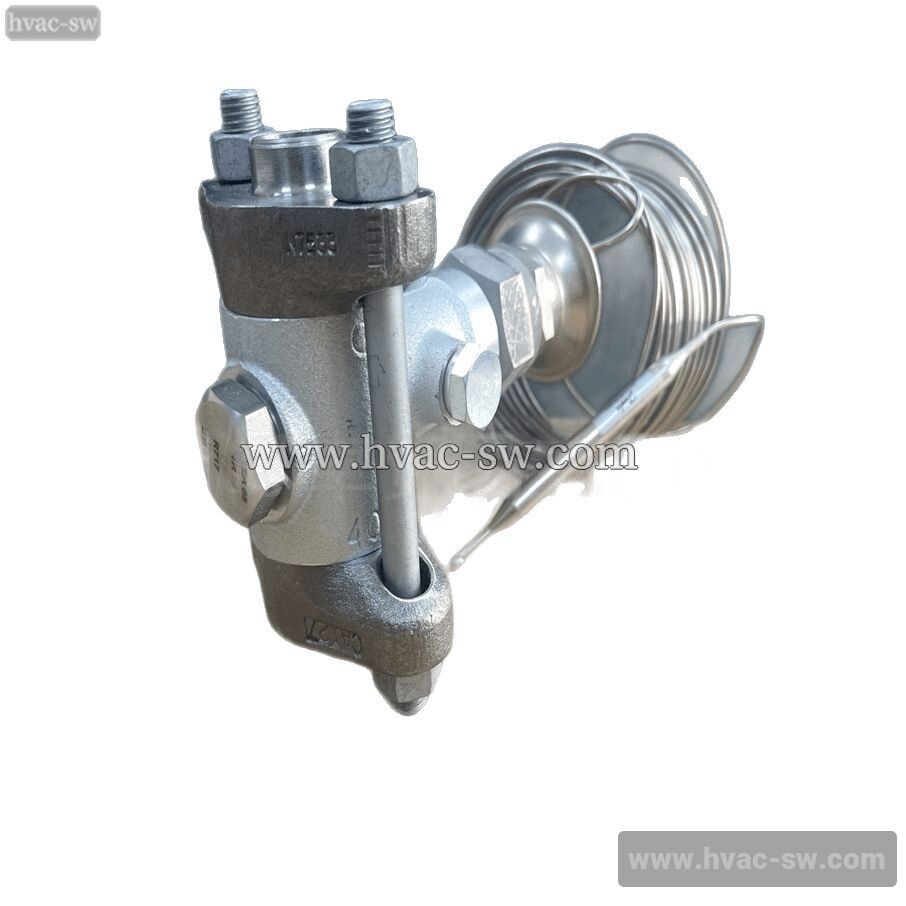

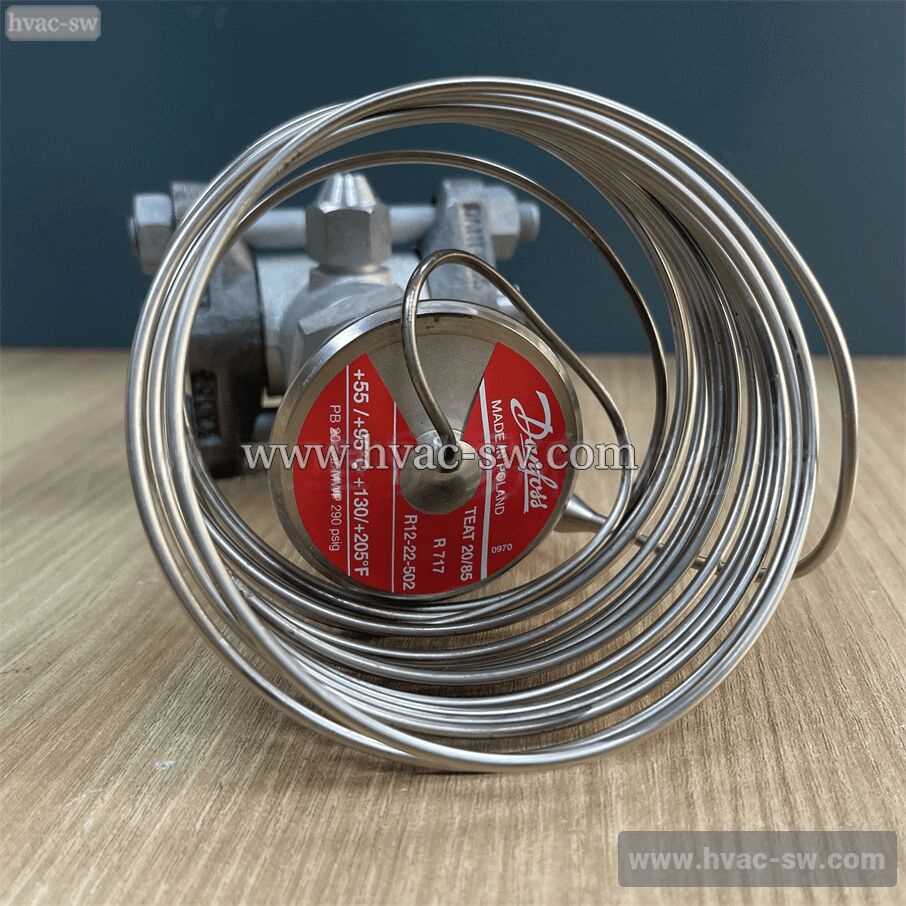

Danfoss TEAT20-20 068G6064 Thermostatic Expansion Valve
Danfoss
Description
Danfoss TEAT20-20 068G6064 is a thermostatic expansion valve designed for R717 (Ammonia) in industrial refrigeration systems. It ensures precise control of refrigerant flow into evaporators, offering high efficiency and reliability.
Product Details
| Attribute | Value |
|---|---|
| Gross weight | 2.622 Kilogram |
| Net weight | 2.472 Kilogram |
| Volume | 6.248 Liter |
| EAN | 5702422040675 |
| Type | TEAT 20-20 |
| Product group | Expansion valves |
| Product Name Description | Desuperheating valve |
| Approval | EAC |
| Body material | Cast iron GGG40.3 |
| Capillary tube length [in] | 192 in |
| Capillary tube length [mm] | 5000 mm |
| China RoHS compliance | Out of scope |
| Connection size [in] | 1/2 in |
| Connection type | Weld flange |
| Contains batteries | No |
| Direction | Straightway |
| EU RoHS compliance | Out of scope |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | 1 |
| Inlet connection size [in] | 1/2 in |
| Max. test pressure [bar] | 30 bar |
| Max. test pressure [psig] | 435 psig |
| Max. Working Pressure [bar] | 20 bar |
| Max. Working Pressure [psig] | 290 psig |
| P band [ºC] | 20 °C |
| P band [ºF] | 68 °F |
| Packing format | Single pack |
| PED category | Art. 4, par. 3 |
| Pressure equalization | Internally equalized |
| Product accessories | Flanges |
| Product description | Thermostatic Injec. Valve |
| Quantity per packing format | 1 pc |
| Rated cap. conditions [IMP] | Subcooling=7,2 °tevap=39,2 °F |
| Rated cap. conditions [SI] | Subcooling=4Ktevap=4 °C |
| Rated capacity R717 [kW] | 64 kW |
| Rated capacity R717 [TR] | 18.3 TR |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R134aR22R401AR402AR404AR407AR407BR407CR407FR409AR410AR421AR502R717R507A |
| SCIP dossier no. | 36edeb64-8ad3-4d4f-be91-c10b973ca10e |
| SCIP dossier product name | TEA TEAT |
| Serviceable | TXV spare parts |
| Temperature range [°C] [max] | 95 °C |
| Temperature range [°C] [min] | 55 °C |
| Temperature range [°F] [max] | 203 °F |
| Temperature range [°F] [min] | 131 °F |
