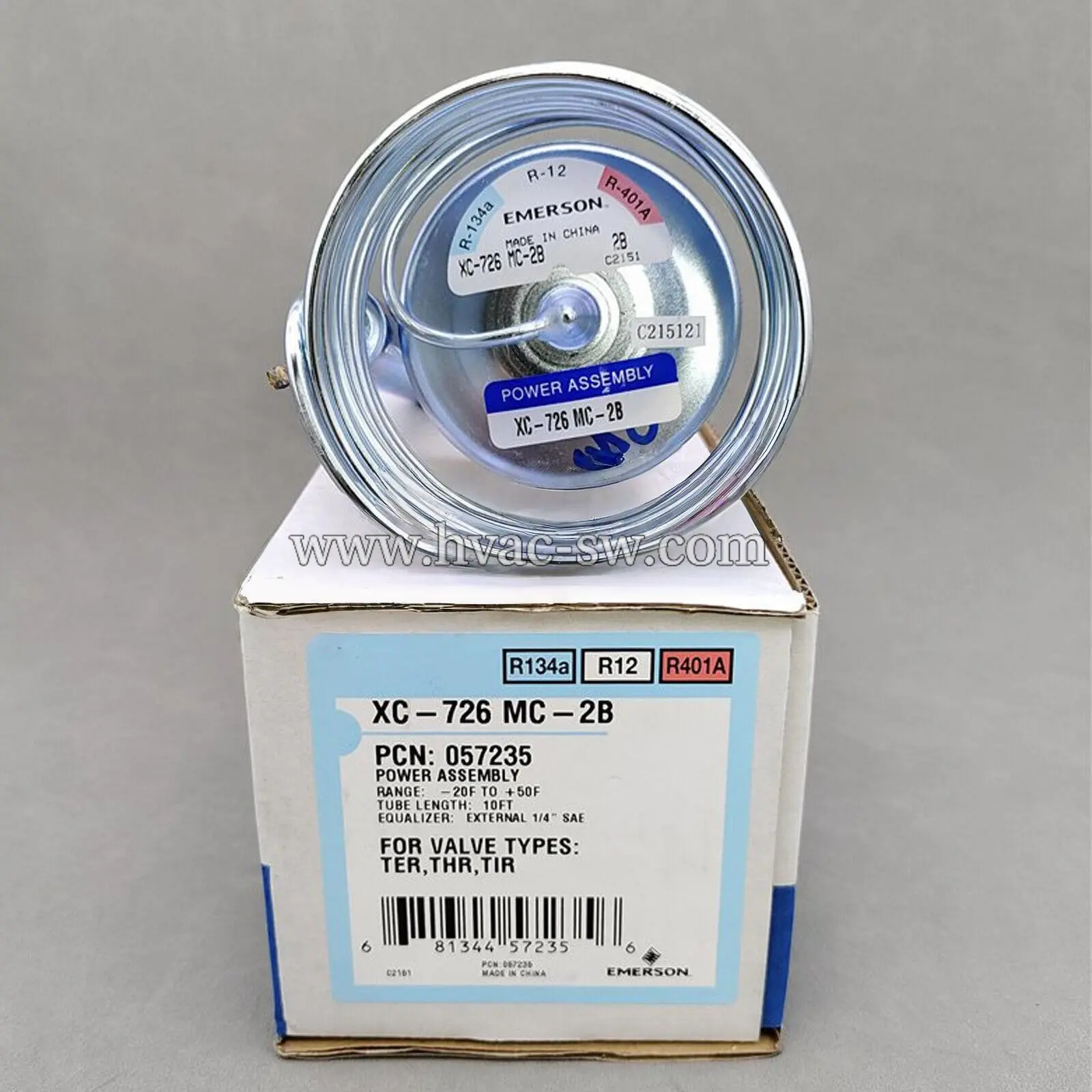

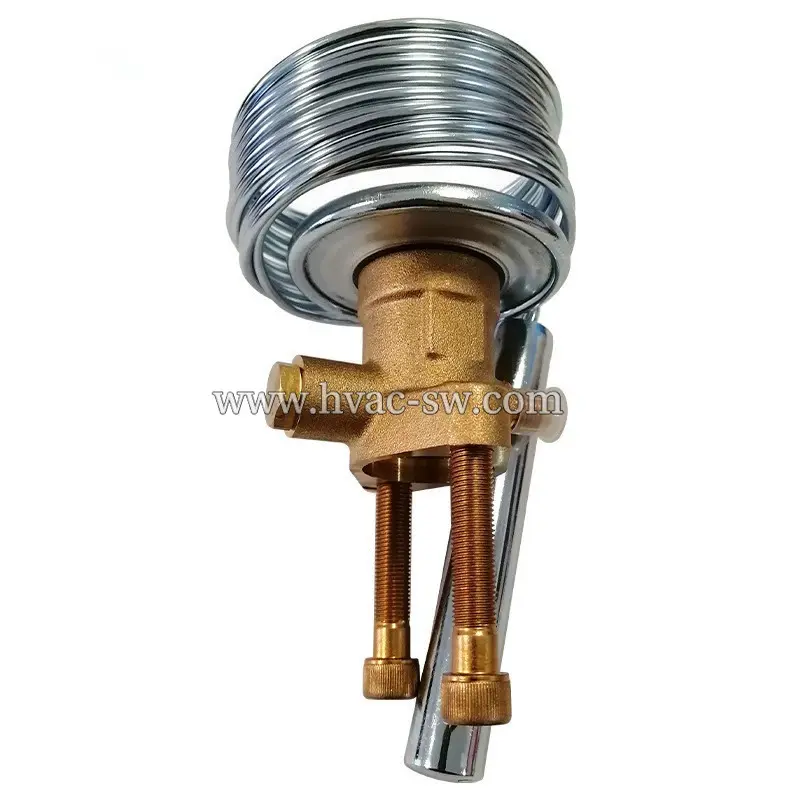

Emerson XC-726MC-2B 057235 Temperature Sensing Bulb
Emerson
Description
Emerson XC-726MC-2B (SKU/PCN/PN: 057235) is a temperature sensing bulb designed for precise control of thermostatic expansion valves in refrigeration and air conditioning systems. It ensures reliable superheat regulation and optimal system efficiency, making it an essential component for HVAC professionals seeking to enhance system performance and reliability.
Product Details
Emerson T-Series (TER / TIR / TMR) Selection Table
Step 1 – Select Cage from Capacity Table
| Cage Assembly | PCN | Valve | Nominal Capacity - Tons | |||||
|---|---|---|---|---|---|---|---|---|
| R12 | R22 | R502 | R134a | R404A | R407C | |||
| X9117B6B | 077896 | TER | 13 | 16 | 22 | 14 | 14 | 22 |
| X9117B7B | 078117 | TER | 15 | 19 | 26 | 16 | 16 | 26 |
| X9117B8B | 071155 | TER | 20 | 25 | 35 | 21 | 21 | 35 |
| X9117B9B | 029429 | TER | 25 | 31 | 45 | 27 | 27 | 45 |
| X9166B10B | 070738 | TIR | 35 | 45 | 55 | 37 | 37 | 55 |
| X9144B10B | 071238 | 35 | 45 | 55 | 37 | 37 | 55 | |
| X9144B13B | 021067 | TMR | 55 | 68 | 85 | 60 | 60 | 85 |
| X9144B14B | 065123 | TMR | 55 | 68 | 100 | 60 | -- | 100 |
Gaskets included on cage.
Gasket strip X13455-1 (PCN: 027579) replaces all older T-Series gasket kits.
Gasket strip X13455-1 (PCN: 027579) replaces all older T-Series gasket kits.
Step 2 – Select Body / Flange
| Valve Type | Style | Inlet | Outlet | Body Flange Part Number | PCN |
|---|---|---|---|---|---|
| TER | ANGLE | 7/8 ODF or 1-1/8 ODM | 7/8 ODF or 1-1/8 ODM | 9153 | 027919 |
| TER | STRAIGHT-THRU | 7/8 ODF or 1-1/8 ODM | 7/8 ODF or 1-1/8 ODM | 9152 | 027918 |
| TIR | ANGLE | 7/8 ODF or 1-1/8 ODM | 7/8 ODF or 1-1/8 ODM | 9151 | 027926 |
| TIR | STRAIGHT-THRU | 7/8 ODF or 1-1/8 ODM | 7/8 ODF or 1-1/8 ODM | 9150 | 028849 |
| TMR | ANGLE | 1-1/8 ODM | 1-1/8 ODM | 9149 | 028030 |
| TMR | STRAIGHT-THRU | 1-1/8 ODM | 1-1/8 ODM | 9149-1 | 065124 |
| STRAIGHT-THRU | 1-1/8 ODM | 1-1/8 ODM | 9148-1 | 065125 |
TER-TMR Flange includes extended length capscrews.
Step 3 – Select Power Assembly
| Power Assembly | PCN | Refrigerant | Equalizer Type | Cap Tube Length | Temp. Range | MOP (psi) |
|---|---|---|---|---|---|---|
| XC-726FC-2B | 052957 | R-12 | 1/4 SAE | 10 FT | -20 to +40 | NONE |
| XC-726FW55-2B | 035000 | R-12 | 1/4 SAE | 10 FT | -50 to +50 | 55 |
| XC-726HC-2B | 056421 | R-22 | 1/4 SAE | 10 FT | -20 to +50 | NONE |
| XC-726HW35-2B | 024511 | R-22 | 1/4 SAE | 10 FT | -50 to +30 | 35 |
| XC-726HW65-2B | 025011 | R-22 | 1/4 SAE | 10 FT | -50 to +30 | 65 |
| XC-726HCA-2B | 059333 | R-22 | 1/4 SAE | 10 FT | -20 to +50 | NONE |
| XC-726HZ-2B | 040569 | R-22 | 1/4 SAE | 10 FT | -50 to +10 | NONE |
| XC-726MC-2B | 057235 | R-134A | 1/4 SAE | 10 FT | -20 to +50 | NONE |
| XC-726MW55-2B | 057372 | R-134A | 1/4 SAE | 10 FT | -50 to +50 | 55 |
| XC-726MZ-2B | 063075 | R-134A | 1/4 SAE | 10 FT | -50 to +10 | NONE |
| XC-726RC-2B | 052958 | R-502 | 1/4 SAE | 10 FT | -20 to +50 | NONE |
| XC-726RW15-2B | 023351 | R-502 | 1/4 SAE | 10 FT | -50 to +20 | 15 |
| XC-726RW35-2B | 070866 | R-502 | 1/4 SAE | 10 FT | -50 to +50 | 35 |
| XC-726RW65-2B | 071421 | R-502 | 1/4 SAE | 10 FT | -50 to +25 | 65 |
| XC-726RZ-2B | 046692 | R-502 | 1/4 SAE | 10 FT | -50 to +10 | NONE |
| XC-726SC-2B | 062303 | R-404A | 1/4 SAE | 10 FT | -20 to +50 | NONE |
| XC-726SW40-2B | 063127 | R-404A | 1/4 SAE | 10 FT | -50 to +10 | 40 |
| XC-726SW65-2B | 061692 | R-404A | 1/4 SAE | 10 FT | -50 to +25 | 65 |
| XC-726SZ-2B | 063974 | R-404A | 1/4 SAE | 10 FT | -50 to +10 | NONE |
Capscrews included with Power Assembly
MOP = Maximum Operating Pressure Limit to prevent motor overload
MOP = Maximum Operating Pressure Limit to prevent motor overload
