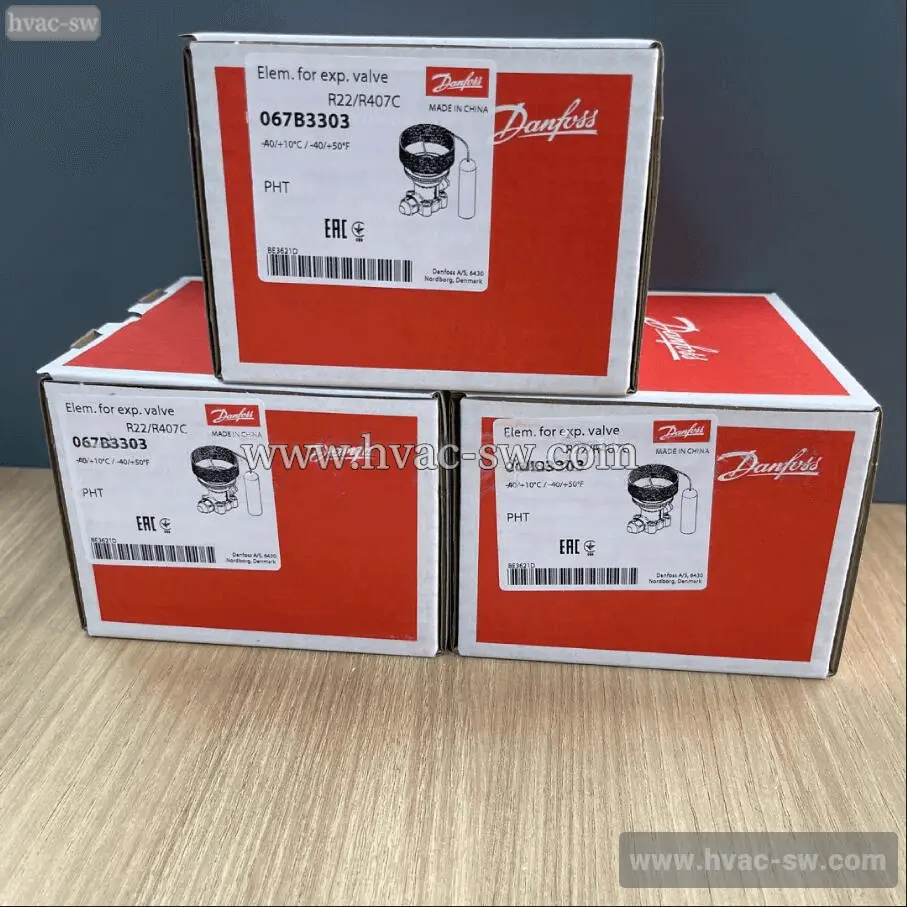

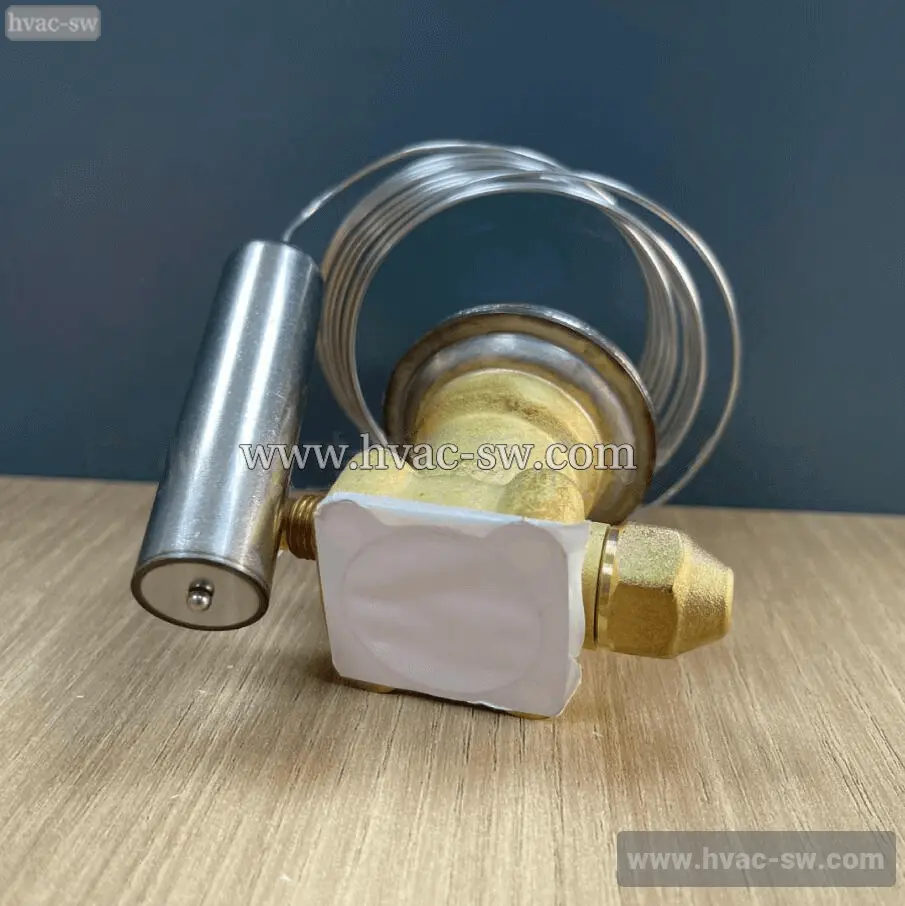

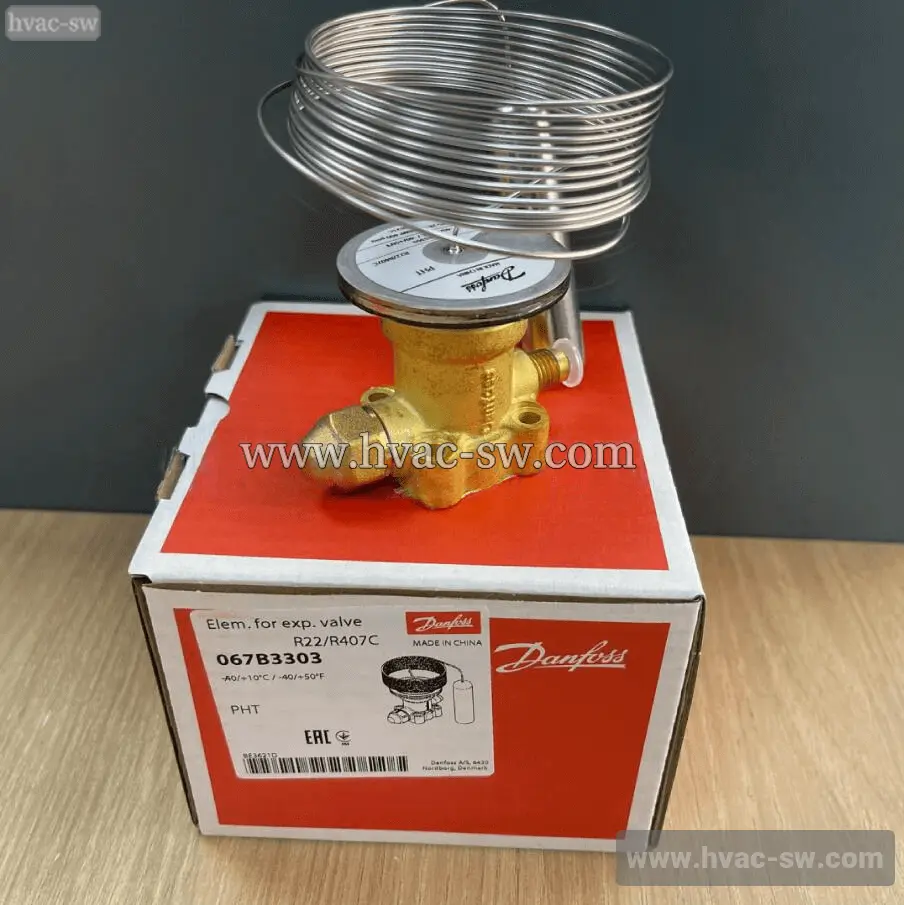

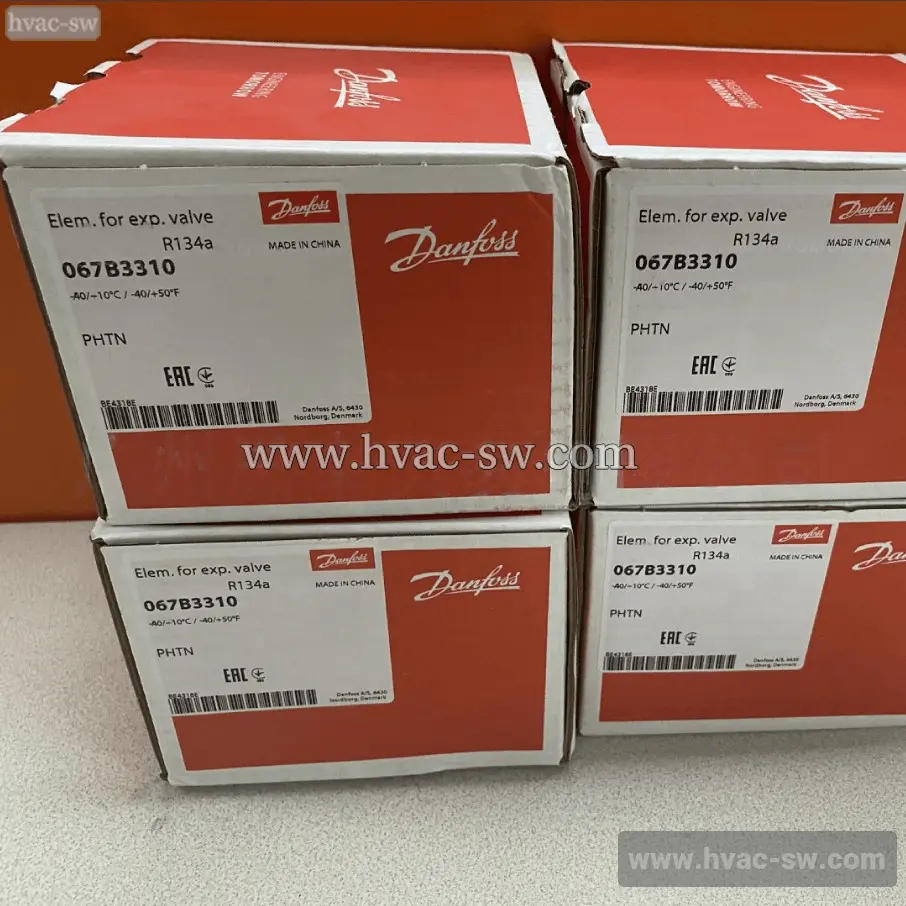

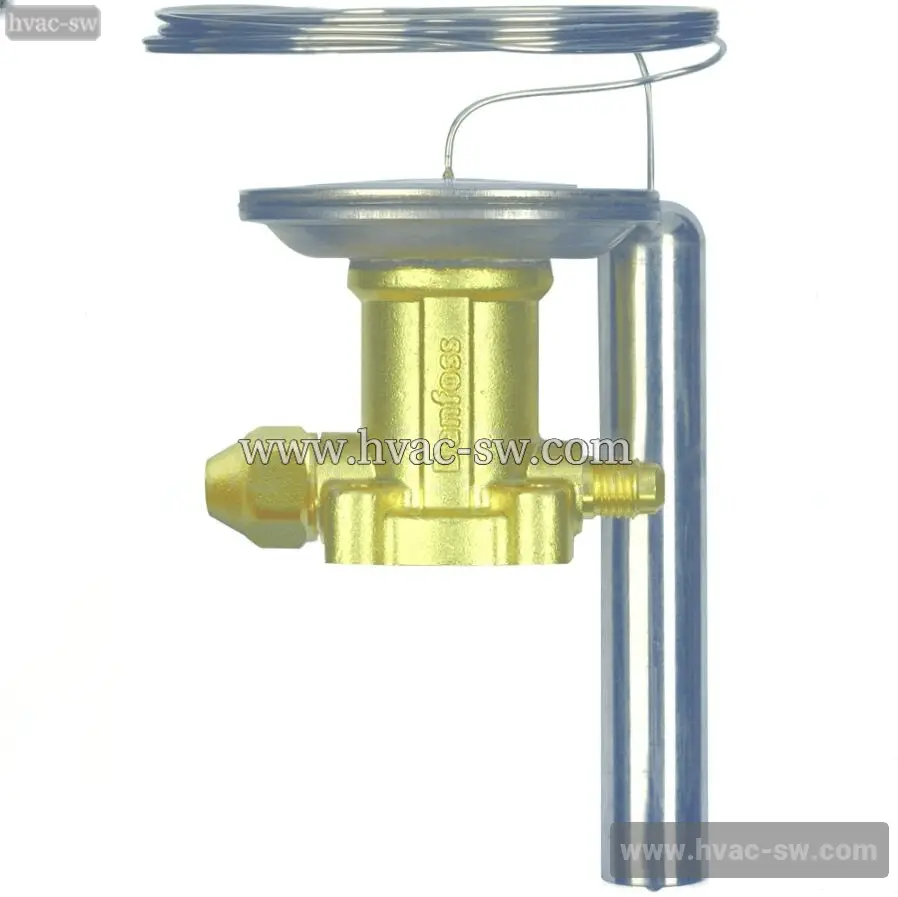

Danfoss 026H1164 Expansion Valve Temperature Sensor Bulb
Danfoss PHT125 and PHT300 thermostatic expansion valves, paired with temperature sensing bulbs (026H1164, 027H1165, 027H1166), ensure precise refrigerant flow control, optimal superheat, and reliable performance in refrigeration and air conditioning systems.
Need help confirming this part?
Send us the part number, equipment model, nameplate information or a product photo. We can check available sourcing options, pricing and lead time.
Product Overview
| Model | Nominal Diameter (DN) (mm) | Nominal Pressure (PN) (MPa) | Body Material | Connection Type |
|---|---|---|---|---|
| 067B3303 PHT | DN12 | 45 | Copper | Flange |
| PHT125 PHT300 026H1164 027H1165 027H1166 | DN16 | 45 | Copper | Welding |
| Attribute | Value |
|---|---|
| Gross weight | 0.755 Kilogram |
| Net weight | 0.65 Kilogram |
| Volume | 1.18 Liter |
| EAN | 5702428243049 |
| Type | ICV 20 |
| Product group | Multifunction valves |
| Product Name Description | Multifunction valve body |
| Body material | Steel |
| Brand | ICV Flexline |
| China RoHS compliance | Out of scope |
| Connection material | Steel |
| Connection size [in] | 1 in |
| Connection size [mm] | 25 mm |
| Connection standard | ASME B 36.10M SCHEDULE 80 |
| Connection type | Butt weld |
| Contains batteries | No |
| EU RoHS compliance | Out of scope |
| Flow direction indicator | Embossed 1-way arrow |
| Max. Working Pressure [bar] | 52 bar |
| Max. Working Pressure [psig] | 754 psig |
| Packing format | Single pack |
| Parts Program name | ICLXICMICS |
| Product accessories | ICM / ICS / ICLX accessories |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R113R114R1233zd(E)R1234yfR1234ze(E)R125R1270R1336mzz(Z)R134aR152aR170R22R227eaR23R236faR290R32R401AR402AR402BR404AR407AR407BR407CR407FR407HR408AR409AR410AR417AR421AR422AR422BR422DR427AR438AR444BR447AR448AR449AR449BR450AR452AR454BR455AR502R503R513AR600R600aR717R744RE170R507AR1150R245faR413AR442AR447BR452BR454AR454CR463AR512AR513BR515AR515BR516AR508B |
| Serviceable | ICM / ICS / ICLX spare parts |
| Temperature range [°C] [max] | 120 °C |
| Temperature range [°C] [min] | -60 °C |
| Temperature range [°F] [max] | 248 °F |
| Temperature range [°F] [min] | -76 °F |
| Used for product | ICM 20 |
| Valve operation | Function module |
