name

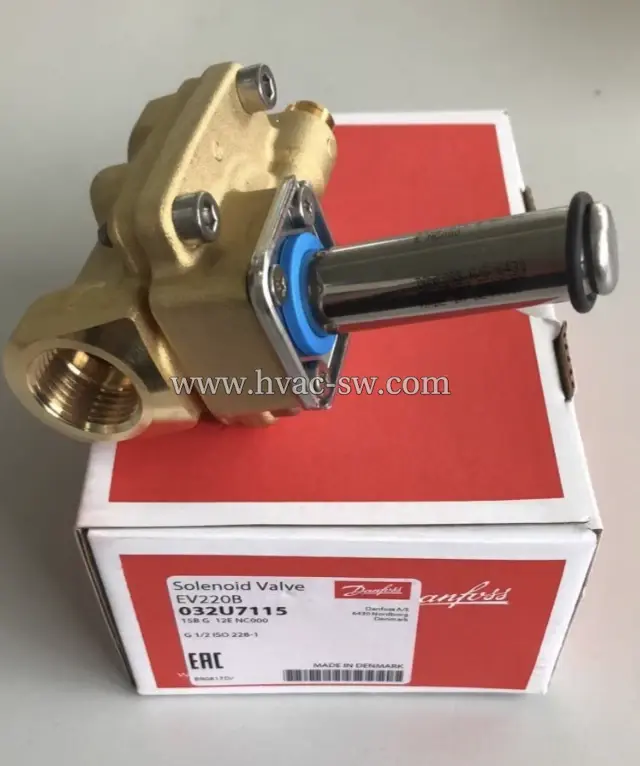

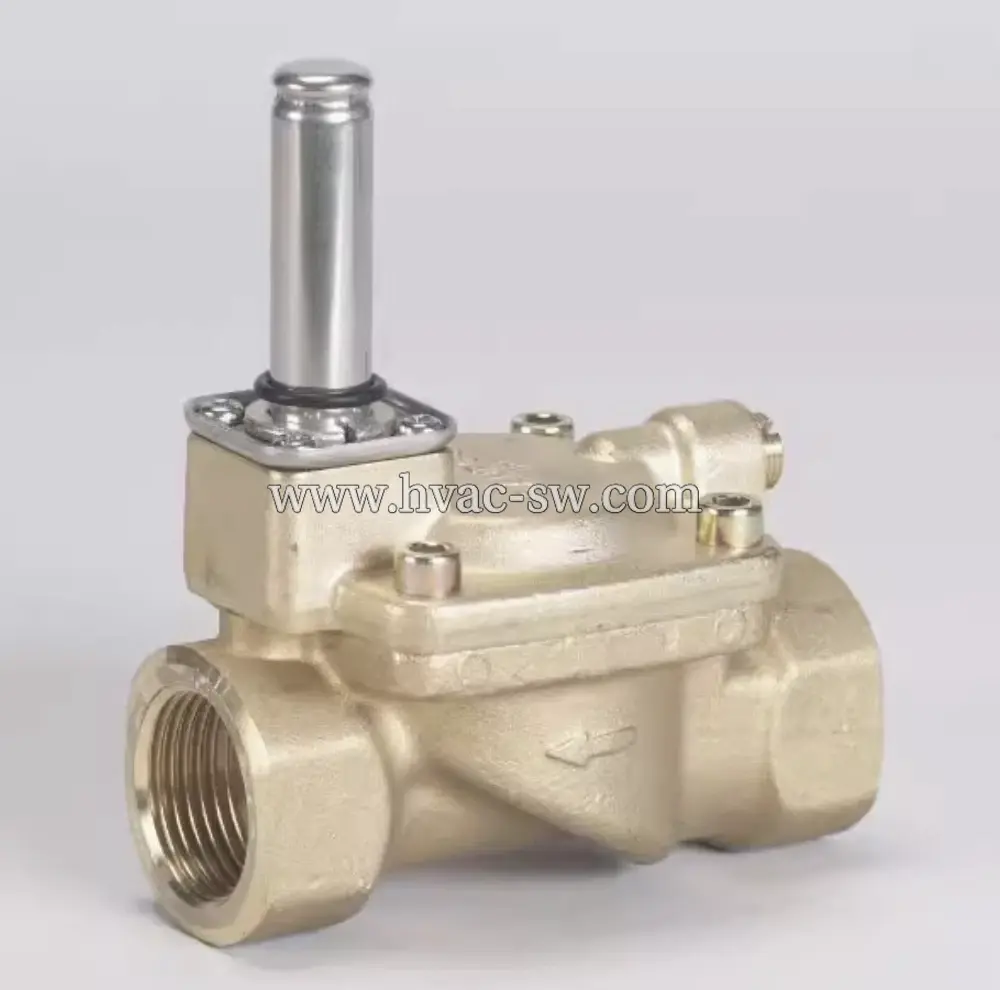

Danfoss EV220B 032U7115 Solenoid Valve Body G 1/2" NC, Less CoilDescription
The Danfoss EV220B (032U7115) is a pilot-operated solenoid valve body, sold without coil, designed for water, air, and oil applications. Featuring a G 1/2" female thread connection, normally closed configuration, and forged brass body, it is manufactured in Denmark and EAC certified. With a maximum working pressure of 16 bar and wide temperature range, it provides reliable shutoff control for HVAC systems, water treatment plants, industrial automation, and process fluid control applications.
Product Details
Danfoss EV220B 032U7115 Pilot-Operated Solenoid Valve Body
Key Features & Benefits
Pilot-Operated Design: Requires minimal differential pressure to open, making it suitable for low-pressure systems and reducing power consumption.
Robust Brass Construction: Precision-forged brass valve body provides excellent corrosion resistance, mechanical strength, and long-term durability, ensuring reliable performance in harsh industrial environments.
Normally Closed Design: Factory-set normally closed configuration ensures fail-safe shutoff in the event of power loss, preventing fluid leakage and protecting downstream equipment.
Standard Threaded Connection: G 1/2" female thread (ISO 228-1) ensures easy installation and compatibility with most existing piping systems, simplifying integration in new or retrofitted systems.
Flexible Coil Compatibility: Compatible with Danfoss standard EV220B series solenoid coils (sold separately), supporting various AC/DC voltages and frequencies for global market integration.
Certified Quality: EAC certified, manufactured in Denmark to Danfoss' strict global quality standards, ensuring compliance with international safety and performance norms.
Application Scenarios
HVAC and air conditioning systems
Water supply and treatment systems
Industrial fluid and process pipelines
Hydraulic and pneumatic systems
Industrial automation and control projects
| Parameter | Specification |
|---|---|
| Brand | Danfoss |
| Series | EV220B |
| Model Number | 032U7115 |
| Product Type | Pilot-Operated Solenoid Valve Body (Less Coil) |
| Connection Type | Female Thread (G) |
| Connection Size | G 1/2 in (ISO 228-1) |
| Function Type | Normally Closed (NC) |
| Model Code | 15B G 12E NC000 |
| Body Material | Forged Brass |
| Max Working Pressure | 16 bar |
| Operating Temperature Range | -10℃ ~ +80℃ |
| Compatible Fluids | Water, Air, Oil, Neutral Fluids |
| Certifications | EAC |
| Origin | Made in Denmark |
| Application | HVAC Systems, Water Treatment, Industrial Automation, Process Control |
| Attribute | Value |
|---|---|
| Gross weight | 0.755 Kilogram |
| Net weight | 0.65 Kilogram |
| Volume | 1.18 Liter |
| EAN | 5702428243049 |
| Type | ICV 20 |
| Product group | Multifunction valves |
| Product Name Description | Multifunction valve body |
| Body material | Steel |
| Brand | ICV Flexline |
| China RoHS compliance | Out of scope |
| Connection material | Steel |
| Connection size [in] | 1 in |
| Connection size [mm] | 25 mm |
| Connection standard | ASME B 36.10M SCHEDULE 80 |
| Connection type | Butt weld |
| Contains batteries | No |
| EU RoHS compliance | Out of scope |
| Flow direction indicator | Embossed 1-way arrow |
| Max. Working Pressure [bar] | 52 bar |
| Max. Working Pressure [psig] | 754 psig |
| Packing format | Single pack |
| Parts Program name | ICLXICMICS |
| Product accessories | ICM / ICS / ICLX accessories |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R113R114R1233zd(E)R1234yfR1234ze(E)R125R1270R1336mzz(Z)R134aR152aR170R22R227eaR23R236faR290R32R401AR402AR402BR404AR407AR407BR407CR407FR407HR408AR409AR410AR417AR421AR422AR422BR422DR427AR438AR444BR447AR448AR449AR449BR450AR452AR454BR455AR502R503R513AR600R600aR717R744RE170R507AR1150R245faR413AR442AR447BR452BR454AR454CR463AR512AR513BR515AR515BR516AR508B |
| Serviceable | ICM / ICS / ICLX spare parts |
| Temperature range [°C] [max] | 120 °C |
| Temperature range [°C] [min] | -60 °C |
| Temperature range [°F] [max] | 248 °F |
| Temperature range [°F] [min] | -76 °F |
| Used for product | ICM 20 |
| Valve operation | Function module |
