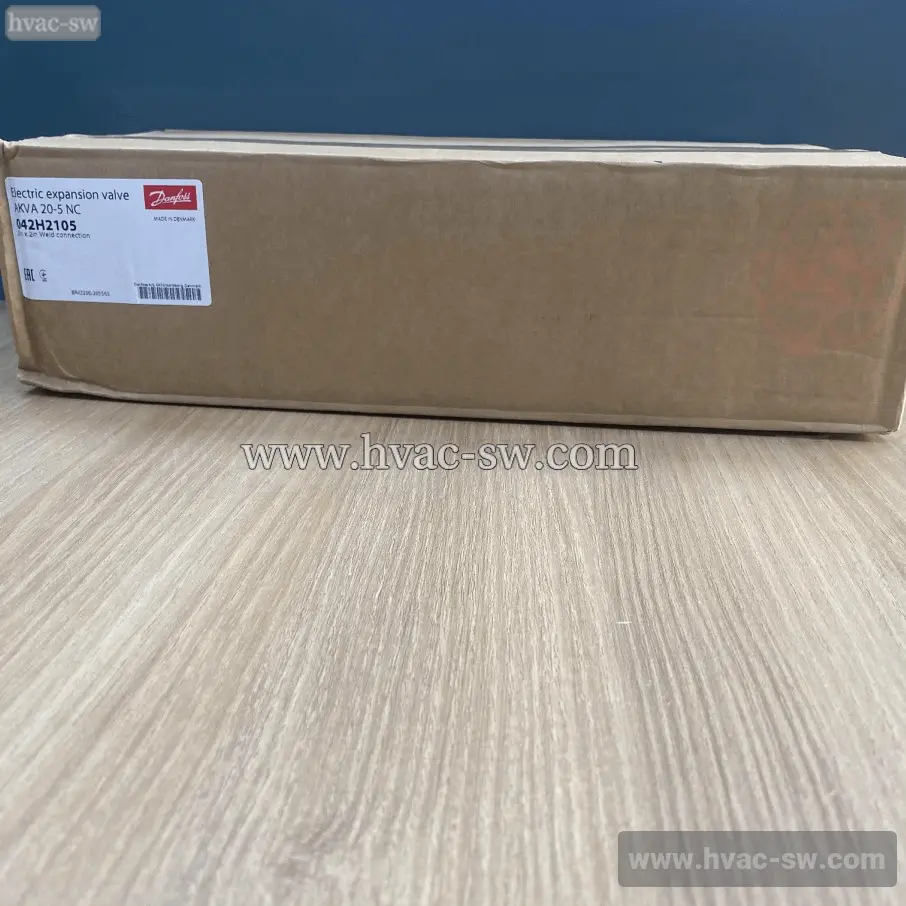

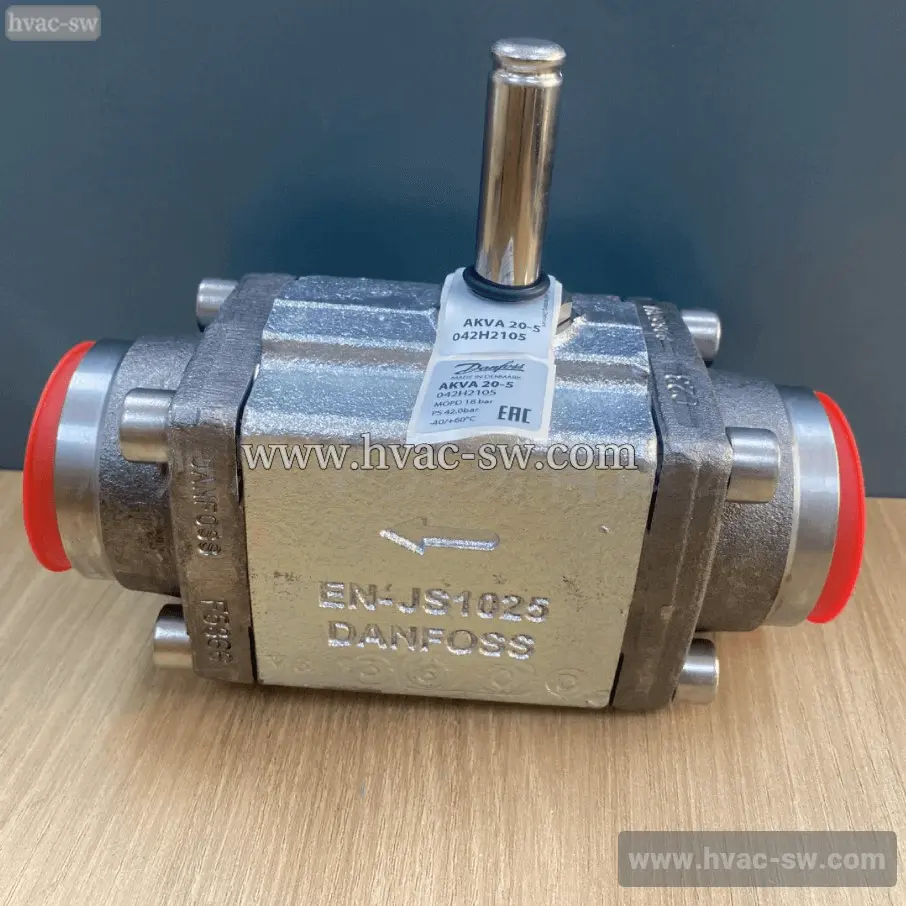

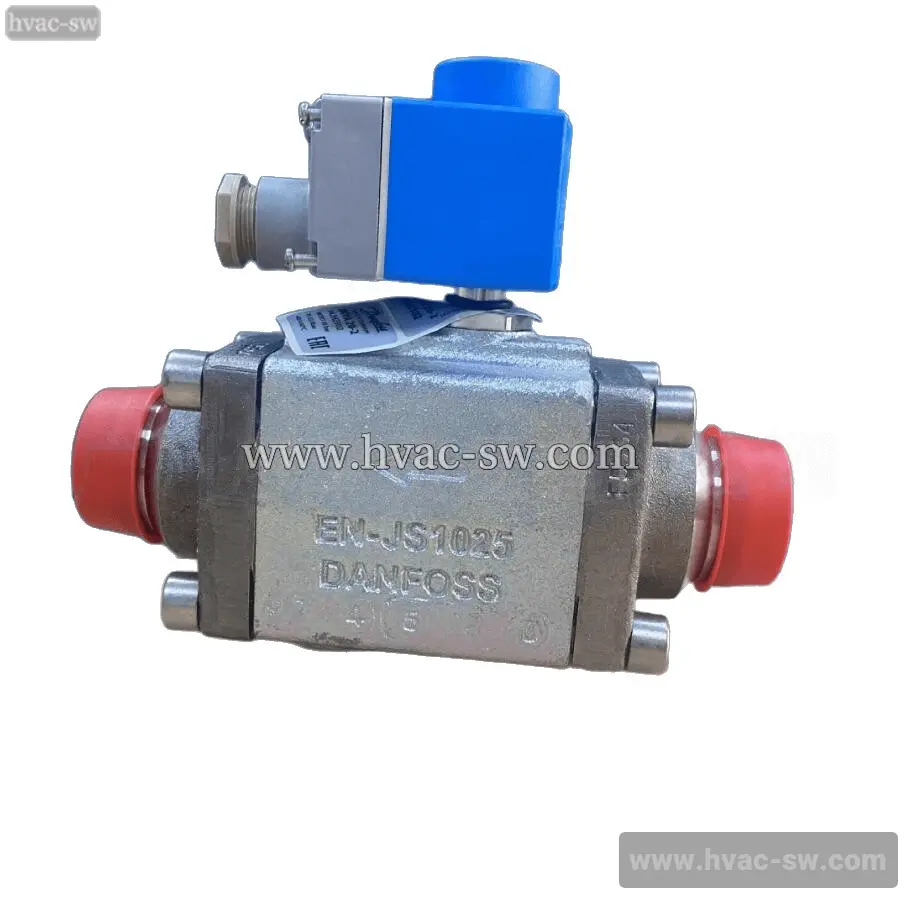

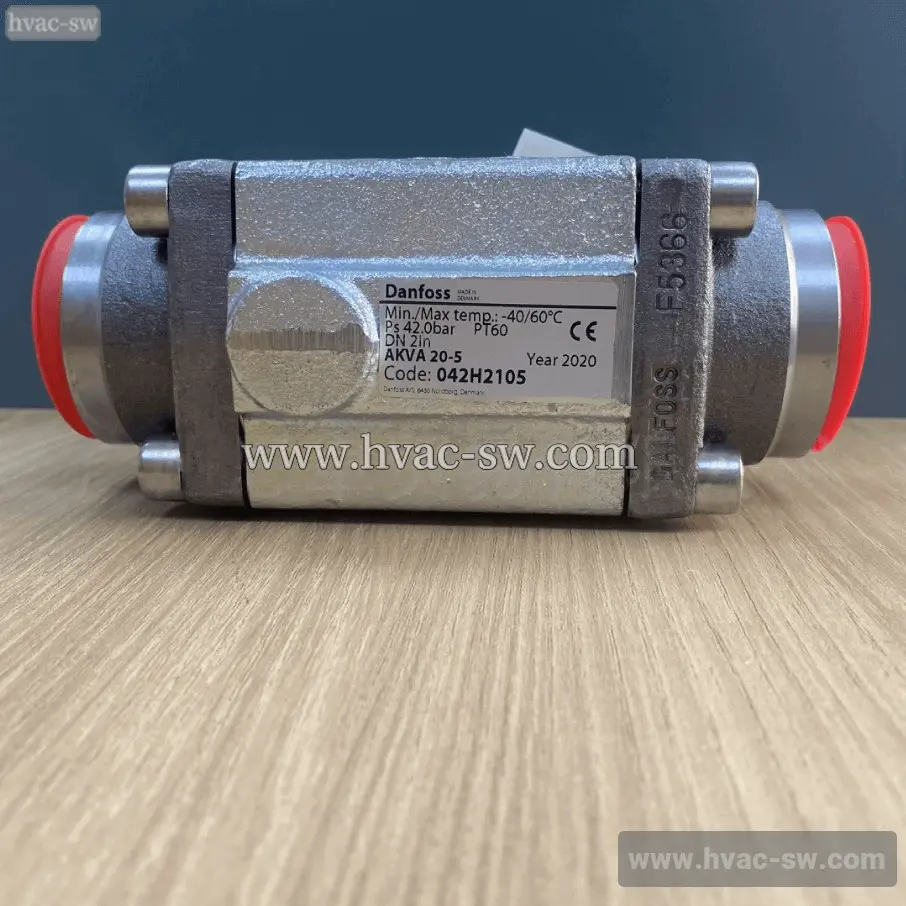

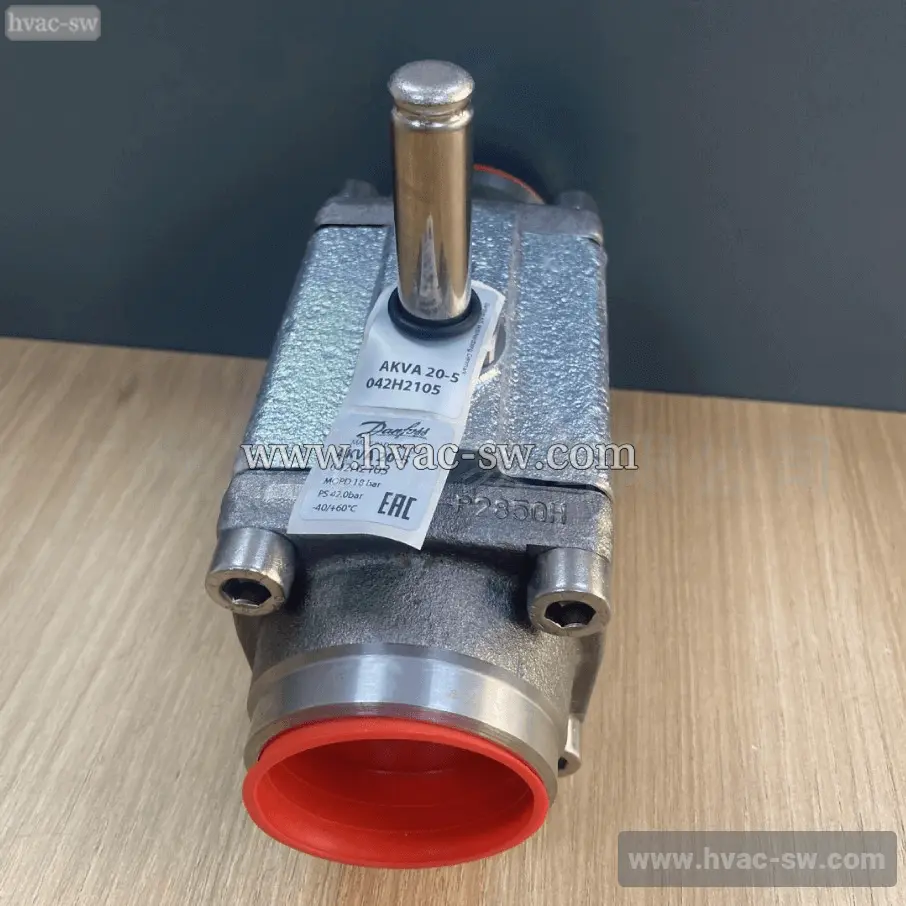

Danfoss AKVA20-5 042H2105 Ammonia Refrigeration Expansion Valve
Danfoss AKVA20-5 042H2105 is a precision electronic expansion valve designed for ammonia (R717) refrigeration systems. It provides accurate refrigerant flow control, enhancing system efficiency, stability, and safety for demanding industrial applications.
Need help confirming this part?
Send us the part number, equipment model, nameplate information or a product photo. We can check available sourcing options, pricing and lead time.
Product Overview
| Attribute | Value |
|---|---|
| Grossweight | 4.672Kilogram |
| Netweight | 4.482Kilogram |
| Volume | 7.56Liter |
| EAN | 5702422120865 |
| Type | AKVA20-5 |
| Productgroup | Expansionvalves |
| ProductNameDescription | Electricexpansionvalve |
| Actuatorsystem[mm] | 13.5mm |
| Ambienttemperature | -40-50°C |
| Ambienttemperaturerange[°F][max] | 120°F |
| Ambienttemperaturerange[°F][min] | -40°F |
| Approval | EACLLCCDCTYSK |
| Bodymaterial | Steel |
| ChinaRoHScompliance | Outofscope |
| Coil | No |
| CompatibleDanfosscontrollers | EKC315AEKE347 |
| Connectionmaterial | Steel |
| Containsbatteries | No |
| Cvvalue[gal/min] | 7.283gal/min |
| Direction | Straightway |
| EURoHScompliance | Yeswithexemptions |
| EURoHSexemptionclause | 6(a)6(c) |
| Flowdirectionindicator | Embossed1-wayarrow |
| Function | NC |
| Inletconnectiontype | Weldconnection |
| Inletsize[in] | 2in |
| Kvvalue[m³/h] | 6.3m³/h |
| Manualoperationoption | No |
| Max.WorkingPressure[bar] | 42bar |
| Max.WorkingPressure[psig] | 610psig |
| MaxOPD[bar]10WAC | 18bar |
| MaxOPD[psi]10WAC | 260psi |
| Mediumtemperaturerange[°C][max] | 60°C |
| Mediumtemperaturerange[°C][min] | -40°C |
| Mediumtemperaturerange[°F][max] | 140°F |
| Mediumtemperaturerange[°F][min] | -40°F |
| MinODP[bar] | 0bar |
| MinODP[psi] | 0psi |
| MOPD[bar/psi] | 18bar |
| Orificesize[mm] | 14mm |
| Outletconnectiontype | Weldconnection |
| Outletsize[in] | 2in |
| Packingformat | Singlepack |
| PartsProgramname | AKVA |
| Productaccessories | Electricvalveaccessories |
| Quantityperpackingformat | 1pc |
| RatedcapacityR717[kW] | 3150kW |
| REACHCandidateListsubstances | No |
| Refrigerants | R717R744 |
| Serviceable | Electricvalvespareparts |
| Typedesignation | Electricexpansionvalve |
| Workingprinciple | PWM |
