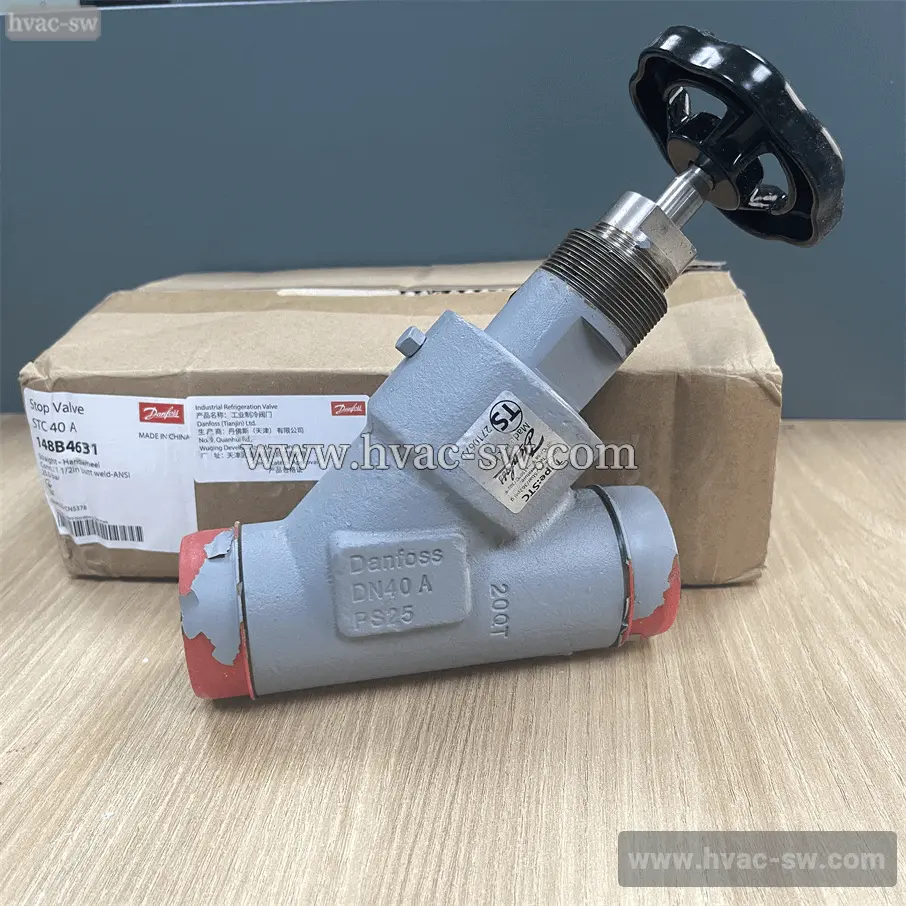

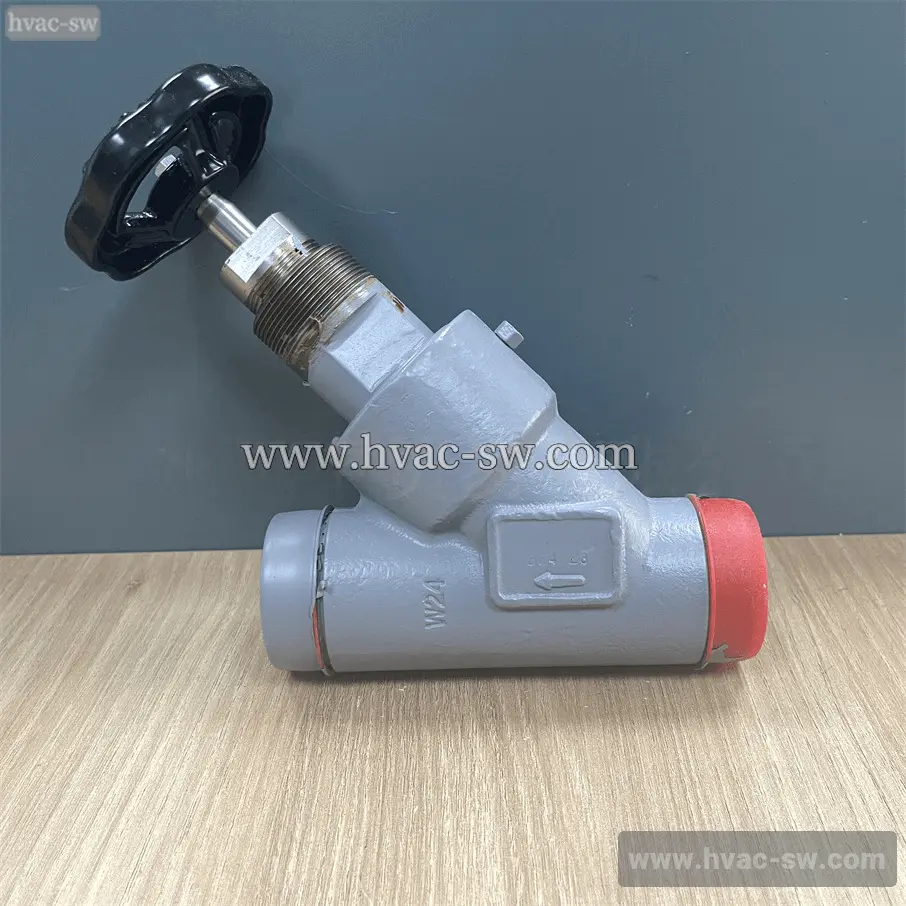

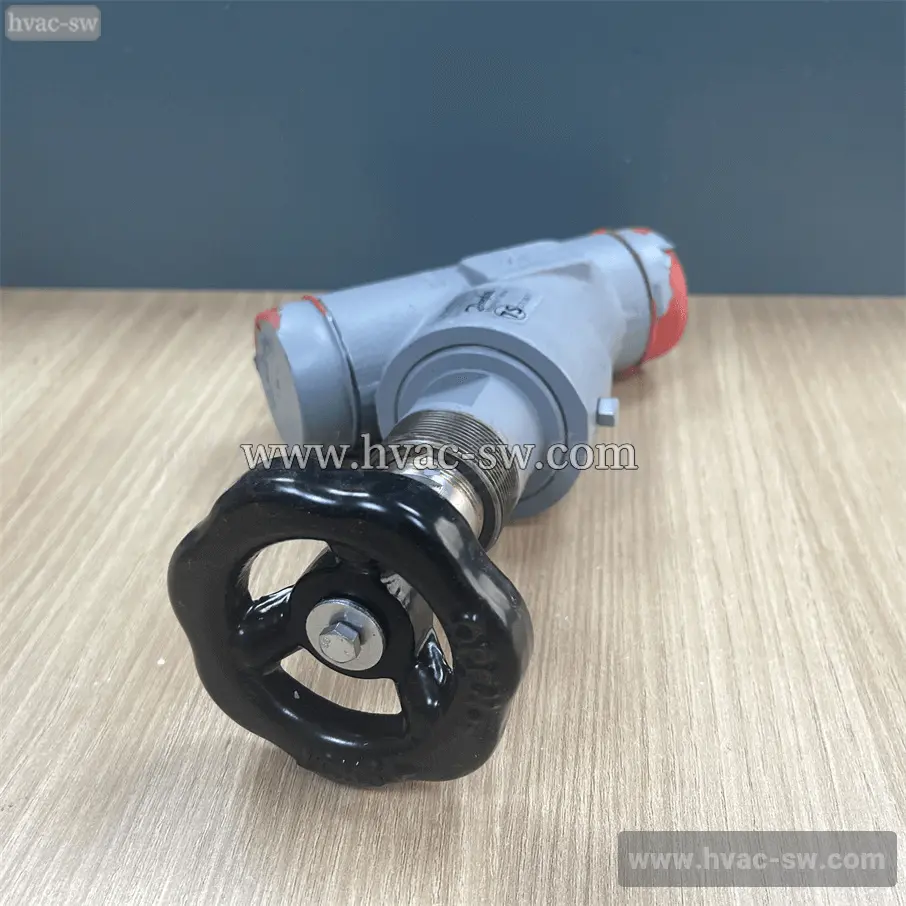

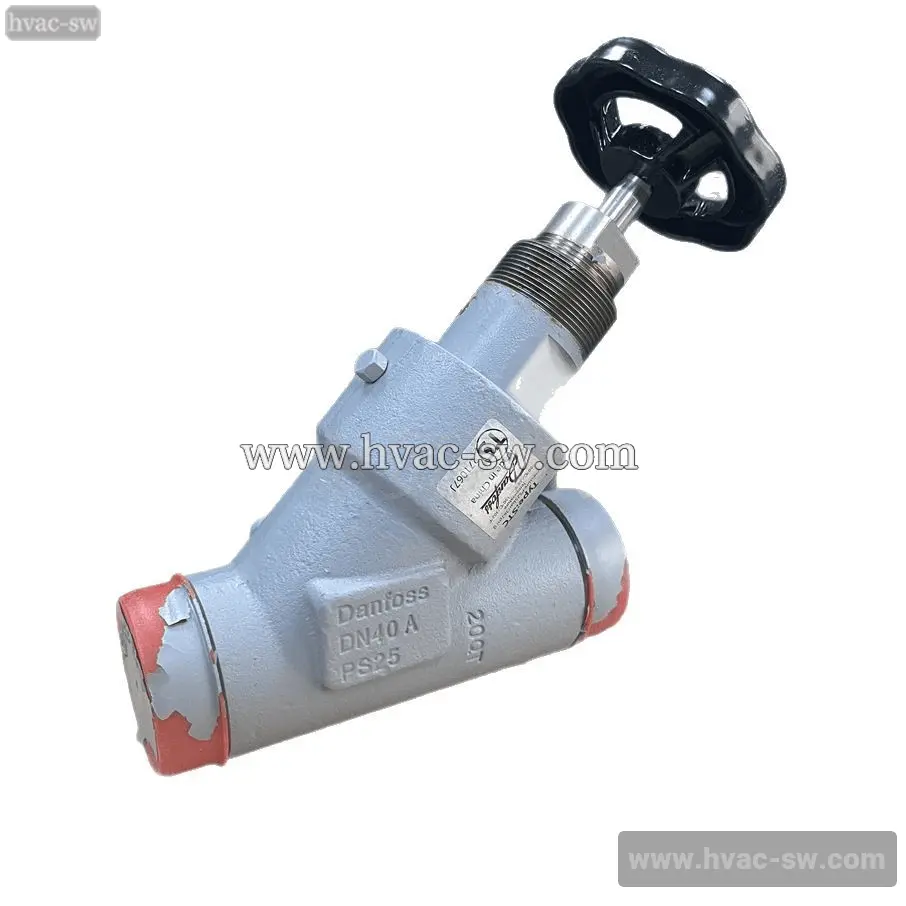

DANFOSS 148B4631 STC40A Handwheel Globe Valve DN40A PS25
Original DANFOSS STC40A handwheel operated globe valve, model 148B4631, part of the STC40 series with DN40A nominal size and PS25 pressure rating. Designed for reliable shut-off in industrial applications.
Need help confirming this part?
Send us the part number, equipment model, nameplate information or a product photo. We can check available sourcing options, pricing and lead time.
Product Overview
| Model | Specification | Nominal Diameter (DN) (mm) | Nominal Pressure (PN) (MPa) | Body Material | Connection Type |
|---|---|---|---|---|---|
| ICS3 32 027H3030 ICS3-32 D | DN32 | 52 | Cast Steel | Welding | Large |
| CVVP | DN65 | 52 | Cast Steel | Welding | Large |
| Attribute | Value |
|---|---|
| Gross weight | 3.175 Kilogram |
| Net weight | 3 Kilogram |
| Volume | 4.486 Liter |
| EAN | 5702428883757 |
| Type | STC 40 |
| Product group | Shut-off and regulating valves |
| Product Name Description | Shut-off valve |
| China RoHS compliance | Out of scope |
| Colour Paint | Gray |
| Connection standard | ASME B 36.10M SCHEDULE 80 |
| Contains batteries | No |
| Direction | Straightway |
| Equipment | Handwheel |
| EU RoHS compliance | Out of scope |
| Inlet connection size [in] | 1 1/2 in |
| Inlet connection size [mm] | 40 mm |
| Inlet connection type | Butt weld |
| Max. Working Pressure [bar] | 25 bar |
| Max. Working Pressure [psig] | 365 psig |
| Outlet connection size [in] | 1 1/2 in |
| Outlet connection size [mm] | 40 mm |
| Outlet connection type | Butt weld |
| Packing format | Single pack |
| Product description | Stop valve |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R134aR22R404AR717R507A |
| Temperature range [°C] [max] | 150 °C |
| Temperature range [°C] [min] | -50 °C |
| Temperature range [°F] [max] | 302 °F |
| Temperature range [°F] [min] | -58 °F |
