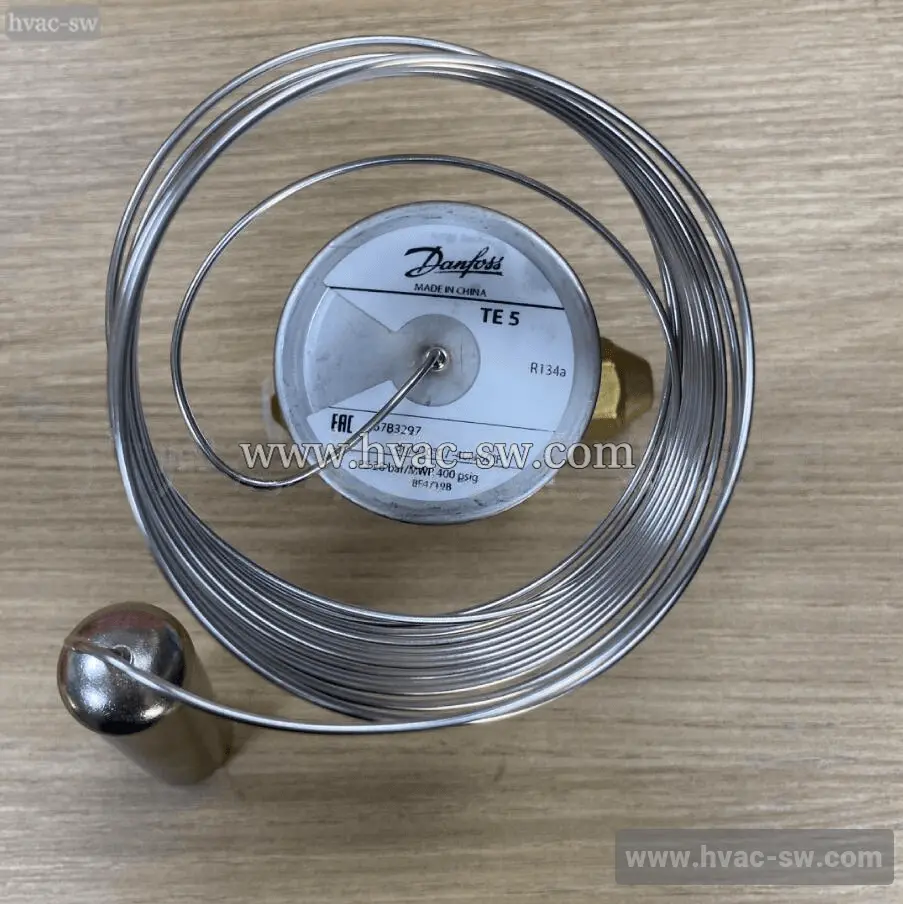

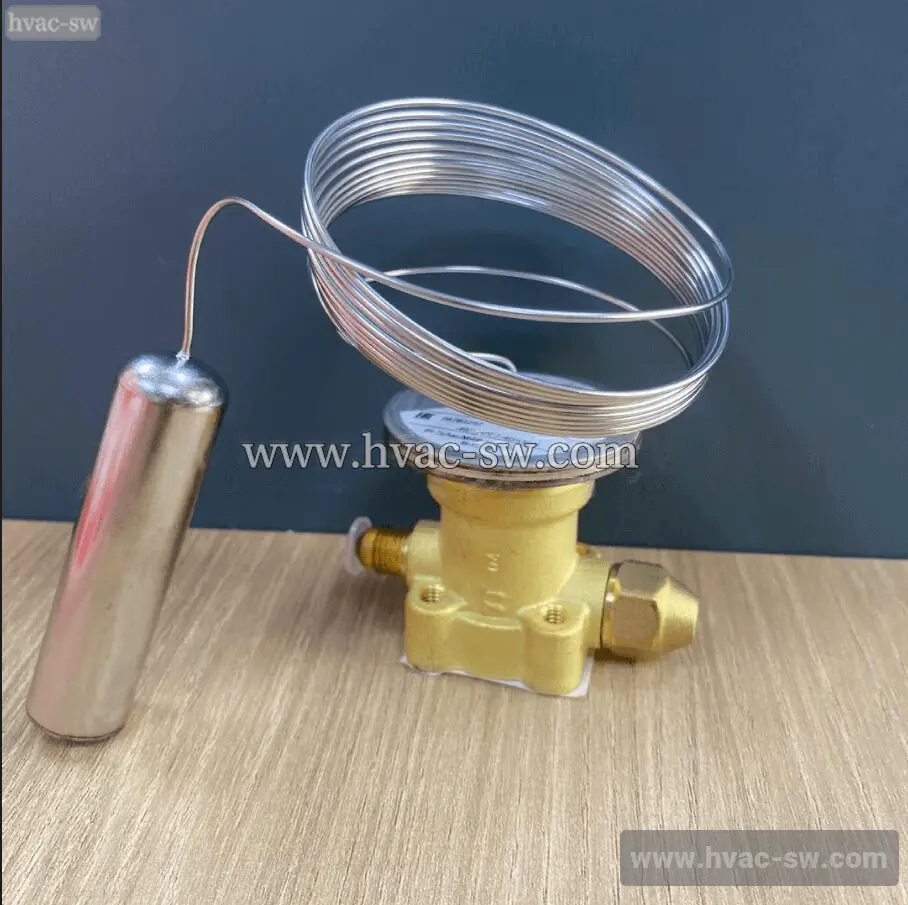

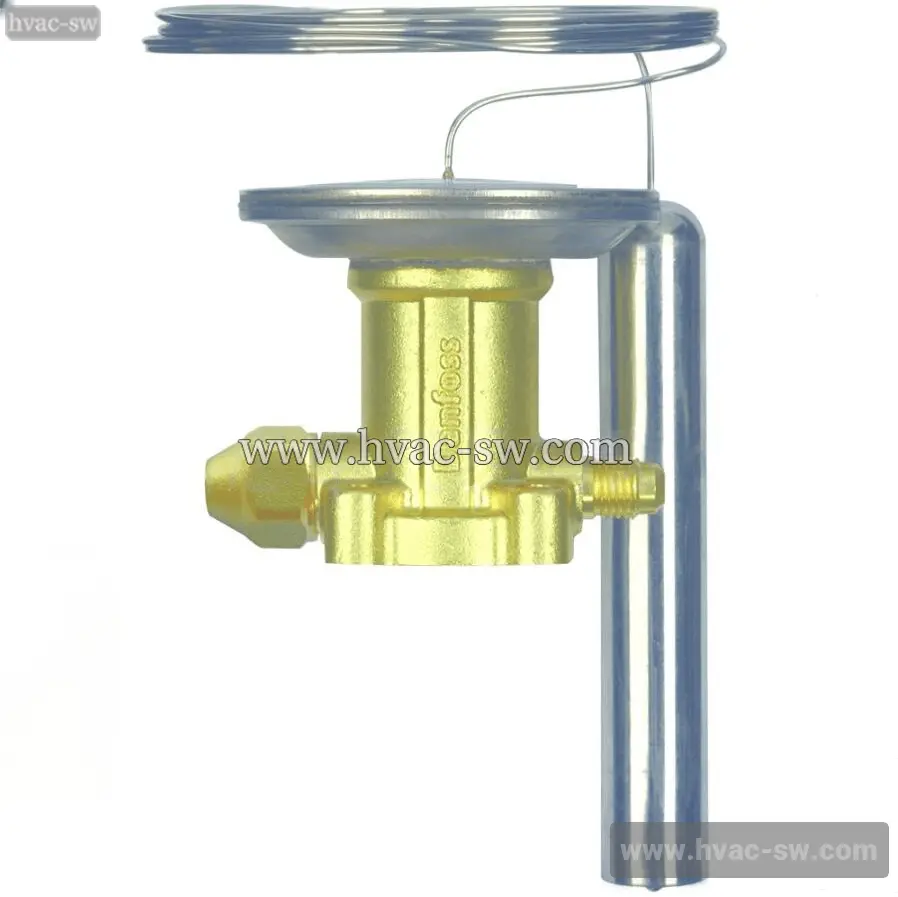

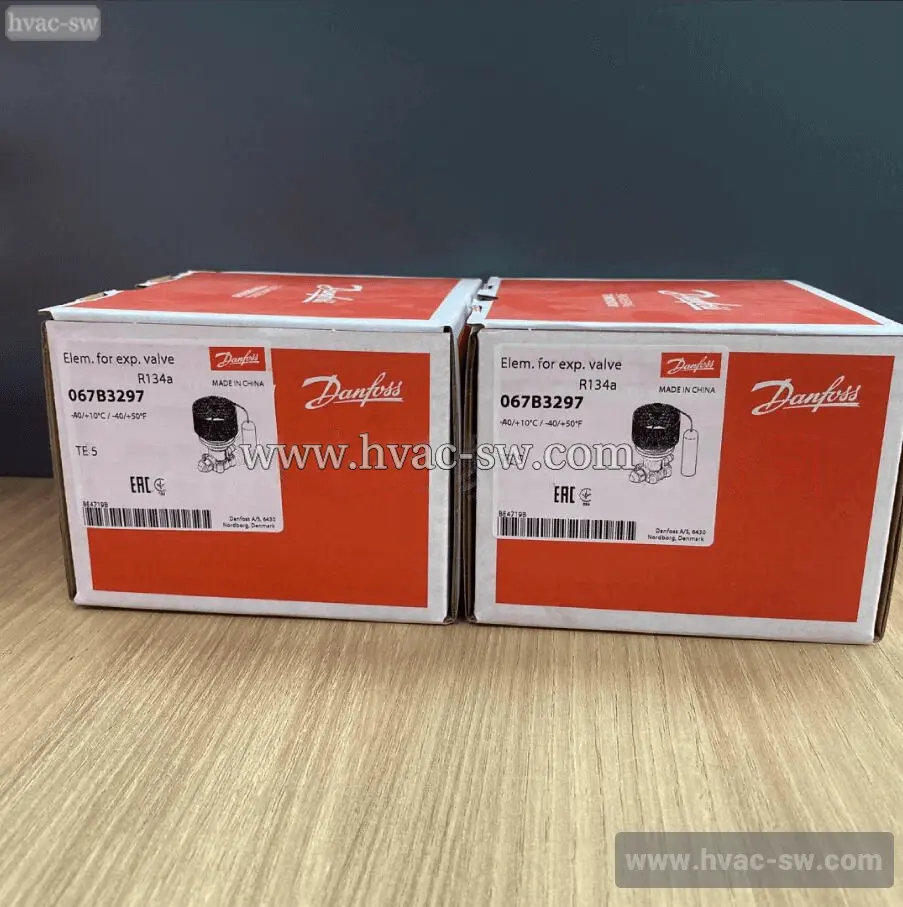

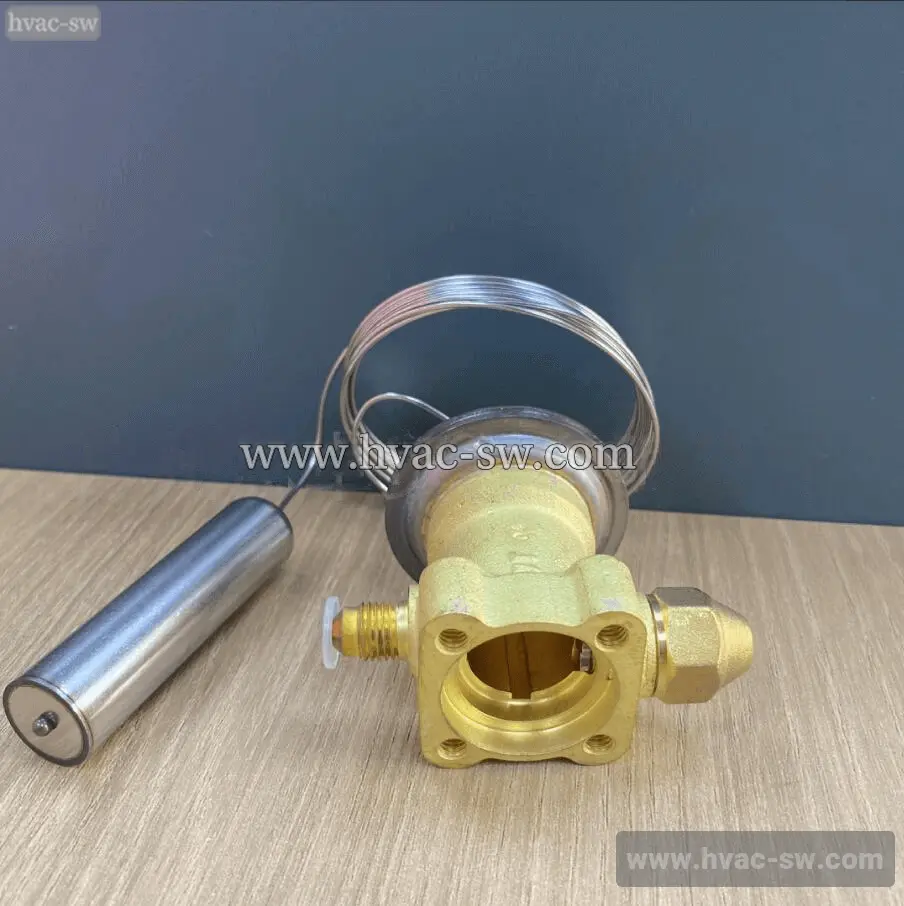

Danfoss 067B3297 Expansion Valve R134a Precise Control
The Danfoss 067B3297 thermostatic expansion valve, compatible with R134a refrigerant, ensures precise refrigerant flow control, optimal superheat, and enhanced system efficiency and reliability in refrigeration systems. This high-quality valve from Danfoss, with model number 067B3297, is designed to provide superior performance and durability.
Need help confirming this part?
Send us the part number, equipment model, nameplate information or a product photo. We can check available sourcing options, pricing and lead time.
Product Overview
| Model | Specification | Nominal Diameter (DN) (mm) | Nominal Pressure (PN) (MPa) | Body Material |
|---|---|---|---|---|
| TEN5 TE5 067B3297 067B3298 067B3360 R134A | DN22 | 2.8 | Copper | Welding |
| TE5 Valve Core | DN16 | 2.8 | Copper | Welding |
| Attribute | Value |
|---|---|
| Gross weight | 0.518 Kilogram |
| Net weight | 0.44 Kilogram |
| Volume | 1.71 Liter |
| EAN | 5702428094023 |
| Type | TE 5 |
| Product group | Expansion valves |
| Product Name Description | Element for expansion valve |
| Approval | EACLLC CDC TYSK |
| Body material | Brass |
| Capillary tube length [in] | 118 in |
| Capillary tube length [mm] | 3000 mm |
| China RoHS compliance | Yes |
| Contains batteries | No |
| Equalization connection type | Flare |
| Equalization size [in] | 1/4 in |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Max. Working Pressure [bar] | 28 bar |
| Max. Working Pressure [psig] | 400 psig |
| Packing format | Multi pack |
| Parts Program name | TE 5 |
| Pressure equalization | Externally equalized |
| Quantity per packing format | 12 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R134a |
| SCIP dossier no. | 7a4717a2-7803-4273-9d94-59ccfb927c1e |
| SCIP dossier product name | TE |
| Temperature range [°C] [max] | 10 °C |
| Temperature range [°C] [min] | -40 °C |
| Temperature range [°F] [max] | 50 °F |
| Temperature range [°F] [min] | -40 °F |
| Type designation | Element |
