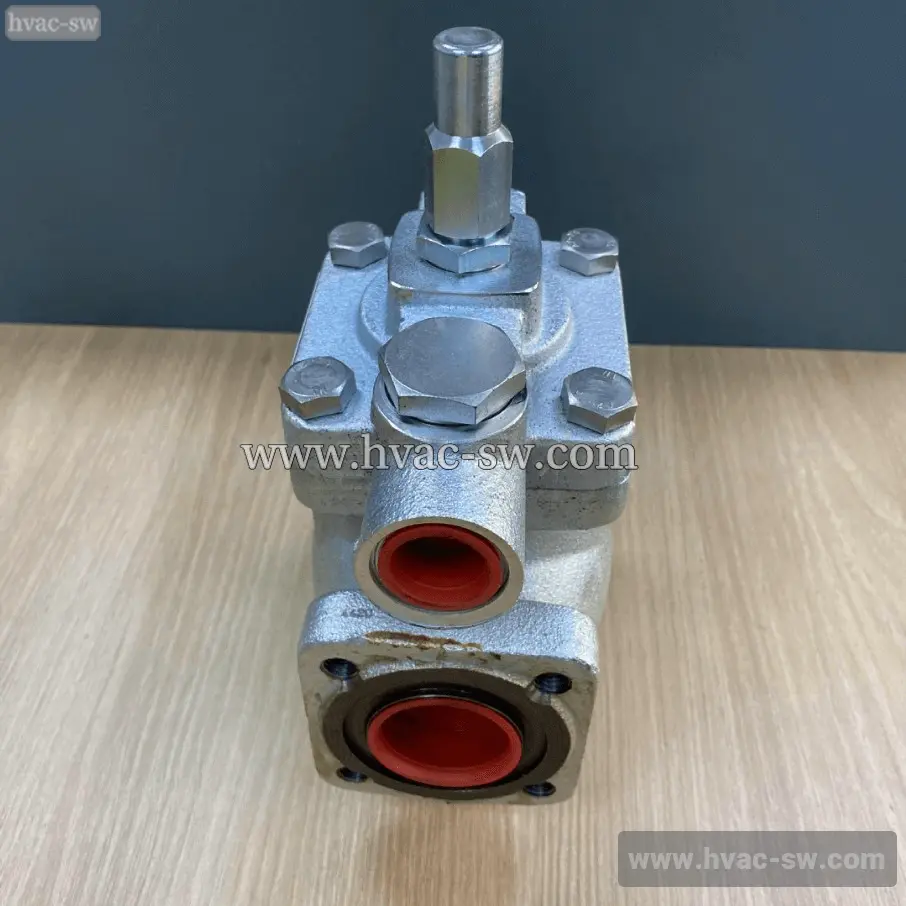

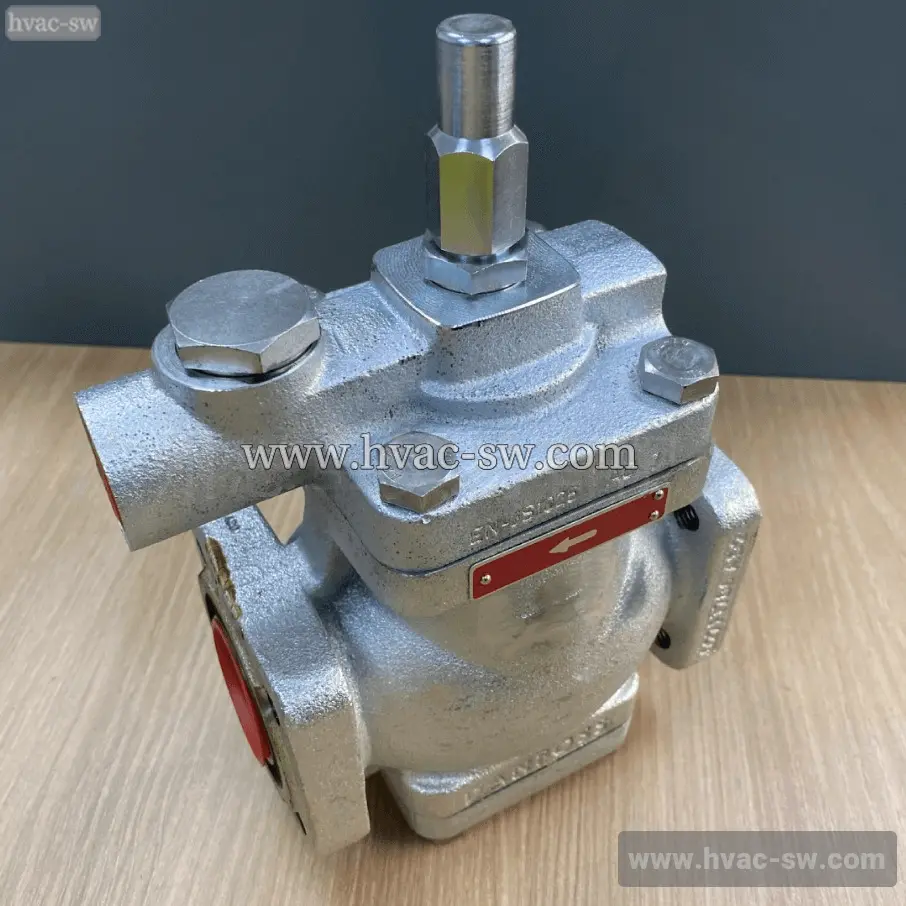

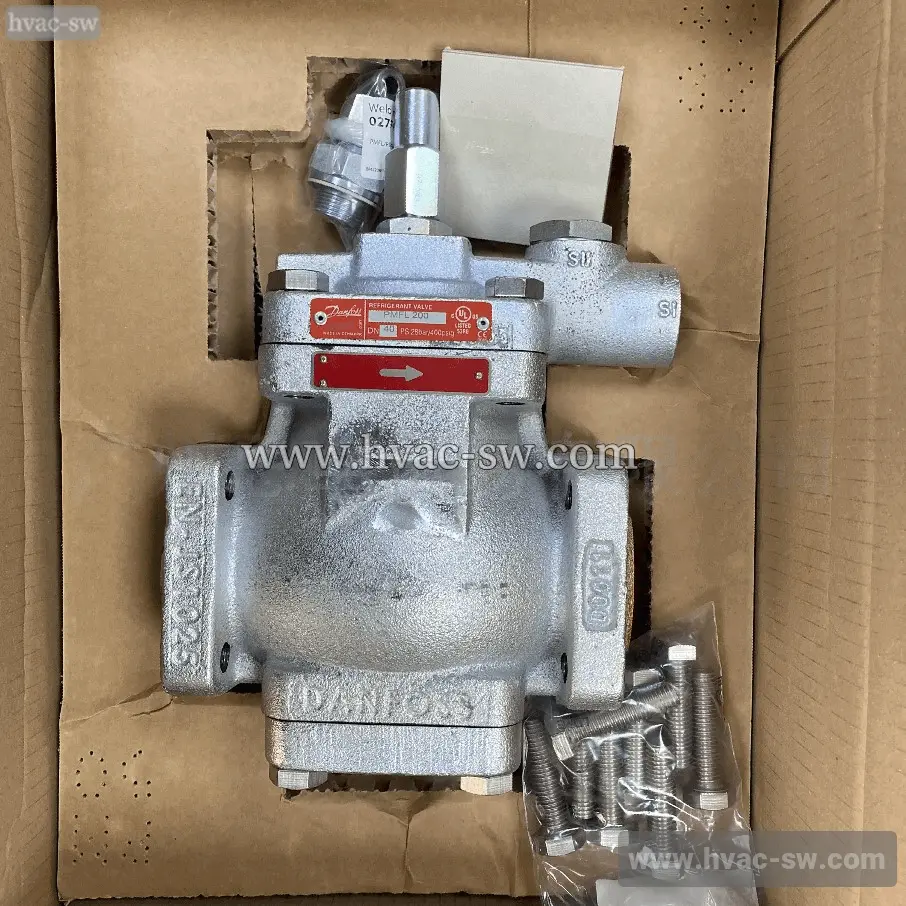

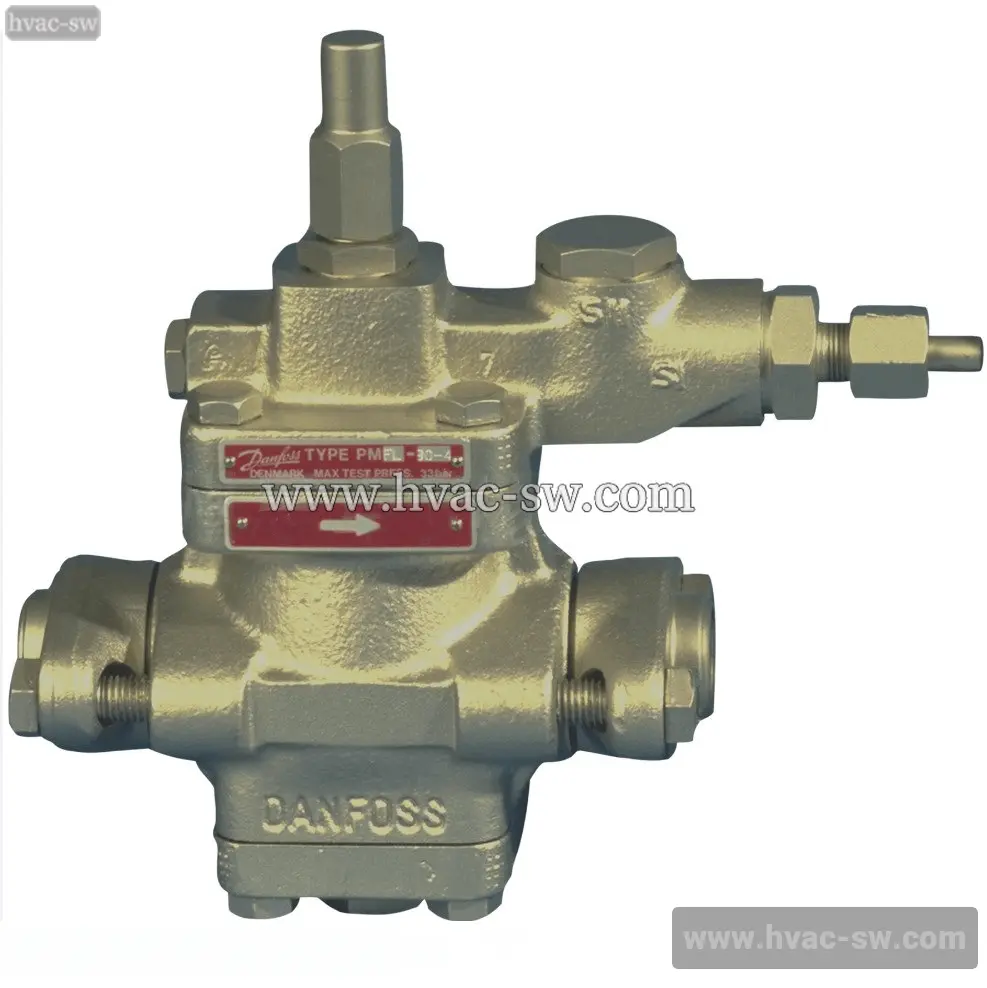

Danfoss 027F3062 PMFL200 High-Performance Servo Valve
Danfoss 027F3062 PMFL200 is a high-performance servo solenoid valve designed for precise flow control. Engineered for durability and reliable operation in demanding industrial and hydraulic applications, it ensures fast response times and consistent performance.
Need help confirming this part?
Send us the part number, equipment model, nameplate information or a product photo. We can check available sourcing options, pricing and lead time.
Product Overview
| Model | Nominal Diameter (DN) (mm) | Nominal Pressure (PN) (MPa) | Body Material | Connection Type | Appearance |
|---|---|---|---|---|---|
| PMFL80-PMFL500 | DN32 | 42 | Cast Steel | Flange | Medium |
| EVM 027B1120 Pilot Solenoid Valve | DN12 | 42 | Cast Steel | External Thread | Compact |
| Attribute | Value |
|---|---|
| Gross weight | 13.018 Kilogram |
| Net weight | 12.17 Kilogram |
| Volume | 17.772 Liter |
| EAN | 5702422170891 |
| Type | PMFL 200 |
| Product group | Liquid level regulating valves |
| Product Name Description | Liquid level regulating valve |
| Approval | CEEACLLC CDC TYSKUL |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Colour Paint | Cr3 / TLP |
| Contains batteries | No |
| EU RoHS compliance | Out of scope |
| Fluid Group | 1 |
| Inlet connection size [mm] | 42 mm |
| Max. Working Pressure [bar] | 28 bar |
| Max. Working Pressure [psig] | 406 psig |
| Packing format | Single pack |
| Parts included | Blanking plugFlange boltsFlange gasketsPilot connector |
| PED category | II |
| Product description | Liquid Level Control |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R134aR22R404AR407AR407BR407CR407FR410AR502R717R401AR402AR409AR421AR507A |
| SCIP dossier no. | b9a4d397-4040-40d8-bf76-2fbd22ec1ba4 |
| Temperature range [°C] [max] | 120 °C |
| Temperature range [°C] [min] | -60 °C |
| Temperature range [°F] [max] | 248 °F |
| Temperature range [°F] [min] | -76 °F |
| UL approval file name | REFRIGERANT VALVE 53R0 |
| UL evaluated | Yes |
