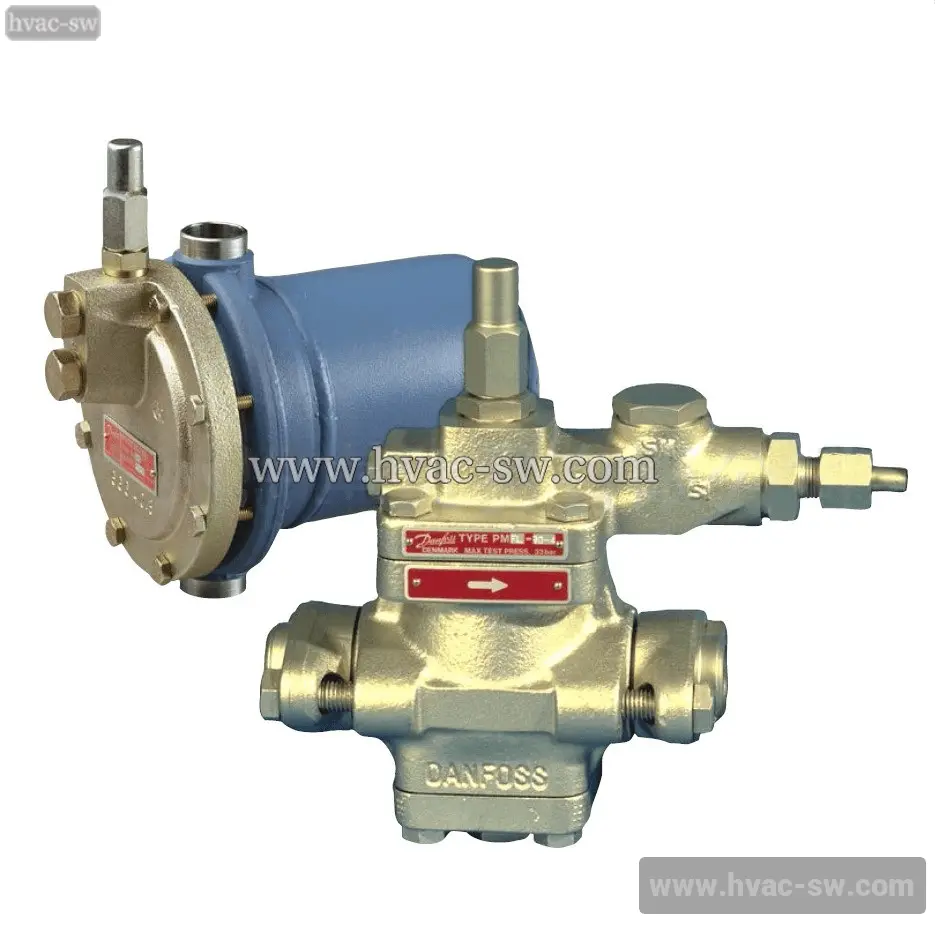

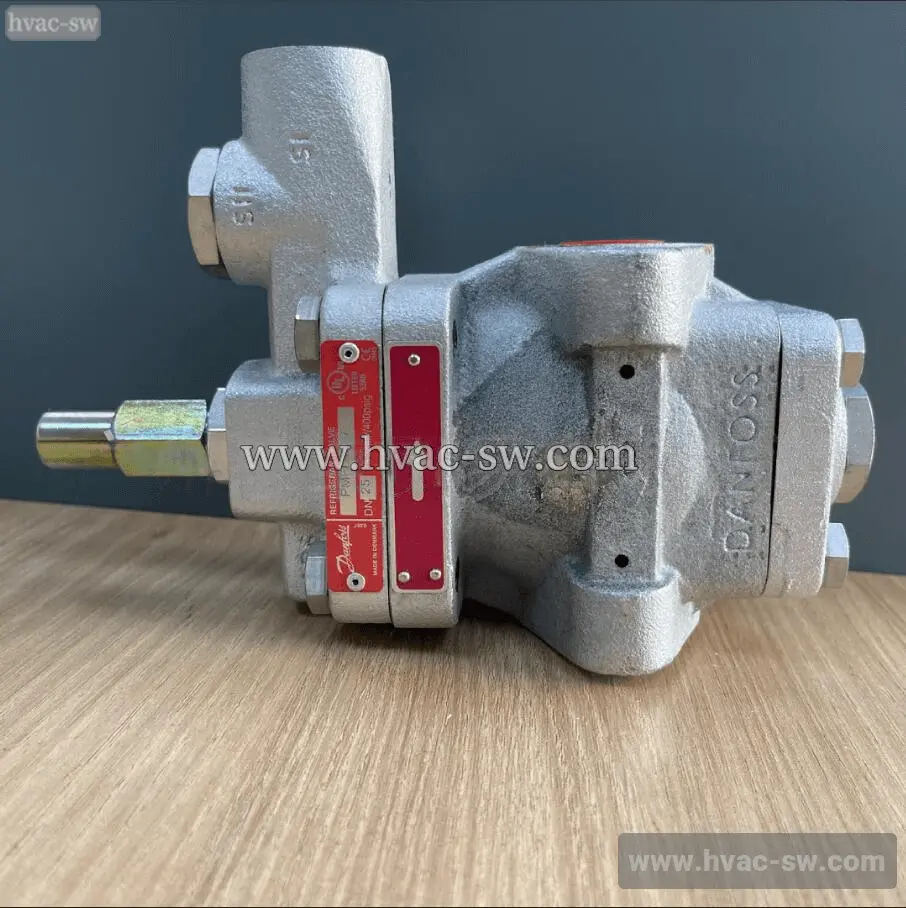

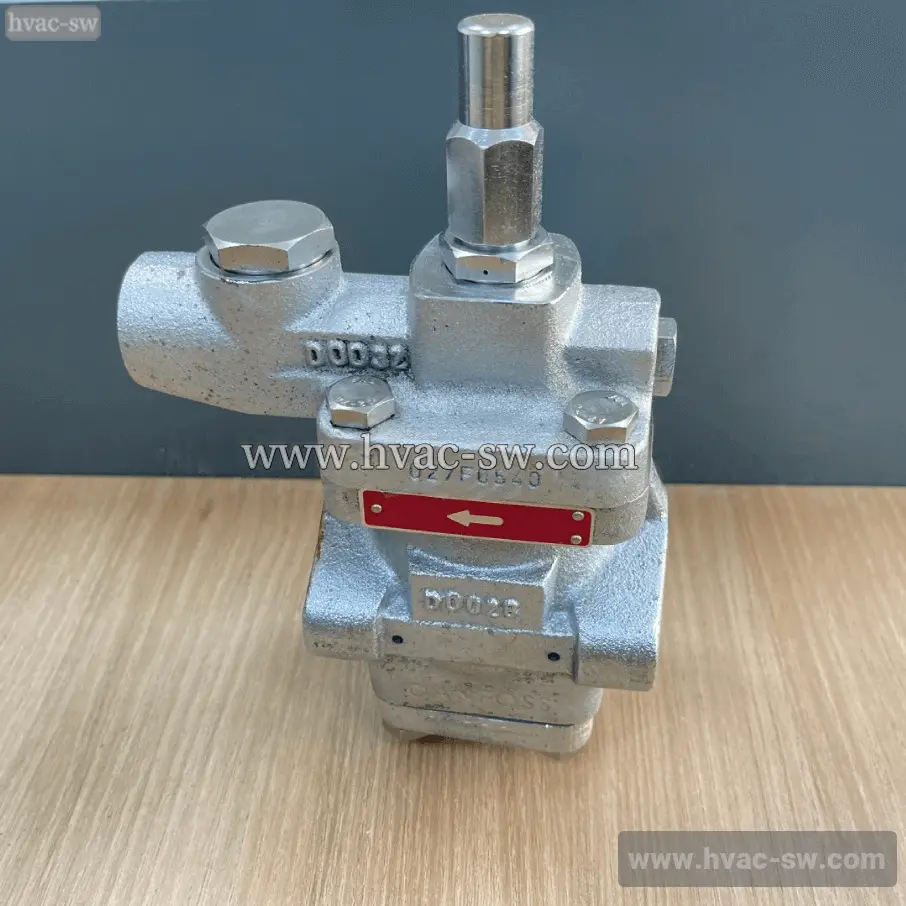

Danfoss PMFL80-7 Solenoid Valve For Refrigeration
Danfoss
Description
The Danfoss PMFL80-7 is a high-quality solenoid valve designed for reliable fluid control in industrial and commercial refrigeration systems. It offers precise on/off operation, ensuring efficient regulation of liquid and suction lines. Built for durability, this direct-acting valve provides excellent leak tightness and is suitable for a wide range of applications.
Product Details
| Specification | Nominal Diameter (DN) (mm) | Nominal Pressure (PN) (MPa) | Body Material | Connection Type | Appearance |
|---|---|---|---|---|---|
| PMFL80-1/PMFL80-2/PMFL80-3/PMFL80-4/PMFL80-5/PMFL | DN20 | 42 | Cast Steel | Flange | Medium |
| PMFL80-7 | DN25 | 42 | Cast Steel | Flange | Medium |
| PMFL200/PMFH200 | DN32 | 42 | Cast Steel | Flange | Medium |
| PMFL300/PMFH300 | DN40 | 42 | Cast Steel | Flange | Medium |
| PMFH80-1/2/3/4/5/6/7 | DN50 | 42 | Cast Steel | Flange | Medium |
| EVM 027B1120 Solenoid Pilot Valve | DN12 | 42 | Cast Steel | External Thread | Medium |
| Grossweight | 2.37Kilogram |
| Netweight | 1.889Kilogram |
| Volume | 6.248Liter |
| EAN | 5702428889520 |
| Type | ICAD1200A |
| Productgroup | Press.andtemp.regul.valves |
| ProductNameDescription | Actuator |
| Ambienttemperaturerange[°C][max] | 50°C |
| Ambienttemperaturerange[°C][min] | -30°C |
| Ambienttemperaturerange[°F][max] | 122°F |
| Ambienttemperaturerange[°F][min] | -22°F |
| Analoginputcurrentopt.[mA][max] | 20mA |
| Analoginputcurrentopt.[mA][min] | 4mA |
| AnaloginputVoltopt.[V]d.c[max] | 10V |
| AnaloginputVoltopt.[V]d.c[min] | 2V |
| Analogoutputoptions[mA][max] | 20mA |
| Analogoutputoptions[mA][min] | 4mA |
| Approval | CECRNEACLLCCDCTYSKUL |
| Cablelength[in] | 60in |
| Cablelength[m] | 1.5m |
| CEevaluated | Yes |
| Containsbatteries | No |
| Controlcablesize[AWG] | 7x~24AWG,Ø0.24in |
| Controlcablesize[mm2] | 7x0,25mm,Ø6mm |
| Dig.Output-Extsupply[V]d.c[max] | 24V |
| Dig.Output-Extsupply[V]d.c[min] | 5V |
| DigitalOutput-Load[Ohm] | 50Ohm |
| DigitalOutput-MaxLoad[mA] | 50mA |
| Digitaloutputs(DO)[pc] | 3pc |
| Displaytype | LCD |
| EnclosureratingIP | IP67 |
| EnclosureratingNema(~) | 6 |
| Function | Digitaloutput |
| LoadAnaloginputCurrent[Ohm] | 200Ohm |
| LoadAnaloginputVoltage[Ohm] | 10000Ohm |
| LoadAnalogoutputmax[Ohm] | 250Ohm |
| Outputconfiguration | NPNTransistor |
| Packingformat | Singlepack |
| PartsProgramname | ICM |
| Productdescription | Actuator |
| Quantityperpackingformat | 1pc |
| SCIPdossierproductname | ICAD |
| Supplycablesize[AWG] | 3x~22AWG,Ø0.19in |
| Supplycablesize[mm2] | 3x0,34mm,Ø4,8mm |
| Supplyvoltage[V]DC | 24V |
| Supplyvoltageload[A] | 2A |
| Supplyvoltagetolerance[%][max] | 10% |
| Supplyvoltagetolerance[%][min] | -15% |
| Temperaturerange[°C][max] | 50°C |
| Temperaturerange[°C][min] | -30°C |
| Temperaturerange[°F][max] | 122°F |
| Temperaturerange[°F][min] | -22°F |
| ULapprovalfilename | REFRIGERANTVALVE53R0 |
| ULevaluated | Yes |
