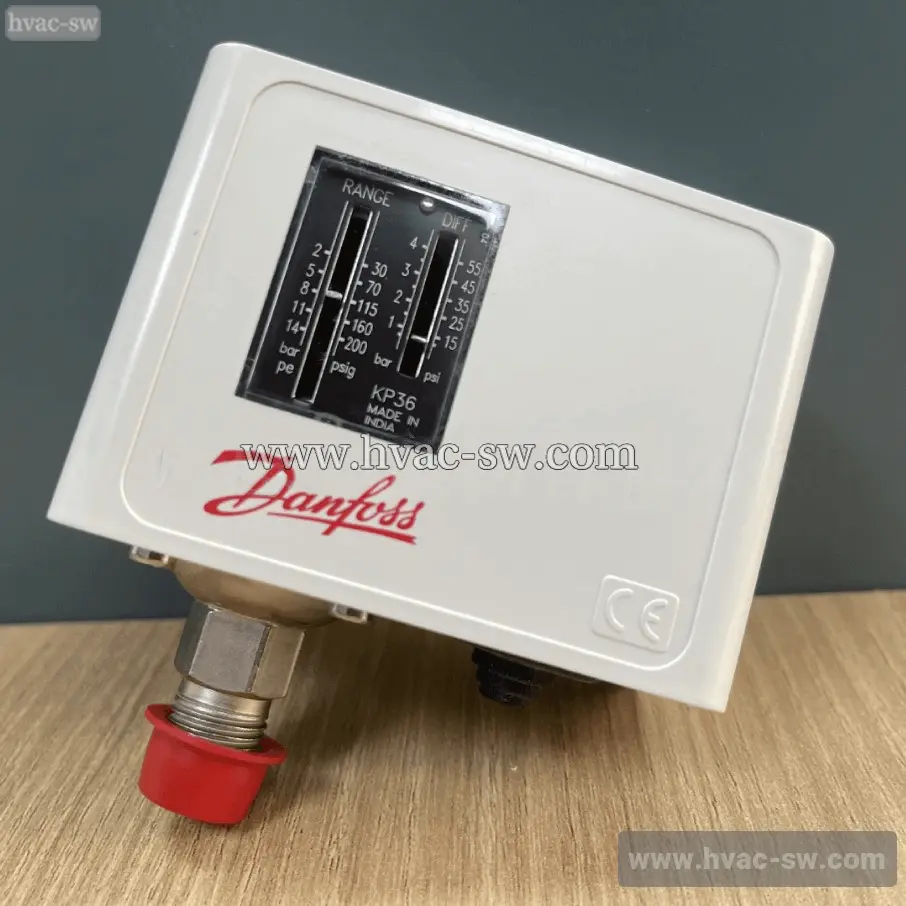

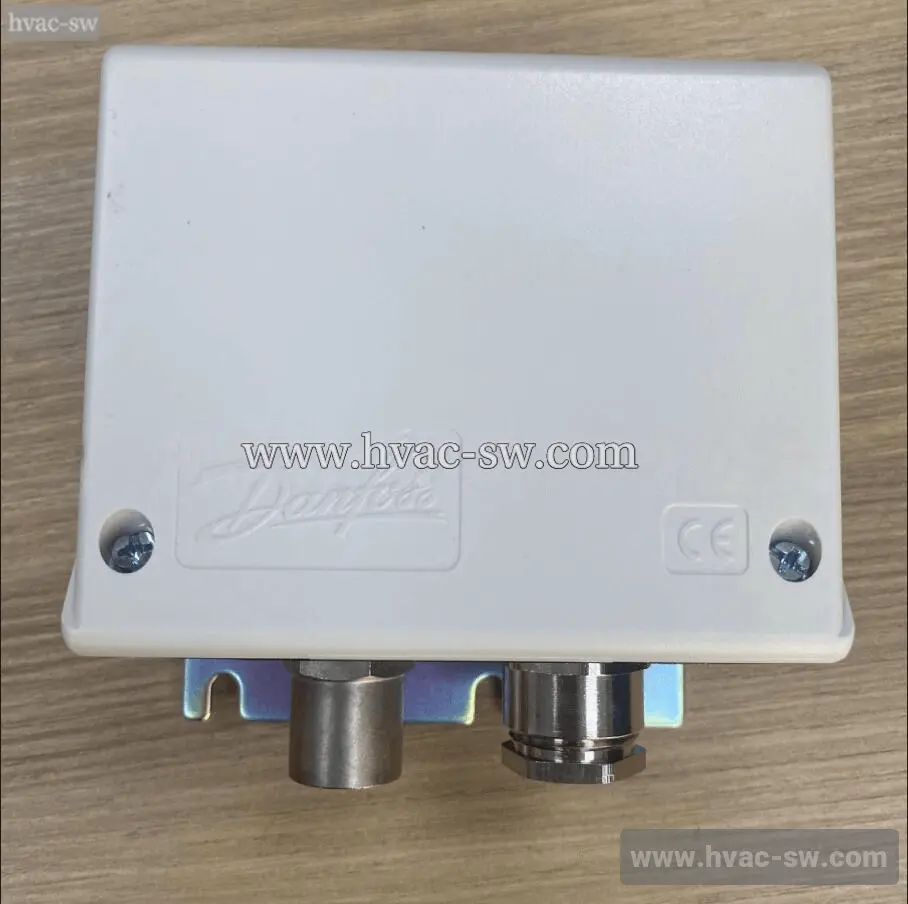

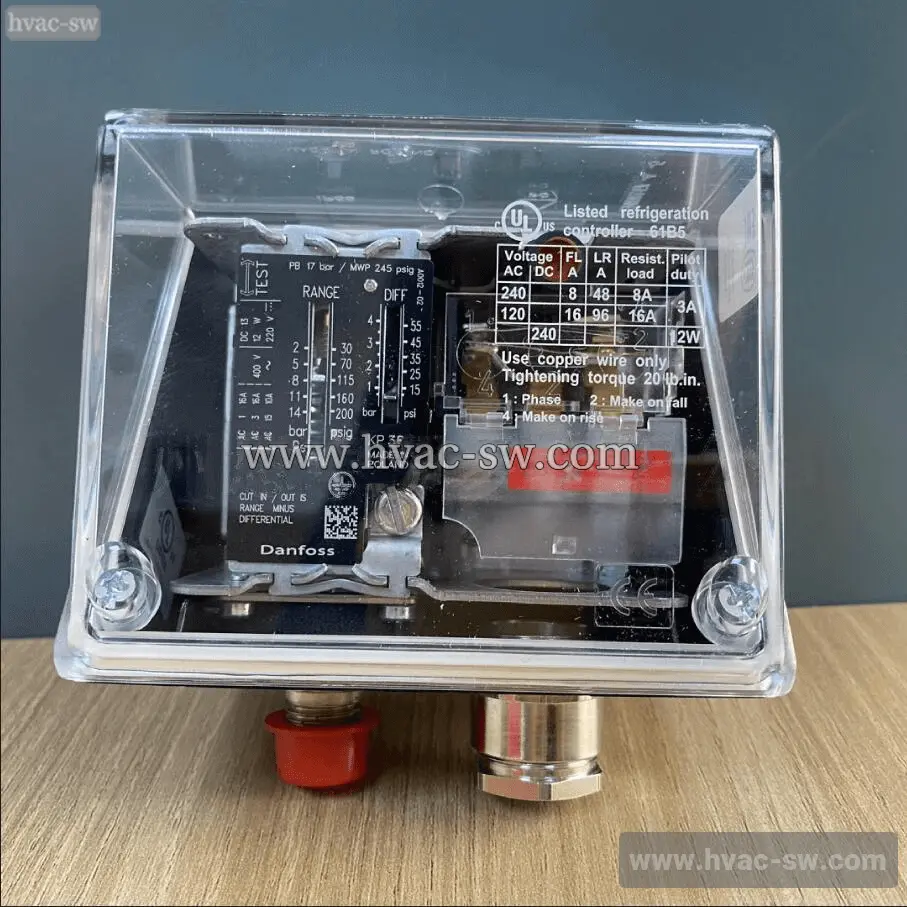

Danfoss KP34 KP36 KP37 Pressure Controller
Danfoss
Description
The Danfoss KP34, KP36, and KP37 CS are robust pressure controllers designed for reliable operation in industrial refrigeration and air conditioning systems. These compact units ensure system safety and efficiency through accurate switching and high-performance thresholds.
Product Details
| Specification | Nominal Diameter (DN) (mm) | Nominal Pressure (PN) (MPa) | Body Material | Connection Type | Appearance |
|---|---|---|---|---|---|
| PMFL80-4 027F3057 DN25 PMFH80-4 | DN25 | 4.2 | Cast Steel | Flange | Medium |
| EVM 027B1120 | DN12 | 42 | Cast Steel | External Thread | Medium |
| Attribute | Value |
|---|---|
| Gross weight | 0.67 Kilogram |
| Net weight | 0.632 Kilogram |
| Volume | 1.192 Liter |
| EAN | 5702428529525 |

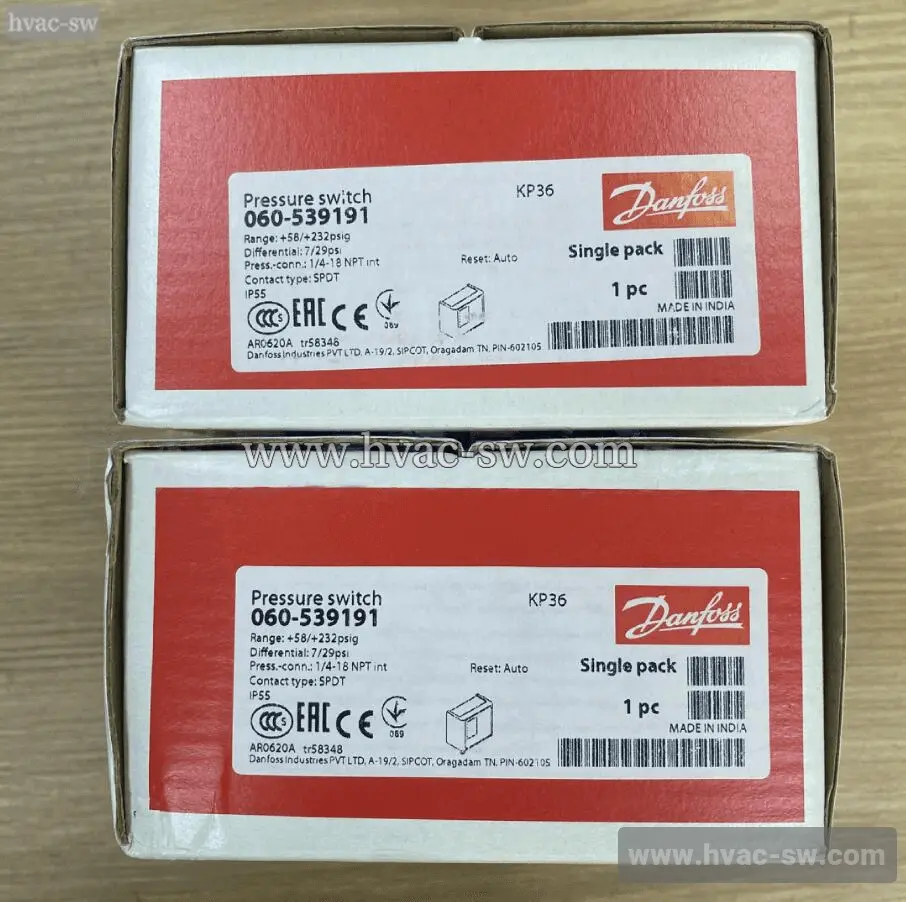

| Type | KP36 |
| Product group | Switches and thermostats |
| Product Name Description | Pressure switch |
| Amb. Temp. Note | 80 °C/176 °F for max 120 min |
| Ambient temperature range [°C] [max] | 65 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 149 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | CCCCEEACLLC CDC EURO-TYSKLVDRINARMRSRoHS Chinac UL us UL353, CS C22.2c UL us UL873, CS C22.2 |
| CE evaluated | Yes |
| China RoHS compliance | Yes |
| Contact function | SPDT |
| Contact rating | AC15=10 A, 400 VAC1=16 A, 400 VAC3=16 A, 400 VDC13=12 W, 220 VLR=112 A, 400 V |
| Contains batteries | No |
| Differential [bar] [max] | 2 bar |
| Differential [bar] [min] | 0.5 bar |
| Differential [psi] [max] | 29 psi |
| Differential [psi] [min] | 7 psi |
| Electrical conn. comments | Metal cable gland |
| Electrical conn. Male/Female | Female |
| Electrical connection | Screwed cable entry |
| Electrical connection size | Pg 13.5 |
| Electrical connection standard | DIN 40430 |
| EN 60947 electrical properties | Insulation: 400VPollution degree: 3Rated impulse voltage: 4 kVShort circuit prot, fuse: 16A |
| EN 60947 wiring properties | Flex, ferrules: 0.5-1.5 mm2Flex, no ferrules: 0.7-2.5 mm2Solid/stranded: 0.75-2.5 mm2 |
| Enclosure rating IP | IP55 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Max. test pressure [bar] Pe | 18 bar |
| Max. test pressure [psig] | 261 psig |
| Max. Working Pressure [bar] | 18 bar |
| Max. Working Pressure [psig] | 261 psig |
| Packing format | Multi pack |
| Pressure connection size | 1/4-18 |
| Pressure connection standard | ANSI/ASME B1.20.1 |
| Pressure connection type | NPT |
| Pressure Male/Female | Female |
| Pressure sensing element | Bellows |
| Product accessories | Switches accessories |
| Product description | Pressure Switch |
| Quantity per packing format | 18 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1)Cadmium oxide (CAS no.1306-19-0) |
| Regulation range [bar] Pe [max] | 16 bar |
| Regulation range [bar] Pe [min] | 4 bar |
| Regulation range [psig] Pe [max] | 232 psig |
| Regulation range [psig] Pe [min] | 58 psig |
| Reset function | Auto |
| SCIP dossier no. | 1b8fc5ed-65e2-48fc-8738-8cce613a9786 |
| SCIP dossier product name | KP KPI |
| Serviceable | No |
| UL approval file name | E31024MH27572 |
| UL evaluated | Yes |
